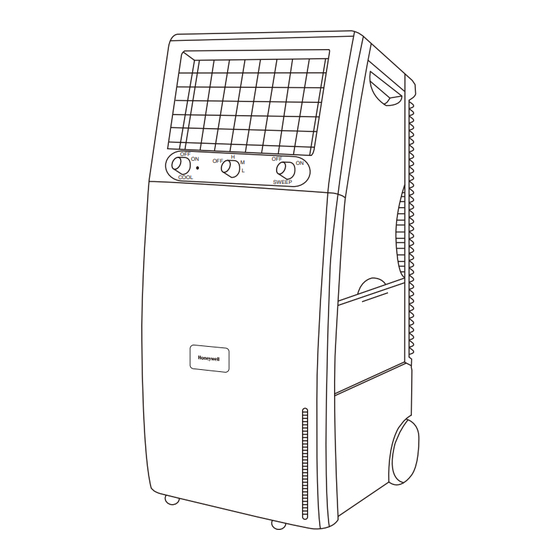

Portable Evaporative Air Cooler
OWNER'S MANUAL
Read and save these instructions before use
OFF
H
ON
OFF
OFF
M
ON
L
COOL
SWEEP
Model: CL15AM
Power rating: 95 Watts
Voltage rating:
230 Volt, 50Hz
Made in P.R.C.

Advertisement

   Also See for Honeywell CL15AM

   Related Manuals for Honeywell CL15AM

   Summary of Contents for Honeywell CL15AM

  • Page 1 Portable Evaporative Air Cooler OWNER’S MANUAL Read and save these instructions before use COOL SWEEP Model: CL15AM Power rating: 95 Watts Voltage rating: 230 Volt, 50Hz Made in P.R.C.
  • Page 2 QUICK START GUIDE Fill with water and plug into a standard power outlet. Note: Please make sure the household power voltage matches the product specifications. Place near an open door or window. Note : Evaporative air cooler requires cross ventilation. Turn ON and enjoy the cooling breeze.
  • Page 3: Table Of Contents

    INDEX Read all instructions carefully before setting up and operating the cooler, and please keep this instruction manual for future reference. This manual is designed to provide you with important information needed to setup, operate, maintain, and troubleshoot your cooler. Failure to follow these instructions may damage and/or impair its operation and void the warranty.
  • Page 4: Thank You

    THANK YOU Congratulations on your purchase of this versatile Honeywell Evaporative Air Cooler. For optimum cooling from your cooler, fill the water tank to maximum level and load ice inside the ice compartment before you turn on your air cooler.
  • Page 5: User Tips

    USER TIPS Energy efficient, No compressor Honeywell Evaporative Air Coolers are built to maximize energy efficiency and keep costs low. Warm air is drawn into the cooler through a dust and odor-reducing carbon filter and enters the Honeycomb Cooling Media. Water pumped from the tank pours over the honeycomb media. As the warm air passes through the media, the water absorbs the heat, naturally cooling and humidi- fying the air.
  • Page 6 USER TIPS The recommended maximum relative humidity level is 60% or less, which allows a noticeable temperature decrease. The temperature decrease will be greater in drier climates because higher evaporation occurs when the humidity is low. The evaporative air cooler should not be used in enclosed spaces.
  • Page 7: Safety

    SAFETY READ AND SAVE THESE INSTRUCTIONS: When using electrical appliances, basic safety precautions should always be followed: Your cooler runs on 230 Volt AC, 50 Hz current. Check the • household voltage to ensure it matches the appliance's rate 230V AC 50Hz specification.
  • Page 8 SAFETY • DO NOT attempt to repair or adjust any electrical or mechani- cal functions of the cooler, as this may void the warranty. • DO NOT cover the air inlet or outlet on the appliance as this COOL may cause motor damage. SWEEP •...
  • Page 9: Parts Description

    PARTS DESCRIPTION COOL SWEEP 10 Rear Panel Grill 1 Outlet Louvers 11 Right Side Panel (Horizontal-Manual & 12 Air Inlet Louvers Vertical-Automatic Swing) 13 Honeycomb Media 2 Control Panel 14 Water Tank (Cannot be Removed) 3 Front Panel 4 Front Casters / Wheels 15 Rear Casters / Wheel 16 Water Drain Plug 5 Side Handle...
  • Page 10: Use & Operation

    USE & OPERATION FUNCTION KNOBS COOL SWING COOL To begin cooling the desired area, turn the knob to the ON position. The pump starts operating after turning the knob to this postion. You will feel cooler air after the Honeycomb media is completely wet.
  • Page 11 USE & OPERATION FUNCTION KNOBS SWING This knob is provided with two options, ON and OFF. Turning the knob to the ON position will start the movement of the vertical louvers. This movement is automatic. You can also manually adjust the horizontal louvers to the desired air flow. SWING LOW WATER WARNING SIGNAL LOUVERS MOVEMENT...
  • Page 12: Filling Water

    USE & OPERATION CAUTION Unplug from power when refilling. FILLING WATER Unplug the air cooler from power supply. Check water level indicator located on the front of the unit to determine the level of water inside the water tank. The water tank of this cooler holds up to 15 Litres of water.
  • Page 13: Cleaning & Maintenance

    CLEANING & MAINTENANCE IMPORTANT • The cooler is supplied with Honeycomb Cooling Media. • The cleaning frequency for the Honeycomb media depends on local air and water conditions. In areas where the mineral content of water is high, mineral deposits may build up on the Honeycomb Cooling Media and restrict air flow.
  • Page 14 CLEANING & MAINTENANCE DRAINING AND CLEANING THE WATER TANK • Turn the power “off” and disconnect the air cooler from the power supply. • Move the unit to a location where it can be drained. • Remove the cap from the water drain plug and allow the tank to empty (see parts description on page 7).
  • Page 15: Troubleshooting Guide

    TROUBLESHOOTING GUIDE PROBLEM POSSIBLE CAUSE SOLUTION No discharge of air Cord is not plugged in. Make sure power cord is plugged in and the supply switch is on. Power is not on. Turn the unit ON by pressing buttons on the control panel. Not Cooling / Unit is Pump is not turned ON.
  • Page 16: Technical Specifications

    TECHNICAL SPECIFICATIONS MODEL NO. CL15AM Voltage 230V 50Hz Frequency 95 Watts Wattage Water Tank Capacity 15 Liters Cooling Media Honeycomb Product Dimension 380(L) x 380(W) x 795(H) mm 9.6 Kg Net Weight ELECTRICAL WIRING DIAGRAM 230V 50Hz...
  • Page 17 © 2012 AirTek International Corporation Limited The Honeywell Trademark is used under license from Honeywell International Inc. Honeywell International Inc. makes no representation or warranties with respect to this product. Manufactured by AirTek International Corporation Limited.
