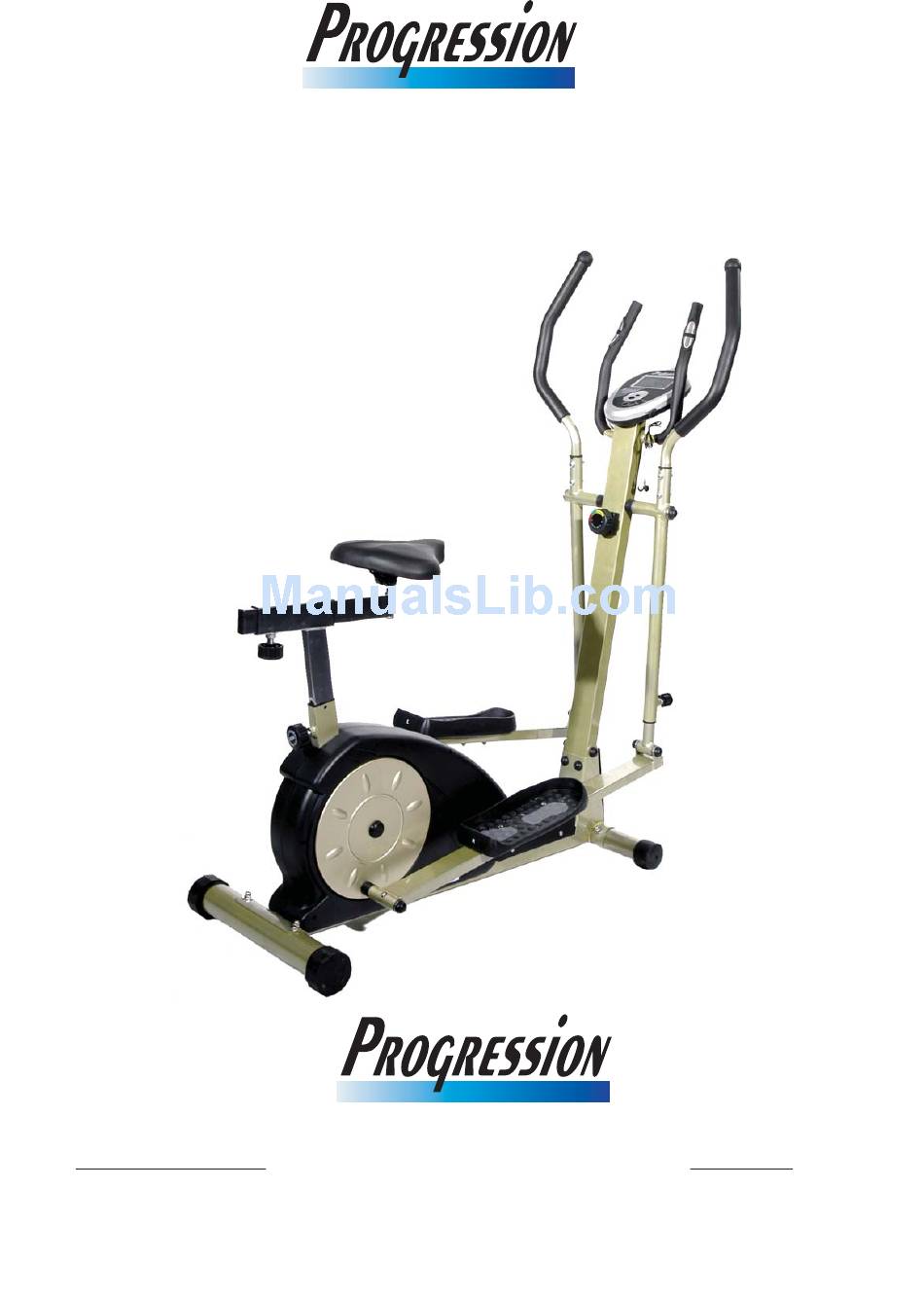

- Page 1 Fitness ™ TK1202 Magnetic Bike/Elliptical OWNER’S MANUAL Fitness ™ SASKATCHEWAN ALBERTA 120 Robin Crescent 8910 Yellowhead Trail Saskatoon, Saskatchewan Edmonton, Alberta (306) 978-1999 (780) 474-2222 Toll Free 1-866-978-1999 Toll Free 1-877-352-6263...
- Page 2 STOP the workout at once. CONSULT A PHYSICIAN IMMEDIATELY. 4. Position the Progression TK1202 on a large mat over a clear, level surface. DO NOT use near water or outdoors. 5. Always wear appropriate workout clothing when exercising.
- Page 3 - 3 -...
-
Page 4: Parts List
Parts List Part Description Part Description Main frame Plastic sleeve Rear stabilizer Washer φ25.2x2xφ38 Carriage bolt M8 x 70 Bushing Front plug Computer End Cap Foam grips Curved washer Spring knob Cap nut M8 Hand pulse sensor Pedal Washer Bushing Safety handle bar C clip d16 Plug... -
Page 5: Assembly Instructions
Assembly Instructions This manual is designed to help you easily assemble, adjust and use your exercise machine. Please read this manual carefully. Read ahead before you start: study the overview drawings to familiarize yourself with the parts identified in the instructions. Set all the parts in a clear area on the floor. - Page 6 NOTE: Ensure the bolts are securely fastened to avoid shaking and discomfort when exercising. STEP 3. ATTACH PEDAL TUBE & PEDAL&SEAT • Attach two crank arms (11) to the crank axle on the frame (1). If necessary, use a rubber mallet to tap each crank into place. Put a toothed washer (14) on the crank axle, securing it with a friction nut (12 R&L).
- Page 7 STEP 4. ATTACH THE SAFETY HANDLEBAR • Attach safety handlebar (45) to the handlebar post (53) and secure with two washers (44), and two hexagonal bolts (34). STEP 5. ATTACH THE HANDLEBARS • Insert two upper handle bars (36R&L) into the middle handle bars (26R&L), then secure them with four curve (6) washers, four cap nuts (31) and four hexagonal bolts (30).
- Page 8 STEP 6. ATTACH COMPUTER • Hold the computer (40) in hand. Make sure the batteries are correctly installed into the computer. First connect upper sensor wire (54a) to the computer. Then, plug hand pulse (43a) cable into the computer. • Tuck all extra lengths of the upper sensor wire (54a) into the handle bar post (53).
- Page 9 both that needs to be preset, a “set” will flash on the setting window, - 9 -...
