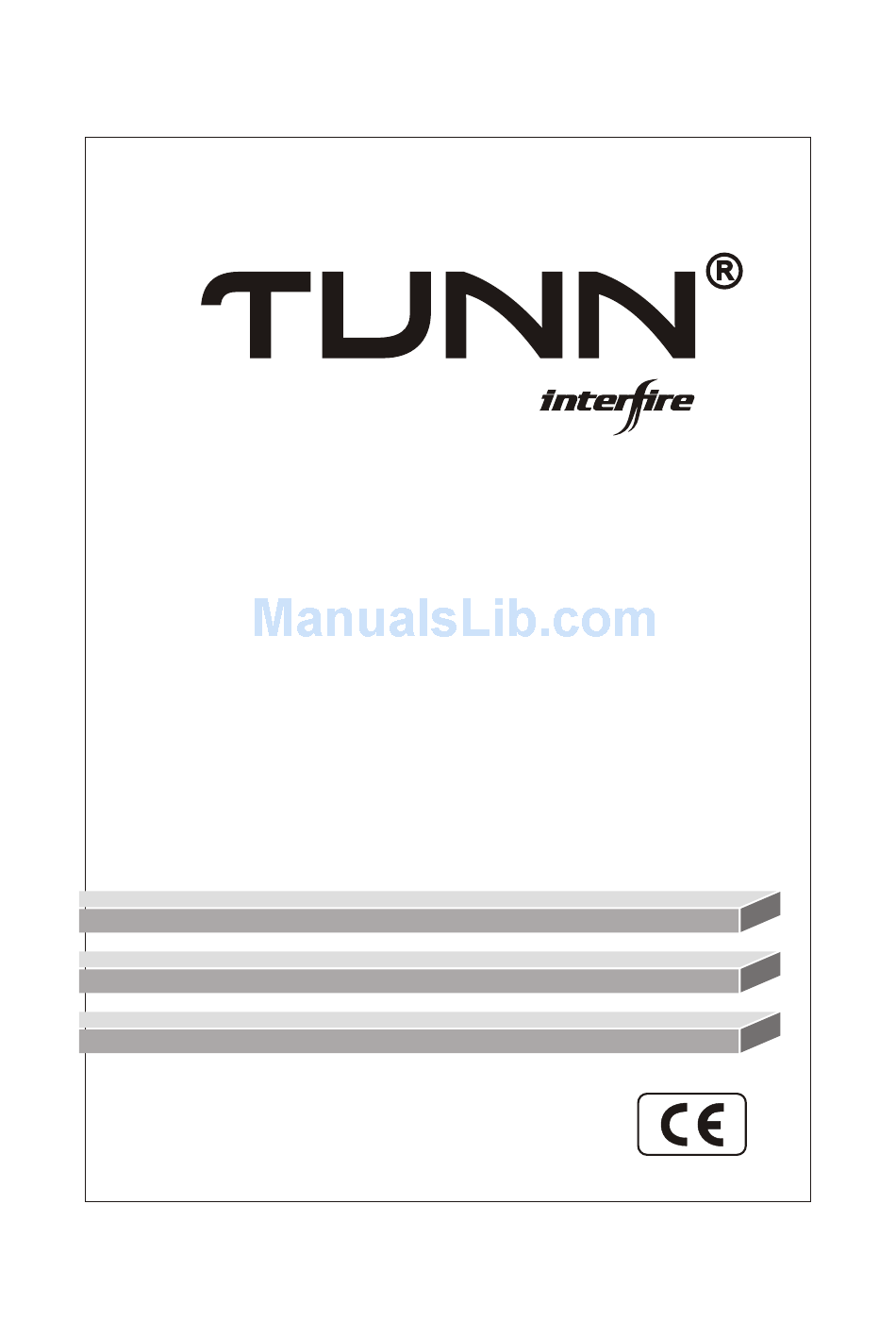

- Page 1 MONO CHANNEL / 2 CHANNEL / 4 CHANNEL AUTOMOTIVE AMPLIFIER T-1000M T-270 / T-2100 / T-2130 T-460 / T-480 INSTRUCTION MANUAL...
-
Page 3: Features
Congratulations on your Purchase Your new high fidelity bridgeable/stereo amplifier is designed to deliver maximum enjoy ment and one year of trouble free service. Please take a few moments to read this manual thoroughly. It will explain the features and operation of your unit and help insure trouble free installation. - Page 4 • NEVER operate the amplifier without the proper power and ground wire, 10 gauge minimum. • NEVER operate the amplifier without proper fusing. Fuse holder must be located with in 0.5 meters from the battery. This fuse is to protect the car not the electronics. In case of a short, the fuse will blow instead of the wire burning up.
-
Page 5: Installation Diagram
INSTALLATION MOUNTING: 1. After reading precaution, decide where you are going to install the unit. Also, see Fig.1. 2. Once the location has been determined, place the amplifier into position. Using a felt tip pen or pencil mark the four holes to be drilled for mounting. NEVER use the amplifier as a template for drilling. -
Page 6: Input Connections
CONNECTIONS INPUT CONNECTIONS This amplifier will accept low level inputs only. Low level is the same as line level. The low level signal is carried through RCA cables. It is preferred to use low level inputs to the amplifier if the head unit is equipped with the low level outputs. If not, you can use a "high to low converter"... -
Page 7: Mono Channel System Wiring Diagram
MONO CHANNEL SYSTEM WIRING DIAGRAM LINE IN GAIN PHASE 0.2V REMOCON LINE OUT BASS L.P.F 0dB 12dB 50Hz 250Hz CAR STEREO HEAD UNIT FIG.2... -
Page 8: 2 Channel System Wiring Diagram
2 CHANNEL SYSTEM WIRING DIAGRAM LINE IN GAIN 0.2V 0dB 12dB REMOCON LINE OUT BASS L.P.F H.P.F L.P.F H.P.F 50Hz 250Hz 80Hz 1.2KHz FLAT CROSSOVER CAR STEREO HEAD UNIT FIG.2... -
Page 9: 4 Channel System Wiring Diagram
4 CHANNEL SYSTEM WIRING DIAGRAM LINE IN GAIN BASS 6V 0.2V 0dB 12dB LINE IN CROSSOVER CROSSOVER BASS GAIN L.P.F H.P.F H.P.F L.P.F FLAT 50Hz 500Hz 50Hz 500Hz FLAT 0dB 12dB 0.2V CH 1/2 CH 3/4 CAR STEREO HEAD UNIT FIG.2... -
Page 10: Speaker Connections
SPEAKER CONNECTIONS This amplifier can operate in one, two or three channel mode. The minimum impedance for single channel (bridged/mono) operation is 4 or 8 ohms. Tri channel power is referred to stereo and mono at the same time. Minimum impedance remains the same for three channel (front /subwoofer) systems as long as proper passive crossovers are used. - Page 11 SPEAKER CONNECTIONS 2 CH SPEAKER WIRING DIAGRAM 1 SPEAKER BRIDGED POWER PROTECT 2 SPEAKER STEREO POWER PROTECT 3 SPEAKER TRI MODE POWER PROTECT FUSE BRIDGED SPEAKER 4 - 8 Ohm FUSE BRIDGED SPEAKER 2 - 4 Ohm 1 CH 2 CH FUSE BRIDGED SPEAKER...
- Page 12 SPEAKER CONNECTIONS 4 CH SPEAKER WIRING DIAGRAM 2 SPEAKER BRIDGED POWER PROTECT 2 SPEAKER + 1 SUBWOOFER POWER PROTECT 4 SPEAKER STEREO POWER PROTECT 6 SPEAKER HEX MODE POWER PROTECT FUSE BRIDGED SPEAKER 4-8 Ohms 2 CH 1 CH FUSE BRIDGED SPEAKER 2-4 Ohms...
- Page 13 ADJUSTMENTS 1.Set to the "H.P.F" position when the amplifier is used to drive a tweeter/midrange system. The frequencies below the crossover point will be attenuated at 12dB/octave. Permits adjustment of the crossover frequency ,by rotating the knob to select any frequency between 80Hz to 1.2kHz &...
-
Page 14: Front/Rear Panel Overview

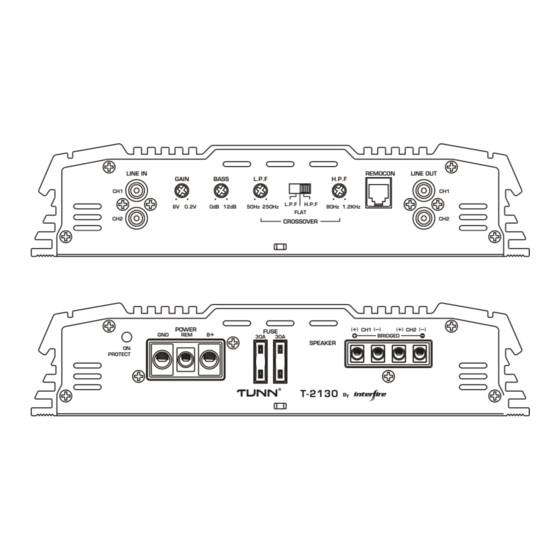

FRONT/REAR PANEL 2CHANNEL LINE IN T-270,T-2100 PROTECT T-270 PROTECT T-2100 LINE IN T-2130 PROTECT T-2130 GAIN BASS L.P.F H.P.F L.P.F H.P.F 0.2V 0dB 12dB 50Hz 250Hz 80Hz 1.2KHz FLAT CROSSOVER POWER FUSE BRIDGED SPEAKER TUNN T-270 POWER FUSE BRIDGED SPEAKER TUNN T-2100 REMOCON... - Page 15 FRONT/REAR PANEL 4CHANNEL LINE IN 6V 0.2V T-460, T-480 PROTECT T-460 PROTECT T-480 MONO CHANNEL LINE IN T-1000M PROTECT T-1000M CROSSOVER CROSSOVER GAIN BASS BASS GAIN L.P.F H.P.F H.P.F L.P.F 0dB 12dB FLAT 50Hz 500Hz 50Hz 500Hz FLAT 0dB 12dB 0.2V CH 1/2 CH 3/4...
-
Page 16: Troubleshooting Guide
TROUBLE SHOOTING GUIDE. This section provides you with a catalog of amplifier symptoms and their probable causes and solutions. Before you consult this listing, make sure the vehicle's electrical system is working properly by verifying that other electrical items (e. g. headlights, windows, etc.) Still function correctly. -
Page 17: Specification
SPECIFICATION SPECIFICATION Output Power Rating RMS Channel Total Max Power 4 Ohm at 14.4V 0.3%THD ( RMS ) 4 Ohm at 14.4V ( MAX ) 2 Ohm at 14.4V 0.3%THD ( RMS ) 2 Ohm at 14.4V ( MAX ) 1 Ohm at 14.4V 0.3%THD Mono Bridge ( RMS ) Power Supply... -
Page 18: Specifications
SPECIFICATION SPECIFICATION Output Power Rating RMS Channel Total Max Power 4 Ohm at 14.4V 0.3%THD ( RMS ) 4 Ohm at 14.4V ( MAX ) 2 Ohm at 14.4V 0.3%THD ( RMS ) 2 Ohm at 14.4V ( MAX ) 1 Ohm at 14.4V 0.3%THD Mono Bridge ( RMS ) Power Supply... - Page 19 WARRANTY WARRANTY LIMITATIONS The following is NOT covered under TUNN warranty program: Product owned by anyone other than the original purchaser from an authorized TUNN dealer. (The warranty is NOT transferable and will not apply to products purchased from unauthorized dealers.) 2.
- Page 20 10110 Santa Fe Springs Road Santa Fe Springs, CA 90670 1-562-926-2600...
