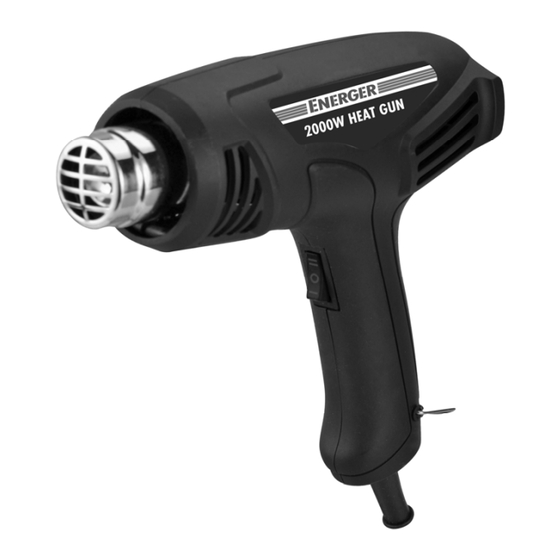

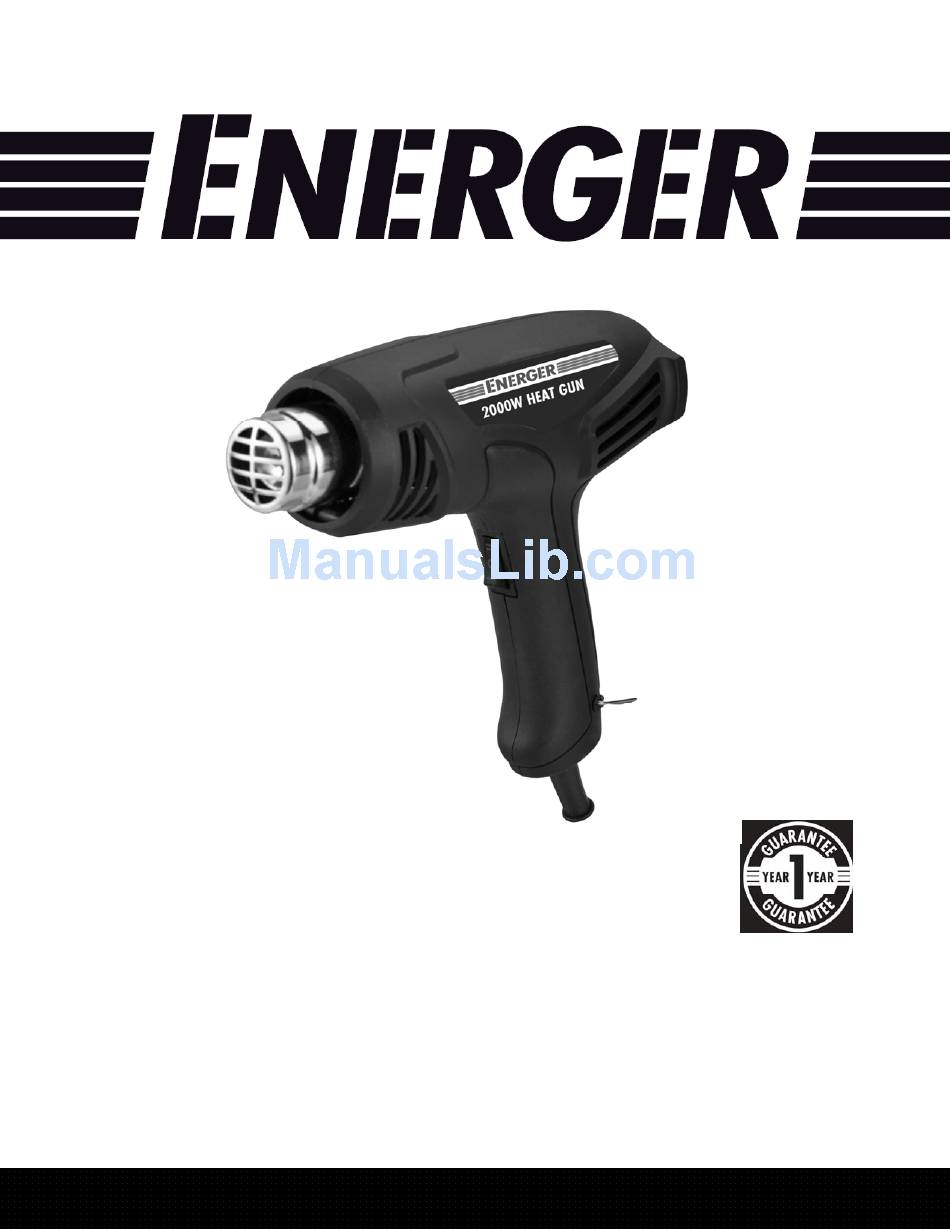

- Page 1 SAFETY AND OPERATING MANUAL Original Instructions 5.0 2000W HEAT GUN ENB467HTG...
- Page 2 Read all safety warnings and all instructions before use. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. 2000W HEAT GUN ENB467HTG...
-
Page 3: General Safety Instructions
8. Ensure the supply voltage is same as rating voltage. 9. The tool is double insulated for additional protection against a possible electrical insulation failure within the tool. 2000W HEAT GUN ENB467HTG... - Page 4 The unit is intended for the forming and welding of plastic, removal of paint and the warming of heat shrinkable tubing. It is also suitable for soldering and tinning, loosening of adhesive joints and the defrosting of water lines. 2000W HEAT GUN ENB467HTG...
- Page 5 WARNING - To reduce the risk of injury, user must read the instruction manual Wear respiratory protection Wear safety gloves Double insulation Class Conforms to all relevant safety standards. yyWxx Manufacturing date code: Year of manufacturing (20yy) and week of manufacturing (Wxx); 2000W HEAT GUN ENB467HTG...
- Page 6 Components and controls Nozzle On/off switch/air flow and temperature regulator Main handle Air vents Concentration nozzle Flat nozzle Hook nozzle Glass protection nozzle 2000W HEAT GUN ENB467HTG...
-
Page 7: Technical Data
50mm or more on either heat setting. All applications, with the exception of removing paint from the window frames, can be performed without using a nozzle; however for best results nozzles are recommended. 2000W HEAT GUN ENB467HTG... - Page 8 Don’t touch the nozzle, and always use the gloves! 2. SWITCHING ON/Off(Fig.5) Switching on: To put into operation, slide the switch to position 1,2 . Switching off: To switch off, slide the on/off switch to the stop at position 0. Fig.5 2000W HEAT GUN ENB467HTG...
- Page 9 You should start with a low temperature setting. The working temperature can vary depending on the properties of the workpiece. The distance between the nozzle and workpiece is dependent on the material to be processed. 2000W HEAT GUN ENB467HTG...
- Page 10 To avoid buckling or kinking the tube, fill the tube with dry sand and seal at both ends. Heat the tube evenly by moving from side to side and bend to required shape. 2000W HEAT GUN ENB467HTG...
-
Page 11: Care And Maintenance
Always keep the machine in dry place. GUARANTEE This ENERGER product carries a guarantee of 12 months. If your product develops a fault within this period, you should, in the first instance contact the retailer where the item was purchased. -
Page 12: Environmental Protection
Directive 2002/96/EC. It will then be recycled or dismantled to minimize impacts on the environment, electrical and electronic products are potentially hazardous to the environment and human health due to the presence of hazardous substances. 2000W HEAT GUN ENB467HTG... -
Page 13: Plug Replacement
Note: If a moulded plug is fitted and has to be removed take great care in disposing of the plug and severed cable, it must be destroyed to prevent engaging into a socket. 2000W HEAT GUN ENB467HTG... - Page 14 EN 55014-2 EN 61000-3-2 EN 61000-3-3 EN60335-1 EN60335-2-45 EN62233 Authorised Signatory and technical file holder Date : 17/09/2012 Signature:_________________ Name / title: Peter Harries / Quality Manager Powersmith (UK) LTD. Trade House , Mead Avenue ,BA22 8RT 2000W HEAT GUN ENB467HTG...
