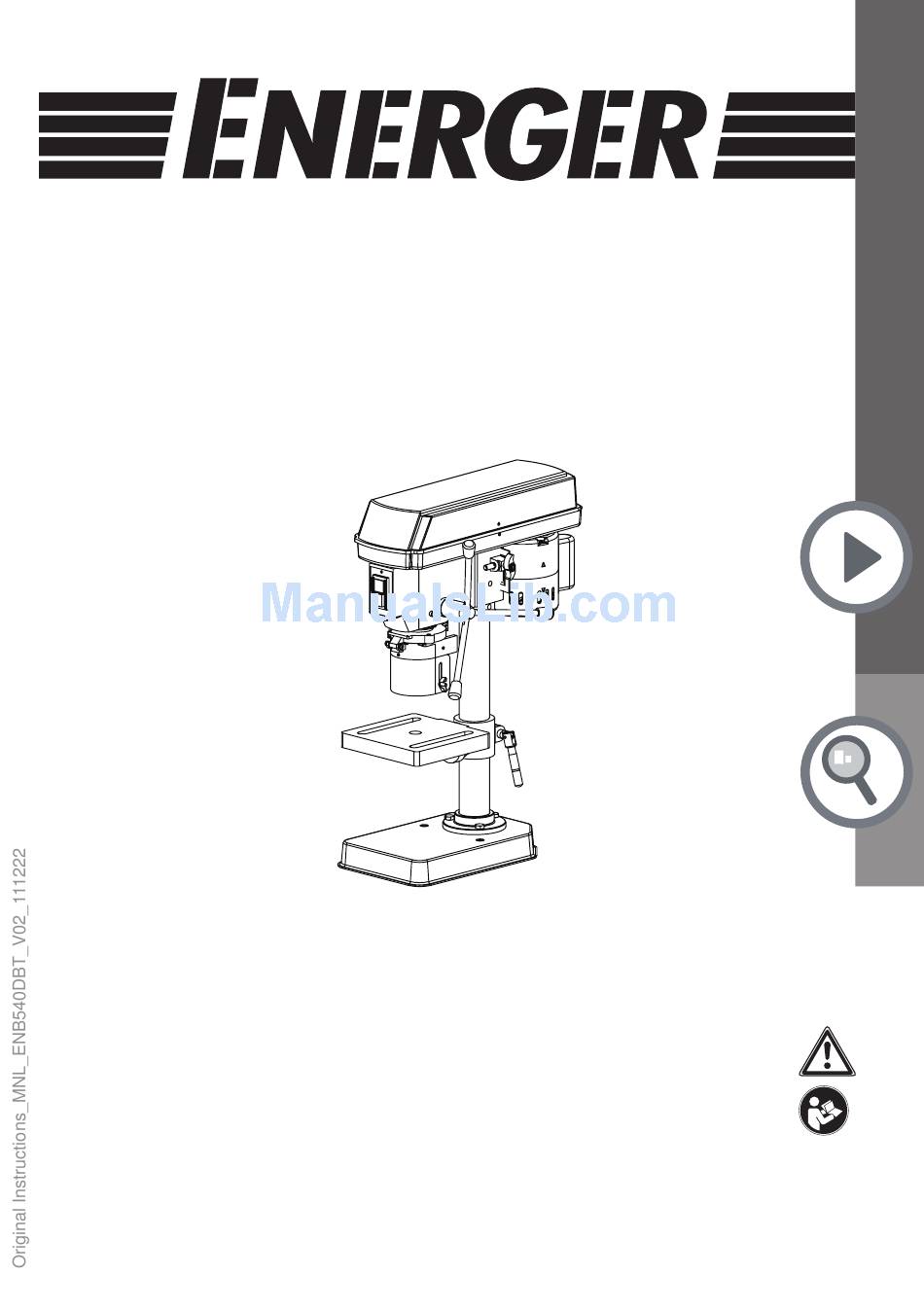

- Page 1 350W Drill Press ENB540DBT Barcode:5052931253630 Warning! Read the instructions before using the product!
- Page 3 ENB540DBT by ENERGER Let's get started... These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. Getting started Your product Technical and legal information Before you start more detail Product functions...
-
Page 4: Your Product

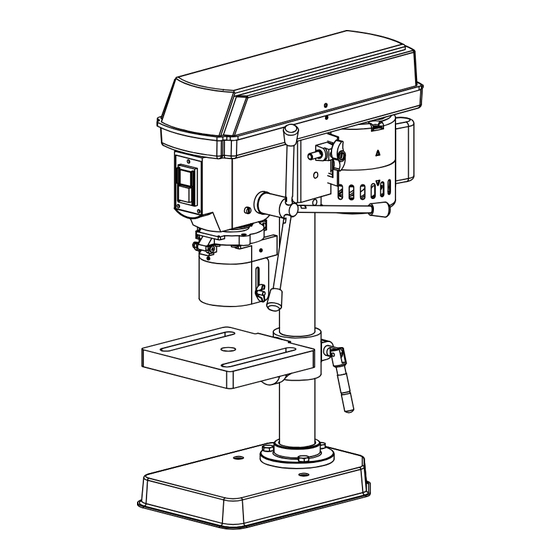

Your product ENB540DBT by ENERGER Your product １０ 1. Pulley guard 9. Chuck 2. Motor 10. Machine casing 3. Feed handles 11. On/off switch 12. Drill depth gauge 4. Chuck guard 5. Column 13. Grub screw 6. Support lock 14. Pulley guard cross screw 15. -
Page 7: Technical And Legal Information
Technical and legal information ENB540DBT by ENERGER Safety warnings WARNING! When using electric tools basic safety precautions should always be followed to reduce the risk of fire, electr ic shock and personal injury including the following. Read all these instructions before attempting to operate this product and save these instructions. - Page 8 Technical and legal information ENB540DBT by ENERGER - Wear protective hair covering to contain long hair. 9. Use protective equipment - Use safety glasses. - Use face or dust mask if working operations create dust. 10.Connect dust extraction equipment - If the tool is provided for the connection of dust extraction and collecting equipment, ensure these are connected and properly used.
- Page 9 Technical and legal information ENB540DBT by ENERGER 19. Stay alert Watch what you are doing, use common sense and do not operate the tool when you are tired. 20. Check damaged parts Before further use of tool, it shoul d be carefully checked to determine that it will operate properly and perform its intended function.
- Page 10 Technical and legal information ENB540DBT by ENERGER it is kept well away from electrical components. Never use water as a coolant. Keep drills and other cutters sharp and in good condition. This will improve cutting and reduce the load on the machine ensuring a longer life of the cutting tools and the machine.
- Page 11 Technical and legal information ENB540DBT by ENERGER - Catapulting of bit pieces. - Damage to hearing if effective ear defenders are not worn. - Damage to lungs if effective breathing protection is not worn in operations in which dust is produced.
-
Page 13: Before You Start
ENB540DBT by ENERGER Before you start Mounting the base plate Select a suitable location for the drill on a workbench. Be aware of table legs and anything which might reduce access to the underneath of the workbench. A suitable mains supply socket must also be accessible for the plug. - Page 14 ENB540DBT by ENERGER Before you start Fitting the head stock and motor Locate the two grub screws in the side of the head stock and motor assembly. Using a hexagonal key slacken the two grub screws. Lift the head stock and motor assembly and lower it onto the column(.
- Page 15 ENB540DBT by ENERGER Before you start removal. Always return the guard(4) to cover rotating parts. Simply unscrew the wing nuts and the two piece guard will extend vertically up or down. Chuck guard(4) is adjustable to varying depths to give more protection(Fig.7-2).
- Page 17 ENB540DBT by ENERGER Safety Check that you have noted all the following instructions: Before starting you must have fully read and understood the entire instruction manual. Working with this product is demanding; therefore ensure you are physically and mentally fit to complete the job safely.
-
Page 18: Table Of Contents
ENB540DBT by ENERGER more detail Product functions Care and maintenance Trouble shooting Recycling and disposal Guarantee EC declaration of conformity... -
Page 19: Product Functions
ENB540DBT by ENERGER Intended use This drill press ENB540DBT is designated with a rated input of 350 Watts. This product is used to drill holes in metal and wood. The product should not be used on masonry and materials that are harmful to health. -
Page 20: Product Functions
Product functions ENB540DBT by ENERGER Using a machine vice(vice not supplied) WARNING: The drill should never be used without the work piece being securely held in a machine vice or clamped directly to the drill table . The drill table... -
Page 22: Belt Tension
Product functions ENB540DBT by ENERGER Drill speed chart Belt setting Spindle speed (min-1) 1400 1900 2500 Slacken the belt tension locking knob. This will allow the tension on the drive belt to be released. The motor assembly is hinged to allow tensioning of the drive belt. - Page 23 Product functions ENB540DBT by ENERGER NEVER cool with water or water based lubricant otherwise an electric shock could occur. DO NOT use oil when drilling copper or brass. Care should be taken when drilling copper and brass as the drill bit will be prone to jamming.
-
Page 24: Care And Maintenance
Care and maintenance ENB540DBT by ENERGER The golden rules for care WARNING! Always switch the product off, disconnect it from power supply and let the product cool down before performing inspection, maintenance and cleaning work! WARNING! Only perform repairs and maintenance work according to... -
Page 25: Power Cord
Care and maintenance ENB540DBT by ENERGER the edge that align with the cast body of the head stock. One of these notches is located on to a cast peg that is part of the main casting. WARNING: Before slackening the lock nuts ensure that the metal housing... - Page 26 Care and maintenance ENB540DBT by ENERGER Blue...
- Page 27 ENB540DBT by ENERGER Care and maintenance Repair This product does not contain any parts that can be repaired by the consumer. Contact a qualified specialist to have it checked and repaired. Storage 1. Clean the product as described above. 2. Store the product and its access o ries in a dry, frost-free place.
-
Page 28: Trouble Shooting
Trouble shooting ENB540DBT by ENERGER Trouble shooting Suspected malfunctions are often due to causes that the users can fix themselves. Therefore check the product using this section. In most cases the problem can be solved quickly. WARNING! Only perform the steps described within these... - Page 29 Trouble shooting ENB540DBT by ENERGER Problem Possible cause Solution 6. Quill returns 6.Spring has improper too s ow or 6. Adjust spring tension tension too fast 7. Chuck falls off 7. Dirty, grease, or oil on when attached the tapered inside surface 7.
-
Page 30: Recycling And Disposal
ENB540DBT by ENERGER Recycling and disposal Recycling and disposal Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or local store for recycling advice. -
Page 31: Guarantee
Guarantee ENB540DBT by ENERGER... -
Page 32: Ec Declaration Of Conformity
EC declaration of conformity ENB540DBT by ENERGER... - Page 33 Powersmith (UK) LTD. Trade House Mead Avenue, BA22 8RT...
