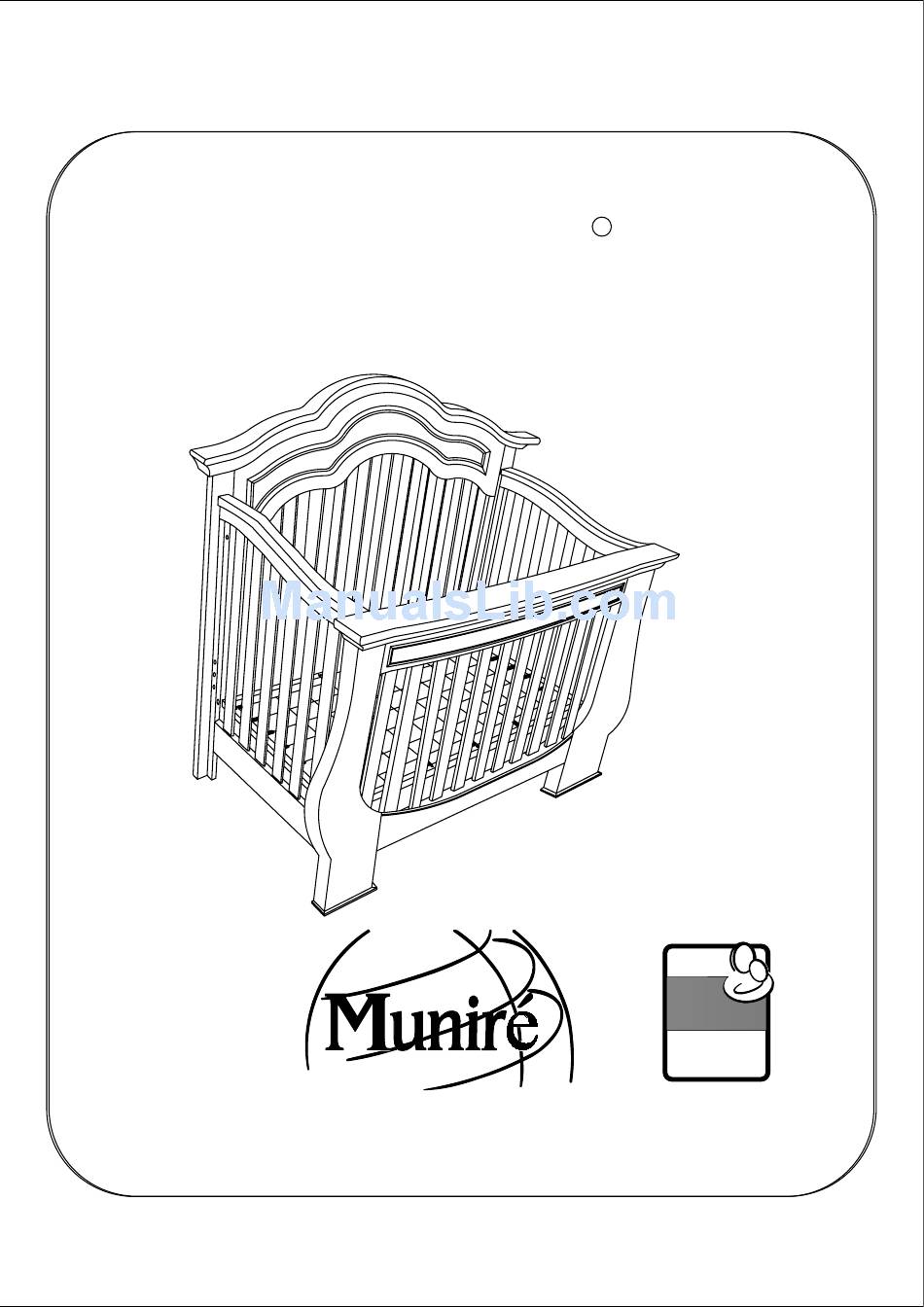

ASSEMBLY INSTRUCTIONS
for 4 in 1 life time Crib
R
Model # 2699
www.jpma.org
JPMA
CERTIFIED
Conforms to
ASTM F1169-10a
FURNITURE
Full-Size Crib Standard
GUARDRAIL and CONVERSION KIT sold separately.
Please contact retailer.
THIS PRODUCT CONFORMS TO THE APPLICABLE SECTIONS OF PUBLIC LAW 110-314
AND COMPLIES WITH THE REQUIREMENTS STATED IN 16 CFR 1219 AND 16 CFR 1217
(WHEN CAPRI GUARDRAIL IS USED).
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Munire CAPRI CURVE
Summary of Contents for Munire CAPRI CURVE
- Page 1 ASSEMBLY INSTRUCTIONS for 4 in 1 life time Crib CAPRI CURVE Model # 2699 www.jpma.org JPMA CERTIFIED Conforms to ASTM F1169-10a FURNITURE Full-Size Crib Standard GUARDRAIL and CONVERSION KIT sold separately. Please contact retailer. THIS PRODUCT CONFORMS TO THE APPLICABLE SECTIONS OF PUBLIC LAW 110-314 AND COMPLIES WITH THE REQUIREMENTS STATED IN 16 CFR 1219 AND 16 CFR 1217 (WHEN CAPRI GUARDRAIL IS USED).
- Page 2 Carefully remove and lay out all parts. Familiarize yourself with all exhibits and diagrams to facilitate the assembly of your crib TOOLS REQUIRED : Allenkey (supplied) PART ENCLOSED IN CARTON A. Head Board ( 1 pc ) C. Side Board ( 2 pcs ) D.
- Page 3 STEP 1 " ASSEMBLY OF CRIB SIDES " F. Allenbolt 2 3/8" [60 mm] ( 4 pcs) P. Spring Washer I . Nut 3/4" [20 mm] (4 pcs) A. Head Board ( 1 pc ) (8 pcs) C. Side Board ( 2 pcs ) D.
- Page 4 STEP 2 " SPRING INSTALLATION " THIS STEP REQUIRES : E. Mattress Spring (1 pc) H. Allenbolt 3/4" [20 mm] (4 pcs) I . Nut 3/4" [20 mm] (4 pcs) P. Spring Washer L. Allenkey (2 pcs) (4 pcs) ( P ) FIG.
- Page 5 STEP 3 " ASSEMBLY OF FOOTBOARD " THIS STEP REQUIRES : L. Allenkey (1 pc) P. Spring Washer B. Footboard (1 pc) G. Allenbolt 2" [50 mm] ( 4 pcs) (4 pcs) - Insert allenbolt 2" [50 mm] (G), spring washer (P) through the holes in sideboard into the threaded holes footboard (B).
- Page 6 MISSING PARTS OR SHARP EDGES, BEFORE AND AFTER ASSEMBLY AND FREQUENTLY DURING USE. SECURELY TIGHTEN LOOSE BOLTS AND OTHER FASTENERS. DO NOT USE CRIB IF ANY PARTS ARE MISSING, DAMAGED OR BROKEN. CONTACT MUNIRE FURNITURE INC, 91 NEW ENGLAND AVENUE, PISCATAWAY, NEW JERSEY 08854,-PHONE:-732-339-6070 ;-EMAIL : INFO@MUNIREFURNITURE.COM FOR REPLACEMENT PARTS AND INSTRUCTIONAL LITERATURE IF NEEDED.
- Page 7 N IF REFINISHING, USE A NON-TOXIC FINISH SPECIFIED FOR CHILDREN'S PRODUCTS. • FOLLOW WARNINGS ON ALL PRODUCTS IN A CRIB. • UPON COMPLETION OF ASSEMBLY, BE SURE ALL SCREWS, BOLT AND FASTENING DEVICES HAVE BEEN SECURELY TIGHTENED. A FREQUENT CHECK SHOULD BE MADE. WHEN STORING CRIB, USE CAUTION AS EXTREME CHANGE IN TEMPERATURE OR HUMIDITY CAN •...
- Page 8 ASSEMBLY INSTRUCTIONS for Toddler Bed CAPRI CURVE MODEL # 2699 FURNITURE GUARDRAIL and CONVERSION KIT sold separately. Please contact retailer.
- Page 9 STEP 1 " UNINSTALL FOOTBOARD " THIS STEP REQUIRES : Allenkey (1 pc) FIG.1. Remove the footboard by unscrewing the (4 pcs) allenbolts as shown in FIG.1.
- Page 10 STEP 2 " MATTRESS SUPPORT HEIGHT ADJUSTMENT " THIS STEP REQUIRES : These hardware are included in the CRIB H. Allenbolt 3/4 " [ 20 mm] ( 4 pcs) I . Nut 3/4" [20 mm] (4 pcs) P. Spring Washer L.
- Page 11 BOLTS AND OTHER FASTENERS. DO NOT USE CRIB IF ANY PARTS ARE MISSING, DAMAGED OR BROKEN. CONTACT MUNIRE FURNITURE INC., 91 NEW ENGLAND AVENUE, PISCATAWAY, NEW JERSEY 08854; PHONE: 732-339-6070; EMAIL: INFO@MUNIREFURNITURE.COM FOR REPLACEMENT PARTS AND INSTRUCTIONAL LITERATURE IF NEEDED. DO NOT...
- Page 12 ! / INFANTS HAVE DIED IN TODDLER BEDS FROM ENTRAPMENT AND STRANGULATION. • FAILURE TO FOLLOW THESE WARNINGS AND THE ASSEMBLY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR • DEATH. NEVER USE BED WITH CHILDREN UNDER 15 MONTHS. • NEVER PLACE BED NEAR WINDOWS WHERE CORDS FROM BLINDS OR DRAPES MAY STRANGLE A CHILD. •...
