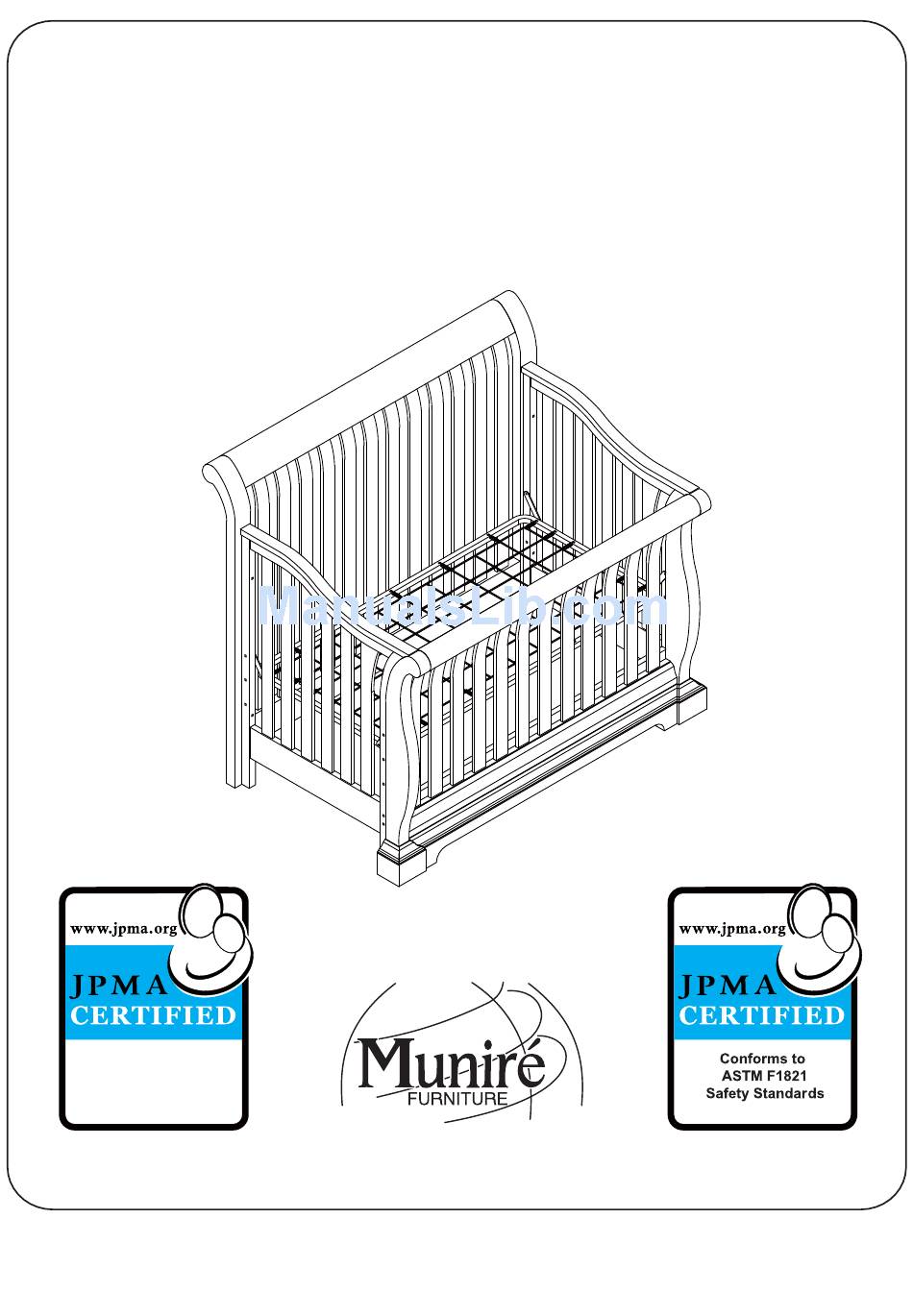

ASSEMBLY INSTRUCTIONS
for 4 in 1 Life time Crib
®
SUSSEX
MODEL # 6299
Conforms to
ASTM F1169-10a
Full-Size Crib Standard
GUARDRAIL and CONVERSION KIT sold separately
Please contact retailer.
THIS PRODUCT CONFORMS TO THE APPLICABLE SECTIONS OF PUBLIC LAW 110-314 AND COMPLIES WITH
THE REQUIREMENTS STATED IN 16 CFR 1219 AND 16 CFR 1217 (WHEN SUSSEX GUARDRAIL IS USED).
02-A-SUCM01-00
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Munire 6299
Summary of Contents for Munire 6299
- Page 1 ASSEMBLY INSTRUCTIONS for 4 in 1 Life time Crib ® SUSSEX MODEL # 6299 Conforms to ASTM F1169-10a Full-Size Crib Standard GUARDRAIL and CONVERSION KIT sold separately Please contact retailer. THIS PRODUCT CONFORMS TO THE APPLICABLE SECTIONS OF PUBLIC LAW 110-314 AND COMPLIES WITH THE REQUIREMENTS STATED IN 16 CFR 1219 AND 16 CFR 1217 (WHEN SUSSEX GUARDRAIL IS USED).
- Page 2 ( W ) Spring Washer (16 pcs) ( F ) Allenbolt 2 3/4 (70 mm) (8 pcs) ” ( L ) Nut 3/4 ” (20 mm) (8 pcs) ( H ) Allenbolt 2” (50 mm) (2 pcs) ( O ) Allenbolt 1 1/2” (40 mm) ”...
- Page 3 F. Allenbolt 2 3/4 (70 mm) (8 pcs) ” ” W. Spring Washer (8 pcs) L. Nut 3/4 (20 mm) (4 pcs) M. Barrel Nut 1” (25 mm) (4 pcs) FACE / AVANT INSIDE / INTÉRIEUR RIGHT / DROIT INSIDE / INTÉRIEUR STEP 1.1 STEP 1.2 STEP 1.1...
- Page 4 J. Allenbolt 1 1/4 (30 mm) (4 pcs) ” ” L. Nut 3/4 (20 mm) (4 pcs) N. Allenkey (2 pcs) W. Spring Washer (4 pcs) FIG. 3 Highest Position FIG. 4 Middle Position Lowest Position - Attach mattress spring (E) to Side board as shown in FIG.3. - Secure with allenkey (N).
- Page 5 H. Allenbolt 2” (50 mm) (2 pcs) W. Spring Washer (4 pcs) O. Allenbolt 1 1/2” (40 mm) (2 pcs) Inline and have no gap FIG. 5 FIG. 6 - Insert allenbolt 1 ½" (40 mm) (O) & spring washer (W) through the top holes in side board into the threaded holes footboard (B).
- Page 6 "...
- Page 8 SUSSEX MODEL # 6299 GUARDRAIL and CONVERSION KIT sold separately. Please contact retailer. 02-A-SUTM01-00...
- Page 9 -Remove the footboard by unscrewing the (4 pcs) allenbolts as shown in FIG.1. 02-A-SUTM01-00...
- Page 10 these hardware are included in the CRIB (2 pcs) J. Allenbolt 1 1/4 (30 mm) (4 pcs) ” L. Nut 3/4” (20 mm) ( 4 pcs ) W. Spring Washer (4 pcs) Lowest Position - Remove the allenbolt 1 1/4” (30 mm) (J), spring washer (W) and nut 3/4” (20 mm) (L) on the mattress spring. - Move Mattress spring to the lowest position as shown in FIG.2.
