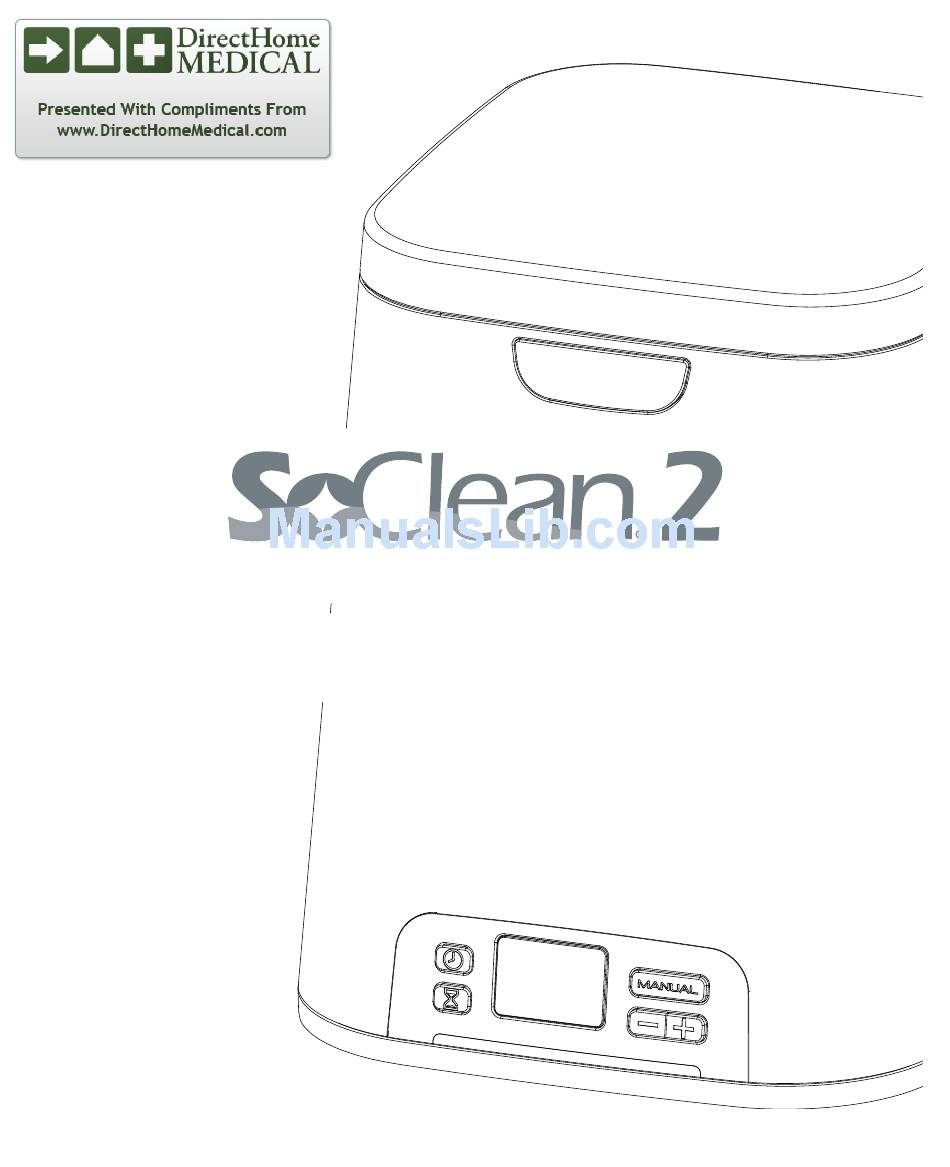

- Page 1 PAP Disinfecting Device User Guide Including all PAP Devices (Positive Airway Pressure) CPAP, VPAP, APAP, BiPAP, BPAP, C-Flex, A-Flex, and Bi-Flex...
- Page 2 Thank You! Thank you for your purchase of the SoClean 2 CPAP disinfecting system. At Better Rest Solutions we are committed to providing innovative and safe methods that can improve the health and well-being of our customers. We hope that the SoClean will do just that for you.
-
Page 3: Table Of Contents
Contents 1. Indications for Use, Cautions, and Specifications ........4 3. Included with your SoClean ..............5 4. Important Supplies .................. 6 5. Getting Started ..................7 6. Your SoClean Timer & Display ............... 10 7. Using your SoClean ................14 8. -
Page 4: Indications For Use, Cautions, And Specifications
Indication of Use, Cautions, and Specifications Indications for Use: The SoClean is a general, Positive Airway Pressure (PAP), disinfecting unit and is intended to be used in the home and professional healthcare facility. A patient who uses Continuous Positive Airway Pressure (CPAP) for Obstructive Sleep Apnea (OSA) treatment can use the SoClean to have a daily automated disinfector when one fails to follow daily cleaning procedures or wants the added benefit of a thorough disinfecting in addition to daily cleaning. -
Page 5: Included With Your Soclean
Included with your SoClean Removable hose slot plug (installed) SoClean filter AC power adapter cartridge (installed) SoClean check valve assembly with injection fitting and hose (installed) Neutralizing pre-wash... -
Page 6: Important Supplies
Important supplies Check Valve Assembly (installed) Prevents water in your humidifier reservoir from backing up into your SoClean machine. If you can see water in the clear tube, replace the check valve assembly immediately. Replace every 6 months. Filter Cartridge (installed) This filter converts activated oxygen back into normal oxygen. -
Page 7: Getting Started
Getting Started 1. Pre-washing your Equipment Use two capfuls of the included pre-wash with a gallon of water to wash your CPAP equipment (mask, hose, and reservoir), then rinse thoroughly with clean water. Note: The SoClean 2 Go uses no fluids in its operation. - Page 8 Note: Different reservoirs may require different approaches to hose insertion. If you have difficulty, visit www.BetterRestSolutions.com for information on various humidifier models, or contact Better Rest Solutions directly at 1-866-501-3705. Remove small injection hose first, Without humidifier: If you are currently...
- Page 9 Getting Started 3. Power Up Plug your AC adapter into the back of the SoClean and then into a wall outlet. Proceed to set your timer.
-
Page 10: Your Soclean Timer & Display
Your SoClean Timer & Display Current Time Length of Cycle Cycle Start Time Manual Clock Set Control Disinfecting Decrease / Cycle Set Increase Disinfecting Cycle Indicator Light Your SoClean timer will allow you to completely automate your daily cleaning. The SoClean comes preset to start a 7 minute cleaning cycle at 10:00 am. - Page 11 Your SoClean Timer & Display Setting the Clock Set Current Time Press the button. Set Current Time Change the time by pushing either the (minor (plusbutton until your current time is Set Current Time Set Current Time reached. By holding down the button the time moves faster.
- Page 12 Your SoClean Timer & Display continued Set Run Time (in minutes) Set Start Time Press the button again and you will be prompted to set the time of day you would like to run your SoClean. Use the (minor (plusbutton to reach the Set Run Time Set Current Time Set Current Time...
- Page 13 Your SoClean Timer & Display Cycle Indicator Light The lighted bar below the clock display indicates which stage of the disinfecting cycle the SoClean is in. when the SoClean is operating and generating activated oxygen. when the SoClean is in its 2-hour YELLOW disinfecting cycle.
-
Page 14: Using Your Soclean
Using Your SoClean After the initial setup, using your SoClean unit is extremely easy. You will not need to disassemble any components to disinfect you equipment daily. 1. Open the lid. 2. Install the removable hose slot plug into one open slot. - Page 15 Using Your SoClean 3. Insert your mask into the chamber allowing its attached hose to rest in the open hose slot. Note: The SoClean gives you the option of inserting your mask and hose from either side of the machine. To change sides, remove the hose slot plug from its position by lifting it straight out, and insert it into the slot on the opposite side.
-
Page 16: Care And Maintenance For Your Soclean
Care and Maintenance for your SoClean To remove dust, you may wipe down the SoClean with a damp cloth. The SoClean check valve assembly and filter cartridge should be replaced every 6 months. A reminder message on the display will appear after approximately 6 months, depending upon usage. -
Page 17: Faq
5 minutes and still receive effective contact your CPAP manufacturer, supplier or disinfecting. (4) Disinfect your equipment every Better Rest Solutions. other day instead of daily. 10. My mask feels oily, what should I do? 5. What if my indicator light is shining red Skin chemistry is unique. -
Page 18: Classification, Symbols, Tables
Classification, Symbols, Tables Consult Manual Serial Number Complies with Waste Electrical and Electronic Equipment Medical Device (WEEE) It is the responsibility of the end Directive of the user to dispose of this equipment at a European Union. designated collection point. Chomerics Test Services Conducted Emissions Class B 150kHz - 30 MHz 9kHz Resolution Bandwidth FCC Part 15 Subpart B - Class B - Hot Line - AVERAGE... - Page 19 Classification, Symbols, Tables TEST LOCATION Measurement Uncertainty (dBuV) Conducted Emissions 9kHz - 150kHz Test Chamber A 3.61 Conducted Emissions 150kHz - 30MHz Test Chamber A 3.23 Radiated Emissions 30MHz - 1GHz at Open Area Test Site B 4.57 3 Meter/10 Meter Conducted Emissions 9kHz - 150kHz Open Area Test Site B 3.61...
- Page 21 USER GUIDE For more information about SoClean 2 or our other innovative products, please visit www.betterrestsolutions.com JDI ELECTRONICS FACTORY Sima Industrial Zone, Sima Village, Changping Town Dongguan City, Guangdong 523570, China Eumena Ltd. EC REP Eumena Ltd. c/o - Friedrich Schwab Business Park Dangan, Galway Ireland Tel.
