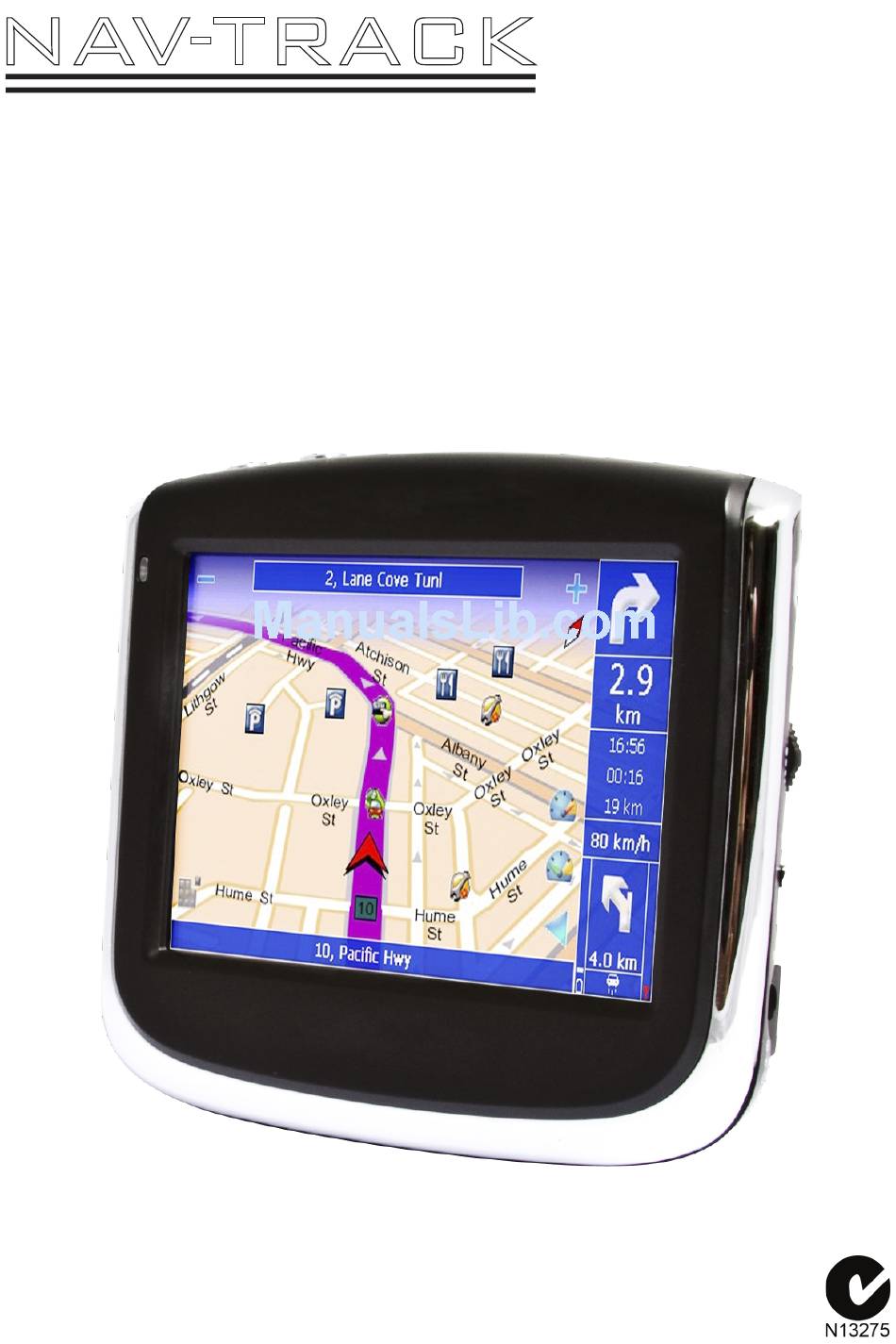

- Page 1 NAV-TRACK 3.5" TOUCH SCREEN GPS Navigator Instruction Manual • Model Number PWM-3501 After Sales Support TEL: 1300 88 66 49...
- Page 2 3.5" Touch Screen GPS Navigator What your year warranty means Great care has gone into the manufacture of this product and it should therefore provide you with years of good service when used properly. In the event of product failure within its intended use over the course of the first year after the date of purchase, we will remedy the problem as quickly as possible once it has been brought to our attention.
-
Page 3: Table Of Contents
Table of Contents Features Profile ........................... 2 Product Packaging ..........................2 Appearance and keys .......................... 2 Battery and Charging .......................... 3 Basic Use ............................4 To connect computer ........................... 5 Navigation Features ..........................6 Guides of Using GPS Navigator ......................7 Functions ............................ -
Page 4: Features Profile
Welcome to the car/portable GPS navigator. The main functions of the device are navigation, audio/video playing, photo browsing and e-book reading. Features profile video playback: supports MPG, AVI, WMV, MP4, 3GP format audio playback: supports WMA, MP3 and WAV format support simultaneous display lyrics (LRC) picture browsing e-book reading function... -
Page 5: Battery And Charging
1. Menu 2. Sleep Mode 3. Antenna(optional) 4. Volume 5. Power on/off 6. DC hole 7. SD slot 8. Stylus Pen 9. Headphone input 10. USB slot 11. Speaker 12. Reset Button Basic operation Battery and charging 1 Power supply The Car/portable GPS navigation system has two ways of power supply: battery-powered and an external power supply. -
Page 6: Basic Use
Basic use 1 Sleep Mode button 1. Activate: Please check: that there is adequate battery power or the GPS is attached to an external power supply. Press and hold sleep mode button at the top of the GPS navigator. 2. Close: To end the use, press and hold sleep mode button, the system will enter a dormant state. -
Page 7: To Connect Computer
6 Use SD / MMC memory card (optional/not provided) Make sure to correctly insert the SD / MMC CARD or you may damage the unit or the SD card. [Note]: Whilst the system is running a navigation program or playing media files off the SD / MMC card do not remove it. -
Page 8: Navigation Features
Instructions The GPS supports a navigation system, an audio player, a video player, e-books to read, a picture browsing functions and the system settings. The main menu start up interface should look like the picture shown below: Navigation features 1 Navigation features [Refer to quick start manual on disk or go to quick start guide.] The device uses an intelligent navigation system which uses GPS satellite signal receivers. -
Page 9: Guides Of Using Gps Navigator
Guides of Using GPS Navigator ． B efore using the GPS navigator, handle following guides on touching, the user can operate it freely! W hen using the device for the first time, it is necessary to calibrate the screen strictly ．... -
Page 10: Precautions
Precautions 1.Safety measures and correct operation method are provided in this manual, please read it carefully before using to avoid accident. 2.Keep it away from the place where is high temperature, moisture and dust. 3.Keep it from the place with high temperature, especially in the vehicles under direct sun shine when the car doors and windows are closed in summer. -
Page 11: About Gps Navigator
About GPS Navigator Main interface In terms of main interface, the user is not only can operate by pressing keys as before, but can click the menu, drag the options and so on. the user can handle all simply by clicking with fingertip. -
Page 12: Change Skin
Operating methods: Click the icon of main menu, the window of second-level menu fades out; Click the icon of main menu once again, and the window of second-level menu fades in; Click the second-level menu to run the program. Click the icon of main menu once again, and the window of second- level menu fades out Change Skin Operating methods: Click the upper background of desktop to change background picture;... -
Page 13: Basic Operation
Operating methods: Two ways are provided to select main menu: Drag the Taskbar area which is under the widow of submenu directly; Click the main function icon on the left. Level menu fades in; Click the second-level menu to run the program. Basic Operation Reset Power If the system halts when the GPS is running, restart the device by press the reset button beside the... - Page 14 Battery This device is supplied by Li-ion battery with high capacity. The battery can be fully charged in 3-4 hours (it needs 8 hours for the first two times). The using time is affected by volume, file type in play, After Sales Support TEL: 1300 886649 Page 12...
-
Page 15: Gps
GPS Navigating Operating methods: Click GPS icon and then click the centre of the icon to enter map interface. See Map Instruction for details. Media Play 1.Media Player Through the particular media center which is not only a file explorer, the user can learn the file categories and directories stored in the user area and expansion card, which is convenient for user to divide files and to search. - Page 16 Button Icon Designated Folder File Type The tenth-level subdirectory and My music (.mp3,*.wma,etc…) above The tenth-level subdirectory and My video (*.avi,*.3gp,etc…) above The tenth-level subdirectory and My picture (*.jpg, *.gif,*.bmp…) above The tenth-level subdirectory and My E-book (*.txt) above All folder My media center My play list Operating methods: 1.Click different button icons, the relevant files in one category is displayed in...
-
Page 17: Audio Player
2.Audio Player 1.Audio player supports the complete audio and video files of following formats: mp3, wma,, etc., it also supports available audio and vedio files in video files of avi, 3gp, asf, etc. 2.There is LRC display area on the music play interface, which can display all the song lyrics synchronously published in the market. - Page 18 Menu Function Main Function Menu Sub Function Menu Description File Playlist Open the playlist Play Start playing Next Play next one Previous Play previous one Exit Exit Cancel cancel Option Repeat Play the songs in playlist circularly Shuffle Play the songs in playlist in random order Full screen Display in full screen cancel...
-
Page 19: Picture Browser
3.Picture Browser Operating methods: On the main interface, click and select Picture browser in the Media play, press it again to start player and enter picture browse mode. Buttons on Browse Interface Function Button Description Open file Display previous picture Display next picture Zoom in Zoom out... - Page 20 next picture, or push forward or backward to view the previous or next picture. Full screen Display picture in full screen Adaptable size Display the picture in adaptable size Operation information Show or hide the Help, remove current picture, set the current picture as desktop. Operating methods: 1.In full screen, the toolbar is hidden automatically, click the toolbar area and the hidden toolbar will appear.
-
Page 21: Txt Reader
4.TXT Reader Operating methods: On the main interface, click and select TXT reader in Media player, click it again to start and enter TXT reading interface. Buttons on Reading Interface Function Button Description Open file Page up Page down Roll up Roll down Read bookmark Save bookmark... -
Page 22: Media Center
Page skip Click page skip button and skip out the page input box, and then click the white input area and the keyboard pop out, input number and confirm to skip to the designated page or cancel to exit skip. If input wrong number, move cursor leftward or rightward or backspace to edit or modify the number. -
Page 23: Calculator
6.calculator Operating methods: On the main interface, click and select calculator in Media play, click it again to use. Game Garden 1.Dragon Ball After Sales Support TEL: 1300 886649 Page 21... - Page 24 2.Match It 3.Minesweeper 4.Bejeweled 5.Bubble After Sales Support TEL: 1300 886649 Page 22...
-
Page 25: System Setting
System Setting 1.System Setting Operating methods: On the main interface, there are several setting options in Setting, the user could click and select these options to adjust system properly according to requirement. System information It includes software edition, surplus capacity and aggregate capacity. Sound setting Adjust volume of system. - Page 26 from user folder and set it as desktop background. Format disk All the data saved in the disk would be lost after formatting, it must be cautious when using this function. Language selection The selection would be valid only after the GPS is closed and restarted. Operating methods: Click or drag the icons on the upward side of the screen to set up language.
- Page 27 Battery Check the battery power energy 2.Calibrate Touch Screen The click is not accurate when the screen is used for the first time or after it is used for a long time, the user can enter the screen calibration to calibrate it. In order to keep high accuracy, please use touch pen to calibrate.
-
Page 28: Troubleshooting
Signal status: Troubleshooting If the GPS navigator can't run normally, please check: Failure Cause Check if the battery is fully discharged or if the program is damaged Unable to power on System freezing Pull reset button in the reset hole to restart. Unable to play Check if the battery is fully discharged. -
Page 29: Specification
Specifications Basic parameters A8 series Model Operating system Win CE 6.0 EMS memory ≤2G Battery Built-in lithium battery, 1100mAh Working time About 2--3 hours Support SD, MMC Expansion card Transmission port USB2.0 port (High Speed) Display system Dimensions 3.5 inches touch screen Screen features 65K TFT LCD, 320×240 Language... - Page 30 Declaration Please backup the data in using, the company shall be irresponsible for data missing or damage caused by wrongly operating software and hardware, improper maintenance, battery replace and other accident factors, the company shall be irresponsible for other indirect loss. And the user might misunderstand the contents in the manual which is out of our control, the company shall be irresponsible for the accidents arising from the use process of this manual, and the company shall be irresponsible for the claim by the third party.
