BM
03/25/14
NTV-DOC093
th
3950 NW 120
Ave, Coral Springs, FL 33065 TEL 561-955-9770 FAX 561-955-9760
www.nav-tv.com
info@nav-tv.com

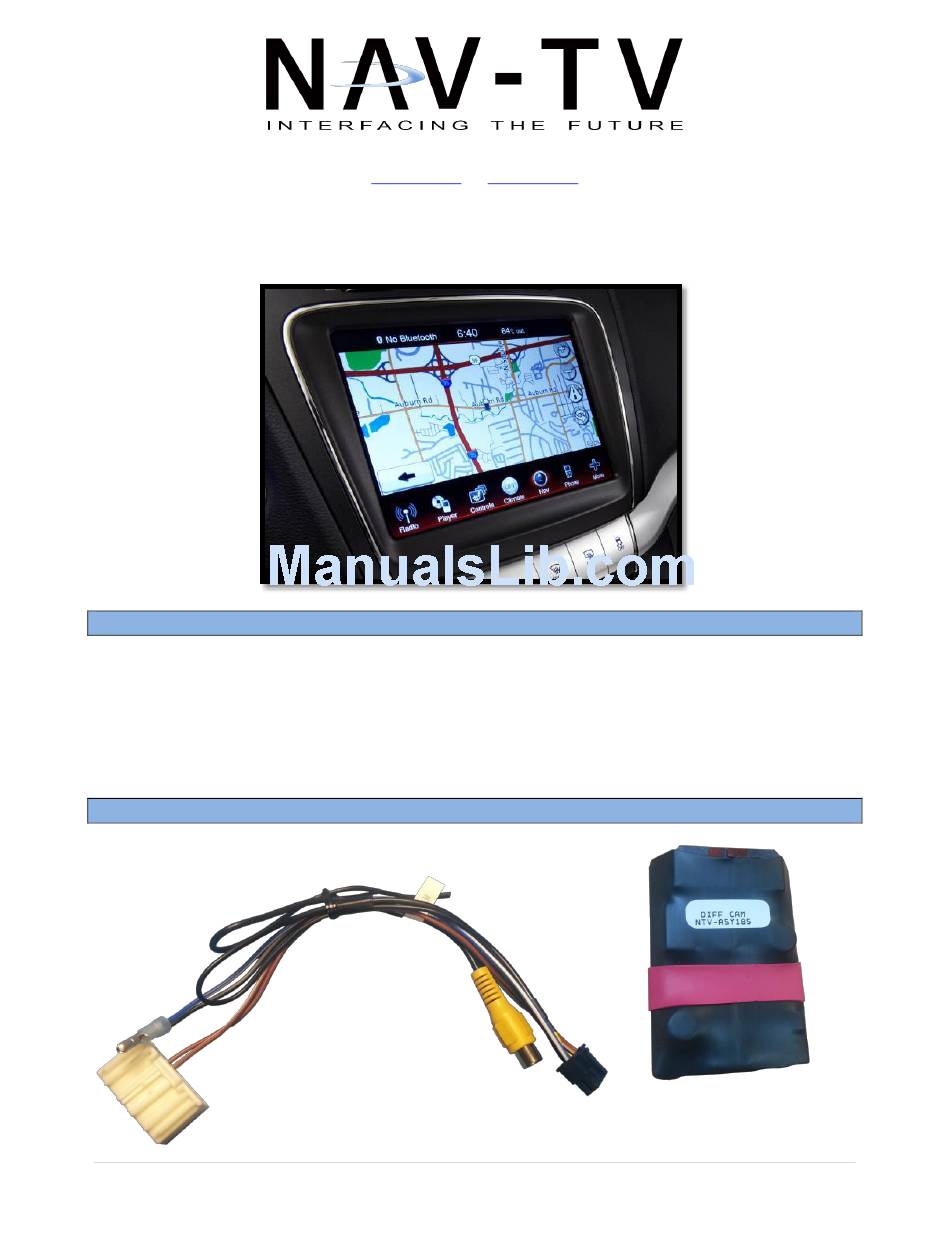

UCT-DIFF CAM
NTV-KIT314
Overview
For select uConnect 8.4" vehicles: Allows for aftermarket rear camera to be installed into
vehicle. Converts composite video standard to differential video (Chrysler/Dodge standard).
(NTV-KIT297: UCT-84 Kit required for switching, UCT84 module requires software
adjustment).
Kit Contents
Plug & Play
Harness
NTV-HAR186
UCT DIFF-CAM
NTV-ASY185
1 |
P a g e
:
Agreement
End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for
misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is
intended for off-road use and passenger entertainment only.
Advertisement
Related Manuals for NAV-TRACK UCT-DIFF CAM
Summary of Contents for NAV-TRACK UCT-DIFF CAM
- Page 1 3950 NW 120 Ave, Coral Springs, FL 33065 TEL 561-955-9770 FAX 561-955-9760 www.nav-tv.com info@nav-tv.com UCT-DIFF CAM NTV-KIT314 Overview For select uConnect 8.4” vehicles: Allows for aftermarket rear camera to be installed into vehicle. Converts composite video standard to differential video (Chrysler/Dodge standard).
- Page 2 03/25/14 NTV-DOC093 Installation 1. Remove the radio (only) from the dashboard. This usually requires pulling some panels and a series of screws will hold the radio into the sub-dash. 2. Disconnect all harness from the radio and set the radio aside. 3.
- Page 3 03/25/14 NTV-DOC093 DIFF-CAM Pin Out Pin # Description Color Ground (-) Black Reverse Input (combines w/ pin 8) Gray/Black Reverse Input (combines w/ pin 6) Blue/White Composite Shield [shield] Composite Signal Yellow DIFF (+) to radio Brown/White DIFF (-) to radio Brown Wire side If using Output 1 (ACC OUT, White/Red, pin 11) from the UCT-84 to power the...
- Page 4 03/25/14 NTV-DOC093 DIFF-CAM Operation Rear view camera is enabled through the module programming before installation. Whenever the vehicle is placed into reverse, the screen will switch to the attached rear camera. Forced backup camera is not currently supported. This may be available in a future update. It will currently only work in reverse.
