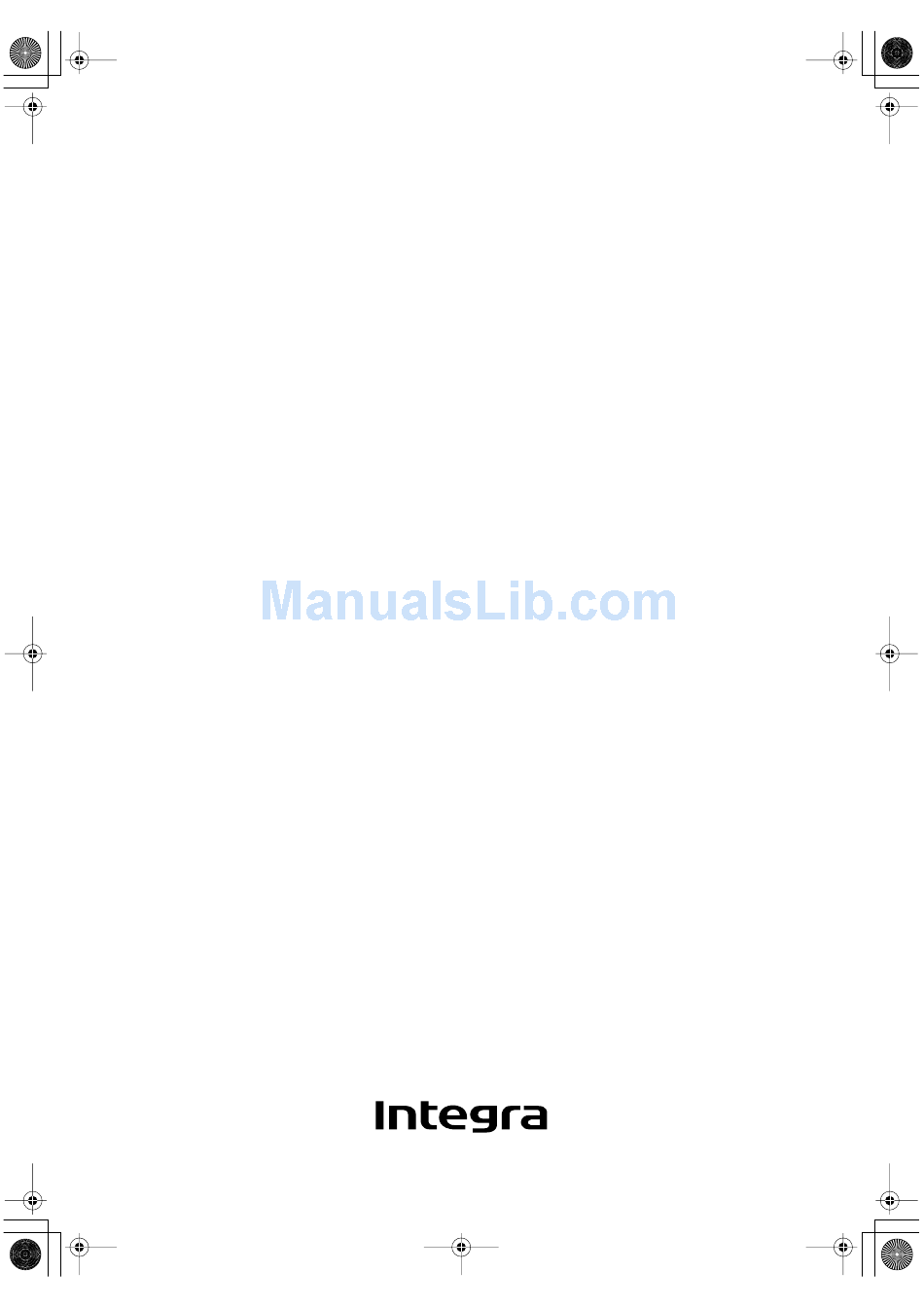

DTR-4.6.book Page 1 Thursday, September 22, 2005 1:45 PM

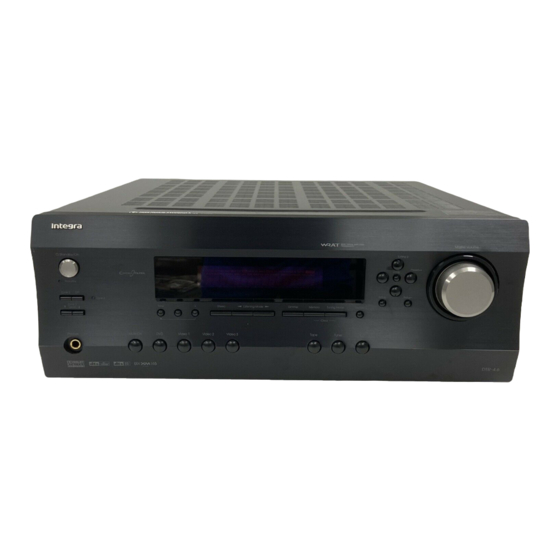

AV Receiver
DTR-4.6
Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DTR-4.6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Integra DTR-4.6

Summary of Contents for Integra DTR-4.6

  • Page 1 DTR-4.6.book Page 1 Thursday, September 22, 2005 1:45 PM AV Receiver DTR-4.6 Instruction Manual...

  • Page 2: Important Safety Instructions

    DTR-4.6.book Page 2 Thursday, September 22, 2005 1:45 PM WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE.

  • Page 3: Precautions

    DTR-4.6.book Page 3 Thursday, September 22, 2005 1:45 PM Precautions 1. Recording Copyright —Unless it’s for personal use only, recording copyrighted material is illegal with- out the permission of the copyright holder. 2. AC Fuse —The AC fuse inside the unit is not user- serviceable.

  • Page 4: Supplied Accessories

    DTR-4.6.book Page 4 Thursday, September 22, 2005 1:45 PM Thank you for purchasing an Integra AV Receiver. Please read this manual thoroughly before making con- nections and plugging in the unit. Following the instructions in this manual will enable you to obtain optimum performance and listening enjoyment from your new AV Receiver.

  • Page 5: Table Of Contents

    DTR-4.6.book Page 5 Thursday, September 22, 2005 1:45 PM Contents Introduction Important Safety Instructions ...2 Precautions ...3 Supplied Accessories...4 Features ...6 Before Using the AV receiver ...7 Getting to Know the AV Receiver ...8 Remote Controller...12 Connection Connecting Your Speakers ... 17 Connecting Antenna ...20...

  • Page 6: Features

    DTR-4.6.book Page 6 Thursday, September 22, 2005 1:45 PM Features Amplifier • 90 watts per channel into 8 ohms, 20 Hz to 20 kHz, less than 0.08% total harmonic distortion (FTC rating) • 5-channel amplifier • Optimum Gain Volume Circuitry •...

  • Page 7: Before Using The Av Receiver

    DTR-4.6.book Page 7 Thursday, September 22, 2005 1:45 PM Before Using the AV receiver Installing the Batteries To open the battery compartment, press the small hollow and slide open the cover. Insert the three supplied batteries (AA/R6) in accordance with the polarity diagram inside the battery compartment.

  • Page 8: Getting To Know The Av Receiver

    DTR-4.6.book Page 8 Thursday, September 22, 2005 1:45 PM Getting to Know the AV Receiver Front Panel 1 2 3 For detailed information, see the pages in parentheses. Standby/On button (35) Sets the AV receiver to On or Standby. Standby indicator (35) Lights up when the AV receiver is on Standby and flashes while a signal is being received from the...
  • Page 9 DTR-4.6.book Page 9 Thursday, September 22, 2005 1:45 PM Getting to Know the AV Receiver —Continued Display For detailed information, see the pages in parentheses. MUTING indicator (50) Flashes while the AV receiver is muted. ZONE 2 indicator (68) Lights up when Zone 2 is on.

  • Page 10: Rear Panel

    DTR-4.6.book Page 10 Thursday, September 22, 2005 1:45 PM Getting to Know the AV Receiver —Continued Rear Panel OPTICAL DIGITAL These optical digital audio inputs are for connecting components with optical digital audio outputs, such as CD players and DVD players.
  • Page 11 DTR-4.6.book Page 11 Thursday, September 22, 2005 1:45 PM Getting to Know the AV Receiver —Continued TAPE IN/OUT This analog audio input and output are for connect- ing a recorder with an analog audio input and out- put, such as a cassette deck, MD recorder, etc.

  • Page 12: Remote Controller

    In Receiver/Tape mode, you can control the AV receiver and an Integra cassette recorder connected via ■ DVD Mode By default, you can control an Integra DVD player in this mode. By entering the appropriate remote control code, you can control components made by other manufactur- ers (see page 72).
  • Page 13 DTR-4.6.book Page 13 Thursday, September 22, 2005 1:45 PM Remote Controller —Continued For detailed information, see the pages in parentheses. Standby button (35) Sets the AV receiver to Standby. On button (35) Turns on the AV receiver. Input Selector buttons (42) Used to select the input sources.

  • Page 14: Dvd Mode

    DTR-4.6.book Page 14 Thursday, September 22, 2005 1:45 PM Remote Controller —Continued DVD Mode To set the remote controller to DVD mode, press the [DVD] Remote Mode button. Standby button Sets the DVD player to Standby. On button Turns on the DVD player.
  • Page 15 DTR-4.6.book Page 15 Thursday, September 22, 2005 1:45 PM Remote Controller —Continued CD, MD, and CDR Modes To control an Integra CD player or a CD/MD recorder made by another manufacturer, press the [CD] Remote Mode button to select the CD remote controller mode.

  • Page 16: Hdd Mode

    DTR-4.6.book Page 16 Thursday, September 22, 2005 1:45 PM Remote Controller —Continued HDD Mode HDD mode is for controlling Integra’s next generation HDD-compatible components. As of 2005, it can be used with the Onkyo DS-A1 Remote Interactive Dock and Apple iPod connected via When Using the Onkyo DS-A1: •...

  • Page 17: Enjoying Home Theater

    DTR-4.6.book Page 17 Thursday, September 22, 2005 1:45 PM Connecting Your Speakers Enjoying Home Theater Thanks to the AV receiver’s superb capabilities, you can enjoy surround sound with a real sense of movement in your own home—just like being in a movie theater or concert hall. You can enjoy DVDs featuring DTS and Dolby Digital.
  • Page 18 DTR-4.6.book Page 18 Thursday, September 22, 2005 1:45 PM Connecting Your Speakers —Continued Connecting Your Speakers Speaker Configuration For the best surround-sound experience, you should con- nect five speakers and a powered subwoofer. The following table shows which channels you should use based on the number of speakers you have.

  • Page 19: Speaker Connection Precautions

    DTR-4.6.book Page 19 Thursday, September 22, 2005 1:45 PM Connecting Your Speakers —Continued Speaker Connection Precautions Read the following before connecting your speakers: • Only connect speakers with an impedance of 6 ohms or higher. If you use speakers with a lower impedance, and use the amplifier at high volume levels for a long...

  • Page 20: Connecting Antenna

    DTR-4.6.book Page 20 Thursday, September 22, 2005 1:45 PM Connecting Antenna This section explains how to connect the supplied indoor FM antenna and AM loop antenna, and how to connect commercially available outdoor FM and AM antennas. The AV receiver won’t pick up any radio signals without any antenna connected, so you must connect the antenna to use the tuner.

  • Page 21: Connecting An Outdoor Fm Antenna

    DTR-4.6.book Page 21 Thursday, September 22, 2005 1:45 PM Connecting Antenna —Continued Connecting an Outdoor FM Antenna If you cannot achieve good reception with the supplied indoor FM antenna, try a commercially available out- door FM antenna instead. Notes: • Outdoor FM antennas work best outside, but usable results can sometimes be obtained when installed in an attic or loft.

  • Page 22: Connecting Your Components

    DTR-4.6.book Page 22 Thursday, September 22, 2005 1:45 PM Connecting Your Components About AV Connections • Before making any AV connections, read the manuals supplied with your other AV components. • Don’t connect the power cord until you’ve completed and double-checked all AV connections.

  • Page 23: Connecting Audio And Video Signals To The Av Receiver

    DTR-4.6.book Page 23 Thursday, September 22, 2005 1:45 PM Connecting Your Components —Continued Connecting Audio and Video Signals to the AV Receiver By connecting both the audio and video outputs of your DVD player and other AV components to the AV receiver, you can switch the audio and video signals simultaneously simply by changing the input source on the AV receiver.

  • Page 24: Tv Or Projector

    DTR-4.6.book Page 24 Thursday, September 22, 2005 1:45 PM Connecting Your Components —Continued Connecting a TV or Projector Step 1: Video Connection Choose a video connection that matches your TV ( , Step 2: Audio Connection Choose an audio connection that matches your TV ( , •...

  • Page 25: Step 1: Video Connection

    DTR-4.6.book Page 25 Thursday, September 22, 2005 1:45 PM Connecting Your Components —Continued Connecting a DVD player Step 1: Video Connection Choose a video connection that matches your DVD player ( , If you use connection , you must connect the AV receiver to your TV with the same type of connection.
  • Page 26 DTR-4.6.book Page 26 Thursday, September 22, 2005 1:45 PM Connecting Your Components —Continued Hooking Up the Multichannel DVD Input If your DVD player supports multichannel audio formats such as DVD-Audio or SACD, and it has a multichannel analog audio output, you can connect it to the AV receiver’s multichannel DVD input.

  • Page 27: Vcr Or Dvd Recorder For Playback

    DTR-4.6.book Page 27 Thursday, September 22, 2005 1:45 PM Connecting Your Components —Continued Connecting a VCR or DVD Recorder for Playback In addition to video playback, with this hookup, you can use your VCR’s tuner to listen to your favorite TV programs via the AV receiver, useful if your TV has no audio outputs.

  • Page 28: Vcr Or Dvd Recorder For Recording

    DTR-4.6.book Page 28 Thursday, September 22, 2005 1:45 PM Connecting Your Components —Continued Connecting a VCR or DVD Recorder for Recording If you have two video recorders (e.g., a VCR and a DVD recorder), connect one recorder to the VIDEO 1 OUT jacks, as shown here, and connect the other recorder to the VIDEO 2 OUT jacks in the same way.

  • Page 29: Satellite, Cable, Set-Top Box, Or Other Video Source

    DTR-4.6.book Page 29 Thursday, September 22, 2005 1:45 PM Connecting Your Components —Continued Connecting a Satellite, Cable, Set-top box, or Other Video Source Step 1: Video Connection Choose a video connection that matches the video source ( , If you use connection , you must connect the AV receiver to your TV with the same type of connection.

  • Page 30: Connecting A Cd Player

    DTR-4.6.book Page 30 Thursday, September 22, 2005 1:45 PM Connecting Your Components —Continued Connecting a CD Player Step 1: Choose a connection that matches your CD player ( , COAXIAL IN 2 OPTICAL IN 3 Connect one or the other •...

  • Page 31: Turntable

    DTR-4.6.book Page 31 Thursday, September 22, 2005 1:45 PM Connecting Your Components —Continued Connecting a Turntable ■ Turntable with a Built-in Phono Preamp Use an analog audio cable to connect an unused audio input on the AV receiver to the audio outputs on your turntable, as shown.

  • Page 32: Cassette, Cdr, Minidisc, Or Dat Recorder

    DTR-4.6.book Page 32 Thursday, September 22, 2005 1:45 PM Connecting Your Components —Continued Connecting a Cassette, CDR, MiniDisc, or DAT Recorder Step 1: Choose a connection that matches the recorder ( , COAXIAL IN 2 OPTICAL IN 3 OPTICAL Connect one...

  • Page 33: Connecting Components

    DTR-4.6.book Page 33 Thursday, September 22, 2005 1:45 PM Connecting Your Components —Continued Connecting Components Step 1: Make sure that each Integra component is connected to the AV receiver with an analog audio cable (RCA). Step 2: Make the connection. With...

  • Page 34: Connecting The Power Cords Of Other Components

    DTR-4.6.book Page 34 Thursday, September 22, 2005 1:45 PM Connecting Your Components —Continued Connecting the Power Cords of Other Components The AV receiver has AC outlets on its rear panel that can be used to connect the power cords of other components that you intend to use with the AV receiver.

  • Page 35: Turning On The Av Receiver

    If you have, see “Component Video Setup” on page 39 or “Digital Audio Input Setup” on page 40 respectively. ■ Have you connected an Integra MD recorder, CD recorder, or next generation HDD-compatible component? If you have, see “Changing the Input Display” on page 41.

  • Page 36: First Time Setup

    DTR-4.6.book Page 36 Thursday, September 22, 2005 1:45 PM First Time Setup This section explains the settings that you need to make before using the AV receiver for the very first time. Speaker Setup This section explains how to set the speaker settings.

  • Page 37: Speaker Distance

    DTR-4.6.book Page 37 Thursday, September 22, 2005 1:45 PM First Time Setup —Continued Crossover Use the Up and Down [ buttons to select “g. Crossover,” and then use the Left and Right ] buttons to select a crossover frequency. Choose a crossover frequency suitable for your setup.

  • Page 38: Speaker Level Calibration

    DTR-4.6.book Page 38 Thursday, September 22, 2005 1:45 PM First Time Setup —Continued Use the Up and Down [ buttons to select “a. Unit,” and then use the Left and Right ] buttons to select: feet: Select if you want to enter distances in feet.

  • Page 39: Component Video Setup

    DTR-4.6.book Page 39 Thursday, September 22, 2005 1:45 PM First Time Setup —Continued Component Video Setup If you connect a video component to COMPONENT VIDEO IN 1, 2, or 3, you must assign that input to an input selector. For example, if you connect your DVD player to COMPONENT IN 3, you must assign COM- PONENT IN 3 to the DVD input selector.

  • Page 40: Digital Audio Input Setup

    DTR-4.6.book Page 40 Thursday, September 22, 2005 1:45 PM First Time Setup —Continued Digital Audio Input Setup If you connect a component to a digital input, you must assign that input to an input selector. For example, if you connect your CD player to OPTICAL IN 2, you must assign OPTICAL IN 2 to the CD input selector.

  • Page 41: Changing The Input Display

    DTR-4.6.book Page 41 Thursday, September 22, 2005 1:45 PM First Time Setup —Continued Changing the Input Display If you connect an -capable Integra MiniDisc recorder, CD recorder, or next generation HDD-compat- ible component to the TAPE IN/OUT or VIDEO 3 IN...

  • Page 42: Basic Operation

    DTR-4.6.book Page 42 Thursday, September 22, 2005 1:45 PM Playing Your AV Components Basic AV Receiver Operation Use the AV receiver’s input selector buttons to select the input source. Remote controller AV receiver To select the input source with the remote controller, press the [Receiver] Remote Mode button, and then use the Input Selector buttons.

  • Page 43: Listening To The Radio

    DTR-4.6.book Page 43 Thursday, September 22, 2005 1:45 PM Listening to the Radio Listening to AM/FM Stations Tuning Mode Tuning Tuner With the built-in tuner, you can enjoy AM and FM radio stations, and store your favorite stations as presets for easy selection.

  • Page 44: Listening To Xm Satellite Radio

    DTR-4.6.book Page 44 Thursday, September 22, 2005 1:45 PM Listening to the Radio —Continued Listening to XM Satellite Radio What’s XM Satellite Radio? There is a world beyond AM and FM. It is XM Sat- ellite Radio. XM offers more than 150 digital chan-...

  • Page 45: Selecting Xm Radio Channels

    DTR-4.6.book Page 45 Thursday, September 22, 2005 1:45 PM Listening to the Radio —Continued Selecting XM Radio Channels There are two modes for selecting XM radio channels: Channel Search mode , which allows you to select any channel. Category Search mode , which allows you to select channels by category.

  • Page 46: Displaying Xm Radio Information

    DTR-4.6.book Page 46 Thursday, September 22, 2005 1:45 PM Listening to the Radio —Continued Tuner Selecting XM Channels from the Front Panel: Press the [Tuner] input selector button repeatedly to select XM. If “CHECK ANTENNA” appears on the display, make sure the XM antenna is connected properly.

  • Page 47: Positioning The Xm Antenna

    DTR-4.6.book Page 47 Thursday, September 22, 2005 1:45 PM Listening to the Radio —Continued 2, 3 Positioning the XM Antenna You can check the signal strength of the XM radio signal and adjust the position of the XM antenna accordingly.

  • Page 48: Presetting Am/Fm Stations And Xm Channels

    DTR-4.6.book Page 48 Thursday, September 22, 2005 1:45 PM Listening to the Radio —Continued Presetting AM/FM Stations and XM Channels 2, 4 You can store a combination of up to 40 of your favorite AM/FM radio stations and XM channels as presets.

  • Page 49: Using The Multichannel Dvd Input

    DTR-4.6.book Page 49 Thursday, September 22, 2005 1:45 PM Using the Multichannel DVD Input Multi CH Receiver Enter Using the Multichannel DVD Input The multichannel DVD input is for connecting a compo- nent with a 5.1-channel analog audio output, such as a DVD player, DVD-Audio/SACD-capable player, or an MPEG decoder.

  • Page 50: Common Functions

    4_Basic_En Page 50 Thursday, September 22, 2005 2:48 PM Common Functions This section explains functions that can be used with any input source. Press [Receiver] first Dimmer Display CH Sel Phones Dimmer Display Setting the Display Brightness You can adjust the brightness of the display. Press the [Dimmer] button Remote controller...

  • Page 51: Using The Sleep Timer

    DTR-4.6.book Page 51 Thursday, September 22, 2005 1:45 PM Common Functions —Continued Using the Sleep Timer With the sleep timer, you can set the AV receiver so that it turns off automatically after a specified period. Press the remote controller’s [Sleep] button repeatedly to select the required sleep time.

  • Page 52: Using The Listening Modes

    DTR-4.6.book Page 52 Thursday, September 22, 2005 1:45 PM Using the Listening Modes Selecting the Listening Modes For a description of each listening mode, see “About the Listening Modes” on page 54. • The Dolby Digital and DTS listening modes...
  • Page 53 4_Basic_En Page 53 Thursday, September 22, 2005 3:47 PM Using the Listening Modes—Continued The following table shows which listening modes can be used with each input signal format. Source format Analog, PCM CD, TV, radio, cassette, etc. Listening mode Direct ✔...

  • Page 54: About The Listening Modes

    DTR-4.6.book Page 54 Thursday, September 22, 2005 1:45 PM Using the Listening Modes —Continued About the Listening Modes The AV receiver’s listening modes can transform your listening room into a movie theater or concert hall, with high fidelity and stunning surround sound.

  • Page 55: Recording The Input Source

    4_Basic_En Page 55 Thursday, September 22, 2005 3:47 PM Recording This section explains how to record the input source and how to record audio and video from separate sources. Notes: • The surround sound and DSP listening modes cannot be recorded. •...

  • Page 56: Onscreen Setup Menus

    DTR-4.6.book Page 56 Thursday, September 22, 2005 1:45 PM Onscreen Setup Menus About the Onscreen Setup Menus The onscreen setup menus are displayed on the connected TV and provide a convenient way to change the AV receiver’s settings, which are arranged into two groups: First Time Setup and Advanced Setup .

  • Page 57: Adjusting The Listening Modes

    DTR-4.6.book Page 57 Thursday, September 22, 2005 1:45 PM Adjusting the Listening Modes Receiver Enter Using the Cine Filter Function With the Cine Filter function, you can correct a soundtrack whose high-frequency content is too harsh, making it more suitable for home theater viewing.

  • Page 58: Tone Control Settings

    DTR-4.6.book Page 58 Thursday, September 22, 2005 1:45 PM Adjusting the Listening Modes —Continued Tone Control Settings You can adjust the bass and treble for the front speakers. The tone control circuits are bypassed in the Direct lis- tening mode.
  • Page 59 DTR-4.6.book Page 59 Thursday, September 22, 2005 1:45 PM Adjusting the Listening Modes —Continued Dolby Digital Settings ■ Late Night With the Late Night function, you can reduce the dynamic range of Dolby Digital material so that you can still hear quiet parts even when listening at low volume levels—ideal for watching movies late at night when you...

  • Page 60: Default Listening Modes

    DTR-4.6.book Page 60 Thursday, September 22, 2005 1:45 PM Adjusting the Listening Modes —Continued Default Listening Modes You can specify a default listening mode for each signal format supported by each input selector. The AV receiver will then automatically select that listening mode based on the format of the input signal.

  • Page 61: Advanced Setup

    DTR-4.6.book Page 61 Thursday, September 22, 2005 1:45 PM Advanced Setup Input Setup This section explains items on the “Input Setup” menu. Receiver Enter Return Delay ■ A/V Sync When using progressive scanning, you may find that the picture and sound are out of sync. With this setting, you can correct this by delaying the audio signals from 0 to 100 milliseconds (ms) in 1 millisecond steps.

  • Page 62: Preferences

    DTR-4.6.book Page 62 Thursday, September 22, 2005 1:45 PM Advanced Setup —Continued Preferences This section explains items on the “Preference” menu. Receiver Enter Press the [Receiver] Remote Mode button, followed by the [Setup] button. The main menu appears onscreen. Use the Up and Down [ buttons to select “7.

  • Page 63: Display Position

    DTR-4.6.book Page 63 Thursday, September 22, 2005 1:45 PM Advanced Setup —Continued ■ Power On Vol / Z2 Power On Vol With these preferences, you can specify the volume set- tings to be used in the main room and Zone 2 when the AV receiver is turned on.

  • Page 64: Remote Ids

    DTR-4.6.book Page 64 Thursday, September 22, 2005 1:45 PM Advanced Setup —Continued Remote IDs Remote indicator Number buttons Receiver Enter Changing the AV Receiver’s Remote ID When several Integra components are used in the same room, their remote ID codes may overlap. To differenti- ate the AV receiver from the other components, you can change its remote ID from 1, the default, to 2 or 3.

  • Page 65: Digital Input Signal Formats

    DTR-4.6.book Page 65 Thursday, September 22, 2005 1:45 PM Advanced Setup —Continued Digital Input Signal Formats Normally, the AV receiver detects the signal format auto- matically. However, if you experience either of the fol- lowing issues when playing PCM or DTS material, you can specify the signal format as either PCM or DTS: •...

  • Page 66: Zone 2

    DTR-4.6.book Page 66 Thursday, September 22, 2005 1:45 PM Zone 2 Connecting Zone 2 With the Zone 2 function, you can enjoy one input source in the main room and a different input source in another room. There are two ways to hook up your Zone 2 speakers: 1) Use another amp (receiver, integrated amp, or power amp) in Zone 2 and connect your Zone 2 speakers to it.

  • Page 67: Powered Zone 2 Setting

    DTR-4.6.book Page 67 Thursday, September 22, 2005 1:45 PM Zone 2 —Continued Powered Zone 2 Setting If you’ve connected your Zone 2 speakers to this AV receiver, as explained in “Using Only Speakers in Zone 2” on page 66, you must set the Powered Zone 2 setting to Act (Activated) as explained here.

  • Page 68: Using Zone 2

    DTR-4.6.book Page 68 Thursday, September 22, 2005 1:45 PM Zone 2 —Continued Using Zone 2 This section explains how to turn Zone 2 on and off, how to select an input source for Zone 2, and how to adjust the volume for Zone 2.
  • Page 69 DTR-4.6.book Page 69 Thursday, September 22, 2005 1:45 PM Zone 2 —Continued Adjusting the Volume for Zone 2 Zone 2 Level On the remote controller, press the [Zone 2] Remote Mode but- ton, and then use the [Level–] and [Level+] buttons.

  • Page 70: Using The 12V Triggers In Zone 2 And Main Room

    DTR-4.6.book Page 70 Thursday, September 22, 2005 1:45 PM Zone 2 —Continued Using the 12V Triggers in Zone 2 and the Main Room When the AV receiver’s 12 V TRIGGER OUT A/B/C jack is connected to the 12 V trigger input on a con-...

  • Page 71: Using The Remote Controller In Zone 2 And Multiroom Control Kits

    DTR-4.6.book Page 71 Thursday, September 22, 2005 1:45 PM Zone 2 —Continued Using the Remote Controller in Zone 2 and Multiroom Control Kits To control the AV receiver with the remote controller while you’re in the Zone 2 room, you’ll need a commer- cially available multiroom remote control kit.

  • Page 72: Controlling Other Components

    DTR-4.6.book Page 72 Thursday, September 22, 2005 1:45 PM Controlling Other Components You can control your other components, including those made by other manufacturers, with the remote controller. This section explains how to: • Enter the remote control code for a component that you want to control (e.g., DVD, TV, VCR).

  • Page 73: Remote Control Codes For Integra Components Connected Via

    DTR-4.6.book Page 73 Thursday, September 22, 2005 1:45 PM Controlling Other Components —Continued Remote Control Codes for Integra Components Connected via Integra components that are connected via trolled by pointing the remote controller at the AV receiver, not the component. This allows you to control components that are out of view, in a rack, for example.
  • Page 74 DTR-4.6.book Page 74 Thursday, September 22, 2005 1:45 PM Controlling Other Components —Continued To control another component, point the remote controller at it and use the buttons explained below. (You must select the appropriate remote control mode first.) With some AV components, certain buttons may not work as expected, and some may not work at all.

  • Page 75: Learning Commands From Other Remote Controllers

    DTR-4.6.book Page 75 Thursday, September 22, 2005 1:45 PM Controlling Other Components —Continued Learning Commands from Other Remote Controllers The AV receiver’s remote controller can receive and learn commands from other remote controllers. By trans- mitting, for example, the Play command from your CD player’s remote controller, the remote controller can...

  • Page 76: Using Macros

    DTR-4.6.book Page 76 Thursday, September 22, 2005 1:45 PM Controlling Other Components —Continued Using Macros You can program the remote controller’s Macro buttons to perform a sequence of actions. Example: To play a CD, you typically need to perform the follow- ing actions: 1.

  • Page 77: Troubleshooting

    DTR-4.6.book Page 77 Thursday, September 22, 2005 1:45 PM Troubleshooting If you have any trouble using the AV receiver, look for a solution in this section. If you can’t resolve the issue yourself, contact the dealer from whom you purchased.
  • Page 78 DTR-4.6.book Page 78 Thursday, September 22, 2005 1:45 PM Troubleshooting —Continued The Zone 2 speakers produce no sound • The Zone 2 speakers only output sources that are con- nected to an analog input. Check to see if the source is connected to an analog input.
  • Page 79 DTR-4.6.book Page 79 Thursday, September 22, 2005 1:45 PM Troubleshooting —Continued Remote Controller The remote controller doesn’t work • Make sure that the batteries are installed with the cor- rect polarity (page 7). • Make sure that the remote controller is not too far away from the AV receiver, and that there’s no...

  • Page 80: Audio Outputs

    Tuning Frequency Range 530 kHz–1710 kHz Usable Sensitivity 300 µV/m Signal to Noise Ratio 40 dB 0.70% Integra Division of ONKYO U.S.A. CORPORATION 18 park Way, Upper Saddle River, N.J. 07458, U.S.A. Tel: 201-785-2600 Fax: 201-785-2650 http://www.integrahometheater.com Integra Division of ONKYO CORPORATION Sales &...
