InSinkErator 1/21-1/4H.P Specifications

PROJECT:

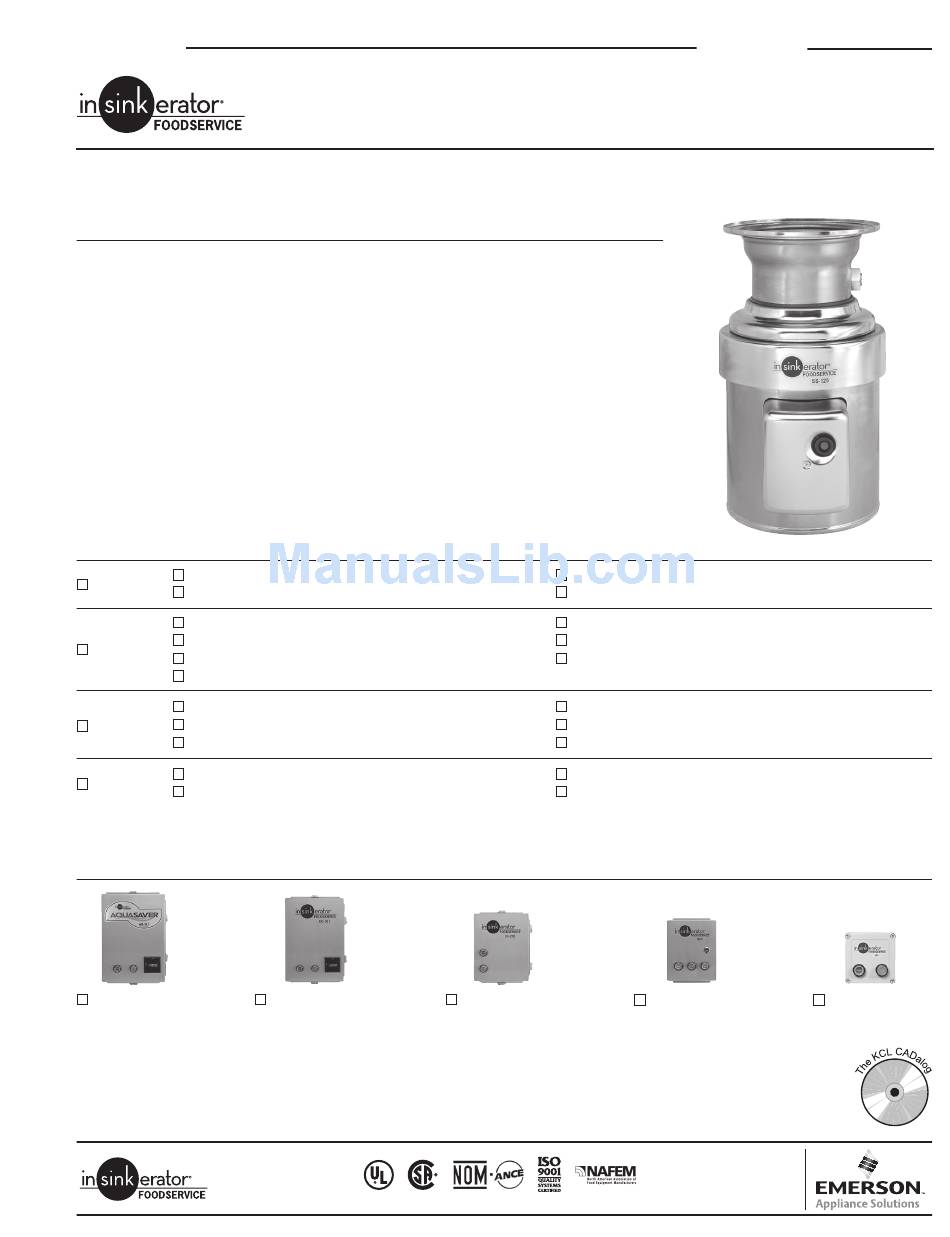

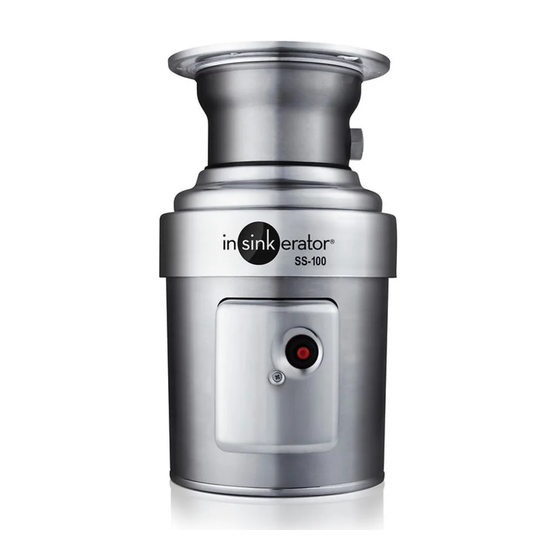

Heavy-duty disposer designed for continuous operation in restaurants, hotels, hospitals and cafeterias. Food waste including
steak bones is quickly and efficiently removed with this labor-saving, self-cleaning, environmentally sound disposer.

SPECIFICATIONS

• Grind Chamber: Corrosion Resistant Stainless Steel
• Mounting: 3/4" (19.1 mm) rubber mounting above grinding chamber isolates sound and eliminates
vibration. Mounting is enclosed in chrome plated covers for sanitation and appearance.
• Motor: 1/2 – 1-1/4 HP Induction Motor, 1725 RPM, totally enclosed to provide protection against
outside moisture. Controlled power air flow cools motor for efficiency and longer life. Built-in
thermal overload protection.
• Cutting Elements: Stationary and rotating shredding elements made from cast nickel chrome
alloy for long life and corrosion resistance, designed for reverse action grinding.
• Main Bearings: Double-tapered Timken roller bearings provide a shock absorbing cushion.
• Motor Seals: Triple lip seal protects motor from water damage. Secondary spring-loaded
oil seal provides double protection against water and loss of grease.
• Finish: All Stainless Steel and Chrome plated. Paint-free for lasting sanitation.
• Warranty: 1 year full warranty from date of installation.
• A Disposer Package Includes: 1 Mounting/Bowl Assembly, 1 Electrical Control, 1 Syphon
Breaker, 1 Solenoid Valve, and 1 Flow Control Valve. The standard Flow Control Valve will be
sent with the unit unless the optional valve is specified.
MODEL & HORSEPOWER/ELECTRICAL REQUIREMENTS
SS-50 115/208-230V, 60 Hz, 1 Ph, 8.4/4.0/4.2 amps, UL
1-1/2 H.P. 208-230/460V, 60 Hz, 3 Ph, 2.0/2.2/1.1 amps, UL
115/208-230V, 60 Hz, 1 Ph, 10.0/4.2/5.0 amps, UL
SS-75 208-230/460V, 60 Hz, 3 Ph, 2.5/3.0/1.5 amps, UL
3/4 H.P.
115/208-230V, 60 Hz, 1 Ph, 10.4/4.3/5.0 amps, CSA
208-230/460V, 60 Hz, 3 Ph, 2.5/3.0/1.5 amps, CSA
115/208-230V, 60 Hz, 1 Ph, 11.6/5.1/5.7 amps, UL
SS-100
208-230/460V, 60 Hz, 3 Ph, 2.2/3.0/1.5 amps, UL
1 H.P.
115/208-230V, 60 Hz, 1 Ph, 11.6/5.1/5.7 amps, CSA
SS-125 115/208-230V, 60 Hz, 1 Ph, 12.8/5.9/6.6 amps, UL
1-1/4 H.P. 208-230/460V, 60 Hz, 3 Ph, 2.6/3.3/1.9 amps, UL
NOTE: All amp ratings denote amp draw during a grind load.
ELECTRICAL CONTROLS
AS-101 Control Center
"Aqua Saver"
(Auto-Reversing)
4700 21st STREET
RACINE, WI 53406
TEL: 800-845-8345
FAX: 262 554-3620
www.insinkerator.com
InSinkErator is a division of Emerson Electric Co.
1/2 – 1-1/4 H.P. DISPOSER MODELS
CC-101 Control Center
(Auto-Reversing)
115/208-230V, 60 Hz, 1 Ph, 8.4/4.0/4.2 amps, CSA
208-230/460V, 60 Hz, 3 Ph, 2.0/2.2/1.1 amps, CSA
115/230V, 50 Hz, 3 Ph, 7.7/3.7 amps
230/460V, 50 Hz, 3 Ph, 2.7/1.4 amps
380V, 50 Hz, 3 Ph, 1.1 amps
208-230/460V, 60 Hz, 3 Ph, 2.2/3.0/1.5 amps, CSA
120/208-240V, 60 Hz, 1 Ph, 11.6/5.1/5.7 amps, NOM
100/200-230V, 50/60 Hz, 1 Ph, 10.4/5.2/5.4 amps
115/208-230V, 60 Hz, 1 Ph, 12.8/5.9/6.6 amps, CSA
208-230/460V, 60 Hz, 3 Ph, 2.6/3.3/1.9 amps, CSA
CC-202 Control Center
(Auto-Reversing)
