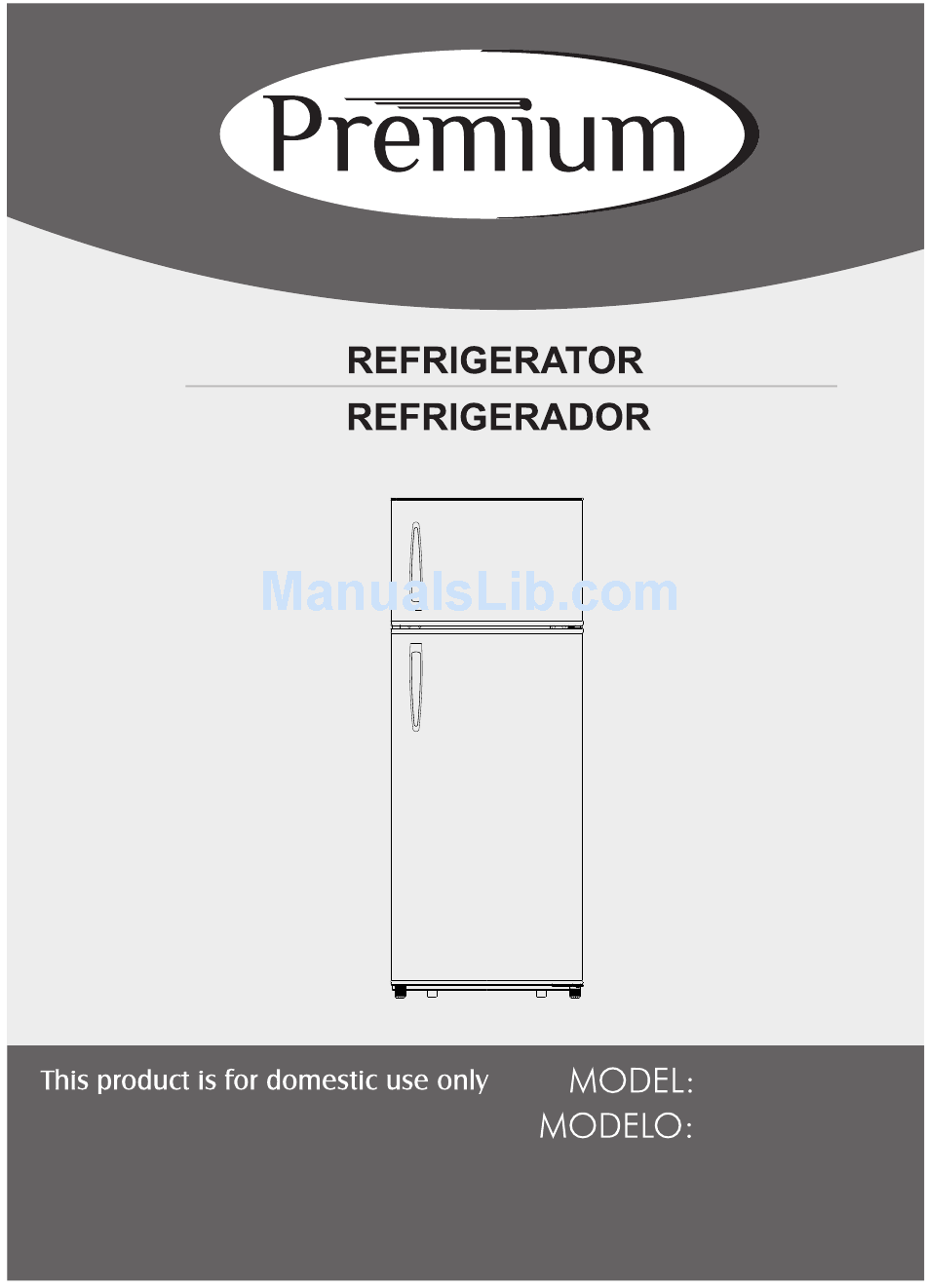

- Page 1 PRF735HW PRF736HS PRF737HB Service Manual Important Safeguards...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Specification Safety Precautions The Cooling System Wire Diagram Changing the Reversing Door Changing the Bulb Trouble Shooting... -
Page 3: Specification
SPECIFICATION PRF735HW/ PRF736HS/ PRF737HB Models 7.4 cu.ft. Capacity Power Supply 115V/60Hz Rated Input Power 120 W Rated Current 1.5 A Rated Power of Lamp 10 W Refrigerant/Amount R600a / 1.48 oz 92 lbs Net Weight 56” x 21 1/2” x 22 3/4”... -
Page 4: The Cooling System
Keep ventilation opening, in the appliance enclosure or in the built-in structure, clear of obstruction This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. -
Page 5: Wire Diagram
WIRE DIAGRAM CHANGING THE REVERSING DOOR Before reversing the door swing, ensure the appliance is unplugged and empty. Provide additional support for the doors while hinges are being removed. Do not depend on the door magnets to hold the door in place. It is recommended that two people perform this task. - Page 6 2. Remove the 2 screw covers first, then undo the screws underneath. 3. Remove the 2 screws on the back. unscrew 4. Lift the top cover away from the fridge. 5. Remove the three screws, then remove the upper hinge that hold the unscrew door in place.
- Page 7 7. Take off the middle hinge by removing the screws. And then lift the lower door and place it on a padded surface to prevent it from scratching. 8. Move the hinge hole cover of lower door from left side to right side. 9.
- Page 8 11. Refit the bracket fitting the bottom hinge pin. Replace both adjustable feet. Transfer the lower door to the property position. Screw 12. Make the middle hinge reverse the direction 180°C, then transfer it to the left property position. Make the middle hinge pin in the upper hole of the lower door, then tight the bolts.
-
Page 9: Changing The Bulb
REPLACING THE BULB Unplug the AC power cord from the wall. Remove the screw that holds the light bulb cover. Remove the light bulb cover. Unscrew the bulb. Replace with a 10 watt bulb that is the same shape and size. ... - Page 10 Manual de mantenimiento Precauciones importantes...
