Nextel iR1200 Quick Reference Manual

iR1200 Modem

Quick Reference Guide
What's the Problem? What it means:
Modem will not power The wiring to the modem
down. may not be connected
properly.
NOTE: The Status LED remains red for up to 3 minutes after power is applied to the
iR1200 or immediately after the Reset button is pressed.
The following important information will allow you to safely operate the iR1200 and
iR1200 GPS-Enabled modems.

Safe Operating Guidelines

Your modem contains a transmitter and receiver. When it is ON, it receives and transmits
radio frequency (RF) energy. This product is authorized by FCC Rule Part 47CFR 2.989 which
states that it should be used in such a way that it maintains a distance of at least 8 inches (20
cms) between the radio's antenna and the human body.

Medical and Personal Electronic Devices

Most electronic equipment is protected from RF energy. However, certain equipment may not
be shielded against RF signals being emitted from your modem.
Pacemakers
Operators should not use the modem if individuals with pacemakers are within 6 inches (0.15
meters) of the antenna.
Hearing Aids
The modem may interfere with hearing aid devices. Individuals who experience such
interference should consult the hearing aid manufacturer to discuss alternative solutions.
Other Medical Devices
Individuals who have other medical devices not specifically mentioned in this guide may want
to consult their physician or device manufacturer to determine if it is adequately protected from
external RF energy.

Interference with Other Electronic Devices

RF energy may affect improperly installed or inadequately protected electronic operating and
entertainment systems in motor vehicles. Check with the manufacturer or representative to
determine if these systems are adequately shielded from external RF energy.
For Customer Care, please contact your technology administrator or designated
field-care representative:
Contact Number:________________________________________
Record your installer's contact information for future service needs or questions.
© 2003 Nextel Communications, Inc. All rights reserved. Nextel and the Nextel logo are trademarks
and/or service marks of Nextel Communications, Inc. All other company, product or service names
are the property of their respective owners.
RFM-4001-5015 Rev 2
How to Resolve:
• Check the ignition sense wiring to
be sure that it is connected.
• Verify that the diagnostic port is
plugged in correctly.
•
Check LED status to see if the
modem is communicating.

Introduction

The iR1200 modem is designed to work specifically within the iDEN
Once installed and configured, it provides you with wireless data communications.
This quick reference guide provides important information for operating your
modem.

Getting Started

The modem is designed to power up or turn ON when an ignition signal is sensed.

Power Up from Vehicle:

1. Turn ON your iR1200 modem by simply starting your vehicle.
2. The modem automatically turns on and connects to the Nextel network
(this process may take up to 3 minutes).
3. Turn on your mobile device (e.g., laptop, Mobile Data Terminal (MDT),
etc).
4. Use your mobile device to receive or send information.

Power Up from Building or Desktop:

1. Insert the ignition bypass plug into the IGNITION connector located on
the back panel of the modem.
2. Turn ON your iR1200 modem by plugging the power connector into a
12-volt DC power supply.
3. Turn on your mobile device (i.e. laptop, MDT, etc.).
4. Use your mobile device to send and receive information.

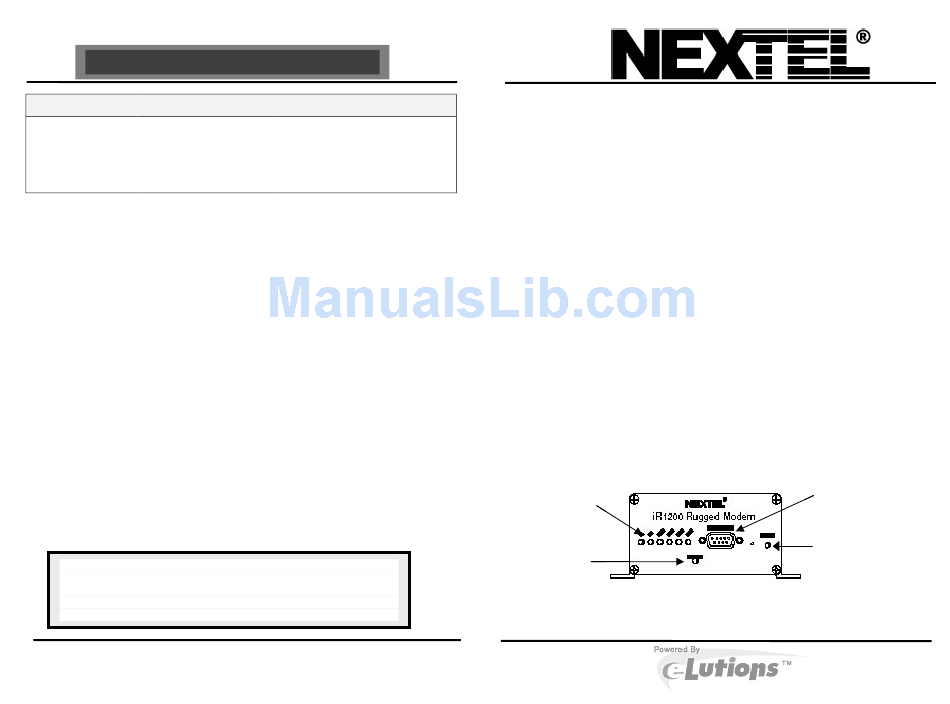

LED Indicators and Statuses

LEDs on the front panel of the modem indicate whether it is operating
appropriately. The following table summarizes what each LED indicates.
LED (signal indicators) LED (signal indicators)
displays the modem's displays the modem's
serial interface status. serial interface status.
Status LED Status LED
displays the displays the
modem's modem's
iDEN network iDEN network
status. status.
®
network.
Diagnostic Connector Diagnostic Connector
used to receive modem used to receive modem
diagnostic information. diagnostic information.
Pressing the reset button
on the front panel of the
modem will cause the
modem to recycle power,
equivalent to re-
establishing the connection
to the network.
