Summary of Contents for Ikegami Electronics VCM-1501
-

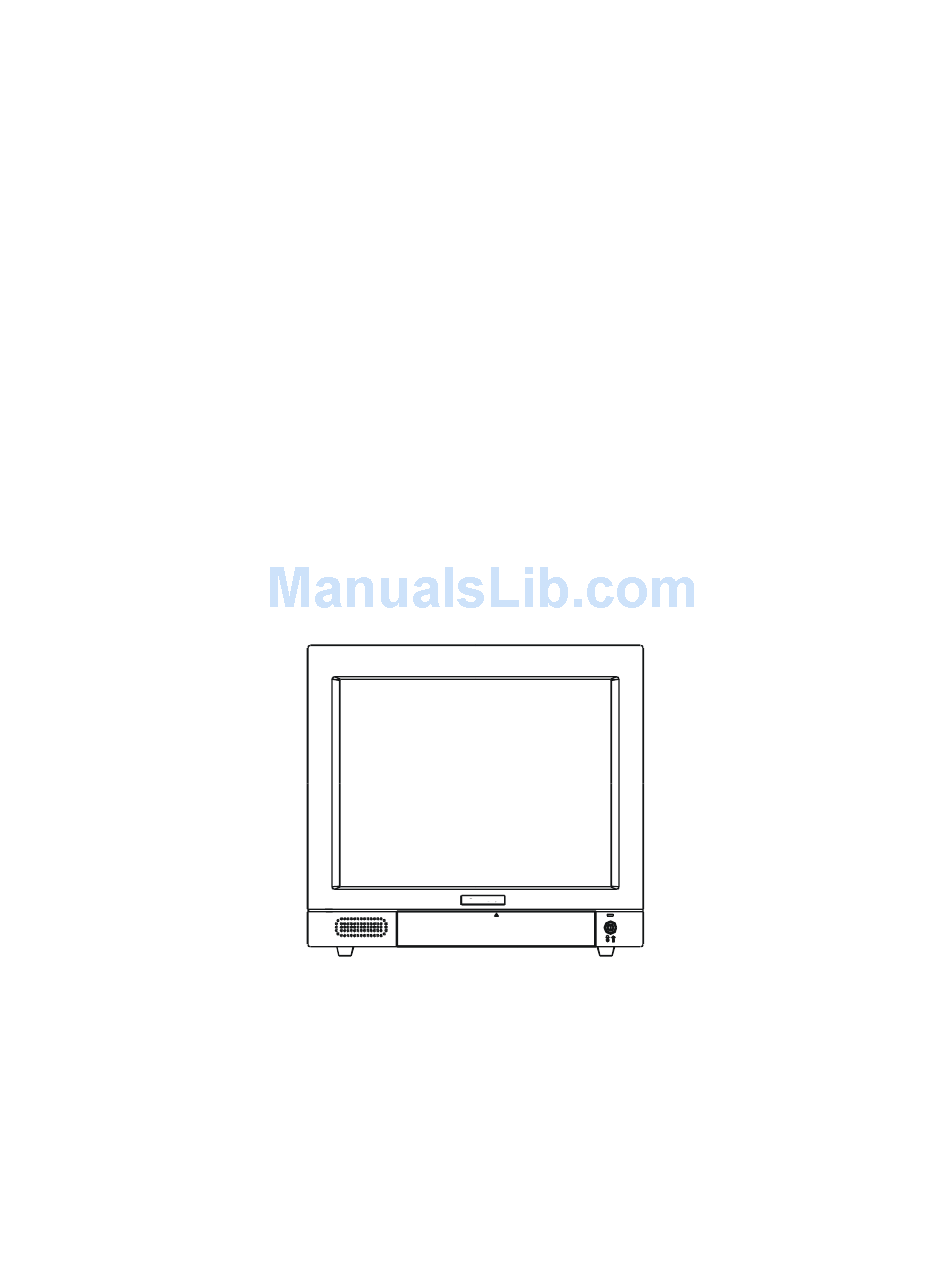

Page 1: Operating Instructions
Operating Instructions For Color Video Monitor VCM-1501 / VCM-1701... -
Page 3: Table Of Contents
Table of Contents 1. FCC Information 2. Safety Precautions 3. General Features 4. VCM-1501 HI-RES. Monitor Front and Rear Views 5. VCM-1701 HI-RES. Monitor Front and Rear Views 6. Operation 7. Specifications 8. Rack Mount Kit Model... -
Page 4: Fcc Information
FCC INFORMATION This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. - Page 5 7. Route power cords so that they cannot be walked upon or tripped over. Do not allow anything to rest on the power cord. 8. Do not install monitor in wet areas, or where it may be exposed to rain or water. Do not spill liquid of any kind on the unit.
-
Page 6: General Features
3. Video Input Signal : CVBS1 / CVBS2 / S-Y/C 4. Audio Input Signal : AU1 / AU2 5. Input Power : 100~240V AC 6. Limited twelve months warranty STANDARD SYSTEM COMPONENTS AND ATTACHMENTS The various components and attachments are shown below: VCM-1501 V CM-1701... - Page 7 VCM-1501 MONITOR FRONT AND REAR VIEW Front View 1. Power On/Off Switch 2. Power-On Indicator 3. Contrast Adjustment 4. Brightness Adjustment 5. Tint Adjustment 6. Color Adjustment 7. Sharpness Adjustment 8. Volume Adjustment 9. CVBS1 / CVBS2 / S-Y/C Select Switch 10.
- Page 8 VCM-1701 MONITOR FRONT AND REAR VIEW Front View 1. Power On/Off Switch 2. Power-On Indicator 3. Contrast Adjustment 4. Brightness Adjustment 5. Tint Adjustment 6. Color Adjustment 7. Sharpness Adjustment 8. Volume Adjustment 9. CVBS1 / CVBS2 / S-Y/C Select Switch 10.
-
Page 9: Operation
OPERATION Operating Instructions 1. Place the monitor on a flat and firm surface (see Safety Precautions on page 2). 2. This monitor can be operated between 100VAC to 240VAC. 3. Plug the power cord into AC outlet on the wall. 4. -
Page 10: Specifications
Refer servicing to qualified personnel, or contact the Tatung Customer Service Department for assistance. Refer to the Warranty and Return Information section. SPECIFICATIONS MODEL VCM-1501 VCM-1701 ELECTRICAL Input Voltage 100~240V AC, 60 / 50HZ , full range... - Page 11 RACK MOUNT KIT TRK-141 TRK-141 used for rack mount of 14” or 15” CRT color monitors, model: VCM1401 and VCM-1501. The installation procedure is simple: 1. Unscrew two Screw (M5 x 10mm) on each side of the monitor. 2. Secure TRK-141 bracket to both side of the monitor with the screw provided in the package.
- Page 12 RACK MOUNT KIT TRK-171 TRK-171 used for mount 17” CRT color monitor VCM-1701 on the rack. The installation procedure is simple: 1. Unscrew three Screws (M6) on each side of the monitor. 2. Secure mounting brackets to both side of the monitor with original screws. (FIG 1) 3.
- Page 13 Ikegami Electronics (USA), Inc. 37 Brook Ave., Maywood, NJ 07607...
