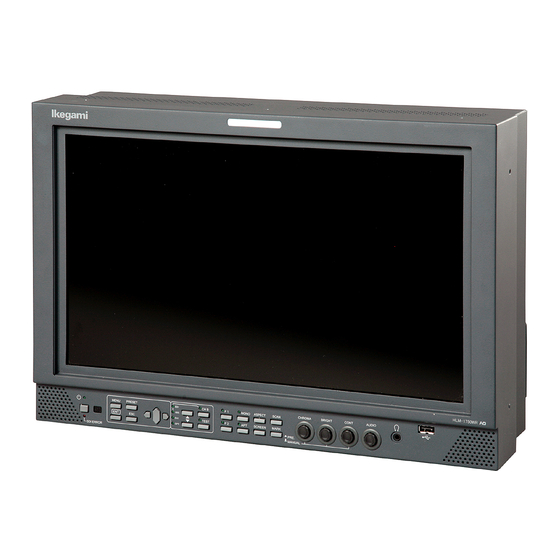

FULL HD MULTI FORMAT
OLED COLOR MONITOR
OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HEM-1770WR and is the answer not in the manual?

Questions and answers

Related Manuals for Ikegami Electronics HEM-1770WR

Summary of Contents for Ikegami Electronics HEM-1770WR

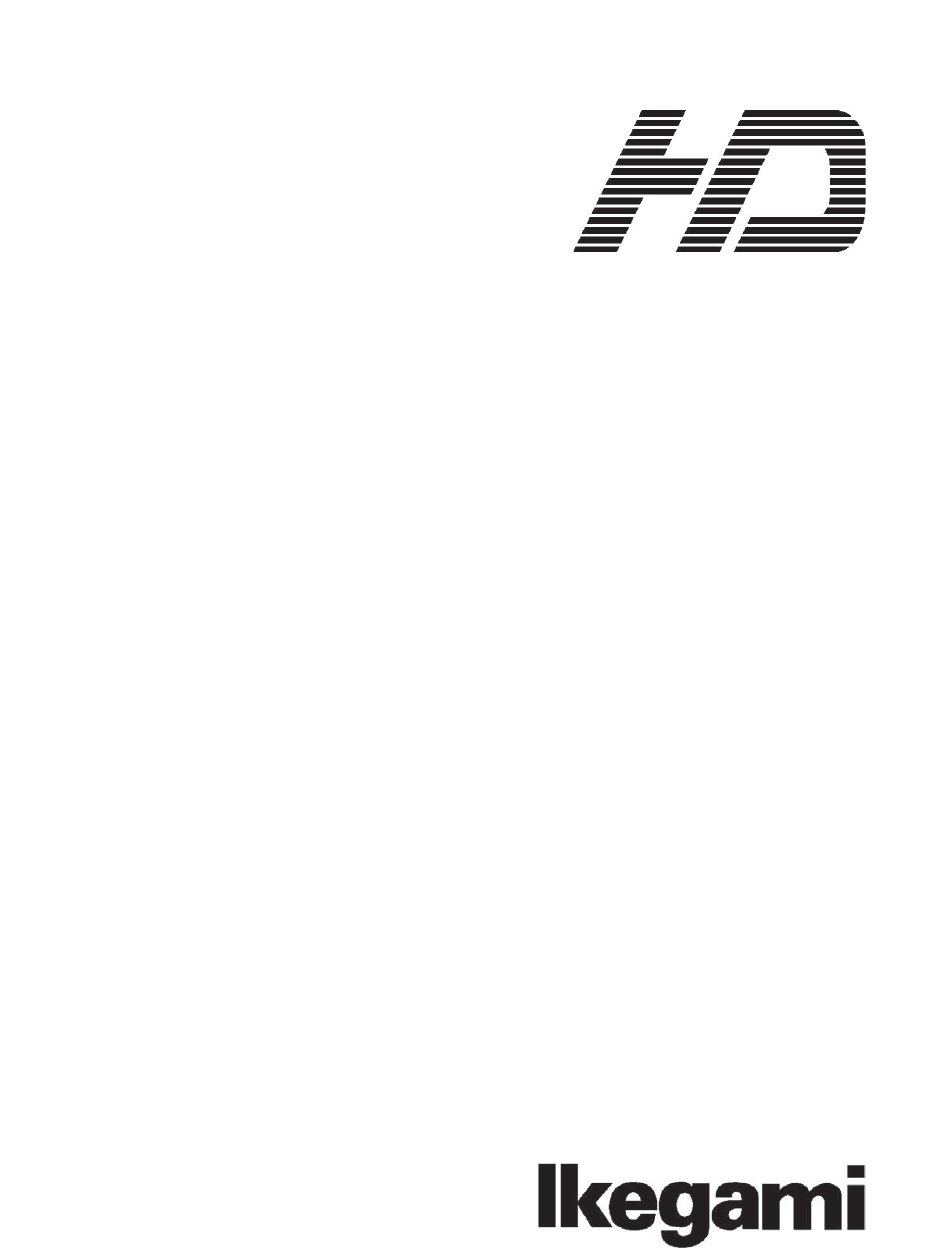

  • Page 1 MODEL HEM-1770WR HEM-2570W FULL HD MULTI FORMAT OLED COLOR MONITOR OPERATION MANUAL...
  • Page 3 The “CE” mark means the products as mentioned below will meet the intent of the following Directives and Standards. Inrush current according to EN55103-1 Annex B is as follows. HEM-1770WR :1.71A r.m.s. (the average half-cycle r.m.s. inrush current, on initial switch-on.) :1.16A r.m.s. (the average half-cycle r.m.s. inrush current after a supply interruption of 5 s.) HEM-2570W :3.15A r.m.s.

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS 5) For added protection for this television equipment 1. General during a lightning storm, or when it is left 1) Read all instructions provided. unattended and unused for long periods of time, 2) Save these instructions for future use. unplug it from the wall outlet.
  • Page 5 IMPORTANT SAFETY INSTRUCTIONS 4) Avoid operating or placing (keeping) in a hot 3) Upon completion of any service or repairs to this (+40 or over) or cold (less than 0 ), high monitor, ask the service technician to perform vibration, or dusty place. Avoid operating or routine safety checks to determine that the storing in a place exposed to direct sunlight.

  • Page 6: Precautions For Operations

    PRECAUTIONS FOR OPERATIONS 1) Never let this unit fall or subject it to strong 7) Avoid using or storing this unit in the following shock. places: Hot (+40 or more) or cold (0 or less) 2) Do not remove the cabinet unless necessary. places, especially where this unit may be High-voltage parts are contained in the cabinet exposed to the direct rays of the sun.

  • Page 7: Precautions Upon Use

    Precautions Upon Use In order to use the monitor safely, read through this manual and pay attention to the following points in particular. 1. Do not use any power supply other than the specified one (AC/DC). 2. Do not give a shock to the monitor. Please be careful not to give any impact on the device because a thin glass is applied on the OLED surface.
  • Page 8 7. Caution for condensing. When the monitor is used in the condition where temperature abruptly changes, the surface of outside and the inside of monitor are possible to get condensed. And if it is used leaving condensed, it can cause deterioration of quality and trouble. If the device is condensed, please do not turn on the power until waterdrop is disappeared completely.
  • Page 9 Warranty If the product should fail within one year from the date of delivery in spite of the proper use, the manufacturer will repair the product free of charge. Even if the product is covered by the warranty, however, the customer will be charged for labor and parts in the following cases. 1.

  • Page 10: Table Of Contents

    4-16. Description of MENU 13 Functions ... 54 10. Options............. 68 4-17. Description of MENU 14 Functions ... 55 11. External View............ 70 (1) HEM-1770WR..........70 (2) HEM-1770WR+STD-1770+GR-1770....71 (3) HEM-2570W..........72 Data 1 PC Input Signal Compatible Format ..73 Data 2 Parallel Remote Pin Function......

  • Page 11: Outline

    HEM-1770WR/2570W Full HD Multi-Format OLED Color Monitor 1 Outline 1-1 Outline (4) Compatibility with embedded audio It supports the embedded audio as a standard, This monitor has a 17-inch/25-inch full HD and automatically recognizes the embedded audio OLED panel aiming to reduce the thickness,...
  • Page 12 (12) Display comparison function by using 2 split screens or by switching between 2 full (16) AC/DC operation (HEM-1770WR only) screens The monitor can accept the AC/DC power as This is a convenient function to display the still standard.
  • Page 13 interlaced signal; however, by artificially dis- (17) Downmix function playing black lines between lines on the field like Among the embedded audio 8 channels, 5.1 a CRT interlaced scanning, the CRT-like inter- channel surround audio channel (Lm, Rm, C, Ls, laced display can be achieved.

  • Page 14: Names Of Parts And Their Functions

    This LED is lit up in green when the power supply This switch is pressed to display the menu screen for the monitor is ON. and to change the menu screen. Operation only for HEM-1770WR * This switch is disabled when the menu is dis- played. When running on battery,...
  • Page 15 ENT switch - 6.8% - 6% - 4% - 2% Press this switch to execute menu operations. ESC switch 100% 102% 104% 106% 108% 109% This switch is pressed to escape from menu op- 100 109% eration. (RIGHT) switch (UP)/ (DOWN)/ (LEFT)/ Use this switch to change menu items or the...
  • Page 16 APT switch ALARM LED Press this switch to select the aperture. a) ABL indicator Set a correction amount on PRESET MENU. The LED flashes slowly (0.5 sec. interval) during * In the PC input mode, this function is disabled. the ABL (Auto Brightness Limitter) operation. ABL is a signal having a high brightness.
  • Page 17 Stereo speakers Analog audio signals, embedded audio signals and downmix audio signals are fed out of this terminal. The analog and embedded inputs can be selected on MENU7. With the headphones being connected, no sound is heard from the speakers. - 7 -...

  • Page 18: Rear Panel (Left)

    IDX battery power. AC power input Insert the provided AC cable here to supply AC power. GR-1750 (HEM-1770WR is optional) This handle is the rubber-coateed grip for easy carrying. Lock After inserting the AC plug, lock the AC plug with this lock to prevent it from disconnecting.

  • Page 19: Rear Panel ( Front)

    2-3 Rear panel (video inputs/outputs) Use a shield wire for the cable. DVI-D signal input This connector is used to connect the DVI-D signal from the PC. RS-485 input/output You can remote control from the optional serial remote controller "SRC-400". SDI A/B signal input Up to 32 units can be loop-through-connected.
  • Page 20 2-4 Option (CM-70 input/output) * Under development Component (YPbPr/RGB) signal input External sync signal input Feed component signals. Feed an external sync signal here when externally Set either YPbPr or RGB on MENU10. synchronizing component signals. When the signal format is 1080i/60 or 1035i/60, If not adopting the loop through connection the 1080i/1035 setting must be made on method, connect the terminating plug.

  • Page 21: Markers

    3 Markers 3-1 Types of Markers The displayed markers are set on MENU8. With no menu onscreen, the image pattern can be changed with the switches, whereas the safety marker percentage setting (1% increments) with the switches.

  • Page 22: Menu Functions

    4 MENU Functions 4-1 List of MENU...

  • Page 25: Flow Of Menu Operations

    4-2 Flow of MENU Operations MENU can be switched as follows using the MENU switch.

  • Page 28: Description Of Menu 1 Functions

    4-3 Description of MENU 1 Functions Note the following description on the menu. The vertical frequency “/60” includes both 60 Hz and 59.94 Hz (60/1.001). The vertical frequency “/48” includes both 24 psF and 23.98 psF (24/1.001). The vertical frequency “/24” includes both 24 Hz and 23.98 Hz (24/1.001). Setting file status F3 switch assignment status The status of FILE (D65, D93, and FILE 1 to 8)

  • Page 29: Description Of Menu 2 Functions

    4-4 Description of MENU 2 Functions Manual switching of a full capture image Setting the function assignment of F1 switch CHG M Set any of the following operations performed by and the input signal image pressing the switch on the front panel. Shortcut key to the Execution Menu Default setting is WFM ON.
  • Page 30 Setting the function assignment of F2 switch Executing the content that is stored in POWER The function assignment is selectable in the same ON STATUS way as that shown above by pressing the F2 The items to be stored in “POWER ON STATUS” switch on the front panel.

  • Page 31: Description Of Menu 3 Functions

    4-5 Description of MENU 3 Functions Setting the serial remote control ID number R+G The entire tally is displayed. Used to set the ID number (01 to 99) of the monitor. The lamp is displayed in amber when both the The ID number is assigned to each monitor in R-TALLY and G-TALLY are set at ON.
  • Page 32 Setting the SDI channel switching lock ON/OFF Executing the 2x/4x zoom function A function used to enlarge the image 2x or If you want to prevent the switching between A/B 4x without screening. channels of SDI signal from switching, set it to "ON", and then fix the input channel.
  • Page 33 When nominal 13.2V battery is used with Default setting is 1 (semi-transparent). +DC14.8V setting. Service hours are shortened. Setting the type of battery (HEM-1770WR only) When nominal 12.0V battery is used with This function is used to set the voltage (discharge +DC14.8V setting.

  • Page 34: Description Of Menu 4 Functions

    4-6 Description of MENU 4 Functions Setting the SDI VITC display ON/OFF Setting of waveform display size Used to turn ON or OFF the VITC display Used to set the luminance signal waveform display multiplexed with HD-SDI signal. size, NORMAL or SMALL. This function can be assigned with the F1 The SMALL setting displays the waveform half as switch on the front panel.
  • Page 35 Setting the VECTOR SCOPE display ON/OFF Setting the VECTOR SCOPE display position Used to turn on or off the VECTOR SCOPE dis- Used to set the waveform display to any of the play. RIGHT, CENTER and LEFT positions. This function can be assigned with the F1 to When used commonly with WFM, the VECTOR F4 switch on the front panel.

  • Page 36: Description Of Menu 5 Functions

    4-7 Description of MENU 5 Functions * This function is operative with HDTV-format Executing the 2-picture split mode Used to execute this mode to take in the still input signals only. image of an input signal and compare it with other inputs.
  • Page 37 Default setting is 3 FRAMES. Manual switching mode between full capture image and input signal image This operation is possible after the full capture mode described under item has been exe- cuted. Whenever the ENT switch is pressed, the full capture image and the image of the input signal will be instantly switched over as illustrated on the diagram at left, making it possible immedi-...
  • Page 38 File Capacity: 7MB per image file binary format. The file format is dedicated to the monitor, and it is a common file for HEM-1770WR, HEM-2570W, Downloading from UBS memory to monitor and HLM-1751WR. Downloading the capture image stored in the USB...

  • Page 41: Description Of Menu 6 Functions

    4-8 Description of MENU 6 Functions INTERLACE mode display Setting the chroma gain-up ON/OFF Set the gain-up ON/OFF for chroma signals. 2nd field At the time of ON, setting in item the chroma gain increases by “+9 dB/+12dB”. 1st field This function can be assigned with the F1 to F4 switch on the front panel.
  • Page 42 Scan size (NORMAL/UNDER) setting Adjusting the horizontal screen position Switches the image display sizes between NOR- Adjust the horizontal screen position of VIDEO MAL SCAN and UNDER SCAN. input (SDI, VBS). 16:9NORMAL SCAN 16:9UNDER SCAN The settings are memorized for each channel, each format, SYNC INT/EXT.

  • Page 43: Description Of Menu 7 Functions

    4-9 Description of MENU 7 Functions Setting the channel of embedded audio outputs Setting the mode display of audio level meter Set any of the following pairs of channels of Set the display mode of the audio level meter. embedded audio to be outputted to the front The number in parentheses shows the order of speaker, the headphone and the rear audio display channel.
  • Page 44 MODE5 (1357-2468) Setting the peak hold display of audio level meter Used to turn on and off the peak hold display. Default setting is ON. Setting the reference level Set the reference level of the audio level meter. -18dBFS -20dBFS Default setting is -20dBFS Downmix setting Set the 5.1 channel surround downmix.
  • Page 45 Setting the embedded audio channel assignment of speaker (Rs) Set the channel of embedded audio, which the audio for 5.1ch surround Rs speaker (right side in rear) should be assigned from. Default setting is CH6...

  • Page 46: Description Of Menu 8

    4-10 Description of MENU 8 Functions Setting the type of marker (at 16:9 aspect ratio) Setting the safety marker area (at 16:9 aspect ratio) Used to set various types of markers displayed at Used to set the safety marker area in the 80%- 99% 16:9 aspect ratio.
  • Page 47 Setting the safety marker area (at 4:3 aspect ratio) Setting the safety marker area in aspect marker Used to set the safety marker area in the 80%- area (at 16:9) 99% range with 1% increments at 4:3 aspect ra- Used to set the safety marker in the aspect marker (4:3, 13:9, 14:9 and 15:9) area in the tio.
  • Page 48 Setting the marker display level Used to set the marker display level. Settings: 20%, 40%, 60%, 80% and 100% Default setting is 60%. Setting the marker display color Used to set the marker display color. * The user marker is displayed in the color pre- set on the user marker menu.
  • Page 49 4-11 Description of MENU8-15 (USER MARKER) Functions and Making Settings How to turn from PAGE1 to PAGE2 When the blinking cursor is at MK1, use the switch to go to PAGE2. With the blinking cursor at MK5, use switch to go to PAGE2. The scene name for user marker Setting the user marker color The scene name of the user marker to be set is...
  • Page 50 Marker lines and coordinate values User marker coordinates In the DATA (X Y) column, the coordinates for There are 2 line widths for the user markers. S START POINT and E END POINT of the However, the coordinate for the start point and currently set user markers are displayed.

  • Page 53: Description Of Menu 9 Functions

    4-12 Description of MENU 9 Functions SHADOW0 SHADOW20 Setting the functions of parallel remote pins Select the pre-assigned pin functions of parallel SHADOW40 and SHADOW60 functions remote control or the individual user-set func- Select two or more SHADOW settings at once, tions.

  • Page 54: Description Of Menu 10 Functions

    4-13 Description of MENU 10 Functions * The settings of the sections 7 to 10 and the sections 14 to 15 are enabled when the optional CM-70 is mounted. * If the resolution is set to WXGA/SXGA/UXGA/WUXGA in your PC, the refresh rate must be 60Hz. This is effective when a DVI input mode has been Setting the VBS input The settings for the VBS signal are set here.
  • Page 55 Selecting the analog PC input XGA/WXGA (Settings only for the CM-70) When the analog PC input signal is WXGA, the- format may fail to be identified, depending on the signal timing. In such case, select WXGA. Default setting is XGA. Executing the automatic adjustment of PC input (Only for the DVI(PC) and CM-70) Used to automatically adjust the phase, clock and...

  • Page 56: Description Of Menu 11 Functions

    Data capacity: Approx. 3 Kbyte This file is specific for the If no date is entered, the file will be edited as of the HEM-1770WR and HEM-2570W. date appearing currently on the menu. The PRESET data of the HEM-1770WR, HEM-2570W and Setting the time of a file to be written on USB other models cannot be downloaded.
  • Page 57 If there is a file already in the specified folder, For HEM-1770WR: the data of a new file will be overwritten on “¥Ikegami_Monitor¥preset_hem1770_001.txt” the existing file. For HEM-2570W: High-security USB memories could not be “¥Ikegami_Monitor¥preset_hem2570_001.txt”...
  • Page 58 Error messages during writing or downloading Precautions on downloading With a USB memory connected to the monitor, do ILLEGAL DATA: Checksum error not turn ON/OFF the monitor or disconnect the FILE IS NOT FOUND: File is not found. inserted USB memory while downloading is go- ERROR01: A file system error is detected ing on, or else the USB memory may possibly be...
  • Page 59 - 49 -...
  • Page 60 - 50 -...

  • Page 61: Description Of Menu 12 Functions

    Please refer to “How to update FPGA from USB name in the MPU firmware dedicated memory” on page 53 for the method of updating to each model, HEM-1770WR/2570W. FPGA. If, for example, the file name is When updating both MPU and FPGA simulta- “hem1770mpu_v102.bin,”...
  • Page 62 - 52 -...
  • Page 63 - 53 -...

  • Page 64: Description Of Menu 13 Functions

    4-16 Description of MENU 13 Functions Executing the initialization of set data Selecting the preset files to be initialized Perform this setting to restore the default set- When PRESET is selected in , select a file tings. for restoring the set data to the factory-set one. Factory settings are restored for All the preset files are initialized.

  • Page 65: Description Of Menu 14 Functions

    4-17 Description of MENU 14 Functions Displaying the MPU version Rear fan operationg time display Displays the current software version. Although the rear fan is operated according to the internal temperature, the accumulated operation time will be displayed. Displaying the FPGA 1/2 version Displays the current software version.

  • Page 66: Preset Menu Function

    5 Preset Menu Function 5-1 List of preset menu To execute the preset menu, press PRESET. * Turn off the menu screen. 5-2 Description of preset menu Selection of files Select a file from among D65, D93 and FILE1 to FILE8.

  • Page 67: Change Of Preset Data

    Change of preset data G.GAIN Used to set the white balance (green compo- nent)in the bright zone. Range : 0.0 +100.0 Default setting is 100.0. B.GAIN Used to set the white balance (blue compo- nent)in the bright zone. Range : 0.0 +100.0 Default setting is 100.0.
  • Page 68 White balance adjustment assist function a) Direct adjustment with the front switch When the PRESET data is changed, the six types of adjustment items for each white bal- ance of ”R/G/B BKG” and “R/G/B GAIN” are di- rectly assigned to the switches on the front panel, and the illustration is displayed on the top of screen to show the switch function.

  • Page 69: Display Of Preset Data List

    Display of preset data list Setting of data protection password A password is set to prevent modifications of the preset data and the initialization. (a) Display of currently set lock mode (b) Password menu Display a list of the settings of file data. To change files, use the switches at the SELECT FILE setting.
  • Page 70 - 60 -...

  • Page 71: Mouse Menu Function

    6. Mouse menu function 6-1 Basic procedure of the mouse menu - 61 -...
  • Page 72 - 62 -...

  • Page 73: Basic Procedures On The Menu And Preset Menu Screens

    6-2 Basic procedures on the MENU and PRESET MENU screens Basic mouse behavior on the MENU screen Basic mouse behavior on the CHANGE PRE- SET screen Left-click the mouse to go to the right of the MENU screen and select an item. Right-click it to return to the left-hand items.

  • Page 74: Specifications

    3G-SDI SMPTE425M-A/B AC input 1080p/60,59.94 1080p/50 100V 120V 10% 50 60Hz HD-SDI SMPTE292M 200V 240V 10% 50 60Hz 1035i/60,59.94 1080p/25 DC input (only for HEM-1770WR) 1080i/60,59.94 1080p/24,23.98 DC+12V (+10.5V +18V) 1080i/50 720p/60,59.94 1080psF/30,29.97 720p/50 (2) Power consumption 1080psF/25 720p/30,29.97 [HEM-1770WR] 1080psF/24,23.98...
  • Page 75 (4) Analog component (RGB/YPbPr) signal patible Format". (when the optional CM-70 is mounted) c) Input level a) Input terminal Analog RGB: 700mVp-p, Positive polarity BNC 1line (single end) DVI-D: TMDS b) Input signal format d) Input impedance HDTV Analog PC 1035i/60,59.94 SMPTE 240M DVI-D...

  • Page 76: Specifications For Oled Module

    (1) Number of pixels *0dBV = 1Vrms 1920 (H) x 1080 (V) dots (9) Analog audio output (2) Screen size (display area) a) Output terminal [HEM-1770WR] RCA 2 line 365.76mm(H) 205.74mm(V) b) Output level (Diagonal 42 cm, 16.5 V type) 0dBV max...

  • Page 77: Remote Control

    (2) Marker function (5) USB memory function a) Content of the memory a) Center marker MENU setting (Set to ON/OFF using MENU settings) User marker b) Safety marker PRESET data Any of the following markers is displayed Full capture image according to the image aspect ratio (4:3/16:9).

  • Page 78: Applicable Standards

    Up to 99 monitors can be controlled Other mounting holes also available. individually. (Refer to the external view.) (6) BB-1750V (for HEM-1770WR) 10. Options "Battery bracket (V mount type)" Any one of the following optional modules can be Weight: Approximately 0.29 kg mounted.
  • Page 79 (12) STD-1722M (for HEM-1770WR) (15) MH-2570 (for HEM-2570W) "Fixing stand for monitor shelf" "Food for 25-inch model" The top/bottom and left/right position can be (16) CC-E17 (for HEM-1770WR) adjusted with the VESA mount type stand. "Hard carrying case for 17-inch model"...

  • Page 80: External View

    10 External View (1) HEM-1770WR - 70 -...

  • Page 81: Hem-1770Wr+Std-1770+Gr-1770

    (2) HEM-1770WR STD-1770T GR-1770 - 71 -...

  • Page 82: Hem-2570W

    (3) HEM-2570W - 72 -...

  • Page 83: Data 1 Pc Input Signal Compatible Format

    Data 1 PC Input Signal Compatible Format Input signal Horizontal frequency Vertical frequency Clock frequency VGA (640×480) 31.48 59.95 25.18 37.86 72.81 31.50 37.50 75.00 31.50 43.27 85.01 36.00 SVGA (800×600) 35.16 56.25 36.00 37.88 60.32 40.00 48.08 72.19 50.00 46.88 75.00 49.50...

  • Page 84: Data 2 Parallel Remote Pin Function

    Data 2 Parallel Remote Pin Function Connector Face View on Rear Panel <Connector on system side> D-Sub 15-pin (male) mini-type * Connector CD0115PA100: CVILUX-made * Case DE-C8-J9-F2-1: Japan Aviation Electronics Indus- try-made The above parts or equivalents are supplied as standard. Pin functions by default Pin No.

  • Page 85: Data 3 Control With Remote Controller

    Additional user-set functions Pin No. Function External Assignment for Function Connect to Pin 1 for running with the shadow level 0% (black). User setting SHADOW0 on * Priority is given to this pin function if any other shadow setting pin is pressed at once.

  • Page 86: Data 4 Control With Remote Controller

    1 The switch toggles the modes as follows. "Input selection when option is mounted" "SDI-A" "SDI-B" "VBS-A" "VBS-B" "DVI" "SDI-A" To give the TEST signal, hold down the VIDEO switch for about 3 seconds. 2 Adjustments through MENU operation. 3 Operation with the FUNCTION switch Data 4 RS-485 Pin Function Pin No.
  • Page 87 HEM-1770WR/2570W MODELS FULL HD MULTI FORMAT OLED COLOR MONITOR OPERATION MANUAL Published by Ikegami Tsushinki Co., Ltd. © May. 2014 by Utsunomiya Factory of Ikegami Tsushinki Co., Ltd. All right reserved. Reproduction or duplication, without permission of Ikegami Tsushinki Co., Ltd. of edition or contents in whole in part, any manner, is prohibited.
  • Page 88 Ikegami Tsushinki Co., Ltd. 5-6-16, Ikegami, Ohta-ku, Tokyo, 146-8567, Japan Phone: +81-(0)3-5700-4114 Fax: +81-(0)3-5748-2200 E-mail: info_e@ikegami.co.jp URL: http://www.ikegami.co.jp/en/ Ikegami Electronics (U.S.A.), Inc. 37 Brook Avenue, Maywood, New Jersey 07607, U.S.A. Phone: +1-201-368-9171 Fax: +1-201-569-1626 E-mail: engineering@ikegami.com, service@ikegami.com URL:http://www.ikegami.com Ikegami Electronics (Europe) GmbH...

This manual is also suitable for:

Hem-2570w
