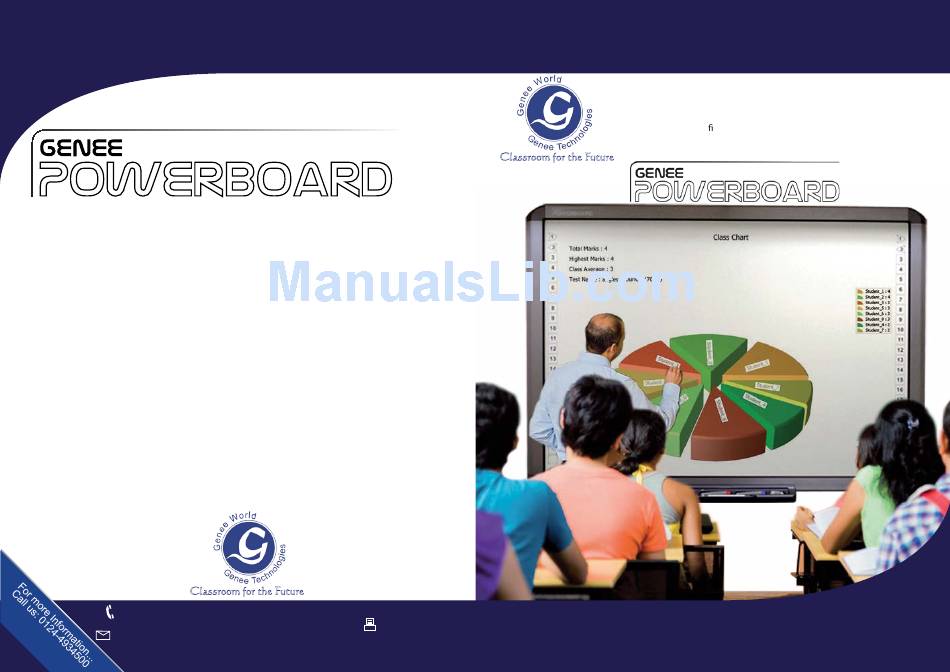

GENEE TECHNOLOGIES
INDIA PRIVATE LIMITED
An ISO 9001:2008 certi ed company
Classroom for the Future
Classroom for the Future
User manual
@
Email: info.india@geneeworld.com
Tel: 0124-4934500
Website: www.genee-india.com, www.geneeworld.com
Fax: 0124-4934521
WWW
Plot No. 698, Udyog Vihar, Phase V, Gurgaon, Haryana-122016, India
Model: 56"/78"/88"/105"
Advertisement
Table of Contents
Related Manuals for Genee 56"
Summary of Contents for Genee 56"
- Page 1 GENEE TECHNOLOGIES INDIA PRIVATE LIMITED An ISO 9001:2008 certi ed company Classroom for the Future Classroom for the Future User manual Email: info.india@geneeworld.com Tel: 0124-4934500 Website: www.genee-india.com, www.geneeworld.com Fax: 0124-4934521 Plot No. 698, Udyog Vihar, Phase V, Gurgaon, Haryana-122016, India...
-
Page 2: Table Of Contents
What’s In the Box Table of Contents What’s In The Box..........3 Thank you for your purchase of the Interactive whiteboard. If any items are missing or damaged, please contact your authorized reseller immediately. System Requirements..........3 CONTENTS: Introduction............4 Software Features..........5 White Board * 1 pc Writing Pen *1 pc USB Cable 24 ft (7.5m) * 1 pc Erase * 1 pc... -
Page 3: Introduction
Introduction Software Features: The Interactive whiteboard uses infrared technology. Working seamlessly with a projector and computer, the Interactive whiteboard provides more convenient, - Designed for teaching and conference systems. interactive and effective presentations. Perfect for school auditoriums, conference - The screen display is high light and low glare. rooms, trade shows, symposiums and lecture halls. -
Page 4: How To Install Hardware
How to Install Hardware Graph (a) 1. Install Securing Pen Tray: In the frame of the board, prior to securing the pen tray you will find a slot that accommodates a Kensington lock. If you would like to use a Kensington lock insert and loop the cable through the center hole on the frame, position the pen tray in line with the four screws, then screw the pen tray in place. -
Page 5: How To Install Software
How to Install Software 3. Install White Board on a Floor Stand: 1. Install Software (1) Lock all four casters in the down position (as shown) Connect the whiteboard to your computer or laptop using the provided USB cable and insert the Interactive whiteboard CD. Once the USB cable is connected the computer will notify that it has “found new hardware”... - Page 6 indicates no connection has been made, please check the hardware connection and USB driver. Note: Under Windows XP, the USB driver may need to be reinstalled if the connection to another USB port. Please press “Next” to search USB driver automatically. Follow the prompts in the dialog box messages to complete the installation.
- Page 7 ‘Setup’ Option Calibrating Users can calibrate image if the projected touch point is offset from actual contact System setup is used to set the simulation of mouse’s right-click and double-click location. To calibrate, click ‘Calibrate’ on the options menu then click ‘Start’ Using based on user’s preferences.
-
Page 8: How To Use Annotation Software
How to Use Annotation Software Please refer to the <Application Software Instruction> on the CD for details. 2. Hot Keys Troubleshooting Guide There are twelve hot keys on the right and left hand sides of the board. Note: Only available on 78-inch and 105-inch models, 56-inch and 88 inch model whiteboard only has hot keys on the left hand side. -
Page 9: Interactive Whiteboard User Tips
Frequently Asked Questions Interactive Whiteboard User Tips Why isn’t anything showing up on the screen? When searching for a specific page among many pages, enter the Page Index mode ： The selected stroke color may be the same as or similar to the background and look up this page quickly on the Page Sorter window. -
Page 10: Specifications
Specifications 56" Interactive Whiteboard 78" Interactive Whiteboard Technology Infrared Technology Infrared Touch System Pen, Wand or Finger Touch System Pen, Wand or Finger Touchable range 46" x 33" (1159mm x 831mm) Touchable range 64" x 45" (1631mm x 1139mm) Resolution 4096 x 4096 Resolution 4096 x 4096... - Page 11 88" Interactive Whiteboard 105" Interactive Whiteboard Technology Infrared Technology Infrared Touch System Pen, Wand or Finger Touch System Pen, Wand or Finger Touchable range 71" x 51" (1796mm x 1303mm) Touchable range 79" x 45" (2013mm x 1139mm) Resolution 4096 x 4096 Resolution 4096 x 4096 Response Time...
