- Page 1 KBS4 Keyboard Installation and Operation Guide...
- Page 2 Using The Keyboard .........7 Notes ..............10 Whilst every attempt is made to ensure these manuals are accurate and current, Dedicated Micros reserve the right to alter or modify the specification of the machine described herein without prejudice. Dedicated Micros ©2008...
-
Page 3: Introduction

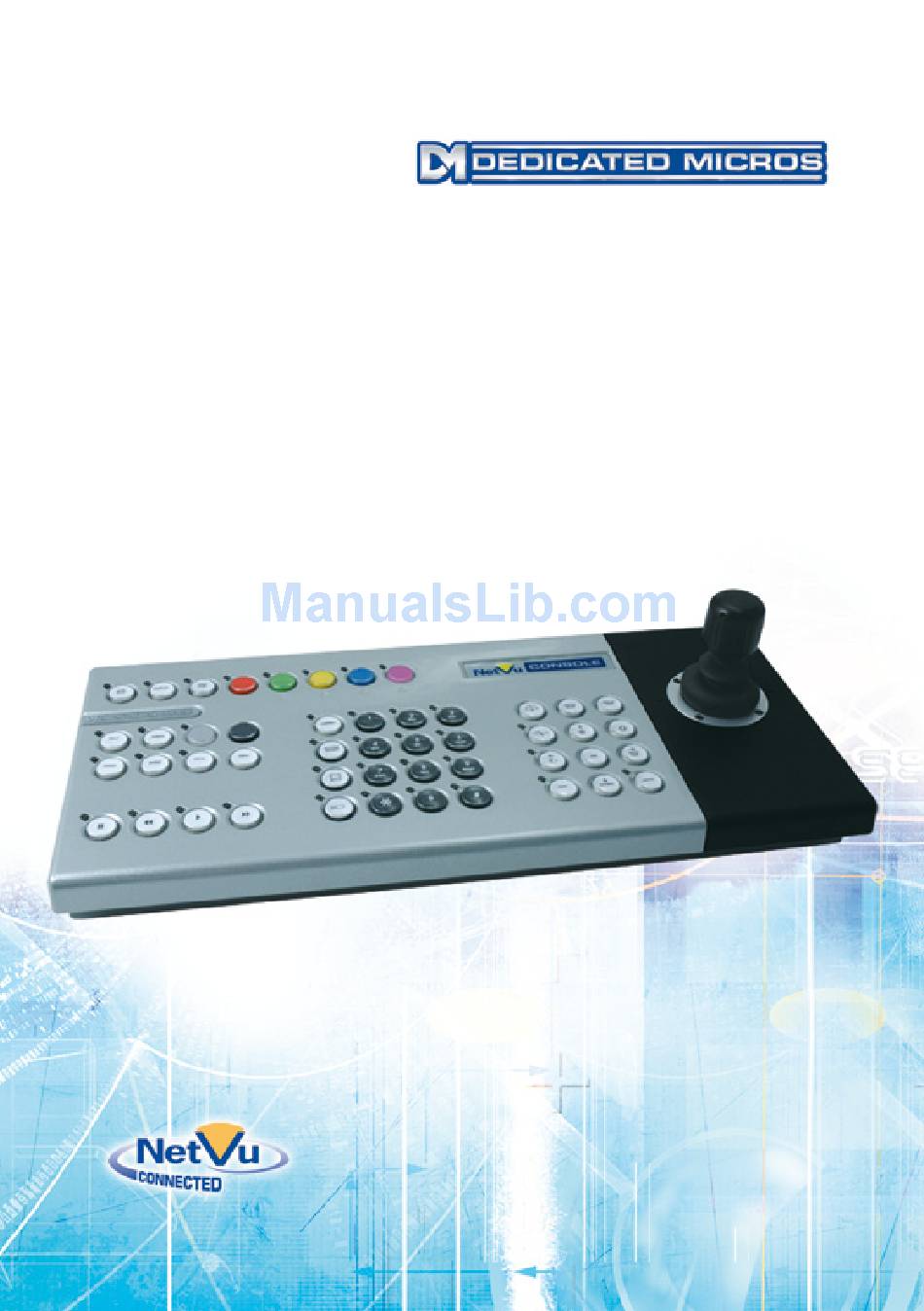

What is the … KBS4 Keyboard ? The Dedicated Micros KBS4 remote digital keyboard has been specifically designed for use with the DM NetVu Console. The keyboard allows full PTZ control with the 3-axis joystick enabling an Operator to command pan, tilt and zoom functionality. The telemetry buttons enable any telemetry features on DM or Dennard domes to be utilised whilst the majority of features on 3rd party PTZ and Dome cameras are additionally supported. -
Page 4: Important Safeguards
A “Declaration of Conformity” is held at Dedicated Micros Ltd, 1200 Daresbury Park, Daresbury, Cheshire WA4 4HS www.dedicatedmicros.com Hereby, Dedicated Micros LTD, declares that this Analogue to IP Codec is in compliance with the essential requirements and other relevant provisions of Directive 95/5/EC. - Page 5 This product is compliant with Class A ICES-003 Note: This Class A product meets the requirements of the Canadian Interference causing equipment regulations. Cet appareil numerique de la Classe A, respect toutes les exigencies du reglement sur le materiel brouilleur du Canada. 1.045 Dedicated Micros ©2008...
-
Page 6: Connecting The Keyboard
Connecting To NetVu connected products Local Connection The KBS4 is supplied with an RJ12 cable. All Data and Power connections are provided via this link. If connection is required over a distance greater than 5m, an additional local power supply connection is required. -
Page 7: Using The Keyboard
Goto Display the controls and selections for Go To function GOTO Copy Not supported COPY Pause In Live mode – Freeze the current display window In play mode – Pause video in playback Dedicated Micros ©2008... - Page 8 Focus Far / Focus Near Control of telemetry functions NEAR Iris Open / Iris Close Control of telemetry functions Lamps Control of telemetry functions Auto pan Control of telemetry functions AUTO Patrol Control of telemetry functions PATROL Dedicated Micros ©2008...
- Page 9 Menu and on screen navigation keys Direction arrow right Menu and on screen navigation keys AUTO Menu / On screen action confirmation or enter Menu Enter menus on Console or Dome if telemetry is active MENU Exit Exit menus or escape EXIT Dedicated Micros ©2008...
-
Page 10: Notes
Notes Dedicated Micros ©2008... - Page 11 Notes Dedicated Micros ©2008...
