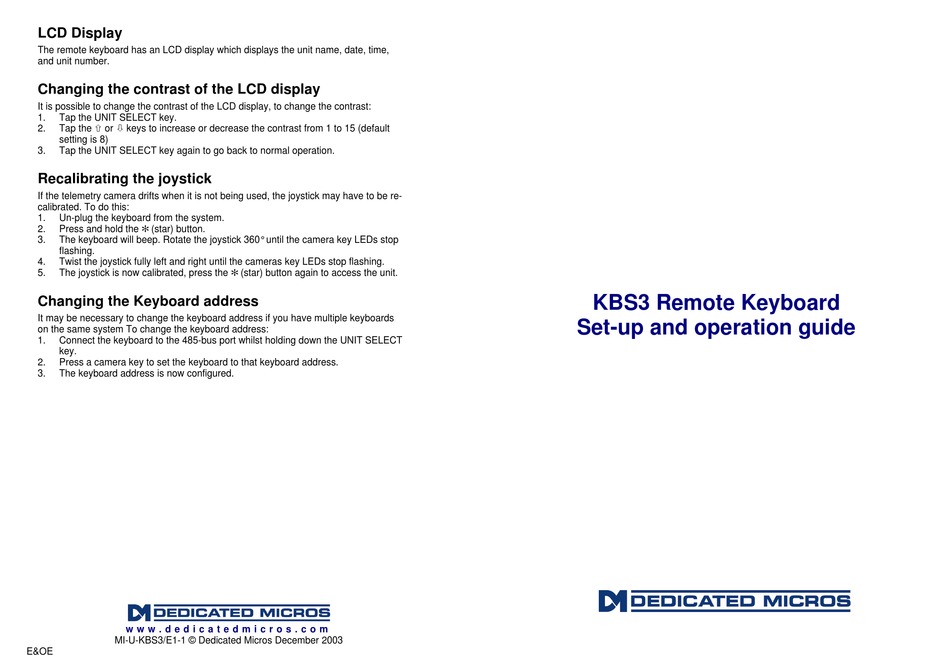

Dedicated Micros KBS3 Set Up And Operation Manual

LCD Display
The remote keyboard has an LCD display which displays the unit name, date, time,
and unit number.
Changing the contrast of the LCD display
It is possible to change the contrast of the LCD display, to change the contrast:
1. Tap the UNIT SELECT key.
Tap the ñ or ò keys to increase or decrease the contrast from 1 to 15 (default
2.
setting is 8)
3. Tap the UNIT SELECT key again to go back to normal operation.
Recalibrating the joystick
If the telemetry camera drifts when it is not being used, the joystick may have to be re-
calibrated. To do this:
1. Un-plug the keyboard from the system.
Press and hold the [ (star) button.
2.
3. The keyboard will beep. Rotate the joystick 360° until the camera key LEDs stop
flashing.
4. Twist the joystick fully left and right until the cameras key LEDs stop flashing.
The joystick is now calibrated, press the [ (star) button again to access the unit.
5.
Changing the Keyboard address
It may be necessary to change the keyboard address if you have multiple keyboards
on the same system To change the keyboard address:
1. Connect the keyboard to the 485-bus port whilst holding down the UNIT SELECT
key.
2. Press a camera key to set the keyboard to that keyboard address.
3. The keyboard address is now configured.
