MIDI LOOP & SWITCH LS10/6 Instruction Manual 1 MIDI LOOP/ SWITCH LS10/6 Instruction Manual MARK L Custom Guitar Electronics 1... - Page 2 MIDI LOOP & SWITCH LS10/6 Instruction Manual 2 Contents : Introduction Warranty 1 – Front Panel 2 – Rear Panel 3 - MIDI 4 – Configuration and effects plug-in MARK L Custom Guitar Electronics 2...
-
Page 3: Mark L Custom Guitar Electronics
LS10/6 is controlled by MIDI CC (Control Change) and MIDI PC ( Program Change ) commands over 16 MIDI channels. LS10/6 is compatible with any type of MIDI controller capable of sending CC or PC midi commands, but to ensure proper operation and maximum effectiveness we recommend using MLC MARK L controllers. - Page 4 MIDI THRU OUT, a bypass, thanks to which we can hook-up an additional midi device which we want to control with the same device as the LS10/6 MIDI IN has built-in power supply for all MARK L controllers, you need not plug in every controller separately.
- Page 5 MIDI LOOP & SWITCH LS10/6 Instruction Manual 5 Warranty 1. The Warranty is limited to production defects and/or faulty components. 2. The Warranty expires 24 months after the date of purchase. 3. The Warranty does not cover the following: ...
-
Page 6: Front Panel

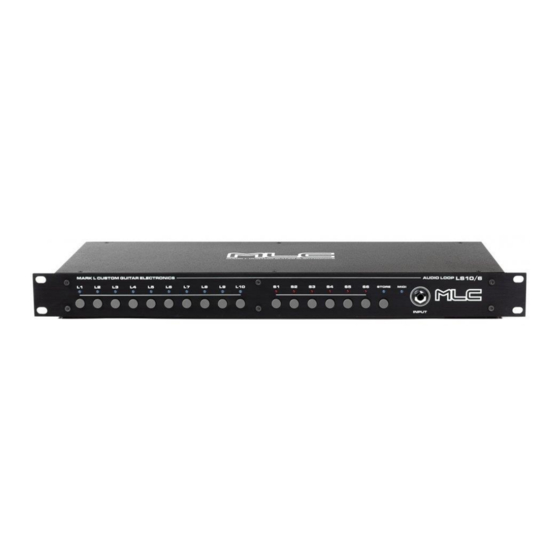

MIDI LOOP & SWITCH LS10/6 Instruction Manual 6 1. Front Panel The front panel consists of 17 LED diodes informing which loop (L1-L10) or which switch (S1-S6) is on, a MIDI light which informs if the device is receiving MIDI signals and 16 buttons. -
Page 7: Rear Panel
MIDI LOOP & SWITCH LS10/6 Instruction Manual 7 2.Rear Panel The rear panel consists of 6,3 mm ‘jack’ receptacles used for connecting effects, audio signals and control the amplifier and other devices - LINK OUT -feed thru on front panel output... - Page 8 MIDI LOOP & SWITCH LS10/6 Instruction Manual 8 MARK L Custom Guitar Electronics 8...
- Page 9 MIDI LOOP & SWITCH LS10/6 Instruction Manual 9 3.Midi MIDI CONNECTION and Phantom Power for FX25/FX25ACE MIDI INPUT signal Pin 1 - NC Pin 2 - NC Pin 3 - NC Pin 4 - MIDI (+) Pin 5 - MIDI (- )
- Page 10 MIDI LOOP & SWITCH LS10/6 Instruction Manual 10 The LS10/6 is operated by MIDI CC (Control Change) or MIDI PC ( Program Change ) commands over 16 channels. There are 128 MIDI CC commands used worldwide (CC0- CC127). Each commands has a VALUE (0-127) in which “0” stands for OFF while “127”...
- Page 11 MIDI LOOP & SWITCH LS10/6 Instruction Manual 11 ON/OFF normal mode ON Value -127 , OFF Value -0 S1 = Midi Control Change # CC-21 S2 = Midi Control Change # CC-22 S3 = Midi Control Change # CC-23 S4 = Midi Control Change # CC-24...
- Page 12 MIDI LOOP & SWITCH LS10/6 Instruction Manual 12 4. Configuration effects plug-in. MARK L Custom Guitar Electronics 12...
- Page 13 MIDI LOOP & SWITCH LS10/6 Instruction Manual 13 MARK L Custom Guitar Electronics 13...
- Page 14 MIDI LOOP & SWITCH LS10/6 Instruction Manual 14 MARK L Custom Guitar Electronics 14...
- Page 15 MIDI LOOP & SWITCH LS10/6 Instruction Manual 15 MARK L Custom Guitar Electronics 15...
- Page 16 MIDI LOOP & SWITCH LS10/6 Instruction Manual 16 MARK L Custom Guitar Electronics 16...
- Page 17 MIDI LOOP & SWITCH LS10/6 Instruction Manual 17 MARK L Custom Guitar Electronics 17...
