Using the remote control holder ....... . 10 Programming your universal Insignia remote control ... . 10 Programming a different universal remote control .
Page 3
NS-32L_37L_42L550A11_09-1120_MAN_V2_English.book Page iii Thursday, January 21, 2010 10:20 AM Contents Adjusting component video ........23 Adjusting the computer image .
Page 4
NS-32L_37L_42L550A11_09-1120_MAN_V2_English.book Page iv Thursday, January 21, 2010 10:20 AM Contents US and Canada Markets ......... 59 Mexico Market .
NS-32L_37L_42L550A11_09-1120_MAN_V2_English.book Page 1 Thursday, January 21, 2010 10:20 AM CHILD SAFETY It makes a difference how and where you use your flat panel display As you enjoy your new product, keep these The issue The home theater entertainment experience is a growing trend, and larger TVs are popular purchases.
NS-32L550A11/NS-37L550A11/NS-42L550A11 15 The wall plug is the disconnecting device. The plug must remain readily operable. 16 An apparatus with three-prong, grounding-type plug is a Class I apparatus which needs to be grounded to prevent possible electric shock.
NS-32L_37L_42L550A11_09-1120_MAN_V2_English.book Page 3 Thursday, January 21, 2010 10:20 AM Power source Operate your TV only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied to your home, consult an electrician or your local power company.
Audyssey. SRS TruSurround HD: At Insignia, providing you with superior audio quality is just as important as exceptional picture quality. That's why we added SRS TruSurround HD, which provides you with a theater-like...

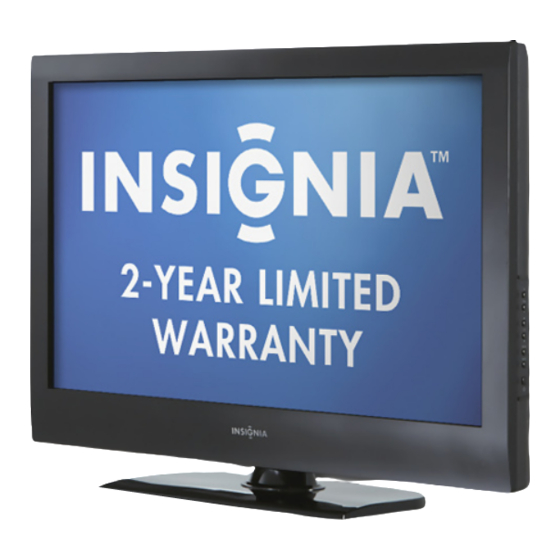

NS-32L_37L_42L550A11_09-1120_MAN_V2_English.book Page 5 Thursday, January 21, 2010 10:20 AM 32"/37"/42" LCD, 120 Hz 1080p Install the stand or wall-mount bracket Installing the stand To install the stand: 1 Carefully place your TV screen face-down on a cushioned, clean surface to protect the screen from damages and scratches.
Power cord Component cable Audio cable Remote control holder Cleaning cloth Quick Setup Guide NS-32L550A11/NS-37L550A11/NS-42L550A11 32"/37"/42" LCD, 120 Hz 1080p Front # Item Description VOL+/VOL– Press to increase or decrease the volume. Press to go to the next or previous channel in the channel list.
NS-32L_37L_42L550A11_09-1120_MAN_V2_English.book Page 7 Thursday, January 21, 2010 10:20 AM 32"/37"/42" LCD, 120 Hz 1080p Back # Item Description Connect an external sound system to these jacks. For more information, see “Connecting an analog sound AUDIO OUT system” on page 18. Connect the video for an S-Video device to this jack.
Press to control a connected Blu-ray or DVD player. You must program the remote control before this button BD/DVD works. For more information, see “Programming your universal Insignia remote control” on page 10. Press to control your TV. MENU Press to open the on-screen menu.
You need to program the remote control to control connected devices. For more information, see (record) “Programming your universal Insignia remote control” on page 10. Press to list all the recorded programs in a PVR/STB. You need to program the remote control to control connected devices.
This tape may not work with all types of walls. Make sure that you use the correct tape for the type of wall. NS-32L550A11/NS-37L550A11/NS-42L550A11 32"/37"/42" LCD, 120 Hz 1080p Programming your universal Insignia remote control To program your remote control: 1 Find the codes for the devices you want to program in “Manufacturers’...
Page 15
6 On the original remote, press and hold the button to be learned. Continue holding the button on the original remote until the Insignia’s LED blinks twice. Note If the red LED displays one long blink, a learning error has occurred.
Page 16
NS-32L550A11/NS-37L550A11/NS-42L550A11 32"/37"/42" LCD, 120 Hz 1080p Programming channel lock Channel control can be locked so that the Insignia remote controls a single device’s channel-changing functions, regardless of operating mode. This is often enabled by users who watch all broadcast TV through one device, such as a cable set-top box.
Step 5. Programming a different universal remote control You can operate your Insignia TV with a new or existing universal remote control. To program a different universal remote control: 1 See the table below for common codes. If you...
• If your universal remote control has a “Learn” feature, you can manually program it using the Insignia TV remote to “teach” the commands one at a time. See your universal remote control’s instructions for details. 3 If all else fails, you must use a different universal remote control that can operate both your set-top box and your TV.
NS-32L_37L_42L550A11_09-1120_MAN_V2_English.book Page 15 Thursday, January 21, 2010 10:20 AM 32"/37"/42" LCD, 120 Hz 1080p 3 If you use the COMPONENT Y/P connect an audio cable (provided) to the COMPONENT L/R audio jacks. If you use the AV IN S-VIDEO or AV IN VIDEO jack, connect an audio cable (not provided) to the AV IN L/R audio jacks.
5 Press INPUT to open the Source List. 6 Press to highlight AV, then press OK/ENTER. NS-32L550A11/NS-37L550A11/NS-42L550A11 32"/37"/42" LCD, 120 Hz 1080p Connecting a camcorder or game console Note The AV IN VIDEO jack and the AV IN S-VIDEO jack share the same audio jacks.
NS-32L_37L_42L550A11_09-1120_MAN_V2_English.book Page 17 Thursday, January 21, 2010 10:20 AM 32"/37"/42" LCD, 120 Hz 1080p Connecting a VCR Note The AV IN VIDEO jack and the AV IN S-VIDEO jack share the same audio jacks. You cannot connect both types of devices at the same time. To connect a VCR: 1 Make sure that your TV’s power cord is unplugged and the VCR is turned off.
• Connect headphones to the on the side of your TV. Side of TV NS-32L550A11/NS-37L550A11/NS-42L550A11 32"/37"/42" LCD, 120 Hz 1080p Connecting a digital sound system To connect a digital sound system: • Connect a digital audio cable to the SPDIF jack on the side of your TV and to the digital audio jack on the amplifier.
NS-32L_37L_42L550A11_09-1120_MAN_V2_English.book Page 19 Thursday, January 21, 2010 10:20 AM 32"/37"/42" LCD, 120 Hz 1080p Turning on your TV for the first time The first time you turn on your TV, the Setup Wizard opens. The Setup Wizard guides you through setting up basic settings including the menu language, time mode, picture mode, and TV signal source.
Note If your TV does not receive an input signal for several minutes, it automatically goes into Standby mode. NS-32L550A11/NS-37L550A11/NS-42L550A11 32"/37"/42" LCD, 120 Hz 1080p Selecting the video input source To select the video input source: 1 Turn on your TV, then press INPUT. The Source List opens.
If you notice a ghosting type effect (or other artifact) in some content, artifact, select LOW. • For certain gaming applications, select Game mode or turn off the Insignia Motion 120Hz in the Advanced Video menu. • If the Game mode is turned On, Insignia Motion 120Hz will be set to Off automatically.
NS-32L_37L_42L550A11_09-1120_MAN_V2_English.book Page 23 Thursday, January 21, 2010 10:20 AM 32"/37"/42" LCD, 120 Hz 1080p • Backlight—Controls the overall brilliance of the screen. You can adjust the backlight through a range of 0 ~ 30. • Advanced Contrast—When you see the pop-up menu, set Adaptive Contrast to On to adjust picture detail and brightness automatically or to set Dynamic Contrast...
7 Press MENU to return to the previous menu, or press EXIT to close the menu. NS-32L550A11/NS-37L550A11/NS-42L550A11 32"/37"/42" LCD, 120 Hz 1080p Turning Game Mode on or off To get the maximum gaming experience, your TV offer a Game Mode setting to optimize the picture for playing games.
NS-32L_37L_42L550A11_09-1120_MAN_V2_English.book Page 25 Thursday, January 21, 2010 10:20 AM 32"/37"/42" LCD, 120 Hz 1080p Adjusting the sound Note Unless otherwise noted, all tasks in this section are based on using the remote control. Adjusting sound settings To adjust sound settings: 1 Press MENU.
Channel Strength MOVE SELECT PREVIOUS MENU ENTER Adjust channel options NS-32L550A11/NS-37L550A11/NS-42L550A11 32"/37"/42" LCD, 120 Hz 1080p 3 Press to highlight Auto Channel Search, then press OK/ENTER or The Auto Channel Search screen opens. Channels Auto Channel Search Choose your TV source...
NS-32L_37L_42L550A11_09-1120_MAN_V2_English.book Page 27 Thursday, January 21, 2010 10:20 AM 32"/37"/42" LCD, 120 Hz 1080p Hiding channels You can hide channels in the channel list. When you press CH or CH , your TV will skip the hidden channels. You can still tune to a hidden channel by pressing the number buttons for the channel.
NS-32L_37L_42L550A11_09-1120_MAN_V2_English.book Page 29 Thursday, January 21, 2010 10:20 AM 32"/37"/42" LCD, 120 Hz 1080p 3 Press to highlight Channel Strength, then press OK/ENTER or . The DTV signal meter screen opens. Channel Strength CH 7-3 MOVE SELECT PREVIOUS MENU ENTER Display signal strength of selected digital channel 4 Press MENU to go to the previous menu, or press EXIT to close the menu.
MOVE SELECT PREVIOUS MENU ENTER Lock or unlock the buttons on the TV NS-32L550A11/NS-37L550A11/NS-42L550A11 32"/37"/42" LCD, 120 Hz 1080p 5 Press to highlight Button Lock, then press OK/ENTER or 6 Press to select On or Off. 7 Press MENU to go to the previous menu, or press EXIT to close the menu.
NS-32L_37L_42L550A11_09-1120_MAN_V2_English.book Page 31 Thursday, January 21, 2010 10:20 AM 32"/37"/42" LCD, 120 Hz 1080p 4 Press the number buttons to enter the password. If you have not set a password, enter 0000. The Parental Controls menu opens. PICTURE AUDIO CHANNELS Settings Parental Controls Button Lock...
TV then turn it back on. Parental controls will be turned back on. NS-32L550A11/NS-37L550A11/NS-42L550A11 32"/37"/42" LCD, 120 Hz 1080p Downloading rating information You can download rating information to use when setting parental controls.
NS-32L_37L_42L550A11_09-1120_MAN_V2_English.book Page 33 Thursday, January 21, 2010 10:20 AM 32"/37"/42" LCD, 120 Hz 1080p 5 Press to scroll down the list of options and highlight RRT5. PICTURE AUDIO CHANNELS Settings Parental Controls Block Unrated TV USA Parental Locks Canadian Parental Locks Change Password RRT5 MOVE...
Digital CC Settings MOVE SELECT PREVIOUS MENU ENTER Customize the look of digital Closed Captioning NS-32L550A11/NS-37L550A11/NS-42L550A11 32"/37"/42" LCD, 120 Hz 1080p 4 Press to highlight Digital CC Settings, then press OK/ENTER or . The Digital CC Settings screen opens. Style Size...
NS-32L_37L_42L550A11_09-1120_MAN_V2_English.book Page 35 Thursday, January 21, 2010 10:20 AM 32"/37"/42" LCD, 120 Hz 1080p Adjusting time settings Note Unless otherwise noted, all tasks in this section are based on using the remote control. Setting the time To set the time: 1 Press MENU.
MOVE SELECT PREVIOUS MENU ENTER NS-32L550A11/NS-37L550A11/NS-42L550A11 32"/37"/42" LCD, 120 Hz 1080p 5 Press to select the amount of time before your TV turns off automatically. To turn off the sleep timer, select Off. 6 Press MENU to return to the previous menu, or press EXIT to close the menu.
NS-32L_37L_42L550A11_09-1120_MAN_V2_English.book Page 37 Thursday, January 21, 2010 10:20 AM 32"/37"/42" LCD, 120 Hz 1080p 4 Press to select a language. You can select English, Francais, or Español. 5 Press MENU to return to the previous menu, or press EXIT to close the menu. Adjusting the menu transparency To select the menu language: 1 Press MENU.
Step 4 through Step 7. 9 Press MENU to go to previous menu or press EXIT to close the on-screen menu. NS-32L550A11/NS-37L550A11/NS-42L550A11 32"/37"/42" LCD, 120 Hz 1080p Using INlink INlink lets you control HDMI CEC-compatible devices connected to the HDMI jacks on your TV using the remote control that came with your TV.
NS-32L_37L_42L550A11_09-1120_MAN_V2_English.book Page 39 Thursday, January 21, 2010 10:20 AM 32"/37"/42" LCD, 120 Hz 1080p 4 Press OK/ENTER or . The INlink menu opens. PICTURE AUDIO CHANNELS Settings INlink INlink Control Device Auto Power Off TV Auto Power On INlink Device Lists MOVE SELECT PREVIOUS...
• If the USB menu disappears, press MENU again before you press any other button. NS-32L550A11/NS-37L550A11/NS-42L550A11 32"/37"/42" LCD, 120 Hz 1080p Browsing photos To browse photos: 1 Make sure that you have switched to USB mode. For more information, see “Switching to USB mode”...
NS-32L_37L_42L550A11_09-1120_MAN_V2_English.book Page 41 Thursday, January 21, 2010 10:20 AM 32"/37"/42" LCD, 120 Hz 1080p 8 If you are in a subfolder, press RECALL to return to the root folder. Setting up a favorite photos list To set up a favorite photos list: 1 Make sure that you have switched to USB mode.
View Slideshow Settings MOVE SELECT PREVIOUS MENU ENTER Find photos that are on the USB device NS-32L550A11/NS-37L550A11/NS-42L550A11 32"/37"/42" LCD, 120 Hz 1080p 3 Press to highlight Browse Photos, then press OK/ENTER. The browse screen opens. SETTINGS File name EXIT EXIT...
NS-32L_37L_42L550A11_09-1120_MAN_V2_English.book Page 43 Thursday, January 21, 2010 10:20 AM 32"/37"/42" LCD, 120 Hz 1080p Viewing favorite photos in a slideshow To view favorite photos in a slideshow: 1 Make sure that you have switched to USB mode. For more information, see “Switching to USB mode”...
None, Fade to Black, Vertical Wipe, Horizontal Wipe, or Random. 6 Press EXIT to close the menu. NS-32L550A11/NS-37L550A11/NS-42L550A11 32"/37"/42" LCD, 120 Hz 1080p Maintaining • Do not use your TV in areas that are too hot or too...
Analog standard NTSC Digital standard ATSC, 8-VSB, Clear-QAM Photo standard JPEG format Screen size NS-32L550A11: 32" NS-37L550A11: 37" NS-42L550A11: 42" Channel coverage VHF: 2-13 UHF: 14-69 CATV: Mid band - A-8 ~ A-1, A ~ I Super band - J ~ W...
Page 55
NS-32L_37L_42L550A11_09-1120_MAN_V2_English.book Page 51 Thursday, January 21, 2010 10:20 AM 32"/37"/42" LCD, 120 Hz 1080p DVD players Yamaha 20490, 20539, 20545 Yamakawa 20872 Zenith 20503, 20591, 20741, 20869 Zeus 20784 Zoece 21265 DVD players (Blu Ray and HD-DVD) DVD players (Blu Ray and HD-DVD) Denon 22258 Integra...
02049 Zenith 01415 ZT Group 01272 NS-32L550A11/NS-37L550A11/NS-42L550A11 32"/37"/42" LCD, 120 Hz 1080p Legal notices FCC Part 15 This device complies with Part 15 of the FCC Rules. Operation of this product is subject to the following two conditions: (1) this...
Products and parts replaced under this warranty become the property of Insignia and are not returned to you. If service of Products or parts are required after the Warranty Period expires, you must pay all labor and parts charges.
Page 65
NS-32L_37L_42L550A11_09-1120_MAN_V2_English.book Page 61 Thursday, January 21, 2010 10:20 AM 32"/37"/42" LCD, 120 Hz 1080p www.insigniaproducts.com...
Page 66
NS-32L_37L_42L550A11_09-1120_MAN_V2_English.book Page 62 Thursday, January 21, 2010 10:20 AM NS-32L550A11/NS-37L550A11/NS-42L550A11 32"/37"/42" LCD, 120 Hz 1080p www.insigniaproducts.com...
Page 67
NS-32L_37L_42L550A11_09-1120_MAN_V2_English.book Page 63 Thursday, January 21, 2010 10:20 AM 32"/37"/42" LCD, 120 Hz 1080p www.insigniaproducts.com...
Page 68
Si el cordón de alimentación es dañado, este debe ser remplazado por el fabricante o su agente de servicio o por personal calificado para evitar el riesgo. All rights reserved. INSIGNIA is a trademark of BBY Solutions, Inc. Registered in some countries.
