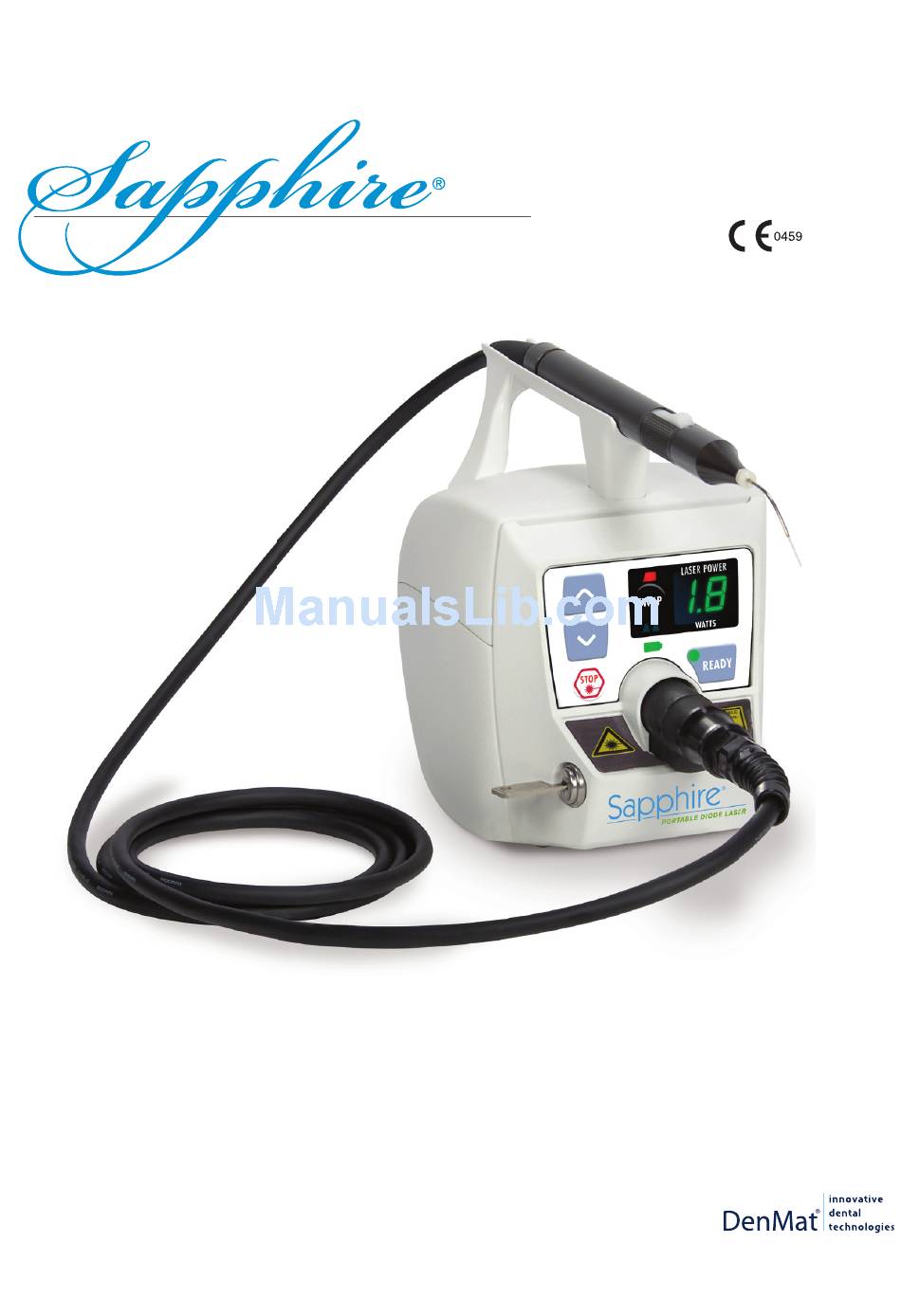

- Page 1 PORTABLE DIODE LA SER Sapphire Portable Diode Laser ® Instructions for Use...
-
Page 2: Table Of Contents
Emergency Termination of Laser Emissions .......................6 3. SAPPHIRE PORTABLE DIODE LASER INDICATIONS FOR USE ..............6 ® 4. SAPPHIRE PORTABLE DIODE LASER FACILITY AND ENvIRONMENTAL CONSIDERATIONS ....7 Heating and ventilation ..............................7 Lighting ....................................7 Combustible Chemicals and Gases ..........................7 Plume evacuation ................................7 Operatory Access during Sapphire Portable Diode Laser use ................7... - Page 3 Gingival Contouring with the Sapphire Portable Diode Laser System ............22 Gingivectomy, Gingivoplasty and Papillectomy with the Sapphire Portable Diode Laser ......23 Gingival Troughing & Tissue Retraction for Impressions with Sapphire Portable Diode Laser ....24 Sulcular Debridement with the Sapphire Portable Diode Laser System ............25 Labial Frenectomy with the Sapphire Portable Diode Laser System ..............
-
Page 4: Introduction
Safety is paramount when using any energy-based surgical instrument and your office should implement a safety program for the Sapphire Portable Diode Laser. If your office does not already have a safety officer, one should be appointed to be responsible for understanding proper use, safe operation, and maintenance of the Sapphire Portable Diode Laser system. -
Page 5: Warnings And Cautions
Warning: visible and Invisible Laser Radiation – Avoid eye or skin exposure to direct or scattered radiation CLASS 4 Laser Product Above Warning is affixed to the front panel of the Sapphire Portable Diode Laser Control Module. LASER APERTURE at the end of handpiece Above Warning is affixed to the cover overhanging the power/communications cord receptacle. -
Page 6: Emergency Termination Of Laser Emissions
3. SAPPHIRE PORTABLE DIODE LASER INDICATIONS FOR USE The Sapphire Portable Diode Laser is indicated for use in dental intraoral soft tissue general, oral maxilla-facial and cosmetic surgery including ablating, incising, excising, vaporizing and coagulation of soft tissues using a fiber optic delivery system. -
Page 7: Sapphire Portable Diode Laser Facility And Environmental Considerations
4. SAPPHIRE PORTABLE DIODE LASER FACILITY AND ENVIRONMENTAL CONSIDERATIONS In order to insure the safe use of the Sapphire Portable Diode Laser in your facility, please check to make sure that the proposed location is compatible with the specifications listed below. -
Page 8: General Safety With The Sapphire Portable Diode Laser
® General Safety Considerations: Safe use of the Sapphire Portable Diode Laser is the responsibility of the entire dental team including the doctor, any system operators and the dental office safety officer. Protocols for the safe use of Lasers have been developed by medical and dental professionals, scientists and laser manufacturers. -
Page 9: Eye And Skin Protection
Sapphire Portable Diode Laser from its shipping container. Please do not attempt to unpack the Sapphire Portable Diode Laser and install or setup the unit without reading this section first. If you are unsure about any aspect of the assembly, call your Den-Mat Holdings, LLC Authorized Distributor for assistance. -
Page 10: Shipping Container Information
Control Module. Power Switch – The power switch for the Sapphire Portable Diode Laser is located on the rear panel of the Control Module. This switch must be in the “ON” position when the Sapphire Portable Diode Laser unit is to be used. - Page 11 3. Insert the Operating Key into the key switch on the Control Module and turn the switch to the “ON” position. 4. Attach the foot switch (optional) 5. The display on the Sapphire Portable Diode Laser unit will show the default output 0.8 W in the CW Mode. The CW icon will glow green.
-
Page 12: Sapphire Portable Diode Laser Controls And Displays
PORTABLE DIODE LASER CONTROLS AND DISPLAYS ® Sapphire Portable Diode Laser Handpiece: The Sapphire Portable Diode Laser Handpiece includes the components and functions as shown below: Avoid Exposure-Laser Radiation is emitted from this aperture Sapphire Portable Diode Laser Handpiece Components 1. -
Page 13: Sapphire Portable Diode Laser Control Panel
Sapphire Portable Laser Control Panel: The Sapphire Portable Laser Control Panel has the following features and control functions: Figure 1 1. “READY” Button 2. “READY” Indicator Light • Green in “READY” status • Unlit in “STANDBY” status 3. “UP” adjustment for Laser Power 4. -
Page 14: Sapphire Portable Diode Laser Power Level Adjustment
The Sapphire Portable Diode Laser working beam can be activated using either the handpiece ON/OFF actuator or the (optional) footswitch, but not both at the same time. If the footswitch is installed, it overrides the handpiece ON/OFF switch. Unplug the footswitch from the Sapphire Portable Diode Laser Control Module if it will not be used. -
Page 15: Emergency Deactivation Of Laser
When the Sapphire Portable Diode Laser is in READY and the ON/OFF button on the Handpiece is held down, or the footswitch is depressed and held down, the active mode icon will turn from GREEN to RED and an audible “chirp” will be heard, indicating that the laser working beam has been activated. After a 100 micro- second delay, the Handpiece will begin delivering laser working beam emissions to the target tissue by means of the disposable 400 micrometer fiberoptic delivery tip. -
Page 16: Portablility Of The Sapphire Portable Diode Laser
Portable Diode Laser: ® The Sapphire Portable Diode Laser does not need to be attached to the wall outlet to function. A rechargeable lithium-ion battery powers the Sapphire Portable Diode Laser. When fully charged, the Sapphire Portable Diode Laser can be operated for up to 40 minutes, for most procedures, before needing to be recharged. So, the Sapphire Portable Diode Laser can be taken from operatory to operatory as needed. -
Page 17: Pulsed Energy Mode
In the pulsed mode, the Sapphire Portable Diode Laser is programmed to deliver 10 pulses per second with a duty cycle of 50%. It produces 1 energy pulse with 1 period of rest with no energy between each pulse. The result is an average power per second that will be 50% of the laser’s setting. - Page 18 Handpiece receptacle and firmly press the Tip onto the Handpiece. We recommend that you set the Sapphire Portable Diode Laser to READY with the aiming beam at default (0.4 mW) after installing a new Fiber Optic Tip to evaluate the shape and the intensity of the beam to ensure the integrity of the fiber Optic system: the aiming beam spot should be round and the beam should be focused and not diffuse.
-
Page 19: Initiating The Fiber
Hard Tissue Procedures: The Sapphire Portable Diode Laser is not indicated for hard tissue procedures. The Sapphire Portable Diode Laser is attracted to melanin, hemoglobin and to some extent to water and oxygenated hemoglobin. Avoid prolonged exposure of the energy when working in and around the cervical areas of the tooth. Due to the thin layer of enamel in this area, energy may be absorbed by the hemoglobin in the pulp and pulpal hyperemia may occur. - Page 20 We suggest that your practice establish an internal calibration program for your laser. Recalibration is recommended at least once per year based on typical usage. Recalibration may be performed by Den-Mat Holdings, LLC by returning the unit. As an alternative, you may ®...
-
Page 21: Procedural Recommendations For Using The Sapphire Portable Diode Laser
Always test-fire the Sapphire Portable Diode Laser prior to using it intra-orally. Set working beam power to 1.0W CW, and place the Sapphire Portable Diode Laser in the READY mode. Activate the working beam for 1 - 2 seconds while aiming the Fiber Optic Tip onto a 2 x 2 gauze sponge moistened with water. Do not use alcohol or any other combustible material to wet the 2 x 2 sponge, as it may ignite. -
Page 22: Gingival Contouring With The Sapphire Portable Diode Laser System
Gingival Contouring with the Sapphire Portable Diode Laser: ® Tip: Initiated Mode: Continuous Wave Power: 0.8 W Anesthesia: Local, as required Technique: Contact 1. After anesthesia is profound, insert a periodontal probe into the sulcus down to the crest of the bone. -
Page 23: Gingivectomy, Gingivoplasty And Papillectomy With The Sapphire Portable Diode Laser
Gingivectomy, Gingivoplasty and Papillectomy with the Sapphire Portable Diode Laser: Tip: Initiated Mode: Continuous Wave Power: 1.0 W Anesthesia: Local, as required Technique: Contact 1. Using a periodontal probe, record the depth of the pocket to be treated and evaluate its condition, either acute or chronically inflamed. -
Page 24: Gingival Troughing & Tissue Retraction For Impressions With Sapphire Portable Diode Laser
Gingival Troughing & Tissue Retraction for Impressions with Sapphire Diode Portable Laser: ® Tip: Initiated Mode: Continuous Wave Power: 0.8 W Anesthesia: Topical or Local, as required Technique: Contact 1. Following preparation of the tooth, cleanse the area (optional) with H and then rinse with a light spray of water. -
Page 25: Sulcular Debridement With The Sapphire Portable Diode Laser System
Sulcular Debridement with the Sapphire Portable Diode Laser: (Including removal of sulcular tissue and granulation tissue) Tip: Initiated Mode: Pulsed Power: 0.8 W Anesthesia: Topical or Local, as required Technique: Contact Time: 30 seconds Technique: Contact 1. After conventional instrumentation has been completed, insert the Fiber Optic Tip to the full pocket depth. -
Page 26: Labial Frenectomy With The Sapphire Portable Diode Laser System
1. Place tension on the frenum by retracting the lip or cheek. 2. Beginning at the base of the attachment to the gingival tissue, make an incision with the Sapphire Portable Diode Laser that is perpendicular to the length of the frenum. -
Page 27: Abcess Excision With The Sapphire Portable Diode Laser
5. Once you have established the base of the parulis, back the Fiber Optic Tip out approximately 2 mm and activate the Sapphire Portable Laser as you slowly withdraw the tip. 6. Remove the Tip briefl y and allow any exudate to drain. -
Page 28: Hemostasis With The Sapphire Portable Diode Laser
Hemostasis with the Sapphire Portable Diode Laser ® Tip: Uninitiated Mode: Continuous Wave Power: 1.0 W Anesthesia: Topical or as required Technique: Non-Contact Place the Fiber Optic Tip 2 mm above the gingival sulcus, in non-contact with tissue. Direct energy into sulcus and away from the dentin and cementum. -
Page 29: Sapphire Portable Diode Laser Specifications
10. SAPPHIRE PORTABLE DIODE LASER SPECIFICATIONS Laser Classification: Laser diode Class 4 laser device (per IEC 60825) Wavelength working beam: 808 nm ±5 nm Beam Divergence: 9° ± 1° Power Range: 100 mW to 3 W, CW; 100mW to 5W, P... -
Page 30: Servicing The Sapphire Portable Diode Laser
Laser system is warranted to be free of defects in workmanship and materials for one (1) year from the date of original shipment. Within the warranty period, all parts and service charges for repairs to the Sapphire Portable Laser System are covered by Den-Mat Holdings, LLC. - Page 32 ©2011 Den-Mat Holdings, LLC. World Rights Reserved. 823057399 01/11DO ®...
