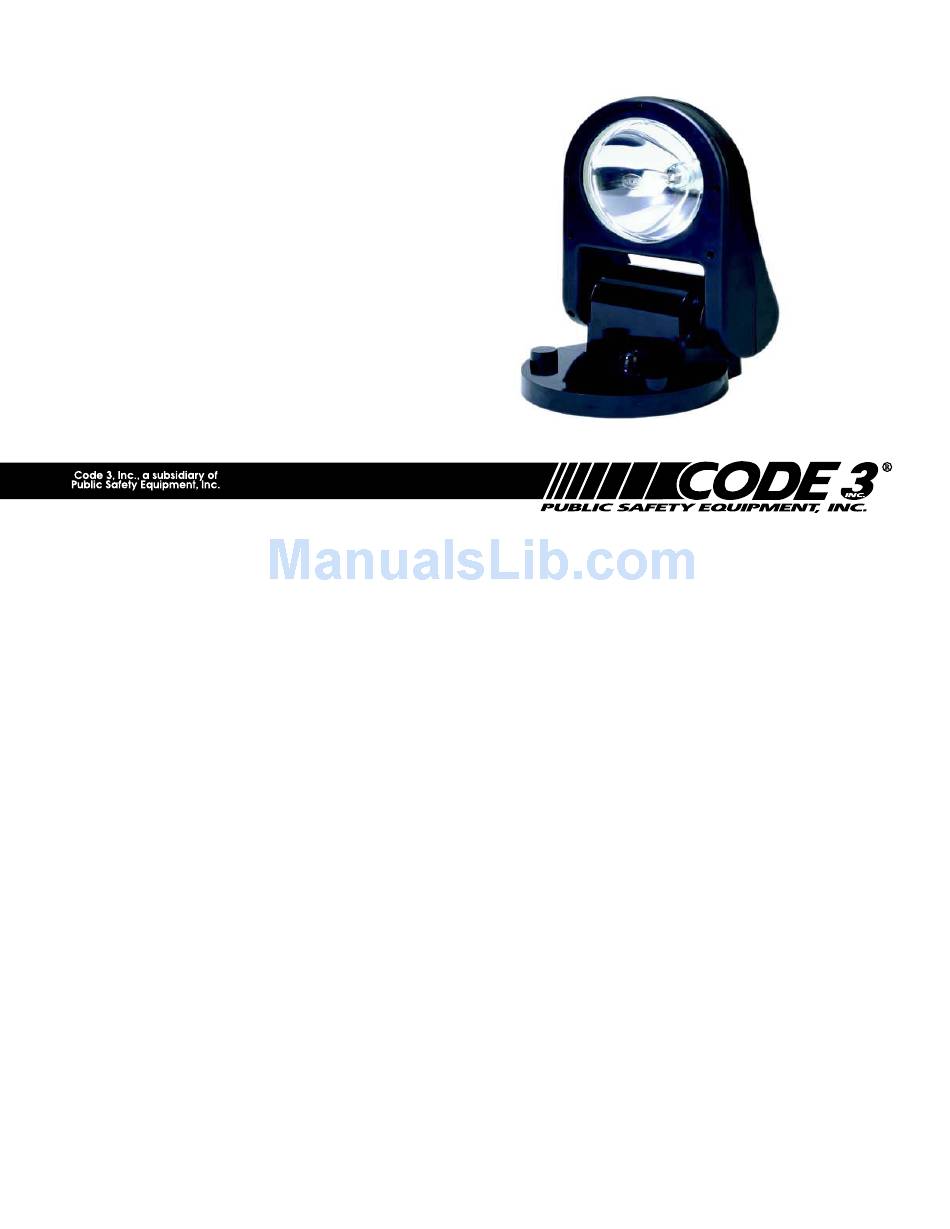

INSTALLATION
& OWNERS
MANUAL
REMOTE
CONTROLLED
SPOTLIGHT
Introduction
The NightProbe , NP 130, product can be mounted in the center section of a Code 360, Excalibur or MX
lightbar. This offers the user an unobstructed 360 degrees of light around the vehicle.
Installation & Mounting
1. Install the circular gasket on the upper surface of the lens cover and spacer.
2. Route the cables from the bottom of the spotlight through the gasket, lens cover as shown in
Figure 2.
3. Place the other two spacers on the lens cover. They will be sandwiched between the lens cover and the
mounting plate.
4. Place the mounting plate over the spacers, align the holes in the mounting plate with the holes in the lens
cover.
5. Attach the spotlight with four #6x3/4" screws to the mounting plate.
6. Remove the center lens of the lightbar and keep the four lens clips for reuse.
7. Route the cables through the existing hole in the bottom of the lightbar, insure that there is adequate
length to reach the area in which the controller is to be mounted.
8. Install the spotlight mounting bracket to the lightbar frame using eight #8 x .270" screws. The bracket
should fit snugly between the plastic ribs of the lower lens to ensure alignment with the lens/mtg plate
assy.
9. Install the spotlight and lens/mtg plate to the lower lens being careful not to pinch the cables. Fasten with
four #14 x 3/4" washer seal screws.
10. Reinstall the four lens clips.
11. Connect the wiring and the control box per instructions with the spotlight.
NIGHTPROBE
IN LIGHTBAR
®
Advertisement
Table of Contents
Related Manuals for Code 3 NightProbe
Summary of Contents for Code 3 NightProbe
- Page 1 IN LIGHTBAR Introduction The NightProbe , NP 130, product can be mounted in the center section of a Code 360, Excalibur or MX lightbar. This offers the user an unobstructed 360 degrees of light around the vehicle. Installation & Mounting 1.
- Page 2 Shown separated for clarity (actual assembly is sealed together with caulk/adhesive) Figure 2 Parts List Ref No. Description Part No. Qty. Spotlight -Complete S50597 Gasket, .062 thk foam, RE41E black T05084 Cover S96255 Fastener #14x3/4 with washer seal T05070 Fastener #6x3/4 T01031 Fastener #8x.270 T01215...
- Page 3 The use of this or any warning device does not ensure that all drivers can or will observe or react to an emergency warning signal. Never take the right-of-way for granted. It is your responsibility to be sure you can proceed safely before entering an intersection, driving against traffic, responding at a high rate of speed, or walking on or around traffic lanes.
- Page 4 *Code 3, Inc. reserves the right to repair or replace at its discretion. Code 3, Inc. assumes no responsibility or liability for expenses incurred for the removal and /or reinstallation of products requiring service and/or repair.; nor for the packaging, handling, and shipping: nor for the handling of products return to sender after the service has been rendered.
