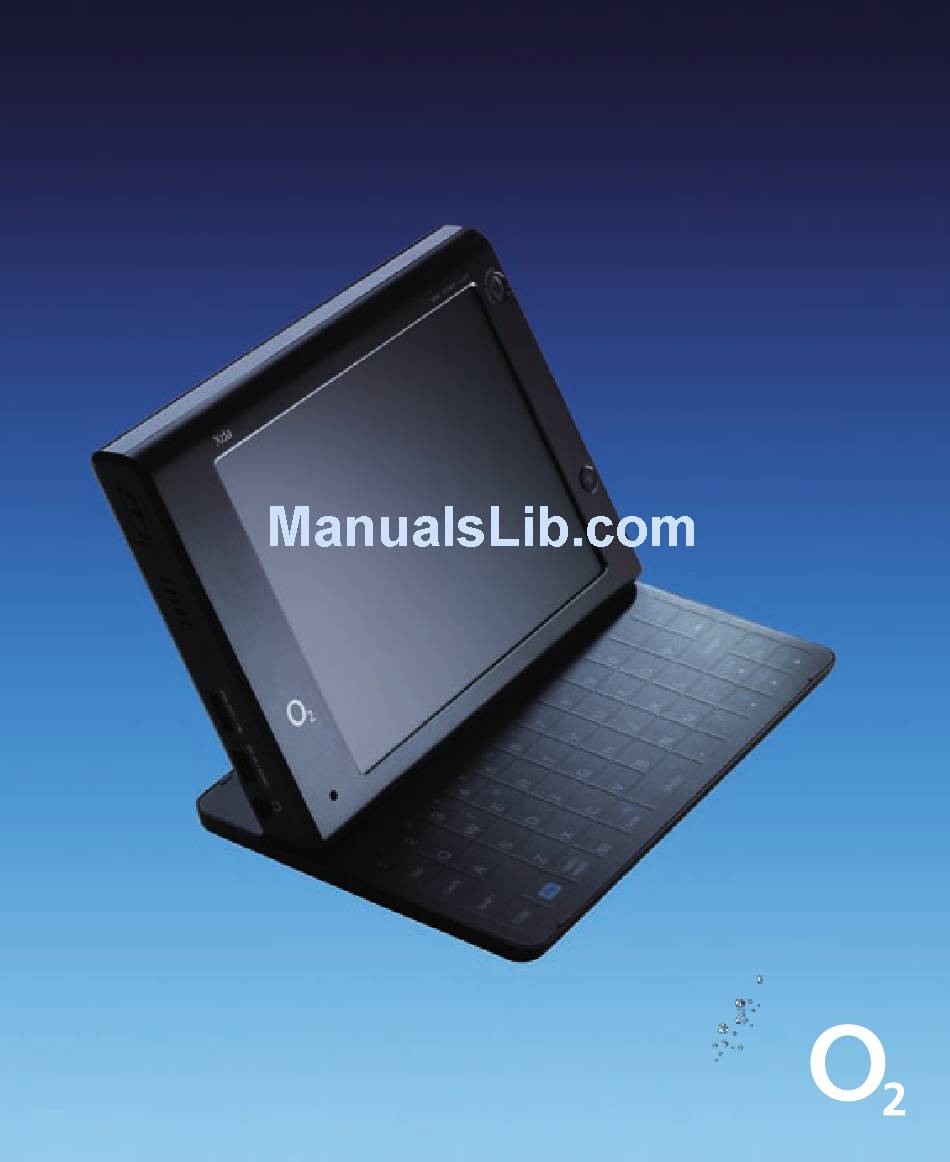

Page 1 Full User Manual Xda Flint We’re better, connected...
Page 2: Please Read Before Proceeding
Please Read Before Proceeding THE BATTERY IS NOT CHARGED WHEN YOU TAKE IT OUT OF THE BOX. DO NOT REMOVE THE BATTERY PACK WHEN THE DEVICE IS CHARGING. YOUR WARRANTY IS INVALIDATED IF YOU OPEN OR TAMPER WITH THE DEVICE’S OUTER CASING. PRIVACY RESTRICTIONS Some countries require full disclosure of recorded telephone conversations, and stipulate that you must inform the person with whom you are speaking...
Page 3 Opera® Browser from Opera Software ASA. Copyright 1995-008 Opera Software ASA. All Rights Reserved. Copyright © 008, Dilithium Networks, Inc. All Rights Reserved. Copyright © 00-008, ArcSoft, Inc. and its licensors. All Rights Reserved. ArcSoft and the ArcSoft logo are registered trademarks of ArcSoft, Inc. in the United States and/or other countries.
Page 4 Disclaimers THE WEATHER INFORMATION, DATA AND DOCUMENTATION ARE PROVIDED “AS IS” AND WITHOUT WARRANTY OR TECHNICAL SUPPORT OF ANY KIND FROM HTC. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, HTC AND ITS AFFILIATES expressly disclaim any and all representations and warranties, express or implied, arising by law or otherwise, regarding the Weather Information, Data, Documentation, or any other Products and services, including without limitation any express or implied warranty...
Page 5: Important Health Information And Safety Precautions
Limitation of Damages TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL HTC OR ITS PROVIDERS BE LIABLE TO USER OR ANY THIRD PARTY FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, INCIDENTAL OR PUNITIVE DAMAGES OF ANY KIND, IN CONTRACT OR TORT, INCLUDING, BUT NOT LIMITED TO, INJURY, LOSS OF REVENUE, LOSS OF GOODWILL, LOSS OF BUSINESS OPPORTUNITY, LOSS OF DATA, AND/OR LOSS OF PROFITS ARISING OUT OF, OR RELATED TO, IN ANY MANNER, OR THE DELIVERY,...
Page 6 SAFETY PRECAUTIONS FOR POWER SUPPLY UNIT • Use the correct external power source A product should be operated only from the type of power source indicated on the electrical ratings label. If you are not sure of the type of power source required, consult your authorized service provider or local power company.
Page 7 NOTE: This product should be operated only with the following designated Battery Pack(s). HTC, Model ATHE10 Sanyo, Model ATHE10 • Take extra precautions • Keep the battery or device dry and away from water or any liquid as it may cause a short circuit. •...
Page 8 SAFETY PRECAUTIONS FOR DIRECT SUNLIGHT Keep this product away from excessive moisture and extreme temperatures. Do not leave the product or its battery inside a vehicle or in places where the temperature may exceed 0°C (10°F), such as on a car dashboard, window sill, or behind a glass that is exposed to direct sunlight or strong ultraviolet light for extended periods of time.
Page 9 EXPLOSIVE ATMOSPHERES When in any area with a potentially explosive atmosphere or where flammable materials exist, the product should be turned off and the user should obey all signs and instructions. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death.
Page 10 HEARING AIDS Some digital wireless phones may interfere with some hearing aids. In the event of such interference, you may want to consult your service provider, or call the customer service line to discuss alternatives. NONIONIZING RADIATION Your device has an internal antenna. This product should be operated in its normal-use position to ensure the radiative performance and safety of the interference.
Page 11: General Precautions
General Precautions • Heed service markings Except as explained elsewhere in the Operating or Service documentation, do not service any product yourself. Service needed on components inside the device should be done by an authorized service technician or provider. • Damage requiring service Unplug the product from the electrical outlet and refer servicing to an authorized service technician or provider under the following...
Page 12 • Avoid pushing objects into product Never push objects of any kind into cabinet slots or other openings in the product. Slots and openings are provided for ventilation. These openings must not be blocked or covered. • Mounting accessories Do not use the product on an unstable table, cart, stand, tripod, or bracket.
Page 13 • For pacemakers The functionality of pacemakers can be interfered by the device and its keyboard. Always keep the device and its keyboard in a fair distance to your pacemaker, which at least will be 5 cm. In any case, please do not carry the device and/or its keyboard in the front pockets of your shirt or coat.
Page 14: Table Of Contents
Contents Chapter 1 Getting Started 1.1 Getting to Know Your PDA Phone and Accessories ... 20 1.2 Installing the USIM/SIM Card, Storage Card and Battery, and Charging the PDA Phone ... 24 1.3 Starting Up ... 28 1.4 The Start Menu ... 29 1.5 Quick Menu ...
Page 15 3.8 Additional Dialing Information ... 66 Chapter 4 Setting Up Your Device 4.1 Basic Settings ... 70 4.2 Personalizing the Today Screen ... 73 4.3 Connecting an External Display ... 76 4.4 Protecting Your Device ... 78 Chapter 5 Synchronizing Information With Your Computer 5.1 About Synchronization ...
Page 16 Chapter 8 Working With Company E-mails and Meeting Appointments 8.1 Synchronizing with the Exchange Server ... 126 8.2 Working With Company E-mails ... 127 8.3 Managing Meeting Requests ... 131 8.4 Finding Contacts in the Company Directory ... 133 Chapter 9 Working With Documents and Files 9.1 Microsoft®...
Page 17 12.6 Audio Booster ... 199 Chapter 13 Managing Your Device 13.1 Adding and Removing Programs ... 202 13.2 Using Task Manager ... 202 13.3 Resetting Your Device ... 204 13.4 Managing Memory ... 206 13.5 Windows Update ... 207 13.6 Battery Saving Tips ... 208 Chapter 14 Using Other Applications 14.1 RSS Hub ...
Page 19: Chapter 1 Getting Started
Chapter 1 Getting Started 1.1 Getting to Know Your PDA Phone and Accessories 1.2 Installing the USIM/SIM Card, Storage Card and Battery, and Charging the PDA Phone 1.3 Starting Up 1.4 The Start Menu 1.5 Quick Menu 1.6 Finger Scrolling and Finger Panning 1.7 Getting Started Application 1.8 Status Icons 1.9 Programs...
Page 20: Getting To Know Your Pda Phone And Accessories
1.1 Getting to Know Your PDA Phone and Accessories Front panel Microphone * Notification LED 1 (GSM): Shows green and amber lights for HSDPA/WCDMA/EDGE/ Notification LED (BT/WIFI): Shows a flashing blue light for Bluetooth system notification Notification LED (ALERT): Shows a flashing amber light when you receive a new Notification LEDs * See description below.
Page 21: Bottom Panel
Left panel VOLUME CONTROL During a call or when playing music, slide up or down to adjust the volume. VGA/TV-Out and USB Host Port Connect the supplied multifunction cable on this port to output the device screen to an external display or to connect USB peripherals.
Page 22: Back Panel
Back panel RESET Keyboard 3.0 Megapixel Camera See Chapter 1 for details. Flash Light GPS Antenna Connector Peel the rubber cover, then connect an external GPS antenna for better GPS signal reception. Note Use only the external GPS antenna with model number GA S110.
Page 23 Accessories No. Accessory Battery AC adapter USB sync cable Stereo headset Carrying case User manual and Read Me First Multifunction cable Extra stylus Getting Started disc Read Me First Function Powers the device. Recharges the battery. Connect the AC adapter to your device, then plug the AC adapter to an electrical outlet to charge the battery.
Page 24: Installing The Usim/Sim Card, Storage Card And Battery, And Charging The Pda Phone
1.2 Installing the USIM/SIM Card, Storage Card and Battery, and Charging the PDA Phone Always turn off your device before installing or replacing the USIM/SIM card, storage card, and battery. You also need to remove the back cover before you can install these components.
Page 25: Storage Card
Insert the USIM/SIM card completely into the slot with its gold contacts on top and its cut-off corner facing out the slot. Flip down the USIM/SIM card slot door, then press it until it clicks in place. Storage card A miniSD™ card slot is located inside the battery compartment. To have additional storage for your images, videos, music, and files, you can purchase a miniSD card and install it into the your .
Page 26 Battery life estimates (approximations): • Standby time: • Talk time: • Video call: • Media playback time: Warning! To reduce risk of fire or burns: • Do not attempt to open, disassemble, or service the battery pack. • Do not crush, puncture, short external contacts, or dispose of in fire or water.
Page 27: Charge The Battery
To remove the battery Make sure your device is turned off. Open the battery compartment. Lift the battery lock, then push the battery latch inward with the stylus tip. The battery automatically ejects from the bay. Pull the battery out of the bay, then set it aside.
Page 28: Starting Up
1.3 Starting Up After installing your SIM card and battery and charging the PDA phone, you can now power on and start using your device. Turn your device on and off To turn on the power • Press and hold the POWER button for a few seconds. When you turn on your device for the first time, a Quick Start Wizard guides you through the calibration process and the setup of date and time, and password.
Page 29: Switch Your Device To Sleep Mode
• Tap Start > Settings > System tab > Screen > General tab to select the screen orientation you want. To smooth the edges of screen fonts for many programs, tap Start > Settings > System tab > Screen > ClearType tab, then select the Enable ClearType check box.
Page 30: Quick Menu
Open a recently-used program. Switch to the Today screen. Open a program. Access more programs. View and change settings. View Help information for the current screen. The Start menu items can be customized by tapping Start > Settings > Personal tab > Menus. 1.5 Quick Menu The Quick Menu, located at the top right corner of the Today screen, shows the currently running programs.
Page 31: Finger Scrolling And Finger Panning
1.6 Finger Scrolling and Finger Panning The device’s screen supports finger scrolling and finger panning when viewing content that cannot be fit entirely on the screen, such as Web pages, documents, and messages. Finger scrolling can also be used to scroll up and down lists such as the contacts list, file list, message list, calendar appointments list, and more.
Page 32 • To pan upward, touch and hold on the touch screen then drag your finger downward. • To pan towards the right, touch and hold on the touch screen then drag your finger to the left. • To pan towards the left, touch and hold on the touch screen then drag your finger to the right.
Page 33: Getting Started Application
1.7 Getting Started Application Getting Started is a list of “how to’s” that you can reference to learn basic features and settings of your device. To open Getting Started Tap Start > Programs > Getting Started. Tap one of the items onscreen to learn how to do the task. Most of the tutorials contain the link to the actual screen you need to access to perform the task.
Page 34: Status Icons
1.8 Status Icons The following are some of the status icons that you may see on the device. Icons that appear in this area Connection Setup Multiple notifications; tap the icon to view all New text messages; SMS notification of voice mail Sending MMS Receiving MMS MMS sent...
Page 35 Icons that appear in this area GPRS connecting GPRS in use HSDPA connecting HSDPA in use WCDMA connecting WCDMA in use Maximum signal strength No signal Phone is turned off No phone service Searching for phone service Voice call in progress Call on hold Calls are forwarded Dialing while no USIM/SIM...
Page 36: Programs
1.9 Programs The following are programs you can find on your device or install from the Applications disc. Programs in the Start Menu Icon Description Office Mobile Use the complete suite of Microsoft® Office applications for your mobile device. Calendar Keep track of your appointments and create meeting requests.
Page 37: Getting Started
Getting Started Programs screen Icon Description Games Play two pre-installed games: Bubble Breaker and Solitaire. ActiveSync Synchronize information between your device and a PC or the Exchange Server. Adobe Reader LE View PDF (Portable Document Format) files on your device.
Page 38 Icon Description JETCET™ PRINT Print documents, image files, emails, Web pages and more from your device. Messenger Chat with your contacts using this mobile version of Windows Live™ Messenger. Notes Create handwritten or typed notes, drawings, and voice recordings. Opera Browser Browse the Internet with the mobile version of the award- winning Opera browser.
Page 39 Getting Started 9 Icon Description Windows Live Find information on the Web using this mobile version of Windows Live™. It also lets you sign into your Windows Live account so that you can access your Live Mail messages and send/receive instant messages in Live Messenger.
Page 40: Settings
1.10 Settings You can adjust the device settings to suit the way you work. To see all available settings, tap Start > Settings, then tap the Personal, System, and Connections tabs located at the bottom of the screen. Personal tab Icon Description Buttons Assign a program or function to a hardware button.
Page 41: System Tab
Getting Started 1 System tab Icon Description About This is where you can see basic information such as the Windows Mobile® version and type of processor used on your device. You can also specify a name for your device. Backlight Set the backlight timeout and adjust brightness. Certificates See information about certificates that are installed on your device.
Page 42 Getting Started Icon Description Managed Programs Download and install applications that are deployed by the System Center Mobile Device Manager. This program also lets you view applications which were installed from the System Center Mobile Device Manager. Memory Check the device memory allocation status and memory card information.
Page 43: Connections Tab
Getting Started Connections tab Icon Description Beam Set your device to receive incoming Bluetooth beams. Bluetooth Turn Bluetooth on, set your device to visible mode, and scan for other Bluetooth devices. Comm Manager Manage your device’s connections (including G/GPRS, Wi-Fi, Bluetooth, and ActiveSync), turn the phone on or off, and enable or disable the Direct Push function.
Page 44 Getting Started...
Page 45: Chapter 2 Entering Text And Searching For Information
Chapter 2 Entering Text and Searching for Information 2.1 Entering Information 2.2 Using the Hardware Keyboard 2.3 Using the On-screen Keyboard 2.4 Using Block Recognizer 2.5 Using Letter Recognizer 2.6 Using Transcriber 2.7 Using Symbol Pad 2.8 Searching Information...
Page 46: Entering Information
2.1 Entering Information When you start a program or select a field that requires text or numbers, you can either use the QWERTY keyboard or one of the onscreen input methods to enter information. QWERTY keyboard Your device comes with a QWERTY keyboard, which is similar to a standard keyboard on your PC.
Page 47: Onscreen Input Methods
Onscreen input methods When you start a program or select a field that requires text or numbers, the Input Panel icon becomes available on the menu bar. Tap the Input Selector arrow (that appears next to the Input Panel icon) to open a menu where you can select a text input method and customize input options.
Page 48: Using The Hardware Keyboard
2.2 Using the Hardware Keyboard You can do the following with the QWERTY keyboard: • To type lowercase letters, press the keys using your thumbs or fingers. • To use all uppercase letters, press appears before the Input Panel icon on the screen to indicate that CAPS LOCK is on.
Page 49: Using The On-Screen Keyboard
• Press • Press 2.3 Using the On-screen Keyboard When using Windows Mobile’s standard on-screen Keyboard, you can enter text by tapping keys on the keyboard that is displayed on the screen. To enter text using the on-screen Keyboard In a program, tap the Input Selector arrow, and tap Keyboard. Enter text by tapping keys on the on-screen Keyboard.
Page 50: Using Letter Recognizer
2.5 Using Letter Recognizer With Letter Recognizer, you can write individual letters, numbers, and punctuation marks, which are then converted into typed text. To use Letter Recognizer From a program, tap the Input Selector arrow, and tap Letter Recognizer. Write characters, numbers, and symbols in the designated writing area.
Page 51: Using Symbol Pad
Tips • To reposition the keyboard, tap and hold the title bar, then drag to the desired location. • When no text is selected, you can open the keyboard by using the gesture (draw a line straight down and then straight up). For more information about using Transcriber gestures, see Help on your device.
Page 52: Searching Information
Indicates the current page and the total number of symbol pages. Tap to go to the next page of symbols. 2.8 Searching Information You can search for files and other items stored in My Documents folder or on an installed storage card of your device. You can search by file name or by words located in the item.
Page 53: Chapter 3 Using Phone Features
Chapter 3 Using Phone Features 3.1 Using the Phone 3.2 Making a Call 3.3 Receiving a Call 3.4 Making a Video Call 3.5 Receiving a Video Call 3.6 Smart Dialing 3.7 Setting Up Bluetooth SIM Access for Car Kit Phones 3.8 Additional Dialing Information...
Page 54: Using The Phone
3.1 Using the Phone Like a standard mobile phone, you can use your device to make, receive, and keep track of calls and send messages. You can also dial directly from Contacts, and easily copy phonebook entries from your SIM card to Contacts on your device.
Page 55: Adjust The Device Volume
To enable or disable Airplane Mode Another way to turn off the phone function is to switch your device to Airplane Mode. When you enable Airplane Mode, all wireless radios on your device are turned off, including the phone function, Wi-Fi, and Bluetooth. When you disable Airplane Mode, the phone function is turned back on and the previous states of Wi-Fi and Bluetooth are restored.
Page 56: Making A Call
3.2 Making a Call With your device, you can make a call from Phone, Contacts, Speed Dial, Call History, and SIM Manager. Make a call from Phone Tap Start > Phone. Tap Keypad, then tap the keys on the keypad to enter the phone number. Tips •...
Page 57: Make A Call From Call History
Make a call from Call History On the Phone screen, tap Finger-scroll to the desired contact or phone number, then tap Call. One-touch Speed Dial Use Speed Dial to call frequently-used numbers with a single tap. For example, if you assign a contact to the location 2 in Speed Dial, you can tap and hold on the Phone screen keypad to dial the contact’s number.
Page 58: Make A Call From Sim Manager
Make a call from SIM Manager SIM Manager allows you to view the contents of your SIM card, transfer SIM phonebook entries to Contacts on your device, and make a call from your SIM card. To call a SIM contact Tap Start >...
Page 59: Making A Video Call
To set up a conference call Either put a call on hold, and dial a second number; or, accept a second incoming call when you already have one in progress. Tap Menu > Conference. Note Not all mobile phone networks support conference calling. Contact your wireless service provider for details.
Page 60 Note The other party’s image will appear on the screen about to 5 seconds after a connection is established, depending on the signal strength. The signal may also influence the quality of streaming images. When the video call is unsuccessful, a message pops up asking you if you want to try again, make a voice call instead, or send an SMS or MMS message.
Page 61: Set Up Video Call Options
Swap Image options Both parties (My video small) Both parties (My video large) Both parties (equal) Other party only To adjust the brightness to display the brightness bar. to make the image brighter, or to make it dimmer. You can also adjust the brightness by tapping Menu >...
Page 62 General tab • Show still image. Select the image you want to display when you turn off the camera. • Preset (female). Displays a female picture in place of your image. • Preset (male). Displays a male picture in place of your image. • Custom image.
Page 63: Receiving A Video Call
3.5 Receiving a Video Call To answer or reject an incoming video call • To answer the video call, tap Answer. • To reject the video call, tap Ignore. To end a video call Once an incoming or outgoing video call is in progress, tap hang up.
Page 64: Make A Call Or Send A Text Message Using Smart Dialing
To find a contact name or number You can just enter the first letter of the name or number of a contact. Smart Dialing will search for contact phone numbers and the first character of a contact name as well as from the character that appears after a space, dash, or underscore in a contact name.
Page 65: Set Up Smart Dialing
Set up Smart Dialing On the Phone screen, tap Menu > Smart Dialing Options > Options tab. Select the Enable Smart Dialing check box, then adjust the following options based on your preference. • Select the Automatically expand selected contact check box to enable a contact’s name and phone number to be displayed when the contact is selected in the matching list.
Page 66: Additional Dialing Information
Tap Start > Settings > Connections tab > Bluetooth > SIM Access tab. Select the Remote SIM Access check box, then tap OK. Connect the car kit phone to your device via Bluetooth. To learn how to connect, consult your car kit phone’s manual. If this is the first time you are pairing the car kit phone with your device, enter the car kit’s passcode on your device.
Page 67: Make An International Call
To make an emergency call when the device is locked Enter the emergency call number in the Password screen. Press the HOME/TODAY button to dial out. To end the emergency call, press the RESET button at the back panel of the device.
Page 68 8 Using Phone Features...
Page 69: Chapter 4 Setting Up Your Device
Chapter 4 Setting Up Your Device 4.1 Basic Settings 4.2 Personalizing the Today Screen 4.3 Connecting an External Display 4.4 Protecting Your Device...
Page 70: Basic Settings
4.1 Basic Settings Time and date To set the time and date Tap Start > Settings > System tab > Clock & Alarms > Time tab to set the time and date. Select the correct time zone and change the date or time. Note During synchronization, the time on your device is updated with the time on your computer.
Page 71: Display Settings
Display settings To adjust the screen brightness • You can also tap Start > Settings > System tab > Backlight > Brightness tab to adjust the screen brightness. To set the backlight to dim after a time delay Tap Start > Settings > System tab > Backlight. Tap the Battery power or External power tab.
Page 72: Alarms And Notifications
Ringer settings To change the ring type and ring tone Tap Menu > Options > Phone tab. In the Ring type list, choose whether to be notified of incoming calls by a ring, an increasing ring, or more. In the Ring tone list, tap the sound you want to use. Tips •...
Page 73: Phone Services
On the Notifications tab, in Event, tap an event name and choose how you want to be notified by selecting the appropriate check boxes. You can choose from several options, such as a special sound, a message, or a flashing light. Turning off sounds and flashing light notifications helps conserve battery power.
Page 74 You can use one of your own pictures as the background image on the Today screen. Tap Start > Settings > Personal tab > Today. Select the Use this picture as the background check box, and tap Browse to view a list of your picture files. Tap the file name of the picture you want to use.
Page 75: Customize The Start Menu
Do any of the following: • Select Next appointment to show only the next appointment in your schedule, or Upcoming appointments to show multiple appointments. • Clear the Display all day events check box if you do not want to display all-day events.
Page 76: Connecting An External Display
4.3 Connecting an External Display The TV Out function lets you output the device’s screen to an external display such as a television, an LCD monitor, or projector. This feature is useful when you are doing a presentation or when you are sharing your videos or photos. A multifunction cable comes with your device for easy connection to an external display.
Page 77: Play Videos
Enable TV Out On the Today screen of your device, tap Start > Settings > System tab > TV Out. On the TV Out screen, select On in the drop-down menu. Choose the type of external display that you are using to output. •...
Page 78: Protecting Your Device
4.4 Protecting Your Device Protect your SIM card with a PIN You can protect your SIM card from unauthorized use by assigning a PIN (personal identification number). The default SIM card PIN is provided by your wireless service provider. To change the PIN On the Phone screen, tap Menu >...
Page 79: Encrypt Files On Your Storage Card
• If you forget your password, you can hard reset or clear the device memory. Before you do this, make sure you back up your data and files so that you can restore them back to your device. For more information about hard resetting the device and clearing the memory, see Chapter 1.
Page 80 80 Setting Up Your Device...
Page 81: Chapter 5 Synchronizing Information With Your Computer
Chapter 5 Synchronizing Information With Your Computer 5.1 About Synchronization 5.2 Setting Up Windows Mobile® Device Center on Windows Vista® 5.3 Setting Up ActiveSync® on Windows XP® 5.4 Synchronizing With Your Computer 5.5 Synchronizing via Bluetooth 5.6 Synchronizing Music and Video...
Page 82: About Synchronization
5.1 About Synchronization You can take information from your computer wherever you go by synchronizing them to your device. The following types of information can be synchronized between your computer and your device: • Microsoft® Office Outlook® information, which include Office Outlook e-mail, contacts, calendar, tasks, and notes •...
Page 83: Setting Up Windows Mobile® Device Center On Windows Vista
5.2 Setting Up Windows Mobile® Device Center on Windows Vista® Microsoft Windows Mobile® Device Center is the replacement for Microsoft® ActiveSync® on Windows Vista®. Note Some versions of Windows Vista come with Windows Mobile Device Center already installed. If Windows Mobile Device Center is not available on your Windows Vista, you can install it from the Getting Started Disc that came with your device.
Page 84: Use Windows Mobile Device Center
Use Windows Mobile Device Center To open Windows Mobile Device Center, click Start > All Programs > Windows Mobile Device Center on your Windows Vista computer. On Windows Mobile Device Center, you can do the following: • Click Mobile Device Settings to change synchronization settings. •...
Page 85: Setting Up Activesync® On Windows Xp
5.3 Setting Up ActiveSync® on Windows XP® The Getting Started disc that comes with your device contains Microsoft ActiveSync .5 or later. Follow the steps in this section to install and set up ActiveSync on Windows XP or other compatible Windows systems. Note For a list of compatible Windows systems, go to http://www.microsoft.com/windowsmobile/activesync/activesync5.mspx.
Page 86: Synchronizing With Your Computer
5.4 Synchronizing With Your Computer Connect and synchronize your device with your computer using the USB cable or Bluetooth connection. Start and stop synchronization You can manually synchronize either from your device or computer. From your device • Tap Start > Programs > ActiveSync, then tap Sync. To end synchronization before it completes, tap Stop.
Page 87: Troubleshoot Sync Connection Problem
To change synchronization settings for an information type, for instance, E-mail, select it and tap Settings. You can then set the download size limit, specify the time period of information to download, and more. Notes • Some information types such as Favorites, Files and Media cannot be selected in ActiveSync Options on your device.
Page 88: Synchronizing Music And Video
To synchronize with a computer via Bluetooth Set up Windows Mobile Device Center or ActiveSync on your computer to synchronize through Bluetooth. See the program’s Help for instructions. On your device, tap Start > Programs > ActiveSync. Make sure that Bluetooth on both your device and the computer are turned on and set to visible mode.
Page 89: Chapter 6 Organizing Contacts, Appointments, Tasks, And Other Information
Chapter 6 Organizing Contacts, Appointments, Tasks, and Other Information 6.1 Contacts 6.2 SIM Manager 6.3 Calendar 6.4 Tasks 6.5 Notes 6.6 Voice Recorder...
Page 90: Contacts
6.1 Contacts Contacts is your address book and information storage for people and businesses you communicate with. You can create the following types of contacts on your device: • Outlook contacts. Contacts that are stored on your device, which can be created on your device or synchronized with your PC or the Exchange Server.
Page 91 To assign a ring tone to the contact, tap the Ring tone field, scroll through the list of tones, then select a desired tone. When finished, tap OK. Tips • If someone who is not in your list of contacts calls you, create a contact from Call History by tapping and holding a phone number, then tapping Save to Contacts from the shortcut menu.
Page 92 Touch or tap the name of a contact to open his or her contact card. On the contact card, you will see the last outgoing or incoming call as well as detailed information such as phone numbers of the contact, e-mail address, and more.
Page 93: Share Contact Information
To group similar contacts For easier management, you can group similar contacts by assigning them to categories. Create a new Outlook contact or edit an existing Outlook contact. Tap Categories. Select a preset category such as Business or Personal, or tap New to create your own category.
Page 94: Sim Manager
To send contact information as a vCard A vCard (virtual business card) is a standard file format used for exchanging contact information. vCard files can be exported to Outlook on the computer. From your device, you can send a vCard containing contact information as file attachment in an MMS message.
Page 95 To copy contacts to the SIM card Only one phone number per contact name can be stored on a SIM card. When you copy a contact that has several phone numbers to your SIM card, SIM Manager saves each number under a separate name. To save each number under a different contact name on the SIM card, SIM Manager appends an indicator at the end of each name.
Page 96: Calendar
6.3 Calendar Use Calendar to create appointments, including meetings and other events. You can also synchronize Calendar appointments between your device and computer. Create appointments To schedule an appointment Tap Start > Calendar. Tap Menu > New Appointment. Enter a name for the appointment. Do one of the following: •...
Page 97: View Appointments
Set the time when you want the reminder to alert you. Tap OK to return to the Calendar screen. View appointments By default, Calendar displays appointments in Agenda view. You can also look at your appointments in Day, Week, Month, and Year views. The highlighted hours here indicate the time of your appointments.
Page 98: Send Appointments
Send appointments To send a meeting request Use Calendar to schedule meetings via e-mail with contacts who use Outlook or Outlook Mobile. Tap Start > Calendar. Schedule a new appointment, or open an existing one and tap Menu > Edit. Tap Attendees, then tap Add Required Attendee or Add Optional Attendee and add the contacts whom you want to invite.
Page 99: Tasks
6.4 Tasks Use Tasks to keep track of things you need to do. A task can occur once or repeatedly (recurring). You can set reminders for your tasks and you can organize them using categories. Your tasks are displayed in a task list. Overdue tasks are displayed in red. To create a task Tap Start >...
Page 100: Notes
Tap OK to return to the task list. Note The new tasks must have due dates set in order for the reminder to take effect. To show start and due dates in the task list Tap Start > Programs > Tasks. Tap Menu >...
Page 101 When finished, tap OK to return to the note list. Notes • To select handwritten text, tap and hold next to the writing. As soon as dots appear, and before they form a complete circle, quickly drag across the writing. •...
Page 102: Voice Recorder
To change recording formats Tap Start > Settings > Personal tab > Input. Tap the Options tab, and select the desired format you want in the Voice recording format list. Tap OK. Note You can also change recording formats from within Notes. In the note list, tap Menu >...
Page 103 To send a voice recording through MMS • Select a voice recording, then tap Menu > Send via MMS. A new MMS message is then created with the voice recording automatically inserted as an audio clip. See “MMS” in Chapter to learn how to compose and send MMS messages.
Page 104 10 Organizing Contacts, Appointments, Tasks, and Other Information...
Page 105: Chapter 7 Exchanging Messages
Chapter 7 Exchanging Messages 7.1 Messaging 7.2 Text Messages 7.3 MMS 7.4 Types of E-mail Accounts 7.5 E-mail Setup Wizard 7.6 Using E-mail...
Page 106: Messaging
7.1 Messaging To select a messaging account Do one of the following: • Tap Start > Messaging. The Account Picker screen then appears where you can select an account. • While you are in a message list of a certain account, for example SMS \ MMS, tap Menu >...
Page 107: Text Messages
7.2 Text Messages Send short text messages (SMS) up to 10 characters long to other mobile phones. Send text messages To compose and send a text message Tap Start > Contacts. Tap the contact’s name to open his or her contact card. If your contact list is long, flick or slide your finger upward on the touch screen to scroll down the contact list.
Page 108: Manage Text Messages
108 Exchanging Messages Manage text messages Text messages that are sent to and received from a contact (or number) are grouped as a single thread in your inbox. Threaded SMS lets you see exchanged messages (similar to a chat program) with a contact on the screen.
Page 109 To reply to a text message In the SMS \ MMS inbox, tap a message thread to open it. At the bottom of the screen, type your reply message and then tap Send. To copy a message in the thread to the SIM card In the SMS \ MMS inbox, tap the message to open it.
Page 110: Change Mms Settings
Tap Menu > Insert, and then in the menu, select the item you want to insert: Picture/Video, Audio or Attachment. Tap Send. Tips • You can also insert a vCard or vCalendar in your MMS message. • To compose an MMS message complete with text, emoticons, media and attachments, tap Menu >...
Page 111 Tap the Servers tab and check if your device is preset with MMS server settings. If there are no preset settings, tap New and enter the following information, which you obtained from your wireless service provider: • Gateway. Location of the MMS server, which is usually in the form of an IP address.
Page 112: Create And Send Mms Messages
Create and send MMS messages You can compose MMS messages in a combination of slides, where each slide can consist of a photo, video or audio clip, and/or text. To compose an MMS message Tap Start > Messaging > SMS \ MMS, then tap Menu > New > MMS. When you see the Choose a MMS screen, tap a preset template, or tap Custom to open a blank MMS message.
Page 113 To add text to an MMS message When you tap Insert text here on your MMS message, an empty screen appears where you can enter your text. You can insert the following types of information: Choose from common words or phrases from the My Text list Include a Favorites link Add an emoticon To edit or delete a phrase on the My Text list, tap and hold a string, then tap Edit...
Page 114: View And Reply To Mms Messages
View and reply to MMS messages To view an MMS message • Use the playback controls • Tap Contents to see a list of files included in the message. On the Message Contents screen, you can do the following: • To save a file, select it, and tap Menu >...
Page 115: Types Of E-Mail Accounts
7.4 Types of E-mail Accounts You can set up the following types of e-mail accounts on your device: • Outlook e-mail that you sync with your computer or the Exchange Server. • E-mail account that you have from an Internet Service Provider (ISP). •...
Page 116: E-Mail Setup Wizard
7.5 E-mail Setup Wizard Windows Mobile’s E-mail Setup wizard walks you through the process of setting up your e-mail account. It has an Auto Setup feature which can automatically set up your e-mail account based on the e-mail address and password that you enter, if your e-mail provider settings are preconfigured on your device.
Page 117 If the settings are not found on your device, select the Try to get e- mail settings automatically from the Internet checkbox to find and download e-mail server settings from the Internet and then tap Next. Enter Your name and the Account display name, then tap Next. Note If the E-mail Setup wizard was unsuccessful in finding and downloading settings from the Internet, select Internet e-mail from the Your e-mail...
Page 118 • Tap Advanced Server Settings, then select the Require SSL check boxes if your e-mail provider uses an SSL connection for more secured e-mail. From the Network connection list, select the data connection that you use for connecting to the Internet. To customize download and format settings Before you tap Finish when setting up your POP or IMAP e-mail account, you can tap the Review all download settings link at the bottom of the...
Page 119: Set Up A Custom Domain E-Mail
Set up a custom domain e-mail When you are using an e-mail domain name that is hosted by a different e-mail provider (for example, your e-mail address may be Benjamin@startup.com but Email.com hosts the e-mail account and provides e-mail services), select the Custom Domain option in the E-mail Setup wizard to set up your e-mail account on your device.
Page 120: Using E-Mail
7.6 Using E-mail After setting up e-mail accounts on your device, you can start sending and receiving e-mail messages. Create and send messages To compose and send a message Tap Start > Contacts. If your contact list is long, flick or slide your finger upward on the touch screen to scroll down the contact list.
Page 121: Filter The Inbox Message List
Filter the Inbox message list When the Inbox on your device is full of messages, it may be difficult to browse and locate a desired message. You can filter your Inbox to display only the messages that contain a particular sender or subject you are searching for.
Page 122 To download an attachment An attachment appears below the subject of the message. Tapping this downloads and opens the attachment immediately. Notes • For a POP e-mail account, all attachments are downloaded immediately when you tap Get entire message and any attachment at the end of the message.
Page 123: Download Messages
• If the e-mail does not download immediately, tap Menu > Send/Receive. • If images do not immediately appear on the message, tap Internet pictures blocked then tap Download Internet pictures. Tap Menu and choose whether to reply or forward the message. When replying, enter your response then tap Send.
Page 124: Customize E-Mail Settings
Customize e-mail settings To change the download size and format, and manage e-mail attachments for Outlook e-mail Disconnect your device from the computer. Tap Start > Programs > ActiveSync. Tap Menu > Options, select E-mail, then tap Settings. Do any of the following: •...
Page 125: Chapter 8 Working With Company E-Mails And Meeting Appointments
Chapter 8 Working With Company E-mails and Meeting Appointments 8.1 Synchronizing with the Exchange Server 8.2 Working With Company E-mails 8.3 Managing Meeting Requests 8.4 Finding Contacts in the Company Directory...
Page 126: Synchronizing With The Exchange Server
8.1 Synchronizing with the Exchange Server To keep up-to-date with your company e-mails and meeting schedules while you’re out of the office, you can connect your device to the Internet through G/GPRS and synchronize with your company’s Exchange Server. Set up an Exchange Server connection Before you can synchronize or access information on the Exchange Server, you need to set up an Exchange Server connection on your device.
Page 127: Start Synchronization
Select the items that you want to sync with the Exchange Server. Note • To change synchronization settings of an information item, for example, E-mail, select the item, then tap Settings. • To change the rules for resolving synchronization conflicts, tap Menu >...
Page 128: Automatic Synchronization Through Direct Push
Automatic synchronization through Direct Push Direct Push technology (push e-mail feature) enables you to receive new e- mails on your device as soon as they arrive in your Inbox on the Exchange Server. With this feature, items such as contacts, calendar and tasks are also immediately updated onto your device when these items have been changed or new entries have been added on the Exchange Server.
Page 129: Instant Download Through Fetch Mail
Instant download through Fetch Mail The Fetch Mail feature downloads an entire e-mail immediately without the need for you to perform a full Send/Receive action. This limits the download to just the e-mail message that you want and helps save data cost. Requirement Fetch Mail works for your device only if your company is using Microsoft Exchange Server 2007 or higher.
Page 130: Flag Your Messages
In the Look in list, specify whether to search in your Inbox or Sent Items only, or to search in All Folders. Tap Search. Flag your messages Flags serve as a reminder for you to follow-up on important issues or requests contained in e-mail messages.
Page 131: Out-Of-Office Auto-Reply
Out-of-office auto-reply Outlook Mobile allows you to retrieve and change your out-of-office status. Just like desktop Outlook E-mail, Outlook Mobile automatically sends an auto- reply message when you’re not available. To send out-of-office auto-reply messages Tap Start > Messaging > Outlook E-mail.
Page 132 Choose whether or not to edit your response e-mail before sending, then tap OK: If you accepted the meeting request, it will automatically be added as an appointment in Calendar on your device. To view the list of meeting participants Tap Start >...
Page 133: Finding Contacts In The Company Directory
8.4 Finding Contacts in the Company Directory In addition to having contacts on your device, you can access contact information from your organization’s Company Directory. By having over-the- air access to the Company Directory, you can easily send e-mail messages and meeting requests to anyone in your company.
Page 134 Enter a partial or full contact name and tap Search. In the search results list, tap a contact to select it. Notes • You can save a contact from the Company Directory to your device by selecting the contact, then tapping Menu > Save to Contacts. •...
Page 135: Chapter 9 Working With Documents And Files
Chapter 9 Working With Documents and Files 9.1 Microsoft® Office Mobile 9.2 Adobe® Reader® LE 9.3 Copying and Managing Files 9.4 ZIP 9.5 Backing Up Data...
Page 136: Microsoft® Office Mobile
9.1 Microsoft® Office Mobile Microsoft® Office Mobile consists of the following applications: • Microsoft® Office Excel® Mobile lets you create and edit Excel workbooks and templates on your device. • Microsoft® Office OneNote® Mobile lets you create notes with text, photos, and voice recordings for synchronization later with Microsoft®...
Page 137: Adobe® Reader® Le
9.2 Adobe® Reader® LE Adobe® Reader® LE is an application for viewing PDF (Portable Document Format) documents on your device. It supports a subset of the features found in the PC versions of Adobe Reader. To open Adobe Reader LE •...
Page 138: Copying And Managing Files
9.3 Copying and Managing Files You can copy files between your device and computer, or copy files to a storage card installed on your device. You can also efficiently manage your files and folders using File Explorer. To copy files using Windows Mobile Device Center or ActiveSync Connect your device to the computer.
Page 139: Zip
To copy files to a storage card Make sure that the storage card is properly installed on your device. Tap Start > Programs > File Explorer and navigate to the appropriate folder. Tap and hold the file you want to copy, then tap Copy. Tap the down arrow ( Tap Menu >...
Page 140: Backing Up Data
Tap Menu > Action > Extract. Choose a folder where the files will be extracted to, then tap Extract. To create a zip archive Tap File > New Archive. On the Save As screen, enter the zip file name and choose a folder where you want to save it.
Page 141 To open Sprite Backup • On your device, tap Start > Programs > Sprite Backup. Sprite Backup operates in two modes: Basic and Advanced. Basic mode To back up data in Basic mode Basic mode is the default mode, and allows you to easily back up the entire content of your device with the tap of a button.
Page 142 To back up data in Advanced mode Advanced mode is designed for users with more advanced backup requirements. Tap Options > Switch to Advanced Mode. In the Backup tab, you will see a tree view of the data and files on your device.
Page 143: Chapter 10 Getting Connected
Chapter 10 Getting Connected 10.1 Comm Manager 10.2 Connection Setup 10.3 Ways of Connecting to the Internet 10.4 Starting a Data Connection 10.5 Internet Explorer® Mobile 10.6 Windows Live™ 10.7 Using Your Device as a Modem (Internet Sharing) 10.8 Bluetooth...
Page 144: Comm Manager
10.1 Comm Manager Comm Manager acts like a central switch that lets you enable or disable phone features as well as manage your data connections easily. To open Comm Manager Tap Start > Settings > Connections tab > Comm Manager. Tap to switch Airplane mode on or off.
Page 145: Connection Setup
10.2 Connection Setup Connection Setup configures your device’s data connections, such as G/ GPRS, WAP, and MMS, for you so that you do not need to enter the settings manually onto your device. All you need to do is to select your network operator, then Connection Setup does all the configuration for you.
Page 146: Ways Of Connecting To The Internet
10.3 Ways of Connecting to the Internet Your device’s networking capabilities allow you to access the Internet or your corporate network at work through one of the following connections: • G/GPRS • Wi-Fi • Dial-up Note You can also add and set up the following connections: •...
Page 147 On the Make New Connection screen, enter a name for the connection. In the Select a modem list, select Cellular Line (GPRS, 3G), then tap Next. Enter the Access point name, then tap Next. Enter the user name and password, if required, then tap Finish.
Page 148 Note For secured (Security-enabled) wireless networks, you may be prompted to provide a username and password. Next time you use your device to detect wireless networks, you will not see the pop-up message windows again, and you will not be prompted to enter the network key of the previously accessed open or secured wireless network (unless you perform a hard reset which will erase custom settings on your device).
Page 149 To connect to a wireless network • in the list, tap and hold on the desired network, then tap Connect. Tap a wireless network in the list • to view or change its connection settings. You can also add new wireless •...
Page 150: Starting A Data Connection
10.4 Starting a Data Connection After setting up a data connection such as G/GPRS or ISP dial-up on your device, you can now connect your device to the Internet. The connection is started automatically when you begin using a program that accesses the Internet such as Internet Explorer®...
Page 151 • To pan towards the right, tap and hold on the screen, then drag your finger to the left. To pan towards the left, tap and hold on the screen, then drag your finger to the right. • To pan freely around a Web page, tap and hold on the screen, then drag your finger in the desired direction.
Page 152 To zoom in or out a Web page You can zoom in or out a Web page depending on your viewing preferences. Navigate to the Web page that you want to view. Tap Menu > View > Zoom Level, then select a zoom level on the menu.
Page 153: Windows Live
10.6 Windows Live™ Windows Live™ gives you a full Internet experience on your device. Windows Live™ helps you to find information, pursue your interests, and get in touch with friends and family on the Internet easier. Windows Live™ offers the following key features: •...
Page 154: The Windows Live™ Interface
If you select Store Windows Live contacts in your mobile phone’s contact list, your Windows Live™ contacts will be added to the contact list and to Windows Live™ Messenger on your device. If you select Sync e-mail, your Windows Live™ Mail or Hotmail inbox messages will be downloaded to your device.
Page 155: Launch Messenger And Sign In
Windows Live™ Messenger With this mobile version of Windows Live™ Messenger, you enjoy many of the same cool features that you get from the desktop version, which include the following: • Instant messaging via text and voice • Multiple conversations •...
Page 156: Add Windows Live™ Contacts
To start and end conversations In the contact list, select a contact, then tap Send IM to open a message screen. Enter your text message in the text entry area of the message screen. To add an emoticon, tap Menu > Add emoticon then tap an icon from the list.
Page 157: Using Your Device As A Modem (Internet Sharing)
Tap OK. Follow the remaining instructions to add the new contact to your Windows Live™ contact list. 10.7 Using Your Device as a Modem (Internet Sharing) Internet Sharing connects your desktop or notebook computer to the Internet by using your device’s data connection (G/GPRS or EDGE, for instance).
Page 158 To use your device as a Bluetooth modem For the computer to use the Internet connection of your device, activate Internet Sharing on your device, then set up a Bluetooth Personal Area Network (PAN) between the computer and your device. On your device, turn on Bluetooth and set it to visible mode by following the steps in “To turn Bluetooth on and make your device visible”...
Page 159: Bluetooth
Note If the Bluetooth adapter or dongle on your computer was installed using a third-party provided driver, open the Bluetooth software that came with the Bluetooth adapter/dongle to connect your computer and device via Bluetooth. Refer to the Bluetooth adapter/dongle documentation for more information.
Page 160: Bluetooth Partnerships
Select the Turn on Bluetooth and Make this device visible to other devices check boxes. Tap OK. Bluetooth partnerships A Bluetooth partnership is a relationship that you create between your device and another Bluetooth-enabled device in order to exchange information in a secure manner. To create a Bluetooth partnership On your device, tap Start >...
Page 161: Connect A Bluetooth Hands-Free Or Stereo Headset
Tap Next. Tap Finish. You can now exchange information with the paired device. Tips • To rename a Bluetooth partnership, tap and hold the partnership’s name on the Devices tab of the Bluetooth screen, then tap Edit. • To delete a Bluetooth partnership, tap and hold the partnership’s name on the Devices tab, then tap Delete.
Page 162: Beam Information Using Bluetooth
Select the Hands Free check box. If you have connected a Bluetooth stereo headset, also select the Wireless Stereo checkbox. Tap Save. While the Bluetooth stereo headset is connected, the Headset icon ( will appear on the title bar. Note If the Bluetooth stereo headset becomes disconnected, turn the headset on and repeat steps 1 to above.
Page 163: Bluetooth Explorer And Bluetooth File Sharing
c. Create a Bluetooth partnership between your device and computer. For information about creating a partnership, see “Bluetooth partnerships”. d. In the Options tab of Bluetooth Devices, select Show the Bluetooth icon in the notification area. e. To enable your computer to receive Bluetooth beams, right-click the Bluetooth icon corner of your computer screen and select Receive a File.
Page 164 To enable Bluetooth Explorer and Bluetooth file sharing on your device Tap Start > Settings > Connections tab > Bluetooth > FTP tab. Select the Enable Bluetooth Explorer check box. This makes the \Bluetooth device folder visible in the File Explorer. Select the Enable File Sharing check box.
Page 165: Print Files Via Bluetooth
Print files via Bluetooth Connect your device to a Bluetooth printer to print contact information, appointment details, messages, and other file types. Notes • See “JETCET PRINT” in Chapter 1 for details on how to set up a Bluetooth or network printer.
Page 166 To print a JPEG file Do one of the following: • In Pictures & Videos, tap and hold the JPEG file, then on the pop up menu, tap Print via Bluetooth. • In File Explorer, tap and hold the JPEG file, then on the pop-up menu, tap Print via Bluetooth.
Page 167: Chapter 11 Using Gps
Chapter 11 Using GPS 11.1 Guidelines and Preparation for Using GPS 11.2 Google Maps ™...
Page 168: Guidelines And Preparation For Using Gps
11.1 Guidelines and Preparation for Using GPS • Do not operate the GPS system while driving. The plotted GPS route is only for driving reference. It should not interfere with actual driving behavior. • Please use the GPS system cautiously. Users shall be liable for any damages resulting from negligent operation of the system.
Page 169 • When using the device inside a vehicle, use the car holder to mount the device securely in place. Avoid placing the device in the areas shown in the following diagram: Do not place where it will block the driver’s vision. Do not place where air bags could deploy.
Page 170: Google Maps
11.2 Google Maps ™ Google Maps lets you track your current location, view real-time traffic ™ situations, and receive detailed directions to your destination. It also provides a search tool where you can locate places of interest or an address on a vector or a satellite map.
Page 171 On the Search Results tab, tap an item to view its contact information. Note If the place of interest you are searching for is the first item, tap the Address tab to view the contact information. On the Address tab you can: •...
Page 172 1 Using GPS...
Page 173: Chapter 12 Experiencing Multimedia
Chapter 12 Experiencing Multimedia 12.1 Camera 12.2 Pictures & Videos 12.3 Windows Media® Player Mobile 12.4 Streaming Media 12.5 Audio Manager 12.6 Audio Booster...
Page 174: Camera
12.1 Camera Taking photos and recording video clips along with audio are easy with your device’s built-in cameras. To open the Camera screen Do one of the following: • Press the CAMERA button on your device. • Tap Start > Programs > Camera. •...
Page 175 You can select from the following capture modes: Icon Capture Mode Photo Captures standard still images. Video Captures video clips, with or without accompanying audio. MMS Video Captures video clips suitable for sending with MMS messages. Contacts Picture Captures a still image and gives you the option to immediately assign it as a Photo ID for a contact.
Page 176: Camera Controls
Camera controls • Press the CAMERA or the Enter key on the hardware keyboard to take a photo or contacts picture. • Press the CAMERA button halfway to activate autofocus focused, the indicator changes to the CAMERA button fully to take the shot. •...
Page 177 Resolution. The resolution icon ( indicates the current resolution. Tap to cycle through various resolutions. Storage. Tap to toggle between saving captured photos or video clips on the device’s memory ( disk ( Remaining information indicator. In Photo, Contacts Picture, Picture Theme, Panorama, Sports, and Burst modes, this shows the remaining, available shots of pictures based on current settings.
Page 178 Video mode Recording indicator. This shows a red, blinking indicator while video recording is in progress. Progress indicator. In Picture Theme, Panorama, Sports, and Burst modes, this shows the total number of consecutive shots. Template Selector icon. In Picture Theme mode, tap to toggle among various templates.
Page 179 Capture mode Resolution M (08 x 15) M (100 x 100) 1M (180 x 90) Photo Large (0 x 80) Medium (0 x 0) Small (10 x 10) CIF (5 x 88) Large (0 x 0) Video Medium (1 x 1) Small (18 x 9) Medium (1 x 1) MMS Video...
Page 180: The Review Screen
The Review screen After capturing, the Review screen lets you view, send, or delete the photo or video clip by tapping an icon at the bottom of the screen. Photo / Video / MMS Video / Panorama / Picture Theme mode Icon Function Back Return to the live Camera screen.
Page 181: Camera Settings
You can set the Review screen duration by tapping and then tapping Review Duration. Camera settings Tap the Tool icon ( ) to open the Camera Settings screen. The Camera Settings screen allows you to configure capture and camera settings. When you tap the icons at the bottom of the Camera Settings screen, different menus will appear.
Page 182 Capture settings and menus The available options in this tab depend on the selected capture mode. Self-timer • Self-timer. Select the Self-timer option for capturing images: Off, 2 seconds, or 10 seconds. Selecting seconds or 10 seconds delays the capturing by the specified time after you press the CAMERA button or the Enter key on the hardware keyboard.
Page 183 Capture Settings • Resolution. Select the desired image or video size. • Camera. Select which camera to use. You can choose from Main Camera, 2nd Camera or 2nd Camera (Flip). • Quality. Select the JPEG image quality level for all captured still images. You can choose from Basic, Normal, Fine, and Super Fine.
Page 184 • Shoot Option. The autofocus feature is activated when the CAMERA button is pressed. Selecting Full Press requires you to fully press the CAMERA button to take the shot after autofocus is set. Selecting Half Press automatically takes the shot after autofocus is set. Note This option only applies to the CAMERA button.
Page 185 Note If you set the Camera to save captured photos to a storage card, the prefix cannot be selected. Captured photos will be named using the convention IMAGnnnn.jpg (where 'nnnn' is the counter) which is the DCIM (Digital Camera Images) naming standard, and will be saved to the \DCIM\100MEDIA folder on the storage card.
Page 186: Pictures & Videos
12.2 Pictures & Videos Pictures & Videos allows you to manage the following types of media files on your device: File Type Image GIF animation Video To open Pictures & Videos • Tap Start > Programs > Pictures & Videos. To copy media files to your device •...
Page 187: Pictures & Videos Menu
To play GIF animation files Select a GIF animation file (marked with a animation plays back on the screen. Tap OK when finished to return to the previous screen. To play videos By default, the contents of the My Pictures folder are shown. Tap the down arrow ( Documents >...
Page 188: Windows Media® Player Mobile
• To adjust the picture brightness and contrast levels, tap Menu > Auto Correct. Note To undo an edit, tap Menu > Undo. To cancel all unsaved edits you made to the picture, tap Menu > Revert to Saved. 12.3 Windows Media® Player Mobile Windows Media®...
Page 189: Synchronize Video And Audio Files
Controls Tap and drag to jump to any part of the video or audio Full screen Visit WindowsMedia.com Skip to the beginning of the current file or to the previous file Screens and menus Windows Media® Player Mobile has three primary screens: •...
Page 190 To synchronize content to your device automatically On your computer, open Windows Media® Player, then connect your device to your computer. In the Device Setup Wizard, select Yes, search my computer now. Note If you have previously opened Windows Media® Player and searched for media on your computer, you will not be prompted to search your computer in Step .
Page 191: Play Media
Playlists and Library List Click Start Sync to start synchronizing the selected files to your device. Notes • Use Windows Media® Player 11 or higher on your computer to synchronize media files to your device. • Audio files copy faster if Windows Media® Player is configured to automatically set the quality level for audio files copied to your device.
Page 192: Troubleshooting
To play video and audio files on your device Select a category (for example, My Music or My Playlists). Tap and hold the item that you want to play (such as a song, album, or artist name), then tap Play. Tips •...
Page 193: Streaming Media
12.4 Streaming Media Streaming Media lets you stream live broadcasts or on-demand media content from the Web. The media is sent in a continuous stream to your device and is played as it arrives, along with the audio. Streaming Media allows you to play GP and MPEG- files. It also supports playback of SDP (Session Description Protocol) files.
Page 194: Audio Manager
To stream media files directly on the Streaming Media Player Streaming Media only supports RTSP links when you stream *.gp and *.mp files directly on the program. Note Before you launch the Streaming Media program, make sure that you are connected to the Internet.
Page 195 Notes • Audio Manager searches for all music files stored on your device memory and memory card that have the following audio formats: MP (.mp), WMA (.wma), and AAC/AAC+ (.aac). It will search in the following locations: Device: \My Music (including all subfolders) \My Documents (including all subfolders) Storage card: \Storage Card (including all subfolders) •...
Page 196: Music Player
Note Audio Manager keeps track of the last submenu that you accessed. When you exit Audio Manager and open it again, it will display the last submenu that you were in. Keep tapping the submenu name at the top of the screen until you reach the Library's main screen.
Page 197 • Custom playlists. These are playlists that are created in Audio Manager and can be edited. Notes • Audio Manager will search for playlists in the following locations: Device: \Playlists \Application Data\HTC\AudioManager\playlists Storage card: \Storage Card\Playlists • If a Windows Media® Player playlist contains a combination of music, video and image files, Audio Manager accesses the music files only and filters out the other media types.
Page 198: Set Music As Ring Tone
Set music as ring tone You can set your favorite music as a ring tone for your device. Use the arrow keys on the hardware keyboard to select a song in the Library or tap a song to play it in Music Player, then tap Menu > Set as Ring Tone.
Page 199: Audio Booster
12.6 Audio Booster Audio Booster enhances your music experience by providing you with controls for adjusting sound settings while you are listening to music. It adds D sound, treble and bass effects, and provides controls for adjusting them. It even has an equalizer with presets as well as a control panel for fine tuning sound.
Page 200 Equalizer The Equalizer optimizes sound for a better listening experience. It provides preset moods, such as hip hop, jazz, rock, and several enhancement presets that suit different types of music. It also has a 10-band graphic equalizer that lets you adjust the loudness of sound by frequency. To apply a preset Select the Equalizer check box to enable the equalizer.
Page 201: Chapter 13 Managing Your Device
Chapter 13 Managing Your Device 13.1 Adding and Removing Programs 13.2 Using Task Manager 13.3 Resetting Your Device 13.4 Managing Memory 13.5 Windows Update 13.6 Battery Saving Tips...
Page 202: Adding And Removing Programs
13.1 Adding and Removing Programs Before you purchase additional programs for your device, make sure that they are compatible with your device. To add programs Download the program to your computer (or insert the CD or disk that contains the program into your computer). You may see a single *.exe file, a *.zip file, a Setup.exe file, or several versions of files for different device types and processors.
Page 203 To configure the Exit ( You can configure the Exit button to shut down running programs when the button is tapped, or to just temporarily close the program screen but keep the program running. On the Task Manager screen, tap the Button tab. Select the Enable the “X”...
Page 204: Resetting Your Device
To set the sorting preference for running programs in the Quick Menu On the Task Manager screen, tap the Advanced tab. Choose whether to sort according to Program name or Memory usage. The list will be sorted in ascending order. 13.3 Resetting Your Device Soft reset Occasionally, you may need to reset your device.
Page 205: Clear Storage
Warning! Your device will be set back to factory default settings. Make sure that any additional installed programs and/or user data have been backed up before you perform a hard reset. Important If Encrypt files placed on storage cards is or was enabled before, then backup all files from the storage card before using Clear Storage, performing a hard reset, or updating the ROM system software.
Page 206: Managing Memory
Tap the options box, then select: • Clear storage only to clear the device storage. • Format Flash Disk only to format the device flash disk. • Clear storage and format Flash Disk to clear the device storage and format the device flash disk. Enter “1234”...
Page 207: Windows Update
13.5 Windows Update You can update Windows Mobile® on your device with the latest updates, security patches or fixes, if these are available. To set up Windows Update The first time you run Windows Update, you need to set up how you want Windows Update to check for patches on the Microsoft Web site.
Page 208: Battery Saving Tips
13.6 Battery Saving Tips How long your battery power lasts depends on the battery type and how you use your device. Try the following to help conserve battery life: • When the device is not in use, press POWER to switch off the display. •...
Page 209: Chapter 14 Using Other Applications
Chapter 14 Using Other Applications 14.1 RSS Hub 14.2 Voice Speed Dial 14.3 Java 14.4 JETCET™ PRINT 14.5 WorldCard Mobile...
Page 210: Rss Hub
14.1 RSS Hub RSS Hub is a Really Simple Syndication (RSS) reader that keeps you up-to-date with the latest news from the Internet. It monitors Internet news channels and downloads the most current news updates and podcasts so you are instantly informed of breaking news and events.
Page 211 Select the checkboxes of the RSS channels you want to subscribe to, then tap Finish. Channels are grouped by categories. If you want to select all channels in a category, select the category check box. The channel list appears. Tap Refresh to update the channels. Tap to select the channel category to display...
Page 212: View And Organize Headlines
Manage channel categories To view all the channels in a particular category, tap All Categories in the upper left area of the channel list, then tap the category you want to display. To add a new category, tap Menu > Categories in the channel list to display all categories, then tap Menu >...
Page 213: View The News Summary
To filter the headline list In the headline list, tap Menu > View, then select: • New Headlines Only to display only unread headlines. • Keyword Matches Only to display only those headlines with matching keywords. To refresh the headline list •...
Page 214 To download, play, or save podcasts When you see an audio or video file attachment in the news summary, do one of the following to download the file: • Tap Menu > Podcasts > Start Download. • Tap the Download audio/ Download video link below the audio/video file icon.
Page 215 Configure RSS Hub You can configure RSS Hub to store a list of keywords, download feeds automatically, notify you when new headlines arrive, and more. To create a list of keywords You can create a list of keywords to search for in headlines and news summaries.
Page 216 Note Connecting to the Internet using your wireless service provider’s G/GPRS, EDGE, or dial-up network may incur connection charges. Contact your wireless service provider for details. In the Don’t update more than once every option, set the time for RSS Hub to wait between updates. Tap OK.
Page 217: Voice Speed Dial
14.2 Voice Speed Dial You can record voice tags so that you can dial a phone number or launch programs simply by speaking a word. Create a voice tag for a phone number Tap Start > Contacts to open the Contacts list. Do one of the following: •...
Page 218: Make A Call Or Launch Programs Using A Voice Tag
Create a voice tag for a program Tap Start > Settings > Personal tab > Voice Speed Dial > Application tab. The Application tab displays a list of all installed programs on your device. The procedure for creating a voice tag for a program is the same as the procedure for creating a voice tag for a phone number.
Page 219: Java
14.3 Java MIDlets are Java applications such as games and tools that can run on mobile devices, while a MIDlet suite is a collection of one or more MIDlets. The Java program lets you download, install and manage MIDlets or MIDlet suites on your device.
Page 220: Manage Midlets/Midlet Suites
To run a MIDlet/MIDlet suite Do one of the following: • After installation of the MIDlet/MIDlet suite is complete, tap Yes. • On the Java screen, open the folder that contains the MIDlet/MIDlet suite. Select the MIDlet/MIDlet suite, then tap Launch. To stop a running MIDlet/MIDlet suite •...
Page 221: Jetcet™ Print
14.4 JETCET™ PRINT JETCET PRINT lets you print image files or documents from your device straight to a Bluetooth or network printer. You can also print e-mails, e-mail attachments, Web pages, appointments, contacts, and tasks. For more information about JETCET PRINT, consult the JETCET PRINT help in your device by tapping Menu >...
Page 222: Print A File
Print a file Tap Start > Programs > JETCET PRINT. Locate and select the type of file that you want to print (document, image, or e-mail/PIM) by tapping the corresponding tabs on the left side of the screen. Tap and hold the file that you want to print, then tap Print on the menu. Select a printer in the Choose a Printer list box, select the paper size, then tap Next.
Page 223: Worldcard Mobile
14.5 WorldCard Mobile WorldCard Mobile lets you take a photo of a business card and easily export the contact information on the card into your Contacts. To open WorldCard Mobile Tap Start > Programs > WorldCard Mobile. Capture and export business card information Capture a business card and export the card information as a new contact in your Contacts list.
Page 224 The screen shows various contact information from the business card. Use the on-screen keyboard to edit the contact information, if needed. Clear this box if you do not want to include the particular information for the contact when exported to the Contacts list.
Page 225: Appendix
Appendix A.1 Regulatory Notices A.2 Specifications...
Page 226: Regulatory Notices
A.1 Regulatory Notices Regulatory Agency Identifications For regulatory identification purposes, your product is assigned a model number of ATHE400. To ensure continued reliable and safe operation of your device, use only the accessories listed below with your ATHE400. The Battery Pack has been assigned a model number of ATHE160. Note This product is intended for use with a certified Class or Class Limited Power Source, rated 5 Volts DC, maximum Amp power supply unit.
Page 227 • ETSI EN 301 489-17 Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 1: Specific conditions for . GHz wideband transmission systems and 5 GHz high performance RLAN equipment. • EN 301 489-24 Electromagnetic compatibility and radio spectrum matters (ERM);...
Page 228: Safety Precautions For Rf Exposure
• EN60601-1-2 Medical electrical equipment - Part 1-: General requirements for basic safety and essential performance - Collateral standard: Electromagnetic compatibility - Requirements and tests This equipment may be operated in: Safety precautions for RF exposure • Use only original manufacturer-approved accessories, or accessories that do not contain any metal.
Page 229: Sar Information
This phone has been tested and meets the CE RF exposure guidelines when used with an accessory that contains no metal and that positions the handset at a minimum distance of 1.5cm from the body. SAR Information 0.5 W/kg@10g (Body) Telecommunications &...
Page 230: Rohs Compliance
WEEE Notice The Directive on Waste Electrical and Electronic Equipment (WEEE), which entered into force as European law on 1th February 00, resulted in a major change in the treatment of electrical equipment at end-of-life. The purpose of this Directive is, as a first priority, the prevention of WEEE, and in addition, to promote the reuse, recycling and other forms of recovery of such wastes so as to reduce disposal.
Page 231: Specifications
A.2 Specifications System Information Processor Memory Operating System Power Battery Charging Time Battery Life (estimates) AC Adapter Display LCD Type Resolution Orientation Phone Network Internal Antenna Marvell® PXA0 MHz with ATi Graphic Chip W8 - ROM : 5MB - RAM : 18MB SDRAM (Figures are the total ROM and RAM memory available for use and storage.
Page 232 Physical Dimensions 1.5 mm (L) x 98 mm (W) x 1 mm (T) Thickness with keyboard: 0 mm Weight 5 g (with battery) Camera Module Type Main Camera: .0 megapixel color camera with autofocus and flash light Second Camera: VGA CMOS color camera Resolution Photo: 08x15 (QXGA), 100 x100 (UXGA), 180 x 90 (SXGA), 0 x 80 (VGA), 0 x 0 (QVGA), 10 x10...
Page 233 Hardware Keyboard • Dual-usage QWERTY keyboard for text input and display protection • Delete/Back key • Messaging key • SMS/MMS key LEDs • Notification LED 1 (GSM): Shows green and amber lights for HSDPA/WCDMA/EDGE/GSM/GPRS standby, and network status as well as the battery charging status. Flashes red when the battery level reaches 5% or below.
Page 234 Appendix...
Page 235: Index
ADP 11 ActiveSync - set up 85 - synchronize 8, 1 Add and remove programs 0 Adobe Reader LE , 1 Airplane mode 55 Alarm Answer/end a call 58 Appointment search 5 Attachment - add to e-mail 10 - download 1 Audio Booster 199 Audio Manager , 19 Back cover...
Page 236 Car kit phones 5 Clear Storage 05 Clock & Alarms 1, 0, Comm Manager , 1 Company Directory 1 Conference call 59 Connect device to Internet - Dial-up 19 - GPRS 1 - start a connection 150 - ways of connecting 1 - Wi-Fi 1 Connection Setup 15 Contacts , 90...
Page 237 - Letter Recognizer 50 - Transcriber 50 Input Panel Input Selector arrow International call Internet 1 Internet Explorer Mobile , 150 Internet Sharing , 15 Java - create folders 0 - install MIDlets/MIDlet suites from device 19 - install MIDlets/MIDlet suites from Internet 19 - manage MIDlets/MIDlet suites 0...
Page 238 - manage 1 - subscribe to 10 Notes 8, 100 Notes search 5 Now Playing screen (Windows Media Player Mobile) 189 Office Mobile , 1 OneNote Mobile Open PDF file 1 Owner information Panning - ﬁnger panning 1 Password 8 Phone , 5, 5 Phone services ...
Page 239 - Summary View 1 Screen text size 1 Search 8, 5 Send - e-mail 10 - MMS message 11 - text message (SMS) 10 Set music as ring tone 198 Settings 0 Settings (Connections tab) - Beam - Bluetooth , 159 - Comm Manager 1 - Connections , 19 - CSD Line Type ...
Page 240 - ActiveSync 8 - change information types 8 - music and videos 88 - via Bluetooth 8 - Windows Media Player 189 - Windows Mobile Device Center 8 - with computer 8 - with Exchange Server 1 System information 1 Task Manager 0 Tasks 8, 99 Tasks search 5...
Page 241 o2.co.uk Telefónica O2 UK Limited, 260 Bath Road, Slough, Berks, SL1 4DX. Registered in England No.1743099. Registered office as above. © Telefónica O2 UK Limited 2008. Correct at time of going to press (10/08). O2CN657N 5571VCCP10/08 10/09...

This manual is also suitable for:

Xda flint

O2 X7510 Full User Manual

Chapter 1 Getting Started

Chapter 2 Entering Text and Searching for Information

Chapter 3 Using Phone Features

Chapter 4 Setting up Your Device

Chapter 5 Synchronizing Information with Your Computer

Chapter 6 Organizing Contacts, Appointments, Tasks, and Other Information

Chapter 7 Exchanging Messages

Chapter 8 Working with Company E-Mails and Meeting Appointments

Chapter 9 Working with Documents and Files

Chapter 10 Getting Connected

Chapter 11 Using GPS

Chapter 12 Experiencing Multimedia

Chapter 13 Managing Your Device

Chapter 14 Using Other Applications

Appendix

Quick Links

Need help?

Questions and answers

Related Manuals for O2 X7510

Summary of Contents for O2 X7510
