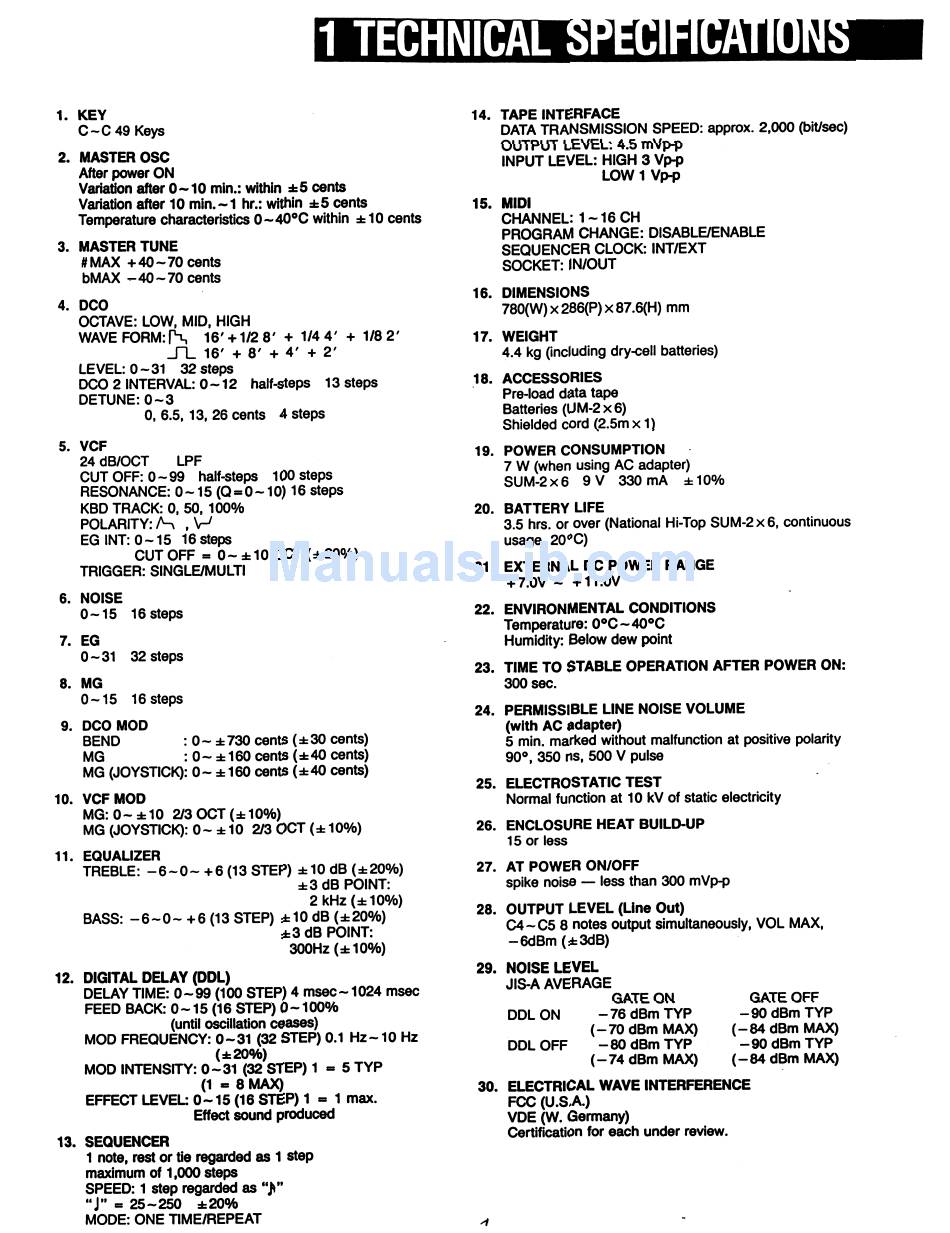

1 TECHNICAL
1.
KEY
C~C49Keys
2. MASTER OSC
After power ON
Variation after 0-10 min.: within ±5 cents
Variation after 10 min.~1 hr.: within ±5 cents
Temperature characteristics 0-40°C within ±10 cents
3. MASTER TUNE
#MAX +40-70 cents
bMAX ^40-70 cents
4. DCO
OCTAVE: LOW, MID, HIGH
WAVE FORM: f\ 16'+ 1/2 8' + 1/4 4' + 1/8 2'
JT_ 16' + 8' + 4' + 2'
LEVEL: 0-31 32 steps
DCO 2 INTERVAL: 0-12 half-steps 13 steps
DETUNE: 0-3
0, 6.5, 13, 26 cents 4 steps
5. VCF
24 dB/OCT LPF
CUT OFF: 0-99 half-steps 100 steps
RESONANCE: 0-15 (Q=0-10) 16 steps
KBD TRACK: 0, 50, 100%
POLARITY:/S , W
EG INT: 0-15 16 steps
CUT OFF - 0- ±10 OCT (±20%)
TRIGGER: SINGLE/MULTI
6. NOISE
0-15 16 steps
7. EG
0-31 32 steps
8. MG
0-15 16 steps
9. DCO MOD
BEND : 0 - ± 730 cents (± 30 cents)
MG : 0- ± 160 cents (±40 cents)
MG (JOYSTICK): 0- ± 160 cents (±40 cents)
10. VCF MOD
MG:0-±10 2/3 OCT (±10%)
MG (JOYSTICK): 0- ± 10 2/3 OCT (± 10%)
11. EQUALIZER
TREBLE: -6-0- +6 (13 STEP) ±10 dB (±20%)
±3 dB POINT:
2 kHz (±10%)
BASS: -6-0- +6 (13 STEP) ±10 dB (±20%)
±3 dB POINT:
300Hz(±10%)
12. DIGITAL DELAY (DDL)
DELAY TIME: 0-99 (100 STEP) 4 msec-1024 msec
FEED BACK: 0-15 (16 STEP) 0-100%
(until oscillation ceases)
MOD FREQUENCY: 0-31 (32 STEP) 0.1 Hz-10 Hz
(±20%)
MOD INTENSITY: 0-31 (32 STEP) 1 - 5 TYP
(1=8 MAX)
EFFECT LEVEL 0-15 (16 STEP) 1 - 1 max.
Effect sound produced
13. SEQUENCER
1 note, rest or tie regarded as 1 step
maximum of 1,000 steps
SPEED: 1 step regarded as ")T
"J" . 25-250 ±20%
MODE: ONE TIME/REPEAT
14. TAPE INTERFACE
DATA TRANSMISSION SPEED: approx. 2,000 (bit/sec)
OUTPUT LEVEL: 4.5 mVp-p
INPUT LEVEL: HIGH 3 Vp-p
LOW 1 Vp-p
15. MIDI
CHANNEL:!-16 CH
PROGRAM CHANGE: DISABLE/ENABLE
SEQUENCER CLOCK: INT/EXT
SOCKET: IN/OUT
16. DIMENSIONS
780(W) x 286(P) x 87.6(H) mm
17. WEIGHT
4.4 kg (including dry-cell batteries)
18. ACCESSORIES
Pre-load data tape
Batteries (UM-2x 6)
Shielded cord (2.5m x 1)
19. POWER CONSUMPTION
7 W (when using AC adapter)
SUM-2X6 9 V 330 mA ±10%
20. BATTERY LIFE
3.5 hrs. or over (National Hi-Top SUM-2x6, continuous
usage, 20°C)
21. EXTERNAL DC POWER RANGE
+ 7.0V - + 11.0V
22. ENVIRONMENTAL CONDITIONS
Temperature: 0°C-40°C
Humidity: Below dew point
23. TIME TO STABLE OPERATION AFTER POWER ON:
300 sec.
24. PERMISSIBLE LINE NOISE VOLUME
(with AC adapter)
5 min. marked without malfunction at positive polarity
90°, 350 ns, 500 V pulse
25. ELECTROSTATIC TEST
Normal function at 10 kV of static electricity
26. ENCLOSURE HEAT BUILD-UP
15 or less
27. AT POWER ON/OFF
spike noise — less than 300 mVp-p
28. OUTPUT LEVEL (Line Out)
C4-C5 8 notes output simultaneously, VOL MAX,
-6dBm (±3dB)
29. NOISE LEVEL
JIS-A AVERAGE
GATE ON
DDL ON -76 dBm TYP
(-70 dBm MAX)
DDL OFF - 80 dBm TYP
(-74dBmMAX)
GATE OFF
-90 dBm TYP
(-84 dBm MAX)
-90 dBm TYP
(-84 dBm MAX)
30. ELECTRICAL WAVE INTERFERENCE
FCC (U.S.A.)
VDE (W. Germany)
Certification for each under review.
