MODELS FP2085 ROUND FIRE PIT, FP2785 RECTANGULAR FIRE PIT
Owner's Operation and Installation Manual
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
!
DANGER
Kingsman Fireplaces 2340 Logan Ave., Winnipeg, Mb Canada Ph: 204-632-1962
OUTDOOR FIRE PIT MANUAL
CERTIFIED FOR USA & CANADA
STANDARDS: CR97-003, ANSI Z21.97-2010
OUTDOOR DECORATIVE GAS APPLIANCES
CARBON MONOXIDE HAZARD
This appliance can produce carbon
monoxide which has no odor.
Using it in an enclosed space can
kill you.
Never use this appliance in an
enclosed space such as a camper,
tent, car or home.
!
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away
from the appliance and
immediately call your gas
supplier or fire department.
!
WARNING
Do not store or use gasoline or
other flammable vapors and
liquids in the vicinity of this or
any other appliance.
An LP-cylinder not connected
for use shall not be stored in the
vicinity of this or any other
appliance.
!
WARNING
For Outdoor Use Only.
!
WARNING
Improper installation,
adjustment, alteration, service
or maintenance can cause injury
or property damage. Read the
installation, operating and
maintenance instructions
thoroughly before installing or
servicing this equipment.
Printed in Canada P/N 27FP-MAN June 28, 2012
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kingsman FP2085
Summary of Contents for Kingsman FP2085

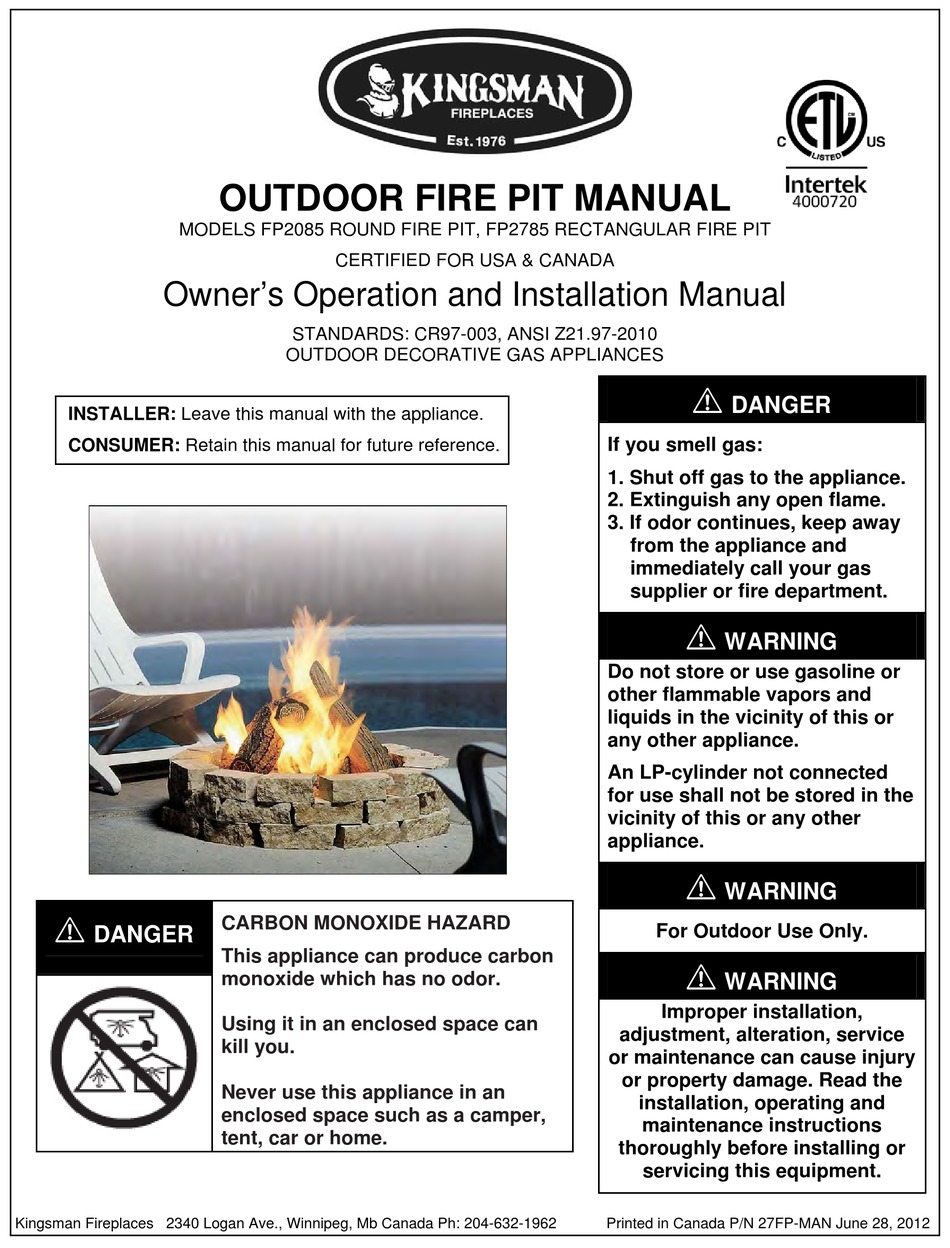

- Page 1 OUTDOOR FIRE PIT MANUAL MODELS FP2085 ROUND FIRE PIT, FP2785 RECTANGULAR FIRE PIT CERTIFIED FOR USA & CANADA Owner’s Operation and Installation Manual STANDARDS: CR97-003, ANSI Z21.97-2010 OUTDOOR DECORATIVE GAS APPLIANCES DANGER INSTALLER: Leave this manual with the appliance. If you smell gas: CONSUMER: Retain this manual for future reference.
-
Page 2: Table Of Contents
Accessories For Your Fire Pit..................12 30FPB-KWK Decorative Key Way Valve Kit..............Kingsman Outdoor Fire Pit Media Section..............14-15 Operating Instructions..................... Maintenance Instructions....................High Elevation Installation....................16 Safety Information And Lighting Instructions..............17 FP2085/FP2785 Parts List....................Kingsman Fireplaces Gas Fire Pit – Limited Warranty............ 19... -
Page 3: Introduction
INTRODUCTION Children and adults should be alerted to the Models FP2085/FP2785 are Decorative Gas Log Set for outdoor use only. This appliance MUST NOT be used hazards of high surface temperatures and should for cooking. stay away to avoid burns or clothing ignition. -
Page 4: Assembly And Installation
ASSEMBLY AND INSTALLATION The log set (LOGC85) and the burner assembly are 7. Open tank valve fully (counter-clockwise). Turn the shipped separately. on/off valve at the unit slowly to the on position and use a soapy water solution to check all connections for leaks before attempting to light the appliance. -
Page 5: Gas Specifications
Be certain to mount or set the LP-gas cylinder on a flat The enclosure for the LP-gas cylinder shall isolate the stable surface and retain it to prevent it from tipping. cylinder from the burner compartment to provide: a. Shielding from radiation; Purge the gas supply line of any trapped air prior to the first firing of the unit. -
Page 6: Installation In Combustible Enclosure
INSTALLATION IN COMBUSTIBLE ENCLOSURE CLEARANCES FOR ROUND FIREPIT (FP2085) CLEARANCES FOR RECTANGLE FIREPIT (FP2785) 1. The round firepit (FP2085) cannot be built into a 1. The rectangle firepit (FP2785) may be built into a combustible cabinet of any type. Only non- combustible enclosure. -
Page 7: Installing Rectangle Firepit Into A Wood Enclosure
INSTALLING RECTANGLE FIREPIT INTO A WOOD ENCLOSURE 1. Minimum size of wood enclosure must be no less 3. Non-combustible materials such as tile or brick may than 32.5” I.D. x 39.5” I.D. be used to finish on top of Wonder Board. Do not use any combustible materials to finish top, eg. -
Page 8: Installing Wall Clearance Shield
INSTALLING WALL CLEARANCE SHIELD NON-COMBUSTIBLE CORNER CLEARANCE SHIELD 1. Using a non-combustible material (eg. Wonder Board) 3. Screw non-combustible shield to spacer. Shield must cut two shields, 1 Large 44” x 30 min. and 1 Small 37” be placed 1” below top of firepit Fig:2-Ref:D. Inside x 30”... -
Page 9: Fp2085 Firepit Assembly
FP2085 FIREPIT ASSEMBLY Item No. Qty. Part No. Description Item No. Qty. Part No. Description 27FP-106 Burner 1000-255 Orifice 20FP-102 Burner Pan 125 x 375 Flare 20FP-101 Frame 27FP-104 Orifice Retainer 20FP-103 Heat Shield 8-32 x 1.00 Screw 27FP-115 Gasket 10-32 x .500 Screw... -
Page 10: Fp2785 Burner Assembly
FP2785 BURNER ASSEMBLY Item No. Qty. Part No. Description Item No. Qty. Part No. Description 27FP-106 Burner 125 x 375 Flare 27FP-105 Burner Pan 27FP-104 Orifice Retainer Brkt 27FP-115 Gasket 10-32 x .500 Screw 27FP-200 Mixing Tube Asm 8-32 Locator Pin 27FP-201 8-32 x 1.00 Screw 4000-208... -
Page 11: Log Placement Instructions
LOG PLACEMENT INSTRUCTIONS After setting up your model and hooking up the gas connection, make sure that logs are not broken. Identify the logs using the pictures below and place logs as indicated, lining up with mounting pegs in logs. STEP 1 STEP 2 STEP 3... -
Page 12: Accessories For Your Fire Pit
(SUPPLIED WITH UNIT) Non-Combustible Enclosures For Firepits NOTE: Any non-combustible enclosure must have a minimum of [5] 1-1/2” holes for drainage. Fire Pit Bowl for FP2085 Round Fire Pit: KINGSMAN OUTDOOR FIRE BOWLS FOR THE 2085 FIRE PIT Fire Bowl Includes: ... -
Page 13: 30Fpb-Kwk Decorative Key Way Valve Kit
30FPB-KWK Decorative Key Way Valve Kit This Valve Kit can be used when installing your Fire Pit in a Non-Combustible Enclosure. WARNING THE INSTALLATION OF THIS KIT MUST ONLY BE UNDERTAKEN BY A QUALIFIED AND CERTIFIED GAS APPLIANCE INSTALLER. PROCEDURE: PARTS LIST: 1. -
Page 14: Kingsman Outdoor Fire Pit Media Section
Kingsman Outdoor Fire Pit Media Section MEDIA REQUIREMENTS OPTIONS: (When not using LOGC85 Log Set) 20 LBS of Glass Required for Fire Pits, if using the Fire Bowl add an additional 10 - 15LBS One bag of MQSTONE may be used for the Fire Pit, if using the Fire Bowl an additional bag may be used. - Page 15 ¼” Lava Rock & ¾” Lava Rock (Supplied with Fire Pit). ¼” Reflective Bronze Glass - (20LBS) (1/4” Lava Rock is used as Base.) MQSTONE with ¼” Lava Rock Base – (10LBS) MQSTONE with ¼” Bronze Glass Base – (20LBS) NOTE: MQSTONE Requires a Glass or Lava Rock Base.
-
Page 16: Operating Instructions
OPERATING INSTRUCTIONS Upon completing the gas line connection, a small amount WARNING: Read and follow the Safety and Lighting of air will be in the lines. When first lighting the burner, Instructions page in this manual and on labels on the it will take a few minutes for the lines to purge appliance. -
Page 17: Safety Information And Lighting Instructions
SAFETY INFORMATION AND LIGHTING INSTRUCTIONS FOR YOUR SAFETY READ BEFORE LIGHTING WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. A. This appliance must be lit by hand. When lighting, •... -
Page 18: Fp2085/Fp2785 Parts List
FPB30SG Fire Bowl - Smooth Grey FPB30COVB Cover for Fire Bowl - Charcoal FPB30COVG Cover for Fire Bowl - Grey KINGSMAN FIRE PITS REPLACEMENT PARTS 27FP-900FF LP Reg & 5ft Hose (I4T60GRQC) 27FP-901FF Ball Valve with Manometer (BVTM5042-6) 27FP-902FF SS Gas Connector 16” (ACS-375-16) -
Page 19: Kingsman Fireplaces Gas Fire Pit - Limited Warranty
Kingsman Fireplaces Gas Fire Pit – Limited Warranty Save this certificate. It gives you specific legal rights, and you may also have other rights which may vary from state to state. In the event your unit needs servicing contact your dealer or contractor who installed or service your unit. When requesting service, please have the model and serial number from each unit readily available.
