Summary of Contents for Living Images LI-800-MV
-

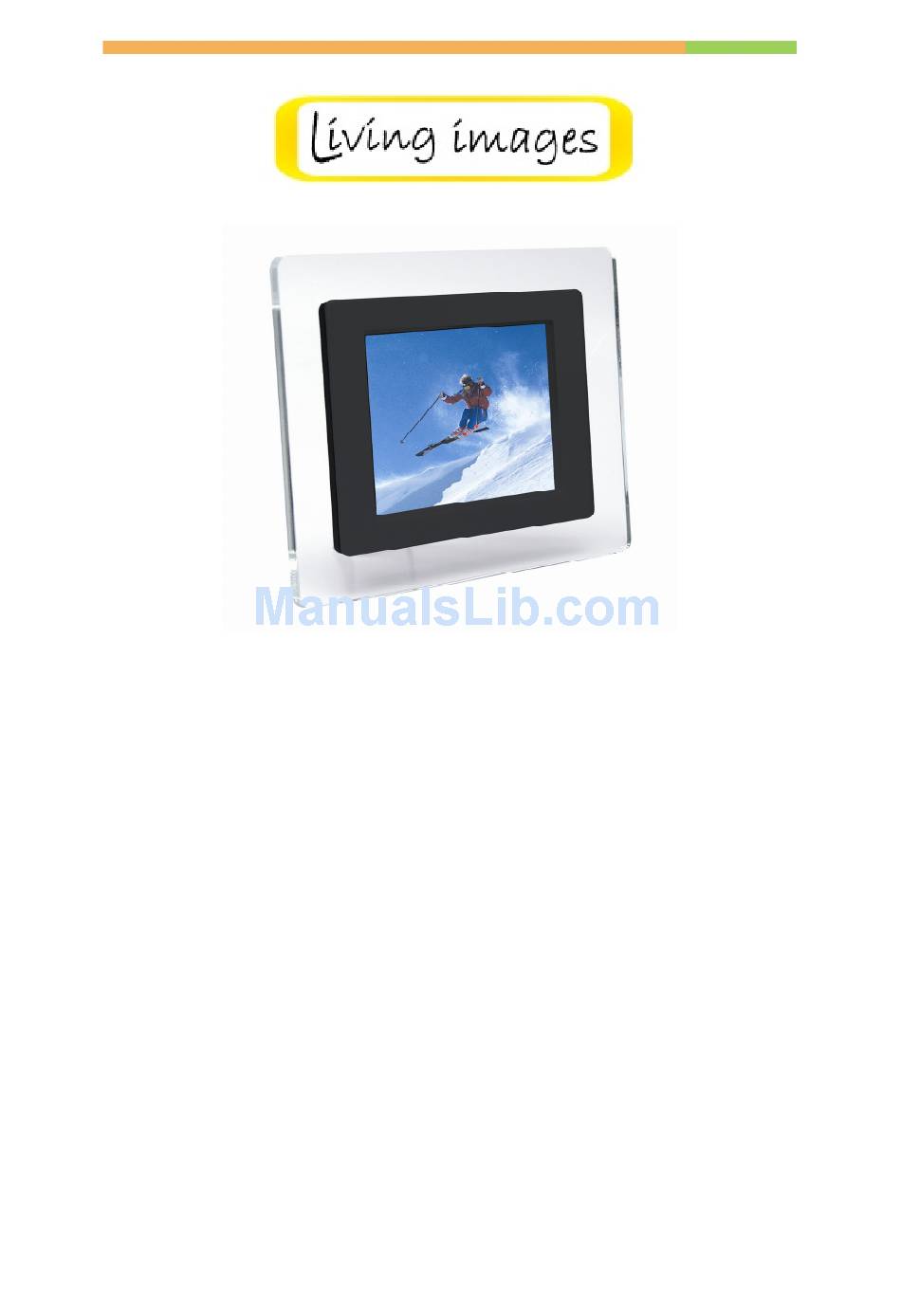

Page 1: User Operation Guide

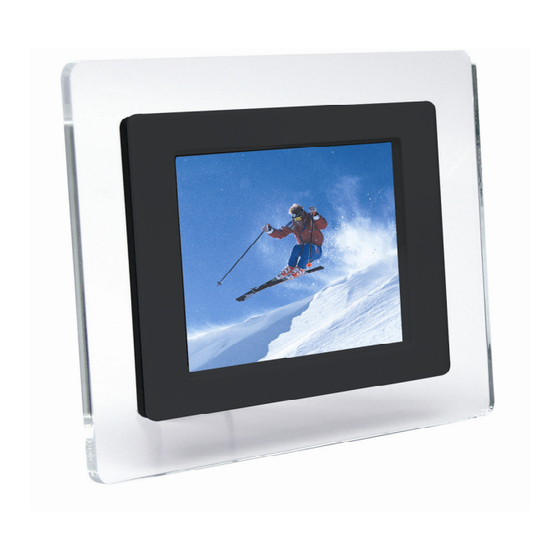

8 INCH MEMORY VIEW MEMORY VIEW 8” DIGITAL PHOTO FRAME LI-800-MV User Operation Guide... -
Page 2: Table Of Contents
8 INCH MEMORY VIEW CONTENTS : FEATURES:....................3 MACHINE BUTTONS: ................4 USING YOUR REMOTE CONTROL...........5 USER OPERATION GUIDE: ..............6 1. F ..........................6 UNCTION SELECT 2. C .........................7 ARD SELECT MENU 3. F ..........................7 CREEN 4. P ........................10 LAYBACK SCREENS 4.1 Movie playback screen......................11 4.2 Picture display screen......................122 *For interchange 16:9 to 4:3 display, please press “mode”... -
Page 3: Features
8 INCH MEMORY VIEW Features: • Playback of photo, music, or video files stored in data storage devices through dual High-Speed USB 2.0 port or various card-reader port, or internal memory. • Supported data storage devices include USB disk, memory card, MP3 player, hard disk, etc. -
Page 4: Machine Buttons
8 INCH MEMORY VIEW Machine buttons: Up Joystick button: a) Move up the cursor at the menu b) Open brightness adjustment menu at playing interface c) Switch picture control bar and music control bar (After ENTER button open control bar). d) Shift up when zoom in picture Down Joystick button: a) Move down the cursor at the menu... -
Page 5: Using Your Remote Control
8 INCH MEMORY VIEW Using your Remote Control The following table briefly describes the remote control functions Button Description Mute Mute mode Mode Main menu Power On/Off button Play/Pause Play/Pause Stop Stop Left / Previous Menu Left Enter Enter Right / Next Menu Right Picture Menu Down... -
Page 6: User Operation Guide
8 INCH MEMORY VIEW User Operation Guide: Assemble the Multimedia Digital Photo Frame bracket to prop the unit up, insert the adaptor DC plug into the DPF player first, then plug the power cord to a standard wall outlet. Then the screen will display“LOADING…”interface（Exhibit 1）. Exhibit 1.Loading 1. -
Page 7: Card Select Menu
8 INCH MEMORY VIEW 2. Card select menu In the function select menu, you can press to select to the highlight icon which shows the card is inserted or not. （Exhibit 3.） Press enter to display file list in the card . Press OSD to return to function select menu. - Page 8 8 INCH MEMORY VIEW Exhibit 4. Volume Label List Exhibit 5. File Play List File management screen Action: (Copying files to the Memory View Digital Frame - Calendar version) Your new digital photo frame features a built-in memory that allows you to copy images and files from your PC or memory card/stick and store them on the frame.
- Page 9 8 INCH MEMORY VIEW From PC: Connect supplied USB cable with small socket in frame and large standard socket in PC Switch on frame. PC will recognise new hardware and start to communicate with it. A drive letter will be allocated to the frame.
-
Page 10: Playback Screens
8 INCH MEMORY VIEW Exhibit 6. File Operation Exhibit 7. File Copy 4. Playback screens Actions: During Playback, press ENTER and info bar displays on the screen. Then select a function item by pressing / , and press ENTER to perform the corresponding function. -
Page 11: Movie Playback Screen
8 INCH MEMORY VIEW 4.1 Movie playback screen Exhibit 8. Video Playback with Info Bar Info bar layout and functions: • Status indicator (Status) • Playback time (TIME) • Play/Pause • Stop • Previous movie clip • Fast backward (FB) •... -
Page 12: For Interchange 16:9 To 4:3 Display, Please Press "Mode" On Remote Control
8 INCH MEMORY VIEW 4.2 Picture display screen Exhibit 9. Picture Playback with Info Bar Info bar layout and functions: • Status indicator • Play/Pause • Stop • Picture rotate • Zoom • Previous picture • Next picture • Show file info Stop Rotate Zoom... -
Page 13: Picture Display Screen
8 INCH MEMORY VIEW 4.3 Music playback screen Exhibit 10. Music Playback with Info Bar Info bar layout and functions: • Status indicator • Play/Pause • Stop • Previous song • Fast backward • Fast forward (FF) • Next song •... -
Page 14: Calendar
8 INCH MEMORY VIEW 5. Calendar Exhibit 11. Calendar Screen Actions: Press OSD to return to function select menu. Press move to the previous or next month. Display Information: • Monthly calendar display • Picture display • Time display • Alarm display... -
Page 15: Alarm Screen
8 INCH MEMORY VIEW 6. Alarm screen Exhibit 12. Alarm Screen When alarm goes off, the screen displays current date and time. (Exhibit 12) Press any button to return to the previous mode. -
Page 16: Setup Menu
8 INCH MEMORY VIEW 7. Setup Menu Press OSD to return to function select menu. (Exhibit 13) Exhibit 13. Setup Screen The setup items are shown as below： ：Menu language setup，it includes Simplified Chinese, English two items. ：Picture setup, it includes the speed of automatic slide show, picture play mode two items. -
Page 17: System Upgrade
8 INCH MEMORY VIEW 8. System upgrade Actions: a) Get an upgrade file named *.img from Amlogic Company and copy it to the root directory of a USB device. b) Select the upgrade file from the Play List Screen, then press the ENTER to do system upgrade. -
Page 18: Replacing The Remote Control Battery
8 INCH MEMORY VIEW Replacing the Remote Control Battery... -
Page 19: Frequent Ask Questoins
8 INCH MEMORY VIEW Technical Support Frequently asked questions 1) Q: Can I use touch-enabled technology for my Digital Picture Frame? A: The LCD screen does not support touch-enabled technology. Please use the buttons to control the Digital Picture Frame. 2) Q: If I keep showing the same photo for a long time, will it damage the LCD screen? A: No. -
Page 20: Specifications
8 INCH MEMORY VIEW Specifications Type 8 inch Digital Picture Frame Resolution 800 (RGB) x 600 Alimentation 12 V, 1.5A Working Temperature -20 to +65 degrees Luminosity 250cd/m max. Contrast 500:1 Viewing Angle 50/70/70/70 (CR>10) (U/D/L/R) Response Time 15ms Display Mode 4 : 3 Photo Changing Interval Fast, Slow, Normal...
