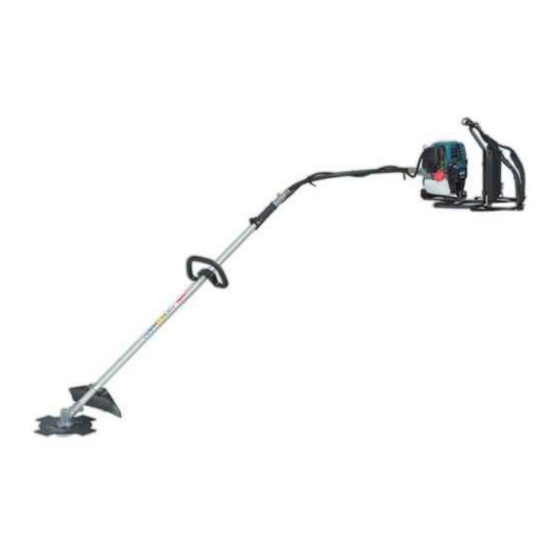

- Page 1 Backpack BrushCutter EBH340R INSTRUCTION MANUAL EBH340R Warning Read this instruction manual carefully before putting the Brush Cutter into operation and strictly observe the safety regulations! Preserve instruction manual carefully!
-
Page 2: Table Of Contents
Thank you very much for selecting the MAKITA Brush Cutter. We Table of Contents Page are pleased to be able to you the MAKITA Brush Cutter which is Symbols ..................2 the result of a long development programme and many years of Safety instructions .............. -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS General Instructions – To ensure correct and safe operation, the user must read, understand and follow this instruction manual to assure familiarity with the handling of the brush cutter. Users insuffi- ciently informed will risk danger to themselves as well as others due to improper handling. - Page 4 Start the brush cutter only in accordance with the instructions. Do not use any other methods for starting the engine! – Use the brush cutter and the tools supplied only for applications specified. – Start the brush cutter engine only after the entire tool has been assembled.
- Page 5 Method of operation – Use the brush cutter only in good light and visibility. During cold seasons beware of slippery or wet areas, ice and snow (risk of slipping). Always ensure a safe footing. – Do not overreach. Keep proper footing, balance and hand control of the unit at all times.
- Page 6 Use only genuine spare parts and accessories supplied by MAKITA. Use of non-approved accessories and tools means increased risk of accidents and injuries. MAKITA will not accept any liability for accidents or damage caused by the use of any non-approved cutting tools attachments or accessories.
-
Page 7: Technical Data
TECHNICAL DATA EBH340R Model Loop handle Dimensions : length x width x height (without pipe case length) mm 400 x 325 x 395 Mass (without guard and cutting blade) Volume (fuel tank) 0.65 Cutting attachments (cutter blade dia.) Engine displacement 33.5... -
Page 8: Designation Of Parts
DESIGNATION OF PARTS DESIGNATION OF PARTS Fuel Tank Rewind Starter Air Cleaner I-O Switch (on/off) Spark Plug Exhaust Muffler Handle Control Lever Control Cable Shaft Protector Gear Case/Head Case Cutter Blade Shoulder Strap Fuel Filter Cap Starter Knob Primmer Pump Choke Lever Exhaust Pipe Oil Gauge... -
Page 9: Assembly Of Engine And Drive Shaft
ASSEMBLY OF ENGINE AND DRIVE SHAFT CAUTION : Before performing any work on the brush cutter, always switch off the motor and pull the spark plug connectors off the spark plug. Beware of hot engine pars and sharp blade edges. Always wear protective gloves! CAUTION : Start the brush cutter only after having as- sembled it completely. - Page 10 CONNECTION OF SWITCH CORD – Connect the switch cords to the two cords from the engine by inserting one into the other. – Fix the cord connector by clamp (7). ADJUSTMENT OF CONTROL CABLE – Adjust the control cable by adjusting bolt so that it will have 1 to 2 mm play when the throttle lever is set to the low-speed position by carburetor adjusting bolt.
-
Page 11: Mounting Of Handle
Star Blade blades so may result in serious injury or death to user or bystanders. Be sure to use genuine MAKITA cutter blade. – The cutter blade must be well clean, sharp and free of cracks or breakage. If the cutter blade contacts any hard objects or stones during operation, stop the engine and check the blade immediately. -
Page 12: Before Start Of Operation
BEFORE START OF OPERATION Inspection and Refill of Engine Oil – Perform the following procedure, with the engine cooled down. – While keeping the engine level, remove the oil gauge, and confirm that the oil is filled within the upper and lower limit marks. When the oil is in short in such a way that the oil gauge touches the oil only by its tip, in particular with the oil gauge remaining inserted in the crankcase without screwing-in (Fig. - Page 13 REFUELING Handling of Fuel It is necessary to handle fuel with utmost care. Fuel may contain substances similar to solvents. Refueling must be performed in a sufficiently ventilated room or in the open air. Never inhale fuel vapor, and keep fuel away from you. If you touch fuel repeatedly or for a long time, the skin becomes dry, which may cause skin disease or allergy.
-
Page 14: Point In Operation And How To Stop
POINTS IN OPERATION AND HOW TO STOP Observe all applicable accident prevention regulations! STARTING Move at least 3m away from the place of refuelling. Place the brush cutter on a clean piece of ground taking care that the cutting tool does not come into contact with the ground or any other objects. -
Page 15: Resharpening The Cutter Blade
Note: – If the starter handle is pulled repeatedly when the choke lever remains at "CLOSE" position, the engine will not start easily due to excessive fuel intake. – In case of excessive fuel intake, remove the spark plug and pull the starter handle slowly to remove excess fuel. Also, dry the electrode section of the spark plug. -
Page 16: Servicing Instructions
SERVICING INSTRUCTIONS CAUTION : Before doing any work on the brush cutter, always stop the engine and pull the plug cap off the spark plug (see "checking the spark plug"). Always wear protective gloves! To ensure a long service life and to avoid any damage to the equipment, the following servicing operations should be performed at regular intervals. Daily checkup and maintenance –... -
Page 17: Checking The Spark Plug
5) Keep the engine level, and feed new oil up to the edge of the oil refill port. In refill, use a lubricant refill container. 6) After refill, securely tighten the oil gauge. Insufficient tightening of the oil gauge will lead to oil leakage. POINTS ON OIL –... - Page 18 SUPPLY OF GREASE TO GEAR CASE Grease case – Supply grease (Shell Alvania 2 or equivalent) to the gear case through the grease hole every 30 hours. (Genuine MAKITA grease may be purchased from your MAKITA dealer.) Grease hole CLEANING OF FUEL FILTER...
-
Page 19: Storage
STORAGE WARNING: When draining the fuel, be sure to stop the engine and confirm that the engine cools down. Just after stopping the engine, it may still hot with possibility of burns, inflammability and fire. ATTENTION: When the machine is kept out of operation for a long time, drain up all fuel from the fuel tank and carburetor, and keep it at a dry and clean place. - Page 20 Operating time Before After Daily Shutdown Corres-po 200h operation lubrication (10h) /rest nding P Item Inspect/clean Engine oil Replace Tightening parts Inspect (bolt, nut) Clean/inspect Fuel tank Drain fuel Throttle lever Check function Stop switch Check function Cutting blade Inspect Low-speed rotation Inspect/adjust Air cleaner...
-
Page 21: Troubleshooting Procedures
TROUBLESHOOTING Before making a request for repairs, check a trouble for yourself. If any abnormality is found, control your machine according to the description of this manual. Never tamper or dismount any part contrary to the description. For repairs, contact Authorized Service Agent or local dealership. State of abnormality Probable cause (malfunction) Remedy... - Page 22 MEMO...
- Page 24 Makita Corporation 3-11-8, Sumiyoshi-cho, Anjo, Aichi 446-8502, Japan 6119522700 08.02...
