RS409 Ring Scanner
Quick Reference Guide

Advertisement

Table of Contents
loading

Related Manuals for Motorola RS409

Summary of Contents for Motorola RS409

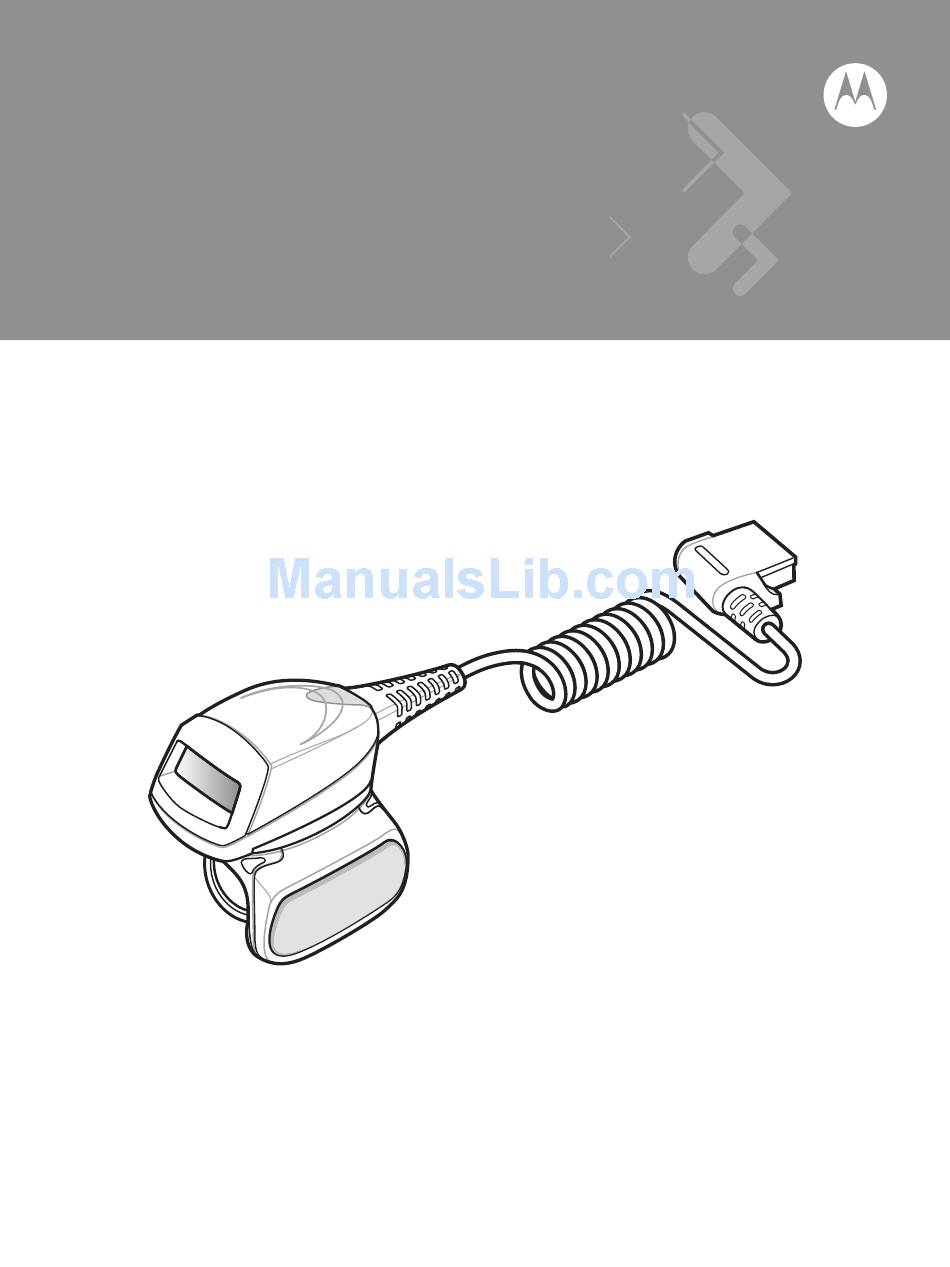

  • Page 1 RS409 Ring Scanner Quick Reference Guide...

  • Page 2: Warranty

    RS409 Ring Scanner © 2010 MOTOROLA, INC. All rights reserved. Motorola reserves the right to make changes to any product to improve reliability, function, or design. Motorola does not assume any product liability arising out of, or in connection with, the application or use of any product, circuit, or application described herein.
  • Page 3 Quick Reference Guide Introduction The RS409 ring scanner is a modular, wearable laser scanner that allows the operator hands-free bar code scanning capability. The scanner is used with the WT4070/90 wearable terminal. The RS409 is worn on the operator’s index finger, and utilizes a thumb-operated trigger.

  • Page 4: Changing Trigger Position

    RS409 Ring Scanner Changing Trigger Position The trigger assembly of the RS409 rotates to provide left-hand or right-hand use. Determine whether the RS409 is used on the right or left hand. CAUTION The trigger assembly only rotates 180° around the back of the scan assembly.

  • Page 5: Installation

    If connecting to a wrist mounted wearable terminal, connect to the interface connector closest to the wrist. Scanner Cable Connector Interface Connector Slide the RS409 onto the index finger with the scan trigger next to the thumb. Tighten the finger strap.

  • Page 6: Using The Scanner

    Turn on the wearable terminal. Launch a scanning application. Press the scan trigger and aim the RS409 at a bar code. The scan LED lights red to indicate the RS409 is on. Adjust the aim so that the thin, red laser beam covers the entire length of the bar code.

  • Page 7: Scanning Tips

    Scanning Tips • For larger bar codes, hold the RS409 farther away from the bar code. • For bar codes with bars that are closer together, hold the RS409 closer to the bar code. • The optimal scanning distance varies with bar code density, but 10 to 25 cm (4 to 10 inches) generally works.

  • Page 8: Replacing The Trigger Assembly

    If required, cut excess finger strap material. Replacing the Trigger Assembly To replace the trigger assembly: Remove the finger strap assembly. Turn the RS409 upside-down. Remove the set screw with screwdriver. Turn the trigger assembly counter-clockwise until the exit window and scan trigger align.

  • Page 9: Troubleshooting

    Quick Reference Guide Cleaning Wipe the exit window periodically with a lens tissue or other material suitable for cleaning optical material such as eyeglasses. CAUTION Do not pour, spray, or spill any liquid on the RS409. Troubleshooting Symptom Probable Cause...

  • Page 10: Ergonomic Recommendations

    • Improve work procedures. Regulatory Information This device is approved under the Symbol Technologies brand; Symbol Technologies, Inc., is the Enterprise Mobility business of Motorola, Inc. (“Motorola”). All Symbol devices are designed to be compliant with rules and regulations in locations they are sold and will be labeled as required.

  • Page 11: Laser Devices

    Quick Reference Guide CAUTION Only use Symbol approved and UL Listed terminals. Laser Devices Complies with 21CFR1040.10 AND 1040.11 Except For Deviations Pursuant To Laser Notice NO. 50, dated June 24, 2007 and IEC 60825-1 (Ed. 2.0), EN60825-1: 2007. The laser classification is marked on one of the labels on the device. Class 1 Laser devices are not considered to be hazardous when used for their intended purpose.

  • Page 12: Radio Frequency Interference Requirements-Fcc

    Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Marking and European Economic Area (EEA) Statement of Compliance Motorola/Symbol, hereby, declares that this device is in compliance with the essential requirements and other relevant provisions of Directives 1999/5/EC. A Declaration of Conformity may be obtained from http://www.motorola.com/doc.

  • Page 13: Waste Electrical And Electronic Equipment (Weee)

    : http://www.motorola.com/recycling/weee. Español: Para clientes en la Unión Europea: todos los productos deberán entregarse a Motorola al final de su ciclo de vida para que sean reciclados. Si desea más información sobre cómo devolver un producto, visite: http://www.motorola.com/recycling/weee.
  • Page 14 Suomi: Asiakkaat Euroopan unionin alueella: Kaikki tuotteet on palautettava kierrätettäväksi Motorola-yhtiöön, kun tuotetta ei enää käytetä. Lisätietoja tuotteen palauttamisesta on osoitteessa http://www.motorola.com/recycling/weee. Dansk: Til kunder i EU: Alle produkter skal returneres til Motorola til recirkulering, når de er udtjent. Læs oplysningerne om returnering af produkter på: http://www.motorola.com/recycling/weee.
  • Page 15 Motorola otrreizējai pārstrādei. Lai iegūtu informāciju par produktu nogādāšanu Motorola, lūdzu, skatiet: http://www.motorola.com/recycling/weee. Türkçe: AB Müşterileri için: Kullanım süresi dolan tüm ürünler geri dönüştürme için Motorola'ya iade edilmelidir. Ürünlerin nasıl iade edileceği hakkında bilgi için lütfen şu adresi ziyaret edin: http://www.motorola.com/recycling/weee.

  • Page 16: Service Information

    1-800-927-9626 http://www.motorola.com MOTOROLA and the Stylized M Logo and Symbol and the Symbol logo are registered in the U.S. Patent and Trademark Office. All other product or service names are the property of their respective owners. © Motorola, Inc. 2010...
