Accusound ES 25 Instruction Manual

Accusound ES 25 Instruction Manual

Eclipse series home theatre satellite system

Advertisement

Quick Links

.
Specifications ES 25 Eclipse Series Loudspeakers
Speaker Specifications:
Power Rating
120 Watts Power Handling
Frequency Response
125~21000Hz
Efficiency
88 dB@1watt 1 Metre
Impedance
8 Ohms Nominal
Components:
2 x 75mm or 3" Paper Cone Drivers
1 x 25mm or 1" Silk Soft Dome Tweeter
Gold plated push terminals
Wall Mount
Wall Bracket + Wall Plate
Dimensions
280mm (H) x110mm (W) x95mm (D)
Weight
2.4Kgs
Colours
Black Piano Finish

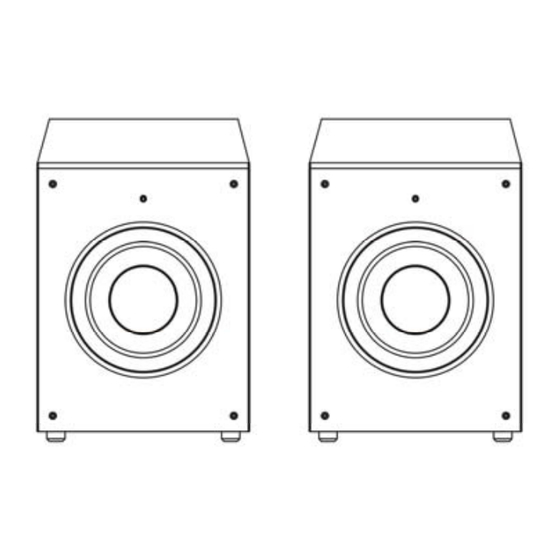

ES 25 Powered Subwoofer Specifications:
Power Amplifier
CE Safety Approved 250 watt Continuous
Voltage
240 Volt 50 Hz
Frequency Response
25~200Hz
Driver
1 x 10" or 250mm Woofer
Volume
Variable 0~10
Phase
Variable 0~180 Degrees
Crossover Control
Variable 40~200 Hz
Power Switch
Switches
Fuse
Protection
Input
RCA Socket
Output
RCA Socket
Dimensions
430mm (H) x 338mm (W) x 402mm (D)
Weight
20.5Kgs
Colours
Black Piano Finish
Accusound Australia Pty, Ltd Unit 3, 17-19 Marshall Road,
Kirrawee NSW 2232 Ph (02) 9545-3905 Fax (02) 9545-3902
Email: info@accusound.com.au Website: accusound.com.au
Off, On
2.5 Amp
Quality Sound By Design
Eclipse Series Home
Theatre Satellite System
ES 25
Instruction Manual
Read these Instructions before
you connect your speakers

Advertisement

loading
Need help?

Need help?

Do you have a question about the ES 25 and is the answer not in the manual?

Questions and answers

Summary of Contents for Accusound ES 25

  • Page 1 430mm (H) x 338mm (W) x 402mm (D) Weight 20.5Kgs Colours Black Piano Finish Accusound Australia Pty, Ltd Unit 3, 17-19 Marshall Road, Read these Instructions before Kirrawee NSW 2232 Ph (02) 9545-3905 Fax (02) 9545-3902 Email: info@accusound.com.au Website: accusound.com.au you connect your speakers...
  • Page 2 The Accusound ES 25 Eclipse series speakers have been designed in Australia to the closest tolerances to make this one of the leading speakers on the market today. The ES 25 system will work on any Digital Receiver on the market. The system will give you solid bass through the powered subwoofer, clear vocals and crisp top end response from all of the 5 satellite speakers that many leading brands lack.
  • Page 3 The control only adds higher frequency. It does not alter the low frequency. Subwoofer connection On the rear panel of the ES 25 powered subwoofer are 2 sockets. The top socket is the subwoofer input and the bottom socket is the subwoofer output. The output is to connect a Base Extension second subwoofer to produce more bass if required.
  • Page 4 Most stands have a plate to hold the speaker. Using the screw supplied screw in as shown. If you purchase Accusound telescopic speaker stands there is a hole in the top of the tube. You can run the speaker wire through this down the pole to hide the wire,...
