sesam Marvel Instruction Manual

High definition personal video recorder digital satellite receiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

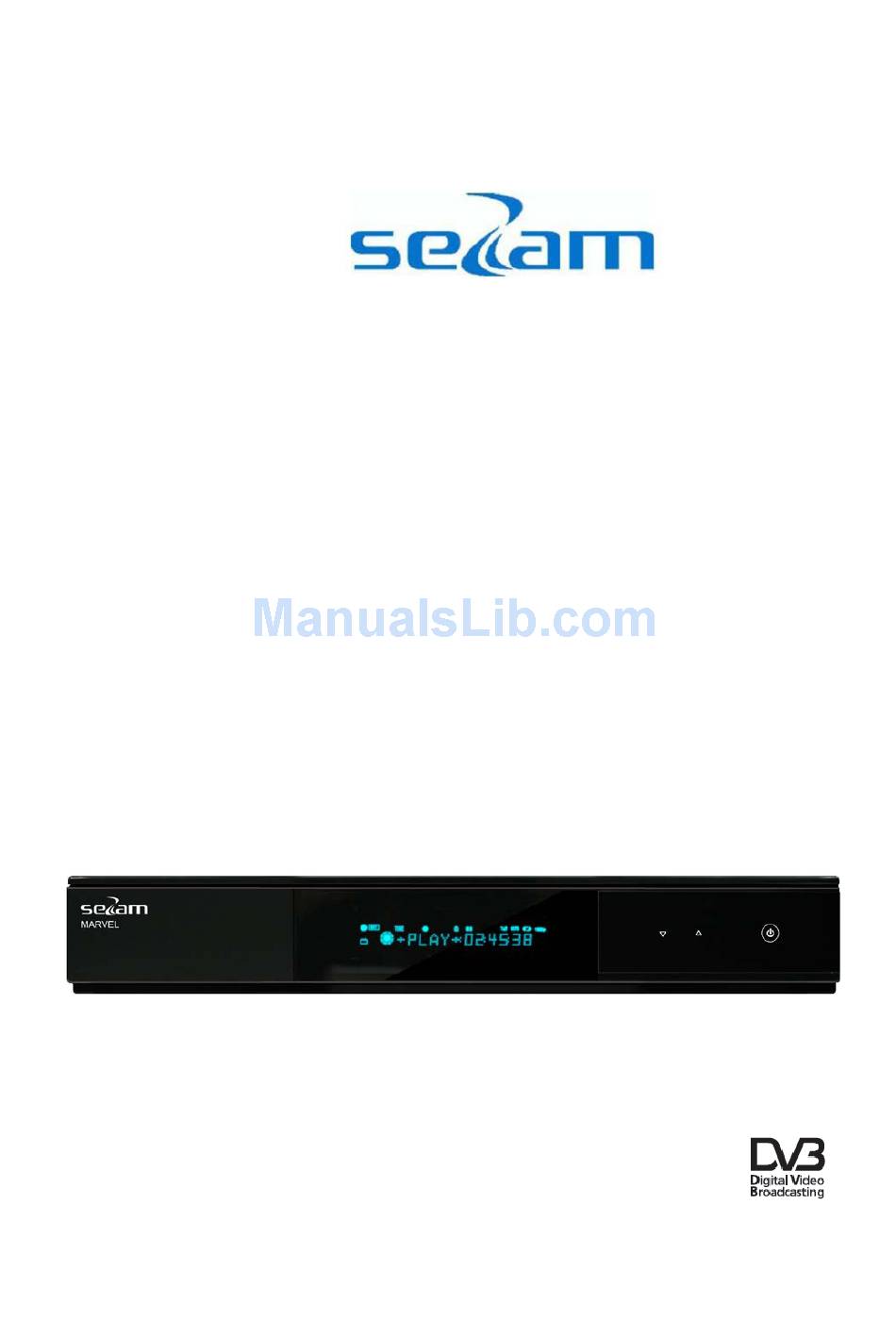

Marvel
Instruction Manual
High Definition Personal
Video Recorder Digital
Satellite Receiver
The Sezam Marvel digital receiver is fully compliant with the international
Digital Video Broad-casting (DVB) standard, and thus is able to receive
digital broadcasts of that standard.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Marvel and is the answer not in the manual?

Questions and answers

Related Manuals for sesam Marvel

Summary of Contents for sesam Marvel

  • Page 1 Marvel Instruction Manual High Definition Personal Video Recorder Digital Satellite Receiver The Sezam Marvel digital receiver is fully compliant with the international Digital Video Broad-casting (DVB) standard, and thus is able to receive digital broadcasts of that standard.

  • Page 2: Table Of Contents

    Product Descriptions ....................6 Remote Controller ..................... 8 Conditional Access ...................... 9 Technical Specifications .................... 10 Installation of Sezam Marvel .................... 12 Connecting Satellite Cable ..................12 Connecting the TV ..................... 14 Connecting Power ..................... 16 Power On/Off ......................17...

  • Page 3: Safety Precautions

    Safety Instructions Safety Precautions This product has been manufactured to act in accordance with the international safety standards. Please read through the safety instructions carefully before using this product as the manufacturer takes no responsibility for any damages due to the consumer’s misuse of the product.
  • Page 4 iii Safety Instructions 2. Exposure and Placement • Only operate the product in moderate temperatures. • Place the product indoors to avoid exposing it to lightening, rain or direct sunlight. • Do not expose any liquids or sources of open flame (such as candle flame) to the product.
  • Page 5 Safety Instructions 4. Warnings • Do not use this product near any flammable or explosive gases as this increases the risk of explosions. • Do not use the product if any liquids or foreign objects come in contact with it. Turn the product off, disconnect the power cord, and contact your dealer.

  • Page 6: Introduction

    Chapter1. Introduction The Sezam Marvel digital receiver is fully compliant with the international Digital Video Broad- casting (DVB) standard, and thus is able to receive digital broadcasts of that standard. For its operation you need an antenna, which must be installed appropriately.

  • Page 7: Product Descriptions

    Chapter1. Introduction 1.2 Product Descriptions Front Panel ① Smartcard reader slot ② CI Module slot ③ USB: Connect a USB storage device ④ Display :256 x 64 OLEDDisplays ⑤ CH ▼ : Switches channel ⑥ CH▲ : Switches channel ⑦ Power : Power On...
  • Page 8 7. Introduction Rear Panel ① On/Off Switch : Power on/off ② Power plug : Connect power cable ③ FAN : Ventilator ④ RS-232 : RS-232 data port is provided ⑤ USB : Connects the USB memory stick or external HDD ⑥...

  • Page 9: Remote Controller

    Chapter1. Introduction 1.3 Remote Controller  TV/STB : Puts the Remote in TV or STB mode. (Reserved TV Mode)  : Press to go into Standby / Standby options.  0 - 9 : Used for entering channel number and text. ...

  • Page 10: Conditional Access

    9. Introduction 1.4 Conditional Access Amongst the channels that are scanned via Sezam Marvel, some channels can be properly tuned in only with the corresponding Smartcard. Sezam Marvel provides two Smartcard Reader slots and users need to purchase those Smartcards that are required for viewing such subscription based services.

  • Page 11: Technical Specifications

    Chapter1. Introduction 1.5 Technical Specifications Front Panel  Display: 256 x 64 OLED display (Displaying channel names, icons and program information)  Smartcard Reader Slot:  Common Interface:  USB: 1 x USB 2.0  Buttons: 3 (Power,Channel Up/Down) Rear Panel ...
  • Page 12 11. Introduction  RF range: 950~2,150 MHz (for DVB-S) 104~862 MHz (for DVB-T2/C)  Modulation, FEC, de-multiplexer: DVB-S/DVB-S2/DVB-T2/DVB-C standard Video  Video resolution: 1920x1080 interlaced, progressive 1080p@60,1080i and other size  Video decoding: H.264, MPEG-2, MPEG-4 compatible  Input data rate: 2~45 MSymb/s ...

  • Page 13: Installation Of Sezam Marvel

    2.1 Connecting Satellite Cables Sezam Marvel is integrated with triple satellite tuners, and one of the first steps is to connect satellite cable(s) to Sezam Marvel in order to gain optimal signal quality. You can either choose one of the following connection methods depending on the equipment you have.
  • Page 14 13. Installation B. Internal Loop-through In case you have only one satellite cable, connect the cable to TUNER A Input. And then connection Tuner A output to Tuner B input. C. DVB-T/T2 or DVB-C Cable In case you have DVB-T/T2 or DVB-C cable, connect the cable to TUNER C Input.

  • Page 15: Connecting The Tv

    For the sake of the best picture quality, especially for digital TV, HDMI connection is recommended. Most HDTVs have HDMI connectors to ensure the highest picture quality. In the rear panel of Sezam Marvel one HDMI connector is available for this purpose. B. Connecting TV via RCA (Video) Cable Sezam Marvel provides Composite video connection as well.
  • Page 16 NOTE: When you have an A/V receiver with S/PDIF digital audio input, this connection is recommended to enjoy the best audio quality, especially for the Dolby Digital sound. D. Connecting HMDI Input from other Video Sezam Marvel provides HDMI Input signal for PIP function and Network share after transcoding...

  • Page 17: Connecting Power

    Chapter2. Installation 2.3 Connecting Power A power unit is provided as one of the basic accessories of Sezam Marvel. ● Connect the power unit to the connector at the rear panel of Sezam Marvel. Turn on the power switch at the rear panel.

  • Page 18: Power On/Off

    ● Standby Mode POWER key is normally used to turn the power of Sezam Marvel on or off. If you press POWER, it instantly switches your Sezam Marvel off or on. In this mode, the system is not completely shut down and thus it takes a shorter time to turn it on and off.

  • Page 19: First Time Installation

    Chapter3. First Time Installation When you turn on Sezam Marvel for the first time after purchase, an installation wizard will begin step by step. NOTE: ‘OK’ key is used for confirmation and turns to the next step. Press ‘EXIT’ key to return to the previous page.
  • Page 20 19. First Time Installation Step 3. Video Mode Selection Sezam Marvel provides various video modes. You can choose one. Use UP/DOWN key to scroll up and down to find the mode you want. Step 4. User interface and DHCP Step 5. Internet connection...
  • Page 21 Chapter3. First Time Installation Step 6. Configuring mode Using LEFT/RIGHT key, you can choose one of the following Configuration Modes: ● Not configured. ● Simple ● Loop-through to: mode to make the TUNER B be internally connected from the TUNER A. ●...
  • Page 22 ● Equal to: mode to use the same configuration as that of Tuner B. ● Advanced: for an advanced user configuration If you choose Simple configuration mode, the following picture will appear The five modes are available for the satellite cable connection between LNB and your Sezam Marvel as below:...
  • Page 23 Single This option is used to receive a single satellite with a single LNB. The cable from LNB is directly connected to Sezam Marvel. ToneBurst A/B This option is used if you want to receive two satellites using a ToneBurst switch.
  • Page 24 23. First Time Installation DiSEqC A/B/C/D This option allows you to configure four satellites in Port A, Port B, Port C, and Port Positioner This option is used when you have a motorized satellite antenna. Step 8. Configuring Tuner B This step is for the configuration of TUNER B Input and the process is same as that of Tuner A.
