USER'S MANUAL

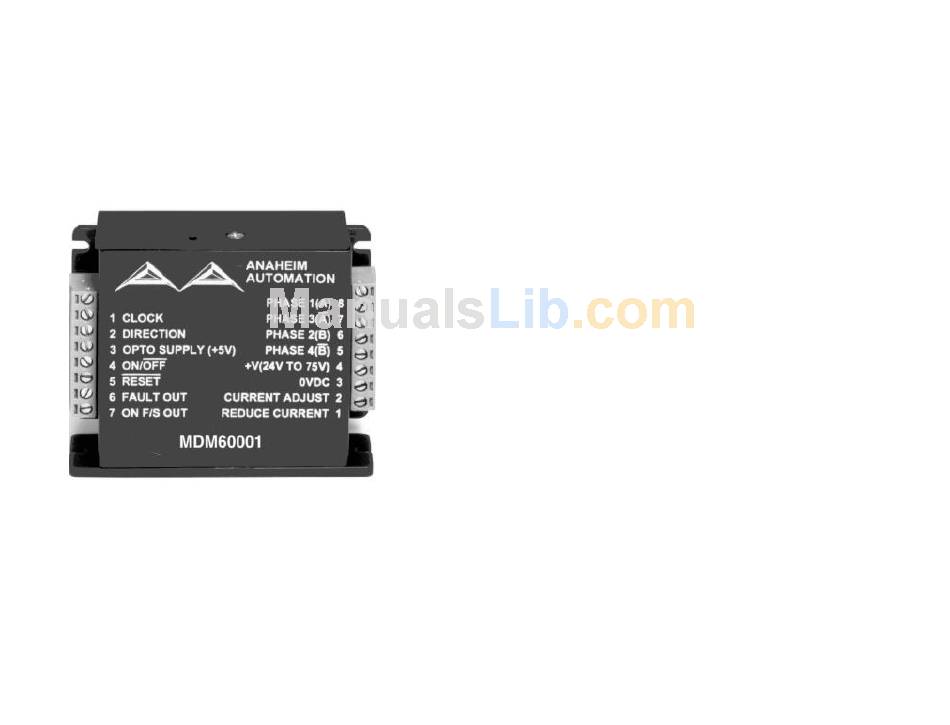

MODEL MDM60001
MICROSTEP DRIVER
ANAHEIM AUTOMATION
910 E. Orangefair Lane
Anaheim, CA 92801
TEL (714) 992-6990
FAX (714) 992-0471
http://members.aol.com/aamotion/
e-mail: aamotion@aol.com
May 21, 2002
COPYRIGHT
Copyright 1996 by Anaheim Automation. All rights reserved. No part of this publication
may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into
any language, in any form or by any means, electronic, mechanical, magnetic, optical,
chemical, manual, or otherwise, without the prior written permission of Anaheim
Automation, 910 E. Orangefair Lane, Anaheim, CA 92801.
DISCLAIMER
Though every effort has been made to supply complete and accurate information in this
manual, the contents are subject to change without notice or obligation to inform the buyer.
In no event will Anaheim Automation be liable for direct, indirect, special, incidental, or
consequential damages arising out of the use or inability to use the product or
documentation.
Anaheim Automation's general policy does not recommend the use of its products in life
support applications wherein a failure or malfunction of the product may directly threaten
life or injury. Per Anaheim Automation's Terms and Conditions of Sales, the user of
Anaheim Automation products in life support applications assumes all risks of such use and
indemnifies Anaheim Automation against all damages.
LIMITED WARRANTY
All Anaheim Automation products are warranted against defects in workmanship, materials
and construction, when used under Normal Operating Conditions and when used in
accordance with specifications. This warranty shall be in effect for a period of twelve
months from the date of purchase or eighteen months from the date of manufacture,
whichever comes first. Warranty provisions may be voided if the products are subjected to
physical damage or abuse.
Anaheim Automation will repair or replace at its option, any of its products which have
been found to be defective and are within the warranty period, provided that the item is
shipped freight prepaid, with RMA (return material authorization), to Anaheim
Automation's plant in Anaheim, California.
TECHNICAL SUPPORT
Everyone needs help on occasion. If you have problems using any of the equipment covered
by this manual, please read the manual to see if it will answer the questions you have. If
you need assistance beyond what this manual can provide, you can call your Local
Distributor where you purchased the unit.
#L010070
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Anaheim Automation MDM60001
Summary of Contents for Anaheim Automation MDM60001
- Page 1 Warranty provisions may be voided if the products are subjected to physical damage or abuse. Anaheim Automation will repair or replace at its option, any of its products which have been found to be defective and are within the warranty period, provided that the item is shipped freight prepaid, with RMA (return material authorization), to Anaheim Automation's plant in Anaheim, California.
-
Page 2: Table Of Contents
The MDM60001 was designed to meet those needs and offers innovative features. The MDM60001 will deliver a peak current of 6 Amperes per phase at 75 Volts, providing outstanding motor performance. This advanced technology reduces ripple current while maintaining the 20kHz chopping frequency in the motor, causing less heat in both the motor and drive. -
Page 3: Ordering Information
This is the model number for a Single Axis, 4 Amp Microstep Driver. The MDM40001 requires a dc power supply (up to 48 volts). MDM60001 This is the model number for a Single Axis, 6 Amp Microstep Driver. MDM60001 requires a 65Vdc power supply (PSA65V5A-2) that Anaheim Automation provides, purchased separately. - Page 4 PIN DESCRIPTIONS P2 Pin# Description Reduce Current: Phase Current Reduction Input. A resistor between this pin and pin 2 (Connector P2, Current Adjust) will proportionately reduced the current in both windings (1 second after the last positive going edge of the step clock input). The amount of current reduction will depend on the value of the resistor used.
-
Page 5: Specifications
(half-coil, series, or parallel). 15 mA Max SETTING OUTPUT CURRENT The output current on the MDM60001 is set by an external ±1%, 1/8 watt (or higher) resistor between pins 2 and 3 of connector P2. This resistor determines the per Phase RMS UNIT output current of the driver. -
Page 6: Reducing Output Current
Since the MDM60001 is a constant current source, it is not necessary to use a motor that is rated at the same voltage as the supply voltage. What is important is that the MDM60001 is set to the appropriate current level based on the motor being used. -
Page 7: Connecting The Step Motor
WARNING: Do not connect or disconnect motor wires while power is applied! CONNECTING POWER Pins 3 and 4 on connector P2 are used to connect the DC Power Supply to the MDM60001. Wire size used to connect the power source to the driver should be at least 16 gauge. -
Page 8: Anaheim Automation Step Motor Selection
Anaheim Automation Step Motor Selection Guide Part Number Motor Current Unipolar Rating suffix: single shaft - “S” [ Amps ] dual shaft - “D” 23D104 23D108 23D204 23D209 23D306 23D309 34D106 34D109 34D207 34D209 34D307 34D311 34D314 TABLE 4: Resistor Table Selection is based on 6-Lead Step Motors Series Coil Configurations. -
Page 9: Fullstep Output Signal
FULLSTEP OUTPUT SIGNAL The MDM60001 has an active LOW open drain output at Connector P1, Pin 7 labeled ON F/S OUT. This output is TRUE (active low) for the duration of the full step. A full step occurs when either Phase 1&3 or Phase 2&4 cross through zero (ie. full current in one winding and 0 current in the other winding). -
Page 10: Fault Protection
In the condition where the DC voltage of the driver exceeds approximately 82 volts, the driver will execute a fault. If any fault is detected by the MDM60001, the outputs will be disabled and can not be re- enabled without resetting or powering down the driver. At the same time the open collector FAULT output is turned on. - Page 11 Notes: TORQUE/SPEED CURVES...
- Page 12 Notes:...
