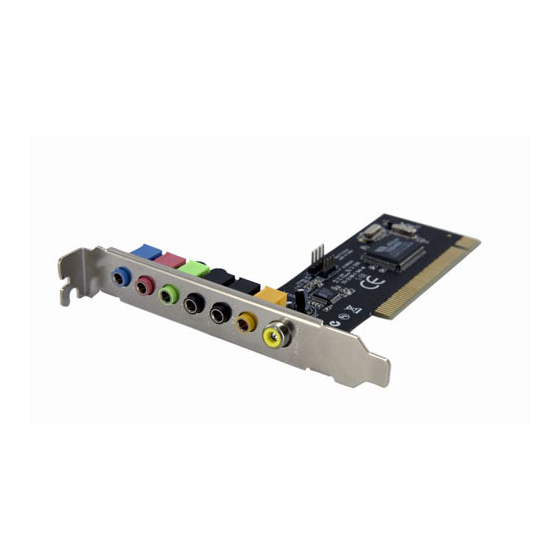

VIA VT1723 7.1 Channel
PCI Sound Card
User Manual
Ver. 2.00
All brand names and trademarks are properties of their
respective owners.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VT1723 and is the answer not in the manual?

Questions and answers

Summary of Contents for VIA Technologies VT1723

  • Page 1 VIA VT1723 7.1 Channel PCI Sound Card User Manual Ver. 2.00 All brand names and trademarks are properties of their respective owners.
  • Page 2: System Requirements

    System Requirements  Pentium-class computer with one available PCI slot  Windows® 2000, XP/2003/Vista/7 (32/64 bit)  DirectX 8.1 above is required Package Contents  1 x VIA VT1723 7.1 Channel PCI Sound Card  1 x Driver CD MN4000000059  Page 2 ...
  • Page 3: Driver Installation

    Channel PCI Sound Card into the slot. Fasten the card to the case using a screw. Start your PC, place the Driver CD into the CD-ROM drive. Click the Start button on the taskbar and click Run. Type “D:\SOUND\VT1723\Setup.exe”. (Assuming you have placed MN4000000059  Page 3 ...
  • Page 4: Physical Connections

    the CD in CD-ROM drive labeled as D). Follow any on-screen instructions to complete the software installation. Restart your system. Once you have rebooted the computer, this 7.1 Channel PCI Sound card is ready to be used. Physical Connections The rear panel of this 7.1 Channel PCI Sound Card has the following jacks: MN4000000059 ...
  • Page 5 Line In: Connect to tape/CD/DVD player, or other audio sources for output mixing and/or recording MIC In: Connect to microphone Line Out: Connect to headphone or amplifying speakers. In 4-channel, 6-channel, and 8-channnel configurations, the function of this port becomes Front Speaker Out Rear Speaker: Connect to Rear speakers while in 8 channel mode (via external amplifier) Surround Speaker: Connect to Surround speakers while in 4/6/8...
  • Page 6 Port 2-channel 4-channel 6-channel 8-channel Line In Line In Line In Line In Mic In Mic In Mic In Mic In Line Out Front Front Front Speaker Speaker Speaker Rear Speaker Surround Surround Surround Speaker Speaker Speaker Center/Bass Center/Bass Speaker Speaker S/PDIF S/PDIF...
