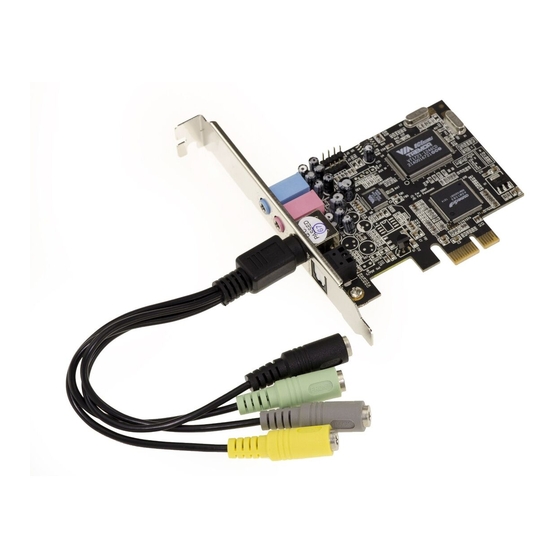

- Page 1 VIA VT1723 7.1 Channel PCIe Sound Card User Manual Ver. 2.00 All brand names and trademarks are properties of their respective owners.
- Page 2 PCI Express-enabled system with an available PCI Express slot Windows® XP/Vista/7 (32/64 bit) DirectX 8.1 above is required Package Contents 1 x VIA VT1723 7.1 Channel PCIe Sound Card 1 x Driver CD MN4000000067 Page 2...
- Page 3 1 x User Manual 1 x Mini-DIN to 3.5mm fan-out cable Note: Contents may vary depending on the market/country. Hardware Installation Turn off the computer, Unplug the power cord. Open the computer case. Check with your computer manufacturer if you need additional instructions. Remove any old third-party sound cards or the metal PCIe slot bracket.
- Page 4 Click the Start button on the taskbar and click Run. Type “D:\SOUND\VT1723\Setup.exe”. (Assuming you have placed the CD in CD-ROM drive labeled as D). Follow any on-screen instructions to complete the software installation. Restart your system. Once you have rebooted the computer, this 7.1 Channel PCIe Sound card is ready to be used.
- Page 5 The rear panel of this 7.1 Channel PCIe Sound Card has the following jacks: Line In (blue): Connect to tape/CD/DVD player, or other audio sources for output mixing and/or recording MIC In (pink): Connect to microphone Line Out (green): Connect to headphone or amplifying speakers. In 4-channel, 6-channel, and 8-channnel configurations, the function of this port becomes Front Speaker Out Rear-Speaker/Surround-Speaker (black): Connect to Rear...
- Page 6 Port 2-channel 4-channel 6-channel 8-channel Green Line Out Front Front Front Speaker Speaker Speaker Black Rear Rear Rear Speaker Speaker Speaker Orange Center Center /Subwoofer /Subwoofer Gray Back Speaker (*) 4-Channel mode is not available on Vista/7 (32/64 bit) In addition to the rear panel jacks, this 7.1 Channel PCIe Sound Card also has the following internal connection: The Function Analog CD/IN Port(Signals: L-G-G-R)
