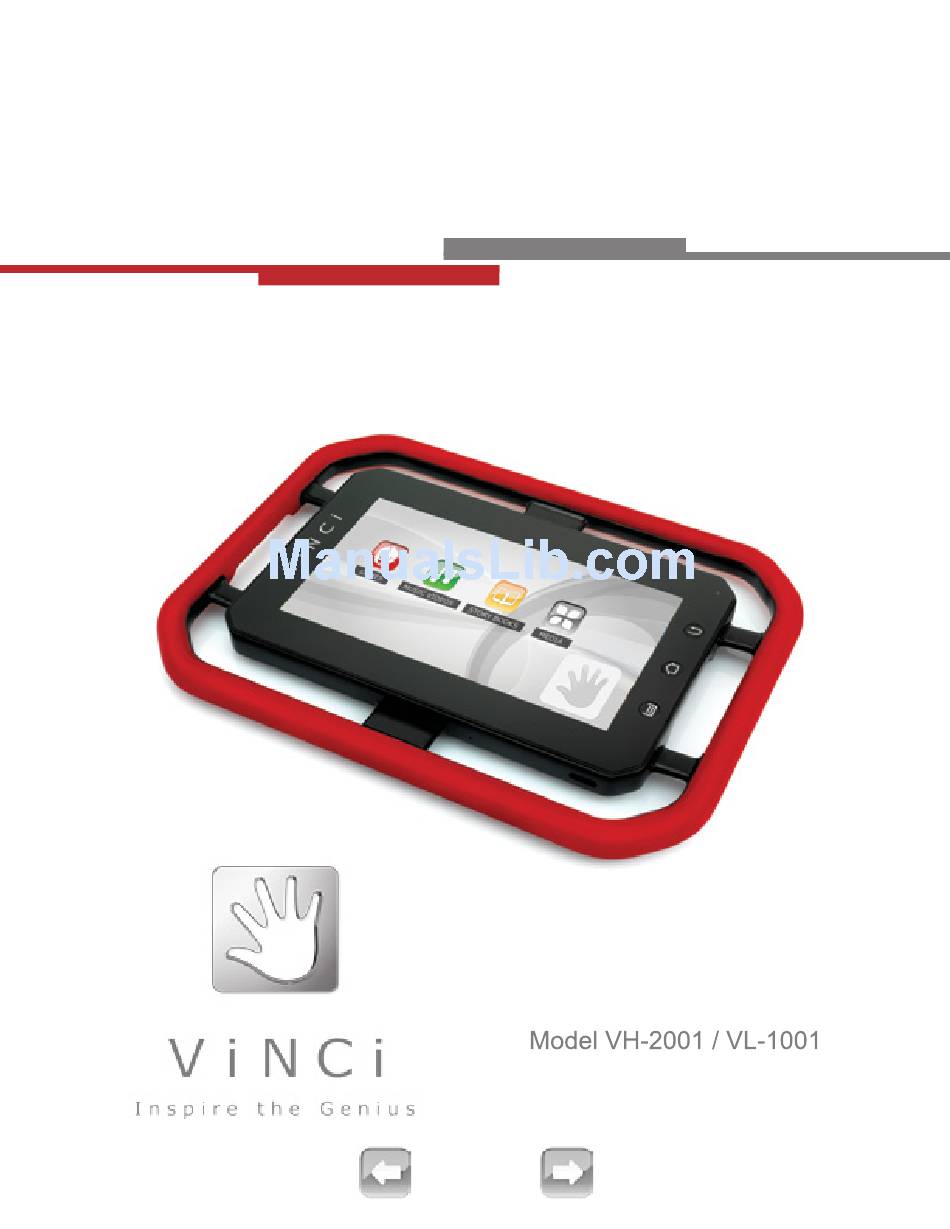

- Page 1 VINCI Tab VINCI Tab Technical Guide and User Manual...
-
Page 2: Table Of Contents
Introduction ....................1 Customer Care ................1 Register Your Tab ................1 Legal Information ................2 Chapter 1: Get to Know Your VINCI Tab ..........3 VINCI Tab Buttons .................4 Charging your VINCI Tab ............... 5 VINCI Tab Home Screen ............... 6 VINCI Tab Indicator Icons .............. 6 Chapter 2: Using your VINCI Tab ............. - Page 3 Figure 1: VINCI Tab Front View ............. 4 Figure 2: VINCI Tab Rear View ............. 4 Figure 3: Charging your VINCI Tab ..........5 Figure 4: VINCI Tab Home Screen ..........9 Figure 5: VINCI Tab Rear-facing Camera ........11 Figure 6: VINCI Tab Manager ............
-
Page 4: Introduction
20% skill set. Let’s work together to do the best today for your child, in order for your child to be in the best place for tomorrow! Read this User Guide first to take full advantage of everything VINCI has to offer. Check our website: www.vincigenius.com/support... -
Page 5: Legal Information
Legal Information VINCI Tab and VINCI Early Learning Apps are protected by copyrights, trademarks, and patents (pending). Android is a trademark of Google Inc. All other trademarks and copyrights are owned by their registered owners Please read all safety precautions and this guide carefully before using your device to ensure safe and proper use. -
Page 6: Chapter 1: Get To Know Your Vinci Tab
CHAPTER 1 GET TO KNOw YOUR VINCI TAB... -
Page 7: Vinci Tab Buttons
Figure 2: VINCI Tab Rear View VINCI Tab Buttons POwER Button Use this button to turn your VINCI Tab ON and Off, ReSeT and lOCk SCReeN (SleeP MOde). • This button also resets your VINCI Tab when a forced close is required. -
Page 8: Charging Your Vinci Tab
Charging your VINCI Tab 1. Your VINCI Tab will turn on when charging. 2. Use the included micro USB to USB cable and connect the micro USB to your VINCI Tab. 3. Connect the USB to the travel charger. 4. Plug the travel charger into an electrical outlet. -
Page 9: Vinci Tab Home Screen
Battery life: This icon indicates the amount of battery life remaining. A blue battery life icon indicates that your VINCI Tab has enough battery for use. The battery life icon will turn red to indicate low battery life. It is... - Page 10 In the top left corner of the Home screen, you will see “Hello,!”. This welcome message indicates which user is the current, active user of the VINCI Tab. The message will simply say “Hello” until a User Profile has been created. User profiles can be added, edited or deleted by press- ing the Menu button from the home screen, then selecting the Manage Profiles option.
-
Page 11: Chapter 2: Using Your Vinci Tab
CHAPTER 2 USING YOUR VINCI TAB... -
Page 12: Vinci Tab On, Off, Screen Lock & Reset
3. The Power off dialogue box will appear. 4. Tap Ok. Locking the Screen (Sleep mode) 1. Press the POweR button. The screen will go dark, but the VINCI Tab operating system is still running. 2. Press the POweR button again to activate the screen. -
Page 13: Vinci Tab Touch Screen
This allows for light touches and motions of the finger to navigate easily through the VINCI Tab. Proper functioning of the screen requires a clean contact surface between the human body and the screen to activate the sensor. -
Page 14: Vinci Tab Media Applications
You can shoot video by switching to video mode from the Camera app. You can also use the VINCI Camcorder app which allows your child to shoot video by simply touching anywhere on the screen. -
Page 15: Creating A Memo
Music app that allows you to add and play music titles. Using the VINCI Tab Keyboard To input text information on the VINCI Tab, you will need to use the on-screen keyboard. In most cases, the keyboard will automatically appear on screen when the VINCI Tab is ready to receive typed information. -
Page 16: Android Tm Functions And Features
VINCI home screen, you can press the Menu button, and choose either Settings or Open Applications List. Android Settings Note: All wI-FI and wireless settings are not supported by VINCI Tab hardware. The most commonly used setting functions include: Sound: adjust volume Display: adjust time to Sleep (timeout) Manage Applications: Unknown sources should remain checked for installing VINCI apps. - Page 17 Display Settings: Allows you to choose, select or adjust the following options related to VINCI Tab display: • Brightness • Auto-rotate screen (not used by VINCI Apps) • Animation • Screen timeout. Default setting is 30 minutes. we recommend you keep the default setting.
- Page 18 - DISABLED • Personal data • Factory data reset (erases all data on device) Storage: Allows you to manage your SD card and to monitor the following information as it relates to VINCI Tab: • Storage Settings: • Nand Settings •...
- Page 19 Clicking on Accessibility settings brings up a dialogue box: Follow the onscreen instructions to install and manage accessibility applications. Date & Time Settings: Allows you to set and modify the VINCI Tab date and time related options including: •...
- Page 20 VINCI Tab. Cleaning your VINCI Tab It is best to have your VINCI Tab turned off when cleaning the screen. Always use a soft, lint-free cloth. Avoid using liquid or abrasive cleaners of any kind. To remove food or juice residue, slightly moisten the lint-free cloth and wipe the area clean.
-
Page 21: Chapter 3: Vinci Tab Manager
CHAPTER 3 VINCI TAB MANAGER... - Page 22 VINCI Tab does not have the capability to connect to the Internet through wI-FI or 3G networks. As a result, you will need to install the VINCI Tab Manager desktop software on to a home or office computer with Internet access. Installing the VINCI Tab Manager software will allow you to: •...
-
Page 23: Download Tab Management Software
VINCI Tab. However, if you add or record media to your VINCI Tab while VINCI Tab Manager is running, you will need to click on the reload button on the upper right side to display the new media or close and re-open VINCI Tab Manager. -
Page 24: Using Vinci Tab Manager
Android methods, you will not find these app icons or media files in the folders on the VINCI home screen. You can access them by using Android Application list. From the VINCI home screen, press the Menu button and choose Open Applications List. -
Page 25: Figure 7: Vinci Tab Manager Preferences
2. Click on the box next to the type of media you would like to transfer from your VINCI Tab to your computer. If you would like to transfer all media at the same time, click the Back up all box. -
Page 26: Figure 8: Deleting Media
Delete Media You may wish to remove unwanted media files on your VINCI Tab. To delete media files, follow these steps: 1. with VINCI Tab Manager “open” on your computer, select the appropriate folder to access the type of file you would like to delete. -
Page 27: Adding & Removing Applications
Games folder. 2. On your computer, locate the application file you wish to put on your VINCI Tab. Note that this could be an application file within a folder or on your computer’s desktop. - Page 28 2. Choose Settings – Applications 3. with your VINCI Tab connected to PC, touch the black bar at the very top of the screen until the grey bar below changes to black. Pull down to reveal the USB connect window.
-
Page 29: Chapter 4: Customize Your Vinci Tab
CHAPTER 4 CUSTOMIzE YOUR VINCI TAB... -
Page 30: Managing Applications On Vinci Tab
VINCI Tab User Interface Settings Choosing wallpaper: You can customize your VINCI Tab by choosing wallpaper for your home screen. 1. Tap and hold your finger on the home screen until the set wallpaper dialogue box appears. 2. Select a photo from your VINCI Tab photo gallery. -
Page 31: Chapter 5: Safety
CHAPTER 5 SAFETY... -
Page 32: Safety Certifications
Safety Certifications • Housing Material Safety: FDA 21 CFR 177.1580 • Handle Material Safety: USP Class VI, ISO 10993 • Product Safety: ASTM F963 • Other Compliances: FCC, CE Safety Precautions PLeASe OBSeRVe THe FOLLOWING ReCOMMeNDATIONS TO AVOID PeRSONAL INjURY AND DAMAGe TO THe DeVICe: •... - Page 33 To ensure the longevity of the device and your satisfaction, please observe the following recommendations: • Do not twist the device • Do not use the device while connected to a computer or while charging the battery • Keep the device dry. High levels of humidity or water can damage parts or electronic circuits. •...
-
Page 34: Chapter 6: Troubleshooting
CHAPTER 6 TROUBLESHOOTING... -
Page 35: Vinci Tab Applications
VINCI Tab model VH-1001 requires 3 to 4 hours to fully charge. • VINCI Tab should be turned on to charge. If there is not enough power in the battery to turn on VINCI Tab prior to charging, you may need to charge the battery for 24 hours before it is able to turn on. -
Page 36: Vinci Tab Manager Desktop Software
Trouble syncing or backing up data between my computer and VINCI Tab • Make sure that your VINCI Tab is at least 80% charged. Your computer will not pass enough current to the VINCI Tab while connected, so syncing or backing up data will draw power from the VINCI Tab battery. -
Page 37: Chapter 7: Technical Specifications
CHAPTER 7 TECHNICAL SPECIFICATIONS... - Page 38 Maximum operating altitude: 10,000 feet (3000 m) Battery and Power: Model VH-2001: Built-in 6400 mAH rechargeable lithium-polymer battery. 6 to 8 hours of playing games, watching video, or listening to music Model VL-1001: Built-in 3200 mAH rechargable lithium-polymer battery, 3 to 4 hours of...
-
Page 39: Appendix B
Legal & Disclaimer warranty Your VINCI Tab comes with a 12 month warranty on parts and labor from the date of purchase. The warranty is valid for defects during normal use. Accidental damage of the touch screen is not covered by the regular warranty.
