Page 1

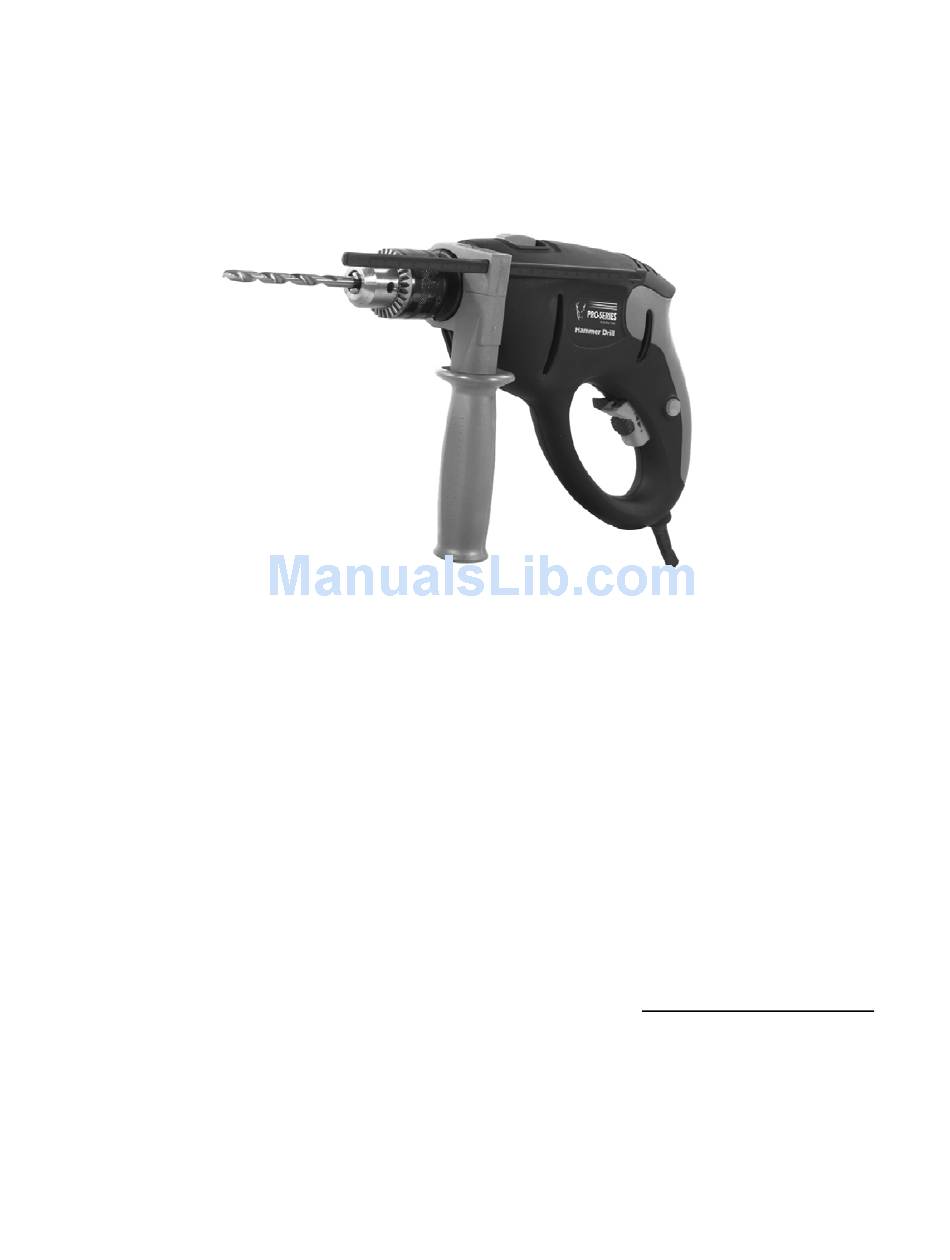

PS07212 1/2 Inch Hammer Drill Assembly & Operating Instructions READ ALL INSTRUCTIONS AND WARNINGS BEFORE USING THIS PRODUCT. This manual provides important information on proper operation & maintenance. Every effort has been made to ensure the accuracy of this manual. These instructions are not meant to cover every possible condition and situation that may occur.
NOTE provides additional information that is useful for proper use and maintenance for this tool. If a NOTE is indicated make sure it is fully understood. PS07212 1/2 Inch Hammer Drill Assembly & Operating Instructions...
People with pacemakers or other electronic devices should consult with a physician before operating this product. Interruption or failure of the pacemaker could occur when electrical equipment is operated within close proximity of electrical devices. PS07212 1/2 Inch Hammer Drill Assembly & Operating Instructions...
Page 4
Check to be sure all adjusting keys or wrenches have been removed before starting the power tool. • Check to be sure the power switch is in the “OFF” position before plugging the power tool into an electrical outlet. PS07212 1/2 Inch Hammer Drill Assembly & Operating Instructions...
Page 5
Always use the appropriate safety gear when operating this tool. Including but not limited, to goggles, dust mask or respirator. Always work in a well-ventilated area to reduce your exposure to harmful chemicals and dust particles. PS07212 1/2 Inch Hammer Drill Assembly & Operating Instructions...
Page 6
For small drill bits, insert the bit into the opening of the drill flute. For larger bits, push the bit in as far as it will go. To tighten the chuck sleeve, rotate clockwise until the bit is held firmly in the chuck and tighten with the chuck key. Replace chuck key in chuck key holder. PS07212 1/2 Inch Hammer Drill Assembly & Operating Instructions...
Increase speed gradually, and use a punch to start the hole and prevent drill bit run away. The use of lubricants like oil helps keep the bit cool and prolongs drill bit life. PS07212 1/2 Inch Hammer Drill Assembly & Operating Instructions...
If you must use an extension cord, be sure that the gauge is large enough to carry the amount of current necessary for your power tool. If not, your tool may experience a loss of power, excessive voltage drop or overheating. The smaller the gauge number, the heavier the cord. PS072120909 PS07212 1/2 Inch Hammer Drill Assembly & Operating Instructions...
