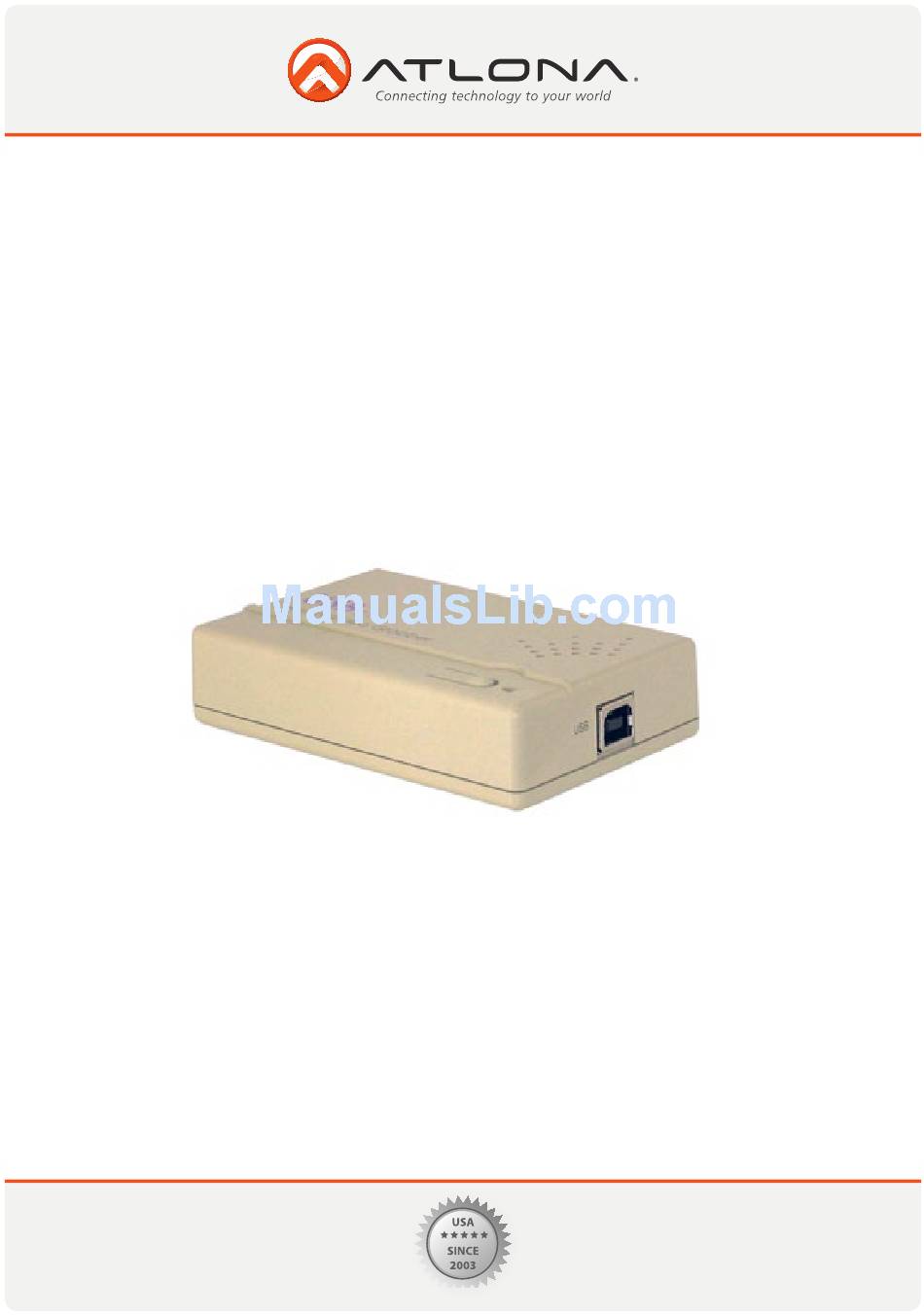

Page 1: User Manual
USER MANUAL USB202 VIDEO/AUDIO TO USB 2.0 ADAPTOR Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... - Page 2 INTRODUCTION Atlona USB 202 is a plug-n-play real-time video /audio capture box with USB 2.0 interface to PC. You can preview, record, or playback audio/video from a VCR, camcorder, or DVD on your PC. The input audio/video can be captured in MPEG 2 or MPEG 4 format, which subsequently can be edited, added titles and burn onto a disc to create your own VCD, SVCD or DVD titles.
-
Page 3: Specification
• Dimension: 65(W) x 102(D) x 26(H) mm • Weight: 70g HARDWARE CONNECTION USB 2.0 port S IN V IN Audio PC sound card Audio Line in Audio out Video Out VCR/ VCD/ DVD Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 4: Computer System Requirement
Step 1 > Power off the computer first with no USB 202 connection. Step 2 > Power on the computer. Step 3 > Connect USB202 to computer’s USB2.0 port with USB cable. Step 4 > A screen as Figure 1 will come up. Figure 1 Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... - Page 5 • Step 5 > A dialogue box as Figure 2 will come up to request the installation of the driver. Click [Cancel] Figure 2 • Step 6 > Select CD-ROM Drive Figure 3 Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
- Page 6 The software must be installed so WinAVUL-M9205 can perform completely. > DirectX : Microsoft DirectX9.0 must be installed in order for WinAVUL-M9205 to work normally. > Browse : Browse the CD. > Exit : Exit installation window. Figure 4 Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
-
Page 7: Application Installation
Step 1 > Click “WinAVUL-M9205” to start the installation,the InstallShield Wizard will come up as Figure 5, Click “Next” Figure 5 Step 2 > Select your desired Destination Directory where the WinAVUL-M9205 will be installed and Click [Next] Figure 6 Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... - Page 8 Step 3 > When dialogue box of “ Directory already Exists” comes up. Click [Yes] Figure 7 Step 4> When dialogue box as Figure 8 come up. Click [Next] Figure 8 Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
-
Page 9: Driver Installation
Step 5 > When dialogue box as Figure 9 come up. Click [Install] to continue installation. Figure 9 DRIVER INSTALLATION Step 6 > When installation of WinAVUL is complete a dialogue box as Figure 10 will come up. Click [Next] Figure 10 Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... - Page 10 Step 7 > Click [Continue Anyway] Figure 11 Step 8 > A screen as Figure 12 will come up when the driver installation is finished. Figure 12 Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
- Page 11 Step 9 > When installation is completed a dialogue box as below come up to ask whether you want to restart your computer. Click [Yes] and Click [OK] Figure 13 Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
- Page 12 WinDVD_Creator Step 1> Click [WinDVD_Creator] to install [InterVideo] WinDVD_Creator software. Figure 14 Step 2 > When dialogue box as below come up Click [Next]. Figure 15 Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
- Page 13 Step 3 > Click [Yes] Figure 16 Step 4 > Click [Yes] Figure 17 Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
- Page 14 Step 5 > When dialogue box as below come up to ask the user information, key in your user name and serial number of WinDVD_Creator, Click [Next] Figure 18 Step 6 > Click [Next] Figure 19 Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
- Page 15 Step 7 > Click [Next] Figure 20 Step 8 > Click [Next] Figure 21 Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
-
Page 16: Directx Installation
Step 1 > If your WindowXP is Service Pack 1 carry on to install the [DirectX] If it’s Service Pack 2, skip the installation of DirectX,Click [DirectX] Figure 22 Step 2 > Select [I accept the agreement], Click [Next] Figure 23 Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... - Page 17 DirectX Installation Step 3 > Click [Next] Figure 24 Step 4 > Click [Finish] Figure 25 Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
- Page 18 If it’s Service Pack 2, skip the installation of [UsbPatch(ENG)]. Figure 26 Set up the program 1. After installing all softwares, an icon of USB Audio and Video Capture Driver will appear in “ My comput- er” window. Figure 27 Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
- Page 19 2. Click “ All program” to enter WinAVUL-M9205 and select “ Hardware configure”, through which you can select audio coming to PC via Line-in or USB port. Figure 28 3. After selecting the audio input path, a windoe as below shows up. Figure 29 Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
- Page 20 4. Select TV system configure Figure 30 5. Confirm all parameters are correct and select ok. Figure 31 Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
- Page 21 6. Select WinAVUL-M9205 Figure 32 7. A dialogue box as below will come up when you first use the program. Type in the serial number printed in the disc. Figure 33 Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
-
Page 22: Button Function
BUTTON FUNCTION EXPLANATION Power Off Terminate USB2.0 DVR program Minimize Minimize window size Preview Preview window - ON/OFF Top Most Window always on top - ON/OFF Source Video source select - composite video or S-video Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... - Page 23 To start up timer function during recording, or playback, the time/date information at the time of recording will OSD Timer appears. Press the key to set up video recording at a Schedule predetermined time and length of recording. Audio mute function. Mute Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
-
Page 24: Safety Information
It may also cause damage to your AT-PRO2HD88M. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 25: Warranty
Atlona Technologies’ decision, either return of the price paid for the product, repair, or replacement of the product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of the Customer’s receipt. This Limited Warranty is void if failure of the product has resulted from accident, abuse, misapplication, or natural occurrence. -
Page 26: Atlona Product Registration
ATLONA PRODUCT REGISTRATION Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.
