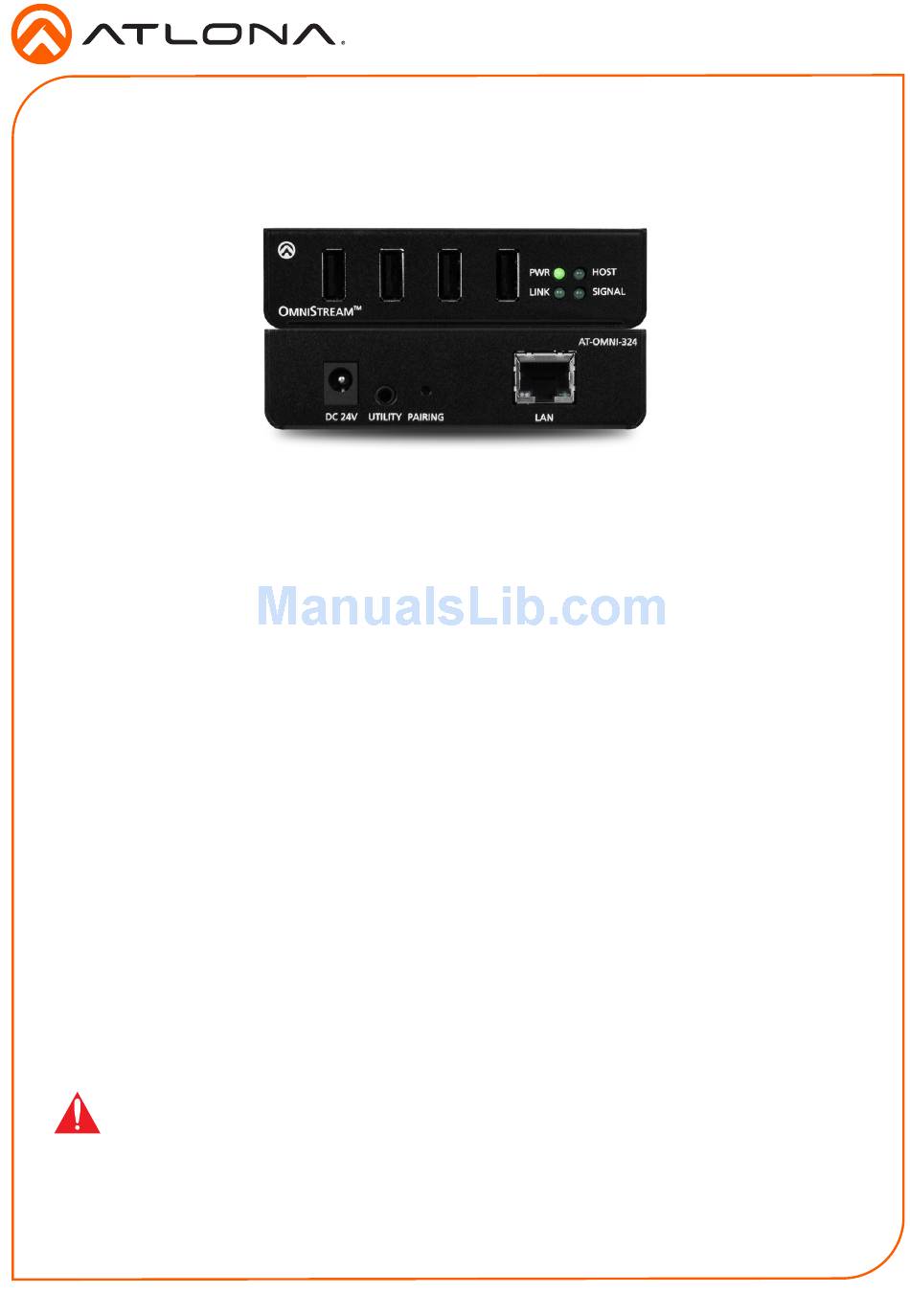

USB to IP Adapter for Peripheral Devices
AT-OMNI-324
The Atlona OmniStream™ 324 (AT-OMNI-324) works in tandem with the OmniStream 311
(AT-OMNI-311) for extending USB from peripheral devices to a PC over Gigabit Ethernet. The
OmniStream 324 features a four-port USB hub for peripherals, while the OmniStream 311
interfaces with a PC or other host device. The OmniStream USB over IP system is compatible
with USB 2.0 data rates of up to 480 Mbps. It can be used with high-bandwidth devices including
cameras, speakerphones, microphones, and DSPs, plus standard USB HID class devices
such as a keyboard, mouse, or touch display. Up to seven OmniStream 324 units can be
simultaneously paired to an OmniStream 311. Additionally, USB routing over the network can be
managed using Atlona Management System (AMS) 2.0.
OmniStream USB products can be used in a wide variety of system design scenarios for soft
codec conferencing and remote keyboard / mouse control. They are ideal for integrating USB
audio and video devices as part of a fully IP-based meeting room system, in conjunction with
OmniStream AV over IP devices and the Velocity Control System.
Package Contents
1 x AT-OMNI-324
1 x 24 V DC power supply
2 x Mounting brackets
1 x Installation Guide
IMPORTANT: Visit http://www.atlona.com/product/AT-OMNI-324 for the latest firmware
updates and Installation Guide.
1
Installation Guide
AT-OMNI-324
Advertisement
Table of Contents
Related Manuals for Atlona AT-OMNI-324
Summary of Contents for Atlona AT-OMNI-324
-
Page 1: Installation Guide
USB to IP Adapter for Peripheral Devices AT-OMNI-324 The Atlona OmniStream™ 324 (AT-OMNI-324) works in tandem with the OmniStream 311 (AT-OMNI-311) for extending USB from peripheral devices to a PC over Gigabit Ethernet. The OmniStream 324 features a four-port USB hub for peripherals, while the OmniStream 311 interfaces with a PC or other host device. -
Page 2: Panel Descriptions
Installation Guide AT-OMNI-324 AT-OMNI-324 Panel Descriptions DC 24V UTILITY PAIRING Front Rear AT-OMNI-324 HOST LINK SIGNAL TREAM DC 24V UTILITY PAIRING USB Device Ports HOST Connect up to four USB devices using these ports. LINK SIGNAL TREAM This LED indicator glows solid green when the unit is powered. This unit is powered by the host device LED Indicators (page 6) using USB. -
Page 3: Mounting Instructions
Installation Guide AT-OMNI-324 Mounting Instructions The AT-OMNI-324 includes two mounting brackets, which can be used to attach the units to any flat surface. Remove the two enclosure screws, on both sides of the unit, using a small Phillips-head screwdriver. S I G... -
Page 4: Installation
AT-OMNI-324 Installation Place the AT-OMNI-324 near the location of the USB devices to be connected. Connect up to four USB devices to the USB ports on the AT-OMNI-324. The AT-OMNI-324 can be connect to a AT-OMNI-311 (not included) in one of two ways:... -
Page 5: Connection Diagram
Installation Guide AT-OMNI-324 Connection Diagram AT-OMNI-311 Laptop SI G LI N AT-OMNI-324 SI G LI N Web-cam Mouse Keyboard Microphone AT-OMNI-311 Laptop SI GN LI NK Network Switch AT-OMNI-324 Network SI GN LI NK Switch Web-cam Mouse Keyboard Microphone... -
Page 6: Led Indicators
AT-OMNI-324 LED Indicators The PWR, LINK, HOST, and SIGNAL LED indicators on the transmitter provide basic information on the current status of the AT-OMNI-324. The information in the table below applies to both the transmitter and receiver unit. Description Solid green Unit is powered. - Page 7 Installation Guide AT-OMNI-324 Notes...
