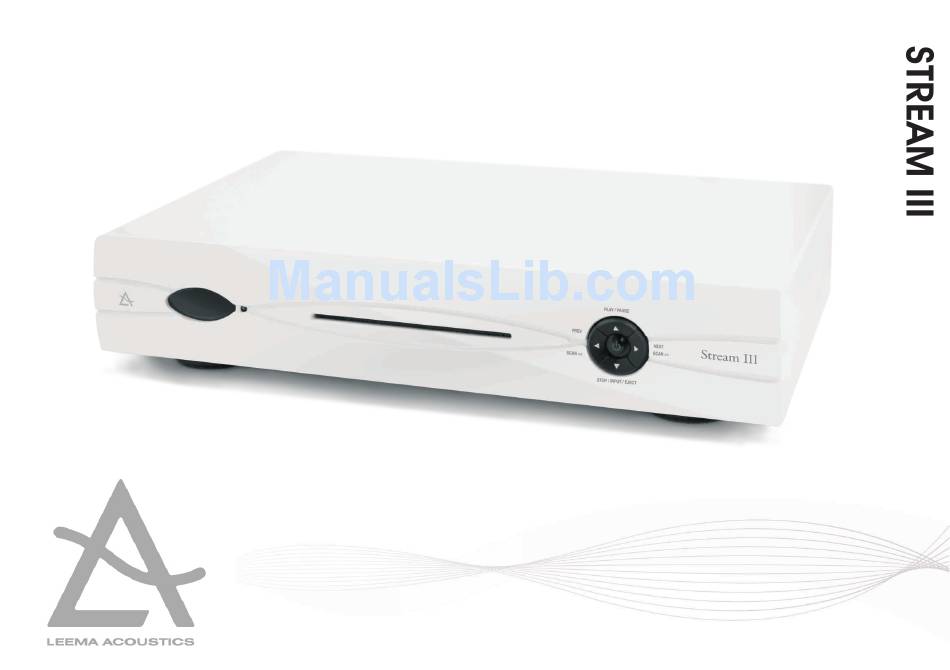

- Page 1 HANDBOOK Leema Acoustics Stream III CD Player and DAC...
-
Page 3: Warning - Safety Advice
STREAM III WARNING: To reduce the risk of fire or electric shock, do not expose this unit to rain or moisture. Do not use in damp conditions. Do not place objects containing liquids, drinks or vases for example, on the unit. -
Page 4: About Discs
Red Book Standard Stream III is a ‘Red Book' standard CD player and as such will play any genuine red-book disc. These discs will normally carry the Compact Disc logo. Some discs have been manufactured using various forms of copy protection such as Cactus and the Sony BMG system. -
Page 5: Table Of Contents
STREAM III Table of Contents Table of Contents WARNING - Safety Advice ............................... 3 Mains Supply Voltage, Cleaning, Placement, Condensation ..................3 About Discs ................................... 4 Red Book Standard ................................ 4 Discs That Cannot Be Played ............................4 General Information - Environmental, WEEE Scheme, Made in the UK ................6 Contact Us .................................. -
Page 6: General Information - Environmental, Weee Scheme, Made In The Uk
STREAM III General Environmental Issues Leema operates a 100% recycling program. All waste materials generated as part of the manufacturing process at Leema’s headquarters are recycled via a licensed specialist company. Although Leema electronics operate in standby mode as opposed to being fully switched off, the power drain has been optimised to a negligible level. -
Page 7: Introduction
A notable feature of this product is Leema’s latest Quad-DAC converter technology. In the Leema Stream III, this topology uses four 24bit/192KHz digital-to-analogue converters feeding highly optimised, balanced-input analogue filters. The net result is a CD player with analogue-like midband and high frequencies having great space and depth without the usual harshness associated with digital recording formats. -
Page 8: Overview
LIPS socket on Stream and the red connector plugged in to the first amplifier component, e.g. Pulse III. If Stream III is to be controlled, the black connector is connected to the master device and the red connector is... -
Page 9: Front & Rear Panels
STREAM III Front & Rear Panels DIGITAL Output Use a dedicated digital phono lead to connect this output to an SPDIF digital input. Power Inlet Ensure that the voltage ‘LIPS’ bus connectors indicated is correct for your area. This will normally... -
Page 10: Remote Control
STREAM III Remote Remote 1. POWER - The power button toggles Stream III between On and Standby. If a LIPS connection is used, the power status of any other Leema components connected via LIPS will also be controlled. 2. TRAY - The tray button ejects the disc if loaded. - Page 11 STREAM III Remote 7. PREV - If SCAN is not selected, the PREV button decrements the track selection. If SCAN is selected, PREV becomes SCAN BACKWARDS (<<). 8. NEXT - If SCAN is not selected, the NEXT button increments the track selection. If SCAN is selected, NEXT becomes SCAN FORWARD (>>).
-
Page 12: Front Panel Operation
(standby) buttons. 1. Standby - The Standby button toggles Stream III between On and Standby. If a LIPS connection is used, the power status of any other Leema components connected via LIPS will also be controlled. 2. PLAY/PAUSE - Pressing the top button once will start playback. Pressing a second time places the unit in PAUSE. -
Page 13: Connections
STREAM III Connections Connections Output Connect the Left and Right outputs to your amplifier CD input using good quality phono-to-phono (RCA) interconnects to provide maximum audio performance. Digital connections SPDIF coaxial digital output > This output provides a transformer isolated standard Sony/Philips digital interface. Use a good quality cable designed for SPDIF applications. -
Page 14: What Is Lips
STREAM III LIPS LIPS The LIPS cables are directional and must be connected the right way round for the system to operate. No harm will be done if cables are connected the wrong way round, the system will simply not work correctly. The black plug is inserted in to the sending unit and the red plug in to the receiving unit. -
Page 15: Additional Functions, Lips Modes
For further information, please contact Leema Technical Support. Additional functions In addition to the normal functions as detailed in the user manual, Stream III has a number of 'hidden' edit functions. At the time of writing these pertain to LIPS modes and disc repeat modes. -
Page 16: Disc Repeat Modes
Master mode to control a Leema Tucana MKI. TUC2B Master mode to control a Leema Tucana MKII - Stream III connected to the Balanced input. (RCA to XLR cable) TUC2R Master mode to control a Leema Tucana MKII - Stream III connected to the RCA CD input. -
Page 17: Message Codes
Stream Message Codes Volume and Input selection When set as a LIPS Master, Stream III will display any changes made to the volume level and input selection when using the remote in the following manor: 0 - 248 Volume level representing minimum to maximum LIPS volume. -
Page 18: Messages During Normal Use
STREAM III Messages during use Messages during normal use PLAY Play PAUS Pause STOP Stop NEXT Next track PREV Previous track ---- No disc READ Reading disc EJCT Ejecting disc DERR Driver error LERR Disc load error INLD Invalid track number... -
Page 19: Infra-Red Codes Codes
STREAM III Infra-red codes Infra-red codes The following codes may be used to program universal remotes using Sony 12 bit protocol: IR DEVICE = 17 (Stream/Antila specific) 16 = LIPS INPUT INCREMENT, 17 = LIPS INPUT DECREMENT, 21 = POWER TOGGLE, 22 = EJECT, 48 = PREV, 49 = NEXT,... -
Page 20: Declaration Of Conformity
Directive(s): 2006/95/EC The Low Voltage Directive 2004/108/EC The Electromagnetic Compatibility Directive hereby declare that: Equipment Hi-Fi CD Player Model Name STREAM III is in conformity with the applicable requirements of the following standards Standard. No. -
Page 21: Audio Specifications
STREAM III Audio Specifications Audio Specifications Typical figures: Frequency response 20Hz-20KHz: +/-0.3dB Distortion - 20Hz: 0.005% 1KHz: 0.001% 20KHz: 0.001% IM distortion 19+20KHz: 0.001% Linearity @ -100dB: +/-0.5dB Crosstalk @ 10KHz: -100dB Crosstalk @ 1KHz: -118dB Signal to Noise ratio (A weighted): 105dB Output Level: 2.3VRMS for 0dBFS... - Page 23 Leema Electro Acoustics Limited Unit K, Henfaes Lane, Welshpool, Powys, SY21 7BE, UK Tel/Fax: +44-(0)1938-559021 email: info@leema-acoustics.com Web: www.leema-acoustics.com...
