HANDBOOK

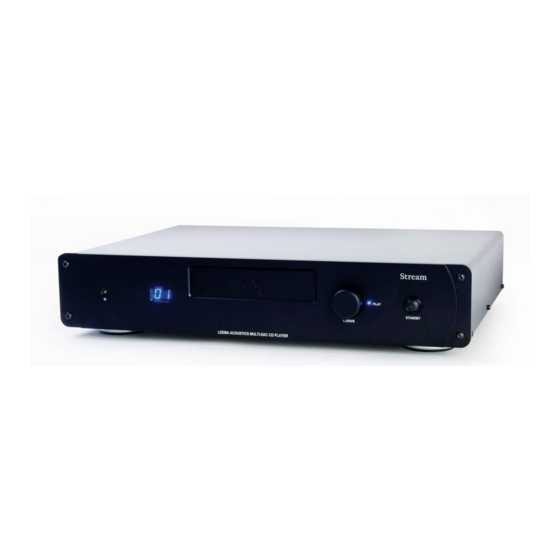

Leema Acoustics Stream Multi-DAC CD Player

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STREAM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for leema-acoustics STREAM

  • Page 1 HANDBOOK Leema Acoustics Stream Multi-DAC CD Player...
  • Page 3: Warning - Safety Advice

    STREAM WARNING: To reduce the risk of fire or electric shock, do not expose this unit to rain or moisture. Do not use in damp conditions. Do not place objects containing liquids, drinks or vases for example, on the unit.
  • Page 4: About Discs

    Red Book Standard Stream is a ‘Red Book' standard CD player and as such will play any genuine red-book disc. These discs will normally carry the Compact Disc logo. Some discs have been manufactured using various forms of copy protection such as Cactus and the Sony BMG system.
  • Page 5: Table Of Contents

    Front Panel Operation ..............................12 Connections ................................12-13 What is LIPS? ................................14 LIPS Specifics ................................14 LIPS Packets ................................. 14 LIPS Protocol Headers ..............................15 Stream Specific LIPS Commands ..........................16 Infra-red Codes ................................16 Audio Specifications ..............................17...
  • Page 6: General Information - Conformity Statement, Environmental, Made In The Uk

    STREAM General Declaration of Conformity We hereby declare that the product to which this declaration relates, is in conformity with the following standards: EN60065, EN55013, EN55020, EN61000-3-2, EN61000-3-3. The product design also follows the provisions of 73/23/EEC, 89/336/EEC and 93/68/EEC Directives.
  • Page 7: Introduction

    A notable feature of this product is the MD multi-DAC converter technology. In the Leema Stream, this topology uses sixteen (eight stereo) 24bit/192KHz digital-to-analogue converters in a parallel-multiple balanced configuration. The net result is a CD player with analogue-like midband and high frequencies having great space and depth without the usual harshness associated with digital recording formats.
  • Page 8: Overview

    Overview Stream is more than a CD player. By the use of our LIPS interface technology, Stream may control aspects of the complete audio system. For example, if a source other than CD is in use, simply selecting play will automatically switch the amplifier to the CD input and select a default low volume level.
  • Page 9: Front & Rear Panels

    Front & Rear Panels Front Panel Front Panel Stream PLAY STANDBY L-DRIVE LEEMA ACOUSTICS MULTI-DAC CD PLAYER DIGITAL Outputs Use a dedicated digital phono lead to connect this outputs to a digital input. Power Inlet & Switch Unbalanced Audio Outputs ‘LIPS’...
  • Page 10: Remote Control

    Remote Remote Remote 1. POWER - The power button toggles Stream between On and Standby. If a LIPS connection is used, the power status of any other Leema components connected via LIPS will also be controlled. 2. TRAY - The tray button opens and closes the CD drawer.
  • Page 11 STREAM Remote 7. PREV - If SCAN is not selected, the PREV button decrements the track selection. If SCAN is selected, PREV becomes SCAN BACKWARDS (<<) and forces the playback to jump back in units of thirty seconds. 8. NEXT - If SCAN is not selected, the NEXT button increments the track selection. If SCAN is selected, NEXT becomes SCAN FORWARD (>>) and forces the playback to jump forwards in units of thirty seconds.
  • Page 12: Front Panel Operation

    Front Panel Operation Front Panel Operation 1. Standby - The Standby button toggles Stream between On and Standby. If a LIPS connection is used, the power status of any other Leema components connected via LIPS will also be controlled. Leema L-Drive control Stream uses a radical new control device called L-Drive.
  • Page 13: Connections

    SPDIF coaxial digital output This output provides a transformer isolated standard Sony/Philips digital interface. Use a good quality cable designed for SPDIF applications. Audio cables must not be used as they will seriously degrade the data stream. LIPS The LIPS cables are directional and must be connected the right way round for the system to operate. No harm will be done if cables are connected the wrong way round, the system will simply not work correctly.
  • Page 14: What Is Lips

    LIPS or Leema Intelligent Protocol System, facilitates communication between various items in a Leema audio system. It allows units such as Tucana, Antila, Pulse or Stream to control other items in a chain. Leema’s constellation 5.2 surround system is a good example, where a Tucana controls a Hydra and Corvus. Key information including volume level, input selection and power control is passed through the bus enabling other units to operate in synchronisation.
  • Page 15: Lips Protocol Headers

    Value = 80 This is issued by Corvus. The command value contains the extract status. Value = 90 Antila/Stream direct track access. Valid command values are 1 - 99 for tracks 1 - 99. Value = 100 Spare header for future use.
  • Page 16: Stream Specific Lips Commands

    The above are used as follows: num, +10, num. e.g. 1,+10,2 = track 12 etc. In addition to Stream specific codes, the player is able to process amplifier codes for communication via LIPS: IR DEVICE = 16 (Amplifier, e.g. Tucana etc.)
  • Page 17: Audio Specifications

    STREAM Audio Specifications Audio Specifications Typical figures: Frequency response 20Hz-20KHz: +/-0.3dB Distortion - 20Hz: 0.005% 1KHz: 0.0008% 20KHz: 0.0008% IM distortion 19+20KHz: 0.001% Linearity @ -100dB: +/-0.5dB Crosstalk @ 10KHz: -100dB Crosstalk @ 1KHz: -118dB Signal to Noise ratio (A weighted): 105dB Output Level: 2.3VRMS for 0dBFS...
  • Page 19 Leema Electro Acoustics Limited Maes-Y-Glydfa, Llanfair Caereinion, Welshpool, Powys, SY21 0HD, UK Tel/Fax: +44-(0)1938-811900 email: info@leema-acoustics.com Web: www.leema-acoustics.com...
