INTERCOM TALK BACK SYSTEM

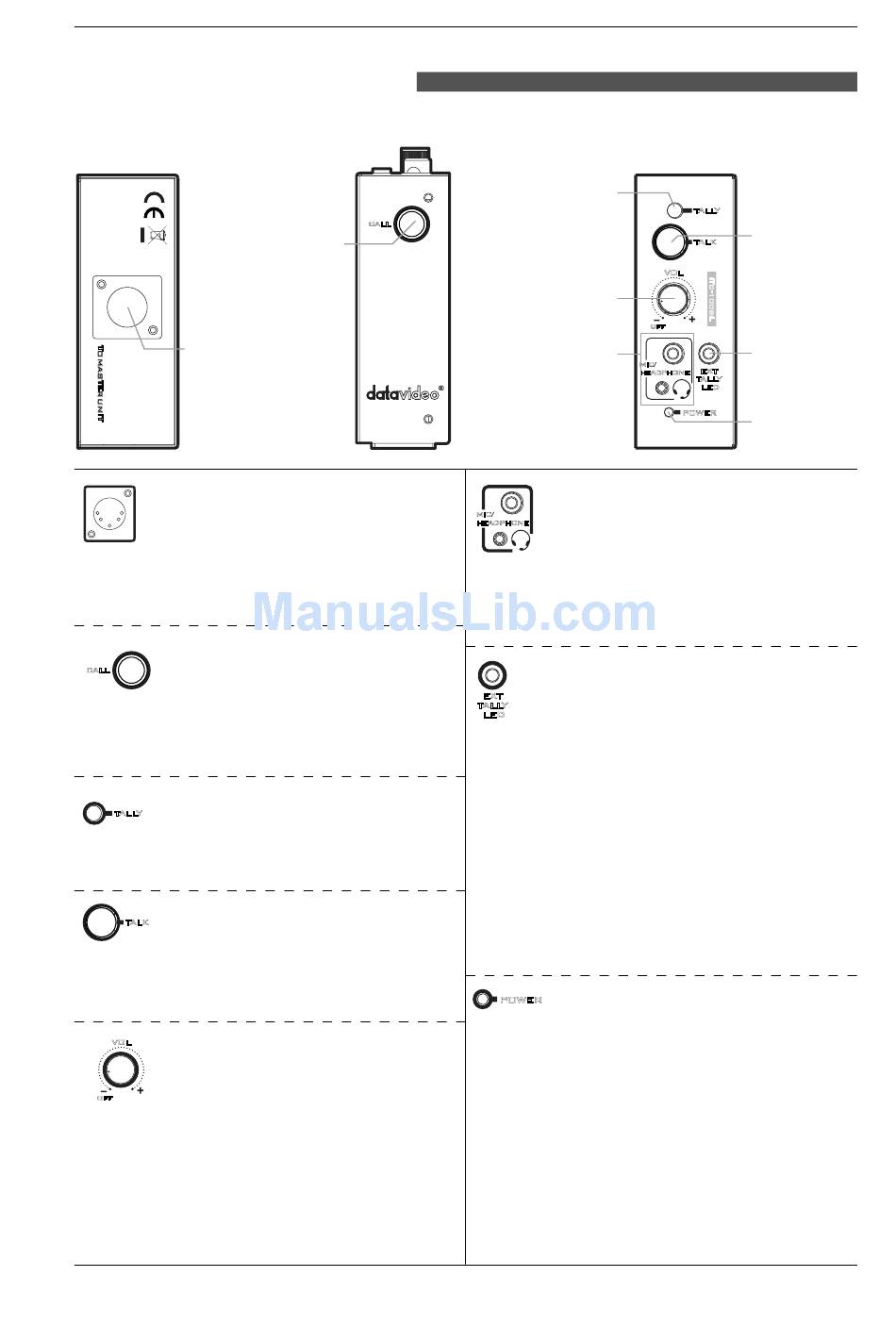

ITC-100SL Belt Pack

BASE
XLR Connection
XLR Connection
Connects the ITC-100SL to the
ITC-100 Base Unit. Power, tally
and bi-directional audio are all
carried through the same CB-3
cable.
Call Button
Sends a paging message to the
CALL
ITC-100 Base Unit. The channel
button will flash orange and there
will be an audible tone, each
time the button is pressed.
Bi-Color Tally LED
TALL Y
I l l u m i n a t e s R E D w h e n t h e
channel is LIVE and AMBER
when the channel is CUED
Talk Button
TALK
O p e n s
communication with the ITC-100
Base Unit, and any other active
channels.
Volume Control
VOL
A d j u s t s t h e v o l u m e o f t h e
headphones.
OFF
8
SIDE
CALL
Call Button
u p t a l k b a c k
Bi-Color Tally LED
Volume Control
Mic/ Headphone
Socket
MIC/
HEADPHONE
Mic / Headphone Socket
The ITC-100SL has both a 3.5mm
MIC/
HEADPHONE
and 2.5mm Mic / Headset socket.
A standard 3.5mm Mic / Headset
can be used, or a Motorola type
2.5mm Mic / headset could be
used if preferred.
ExternalTallyLEDSocket
An external tally display (TD-2)
EXT
can be connected to the ITC-100SL.
TALL Y
LED
This enables the tally light to be
positioned in a more convenient
place, such as on top of the
camera. When the channel is LIVE
the LED will be RED, and when
the channel is CUED the LED will
be AMBER.
N.B. The Tally LED on the ITC-
100SL will continue to operate as
normal when a TD-2 has been
added.
Power LED
POWER
The Power LED indicates when
t h e c h a n n e l i s a c t i v e . I f t h e
operator has opened the channel
by pressing the channel button
1 ~ 8, or by pressing ALL then the
LED will light up.
N.B. The tally indicator lights will
continue to work even when the
Power LED is not on, and the
channel is not active.
TOP
TALL Y
Talk Button
TALK
VOL
OFF
EXT Tally LED
Socket
EXT
TALL Y
LED
POWER
Power LED
