Smart-M DVS4P User Manual

Technical Specifications

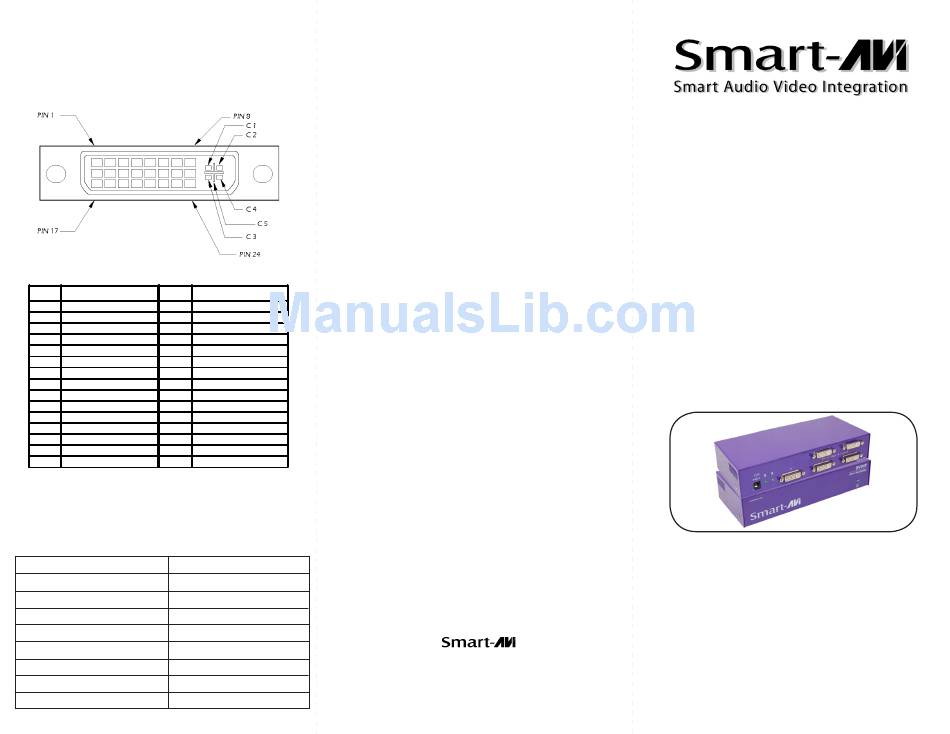

Input/Output Signal
Pin # Signal Pin #
1 T.M.D.S Data 2- 16 Hot Plug Detect
2 T.M.D.S Data 2+ 17 T.M.D.S Data 0-
3 T.M.D.S Data 2/4 Shield 18 T.M.D.S Data 0+
4 T.M.D.S Data 4- 19 T.M.D.S Data 0/5 Shield
5 T.M.D.S Data 4+ 20 T.M.D.S Data 5-
6 DDC Clock 21 T.M.D.S Data 5+
7 DDC Data 22 T.M.D.S Clock Shield
8 Analog Vert. Sync 23 T.M.D.S Clock+
9 T.M.D.S Data 1- 24 T.M.D.S Clock -
10 T.M.D.S Data 1+
11 T.M.D.S Data 1/3 Shield C1 Analog Red
12 T.M.D.S Data 3- C2 Analog Green
13 T.M.D.S Data 3+ C3 Analog Blue
14 +5V Power C4 Analog Horz Sync
15 GND C5 Analog Ground

Specifications

Video Input 1 DVI Female
Video Output 4 DVI Female
Max. Resolution 1920 x 1200 60 @ Hz
Cable Distance to Monitor 10 m (max)
Signal Type Standard DVI Signal
Power Adapter (min) 5VDC 1A
Housing Metal
Weight .65lb (.29kg)
Dimensions (LxWxH) 7.93" x 3.56" x 1.56"
