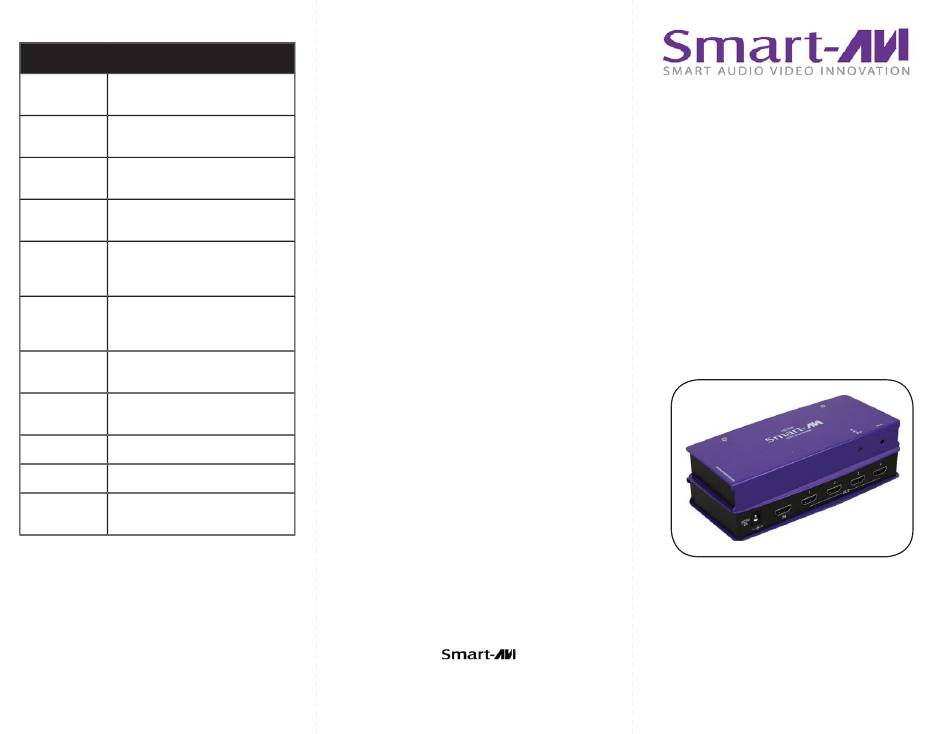

Smart-M HDS4P User Manual

Technical Specifications

HDS-4P Specifications
HDMI HDMI 1.3c [Deep Color, xvYCC
Compliance
color space supported]
DVI DVI 1.1
compliance
HDCP Yes
compliance
Video Single-link 225MHz [6.75Gbps]
bandwidth
Video support Up to WUXGA
[1920x1200@60Hz] & UXGA
[1600x1200@60Hz]
Audio support DTS-HD Master Audio, Dolby
TrueHD Dolby Digital, DTS, DVD-
Audio, LPCM, SACD, MPCM
Input TMDS 1.2 Volts [peak-to-peak]
signal
Input DDC 5 Volts [peak-to-peak, TTL]
signal
Input 1x HDMI [7.1ch audio & video]
Output 4x HDMI [7.1ch audio & video]
HDMI Type A [19-pin female]
connector
© Copyright 2008 Smart-AVI, All Rights Reserved
Notice
The information contained in this document is
subject to change without notice. Smart-AVI
makes no warranty of any kind with regard to
this material, including but not limited to, implied
warranties of merchantability and fitness for any
particular purpose.
Smart-AVI will not be liable for errors contained
herein or for incidental or consequential damages
in connection with the furnishing, performance
or use of this material.
No part of this document may be photocopied,
reproduced or translated into another language
with out prior written consent from Smart-AVI.
2840 N. Naomi Ave.
Burbank, California 91504
Phone: (818) 565-0011
Facsimile: (818) 565-0020
User Manual
HDS4P
HDMI Splitter 4port
Connect One HDMI Source to up to Four
Display Screens
