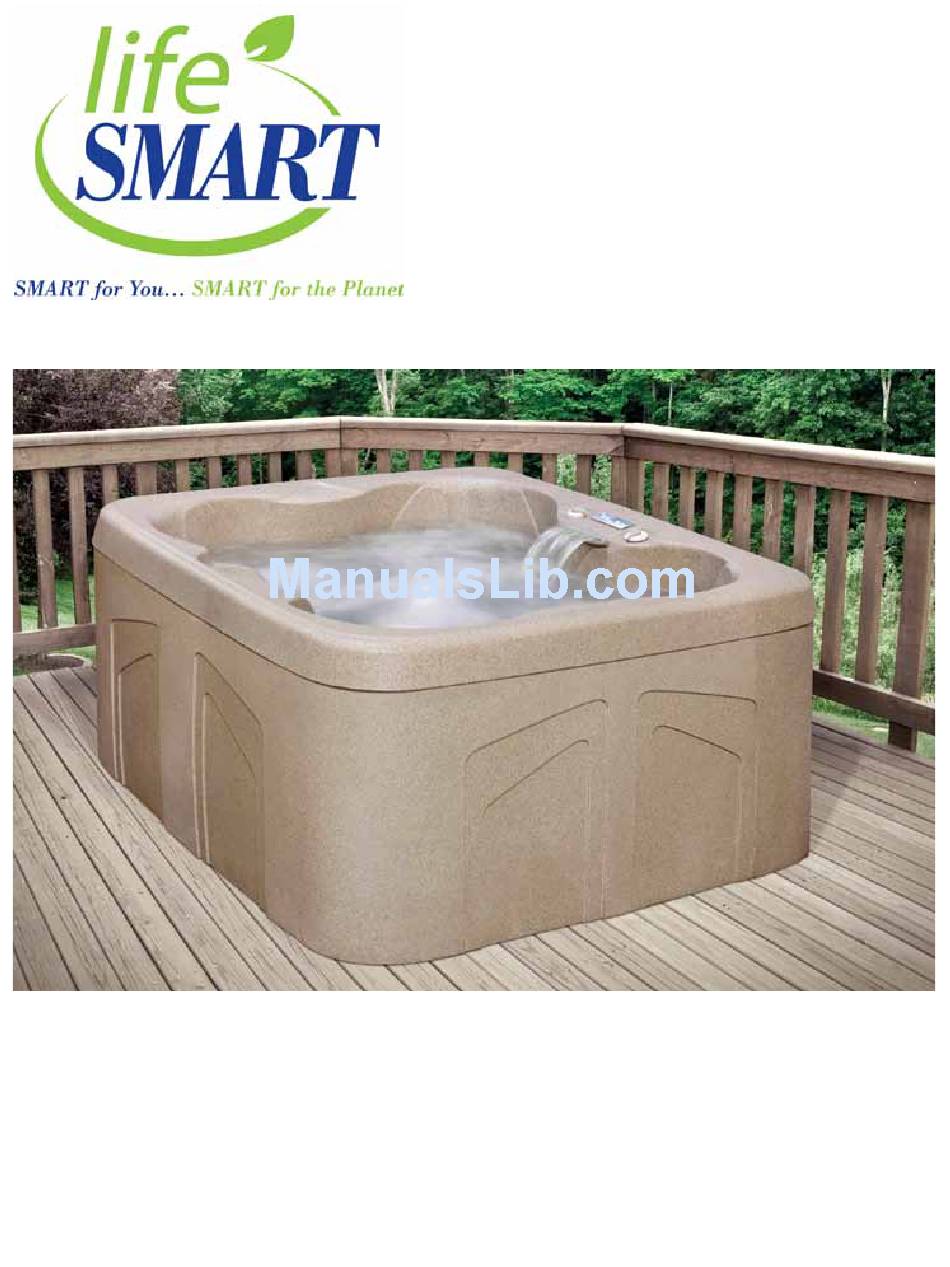

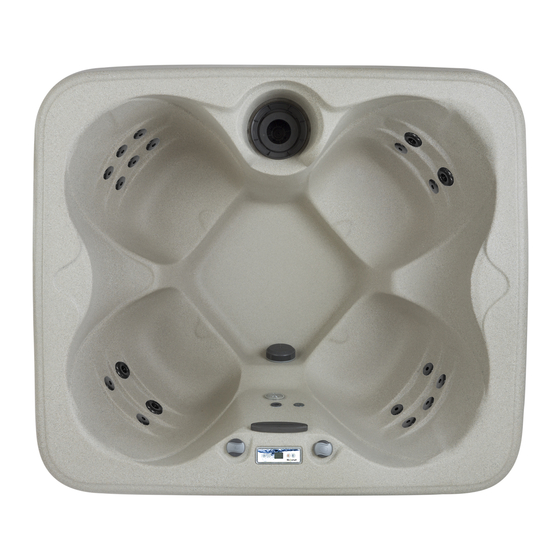

- Page 1 HD OWNER’S MANUAL 115V / 230V Models...
-
Page 2: Serial Number
LIFESMART OWNER'S MANUAL Owner's Record Locating the Spa Serial Number: The spa serial number label is located on control box cover inside the equipment compartment. Equipment compartment access panel is below the spas 4-button topside control panel. You will need the spa model and serial number to properly register your spa and activate coverage. Write your spa information in the space provided. -
Page 3: Table Of Contents
CONTROL PANEL OPERATION TEMPERATURE ADjUSTMENT (80°F-104°F)........................12 jETS OPERATION ..................................12 LED MULTI COLOR LIgHT ...............................12 STANDBY MODE (BERMUDA, KEY LARgO, ANTIqUA, BARBADOS) ....................12 OPERATIONAL MODE (CORONADO) ...........................12 PRESET FILTER CYCLES ...............................13 FREEzE PROTECTION ................................13 DISPLAY MESSAgES (BERMUDA, KEY LARgO, ANTIqUA, BARBADOS) ................14 DIAgNOSTIC LCD MESSAgE (CORONADO) ........................14... -
Page 4: Safety Information
SAFETY INFORMATION iMPORTANT SAFETY iNSTRUcTiONS READ AND FOLLOW ALL iNSTRUcTiONS AVOiDiNg THE RiSk TO cHiLDREN DANgER: • RISK OF ChILD DROWNINg. Extreme caution must be exercised to prevent unauthorized access by children. To avoid accidents, ensure that children cannot use a spa unless they are supervised at all times. - Page 5 SAFETY INFORMATION 115 vOLT CORD-CONNECTED 15 AMP MODELS: • The gFCI is located at the end of the power cord. Before each use, with the unit operating, push the TEST button. The unit should stop operating and the gFCI power indicator will go out. Wait 30 seconds and then reset the gFCI by pushing the RESET button.
- Page 6 SAFETY INFORMATION • Place electrical appliances within 5 feet (1.5m) of the spa. • Use an extension cord to connect the spa to its power source. The cord may not be properly grounded and the connection is a shock hazard. An extension cord may cause a voltage drop, which will cause overheating of the jet pump motor and motor damage.
-
Page 7: Important Spa Instructions
SAFETY INFORMATION AVOiDiNg THE RiSk OF HYPERTHERMiA Prolonged immersion in hot water can result in HYPERTHERMIA, a dangerous condition which occurs when the internal temperature of the body reaches a level above normal (98.6°F, 37ºC). The symptoms of hyperthermia include unawareness of impending hazard, failure to perceive heat, failure to recognize the need to exit the spa, physical inability to exit the spa, fetal damage in pregnant women, and unconsciousness resulting in a danger of drowning. -
Page 8: Installation
INSTALLATION PLANNiNg A LOcATiON FOR YOUR SPA Consider these things when determining where to place your spa. SAFETY FiRST: Make sure your spa is positioned so access to the equipment compartment and side panels will not be blocked. Be certain your installation will meet all city and local safety codes and requirements. -
Page 9: Placing The Spa
INSTALLATION bE AWARE: Damage caused by inadequate or improper foundation support is not covered by the spa warranty. It is the sole responsibility of the spa owner to provide a proper foundation for the spa. Make sure the foundation where the spa is placed drains water away from the spa. Proper drainage will keep components dry from rain and wet weather. -
Page 10: Equipment Access
EqUIPMENT ACCESS EqUiPMENT AccESS PANEL Topside Control Panel Slat Slat Screw Equipment Access Panel Door Hose Drain Hose gFCI Cord Electrical Recess Black ABS Door To access the equipment compartment: • Remove 1 vertical slat and 3 screws on each side of Equipment Access Panel Door. • Remove 6 screws from Equipment Access Panel Door to remove door. -
Page 11: Electrical Requirements
ELECTRICAL REqUIREMENTS ELEcTRicAL DO NOT PLUg IN YOUR SPA WIThOUT FIRST FILLINg WITh WATER! DANgER – RISK OF ELECTRIC ShOCK Installations that do not conform to the following procedures and requirements may expose users to electric shock. Non-conforming installations will not be covered under warranty. Your electrical outlet must have been installed by an electrical contractor and been approved by a local building electrical inspection authority. - Page 12 Service must be performed by a licensed electrician and all grounding connections must be properly installed. Equipment access is below the Topside Control Panel on Plug & Play LifeSmart Spas. Equipment access is below the Topside Control Panel on 230 Volt LifeSmart Spas.
-
Page 13: Configuring System
ELECTRICAL REqUIREMENTS ciRcUiT bREAkER REqUiREMENTS: A new gFCI circuit breaker must be used for your spa installation. Do not use an existing breaker, as its condition is unknown. bREAKER 230v Capacity 32 amps # of wires On 230V systems always use a 4 wire system. ON all systems, the spa must be connected to a dedicated gFCI circuit breaker that is not shared with any other equipment. -
Page 14: Electrical Wiring Diagram For 230V Use
ELECTRICAL REqUIREMENTS ELEcTRicAL WiRiNg DiAgRAM FOR 230V USE It is recommended that a licensed electrician install the power to your spa in accordance with the National Electric Code and/or any local electrical codes in effect at the time of installation. Power supply installation must include a properly rated gFCI circuit breaker. -
Page 15: Control Panel Operation
NOTE: The blue color is the first of the 6 colors followed by the color wheel. If left on, the light will automatically turn off after 4 hours of operation. STANDbY MODE (bERMUDA, kEY LARgO, ANTiqUA, bARbADOS) The spa can be disabled when the filter needs to be replaced. To put the system in standby mode, press the up or down button, then the light button, the display will show “Sb.”... -
Page 16: Preset Filter Cycles
CONTROL PANEL OPERATION STANDARD MODE: Is programmed to maintain the desired temperature. Note: the last measured spa temperature displayed is current only when the pump has been running for at least 2 minutes. “St” will be display momentarily only when dip switch 7 is OFF. EcONOMY MODE: Heats the spa to the set temperature only during filter cycles. -
Page 17: Display Messages (Bermuda, Key Largo, Antiqua, Barbados)
CONTROL PANEL OPERATION DiSPLAY MESSAgES (bERMUDA, kEY LARgO, ANTiqUA, bARbADOS) Should you see two letters on your control panel display DO NOT ENTER YOUR SPA until you find the two letter message below and complete the steps to remove the display message from the control panel. - Page 18 CONTROL PANEL OPERATION Message Meaning Action Required Spa is shut down – The sensor that Turn spa off for 30 seconds then back on. If the is plugged into the Sensor “A” jack is problem persists, contact Customer Service. It not working.
-
Page 19: Component Operation
COMPONENT OPERATION SPA cOMPONENT OPERATiON AiR cONTROL VALVE The air control valve serves to regulate the amount of air mixed with the water when the jets are operational. Rotate the air control in one direction to achieve the maximum jet pressure and therapeutic action. -
Page 20: Fill Up And Start-Up Instructions
FILL UP AND START-UP INSTRUCTIONS The following procedures should be followed on initial startup and whenever the spa is drained for routine maintenance. FiLLiNg THE SPA WiTH WATER 1. Clear all the debris from your spa. 2. Be sure to open all jets to allow as much air as possible to escape from the plumbing during the filling process. -
Page 21: Adding Start-Up Chemicals
ADDINg START-UP ChEMICALS WATER cHEMiSTRY gUiDELiNES The following step-by-step instructions are a recommended guideline for balancing water chemistry. If unsure about any step in the process, please contact a Customer Care Associate at (888) 961-7727) or by email at ahsservice@watkinsmfg.com. Initially, it is advisable to identify what minerals (e.g. -
Page 22: Spa Maintenance
SPA MAINTENANCE FiLTER cARTRiDgE MAiNTENANcE Every two weeks, the filter cartridge should be cleaned to remove the objects and particles that have lodged in the cartridge pleats. Using household water pressure and a garden hose with a pressurized nozzle, push water from inside to outside of the pleats, forcing all the trapped particles out. -
Page 23: Surface Care
SPA MAINTENANCE SURFAcE cARE Do not use solvents or abrasive cleaners to clean the spa. Typically, a mild detergent and water will resolve cleaning issues. cOVER cARE Please keep your cover free from dirt at all times. Use a cover cleaner or a warm mild soapy water to clean the surface. -
Page 24: Draining Or Winterizing
DRAININg OR WINTERIzINg Every three to six months, depending upon the water condition, you need to renew your water. CAUTION: READ THIS BEFORE DRAININg YOUR SPA • To prevent damage to the spa’s components, unplug the spa from the outlet before draining. Do not plug your spa back in until your spa has been refilled with water. -
Page 25: Troubleshooting Procedures
TROUbLEShOOTINg PROCEDURES In the event your spa is not working the way it should, please first review all the installation and operating instructions in this manual and check the message on the panel display. If you are still not satisfied it is working properly, please follow the appropriate troubleshooting instructions. CAUTION! WARNINg! ShOCK hAzARD! No User Serviceable Parts. -
Page 26: Replacement Parts
SPA FILTER – 50sq. ft. Filter 303263 SPA FILTER – 25sq. ft. Filter (KEY LARgO ONLY) 303030 EqUIPMENT PACK (CORONADO) 303022 EqUIPMENT PACK (BERMUDA, KEY LARgO, ANTIqUA, BARBADOS) 303028 4 BUTTON TOPSIDE CONTROL PANEL 303298 ROUND FILTER WEIR 303299 FILTER BASKET SKIMMER... - Page 28 PART # 303476 REV. A (1/13)
