More than one receiver can "learn" the same
transmitter code. The transmitter will operate
all plows with receivers that have been
programmed to "learn" its code.
FAILURE TO FOLLOW CAN RESULT IN INJURY
OR DEATH
A receiver must have the old code erased before a new
one can be added. The receivers may have "learned" a
code at the factory. All new receivers must be erased as
noted below before "learning" new codes.
To erase any previously "learned" codes:
1. Place a metal object (screwdriver or pocket knife)
across the contacts. The receiver is located under the
pump cover. The contacts protrude through the potting
near the LED on the same side of the receiver that the
wire harness is on.
2. Hold the metal object across the contacts until the
LED slowly blinks.
3. Remove the metal object.
Programming a receiver to "learn" a transmitter
code:
1. Turn on the transmitter that the receiver is to be
programmed to.
2. Place a metal object (screwdriver or pocket knife)
across the contacts on the receiver. When the green LED
on the receiver glows, remove the metal object.
3. Press any function on the transmitter. Hold the
function button until the LED on the receiver turns off.
4. Release the function key on the transmitter. The
receiver has now "learned" the transmitter code and will
return to normal operation.
If the receiver has already "learned" a code, the LED will
blink fast for five seconds after the metal object is
removed from the contacts. You must erase the code
before adding a new one.
Wire Harness Installation
Control Harness (Hard-Wired Control)
NOTE: Wireless control systems do not require the
control harness to be installed. Wireless owners may
proceed to next section.
4
WARNING
Remove the wire harness components from the bag of
harness parts included in the control package.

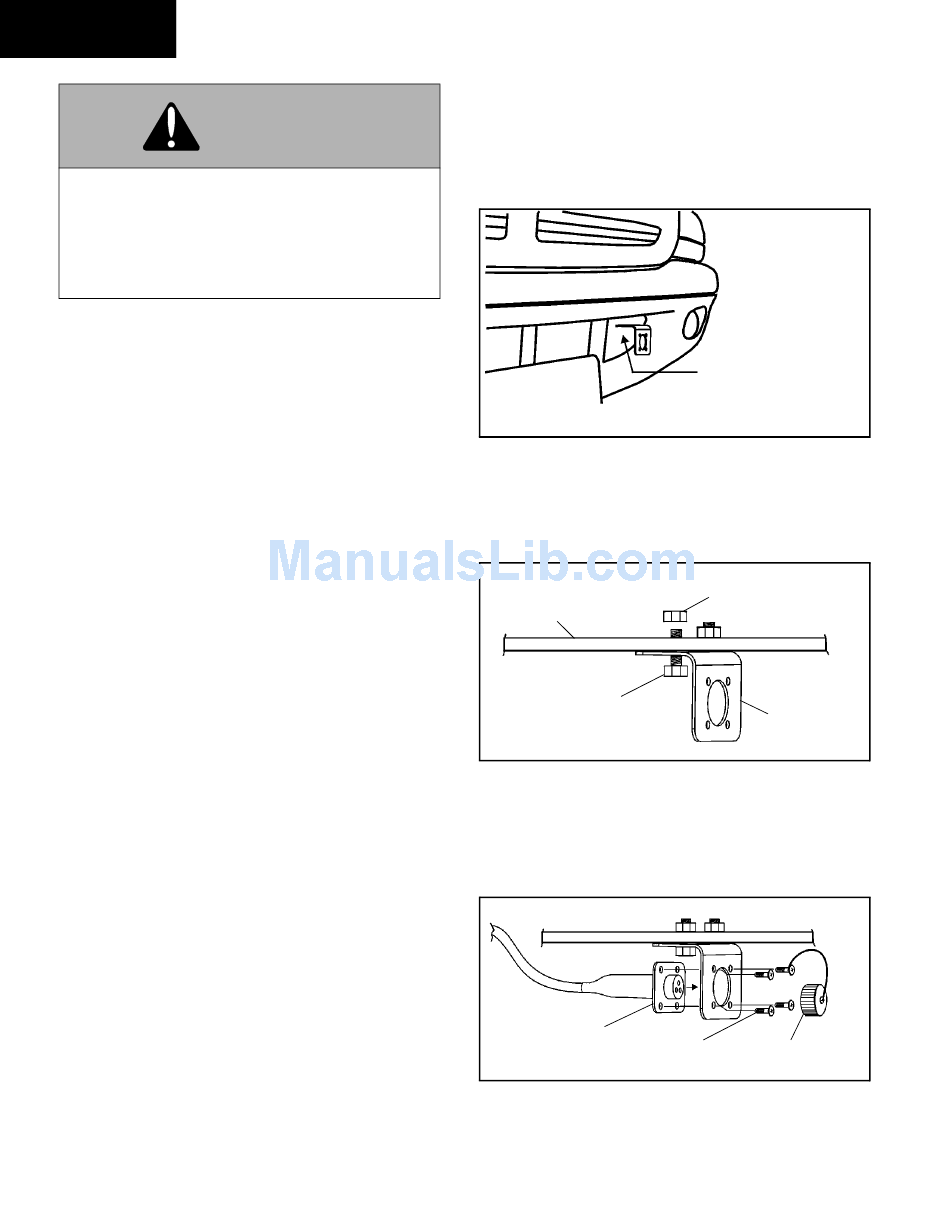

Install Control Harness Bracket

1. Using bracket as a template, mark and drill two 9/32"
holes into vehicle bumper or other suitable location for
mounting of harness bracket. (See Figure 1-2).
Figure 1-2
2. Install 1/4"-20 bolts up through bracket and vehicle
bumper or other mounting surface. Secure with 1/4"-20
nylon locking nuts and tighten. (See Figure 1-3).
VEHICLE
MOUNTING
SURFACE
1/4"-20 BOLT
Figure 1-3
3. Install four screws through bracket into harness
connector flange and tighten. One of the screws will also
fasten the strap for the weatherproof cover. (See Figure
1-4).
HARNESS
CONNECTOR
MOUNTING
FLANGE
SCREW
Figure 1-4
A. Hold bracket in position
B. Mark holes for drilling
C. Drill 9/32" holes for
mounting
1/4"-20 NUT
HARNESS
BRACKET
WEATHERPROOF
COVER
