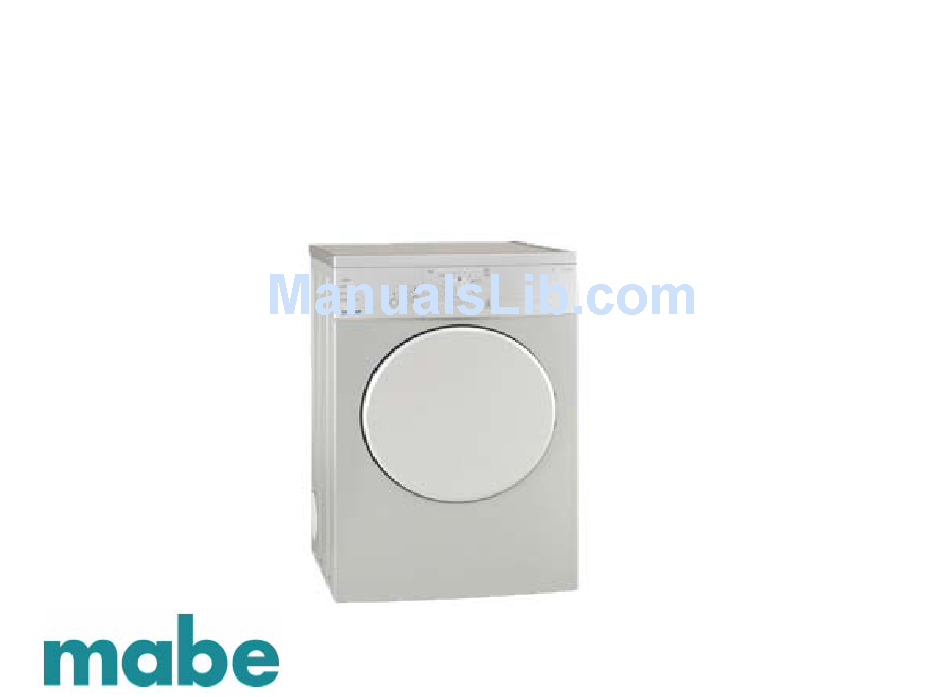

  • Page 1 NEW MOFFAT DRYER RCKH315EH 07-MAN-DR-01...
  • Page 2 The manufacturer or seller cannot be responsible for the interpretation of this information, nor can it assume any liability in connection with its use. mabe CONFIDENTIAL AND PROPRIETARY INFORMATION-NOT FOR PUBLIC DISCLOSURE.. JANUARY 2007...
  • Page 3 With this feature, the clothes will not be tangled. • This dryer operates on 240 volts, there is no 120 volts, the white wire at the dryer’s electrical entrance is not connected. mabe CONFIDENTIAL AND PROPRIETARY INFORMATION-NOT FOR PUBLIC DISCLOSURE.. JANUARY 2007...
  • Page 4 How to remove the top Remove the two screws that hold the top to the rear and pull toward you to disengage. mabe CONFIDENTIAL AND PROPRIETARY INFORMATION-NOT FOR PUBLIC DISCLOSURE.. JANUARY 2007...
  • Page 5 Remove the side panel. (One screw on the top and four at the back, then lift up the panel by ¼ each and remove). (Figure 4A, 4B and 4C Now you have the access for the motor. (Figure 1) (Figure 2) (Figure 3) (Figure 4A) (Figure 4B) mabe CONFIDENTIAL AND PROPRIETARY INFORMATION-NOT FOR PUBLIC DISCLOSURE.. JANUARY 2007...

  • Page 6: Drum Roller

    How to access the motor (cont.) Drum roller Sensor Heater connection Motor Once the panel from the right side is removed, you can access the motor, the sensor, the heater connection and the drum rollers. mabe CONFIDENTIAL AND PROPRIETARY INFORMATION-NOT FOR PUBLIC DISCLOSURE.. JANUARY 2007...
  • Page 7 Remove the rear panel, there are the blower nut. 13 screws that hold it in place You must tilt the dryer to remove the four screws that hold the motor. mabe CONFIDENTIAL AND PROPRIETARY INFORMATION-NOT FOR PUBLIC DISCLOSURE.. JANUARY 2007...
  • Page 8 39 Ω. Between the red and the blue, the value is 78 Ω and between the white and the blue, the value is 39 Ω. mabe CONFIDENTIAL AND PROPRIETARY INFORMATION-NOT FOR PUBLIC DISCLOSURE.. JANUARY 2007...
  • Page 9 Remove the rear panel, there are 13 screws that hold it in place. Thermostat 145 °C 293 °F Thermostat 110 °C 230 °F Remove the screws from the heater assembly housing. mabe CONFIDENTIAL AND PROPRIETARY INFORMATION-NOT FOR PUBLIC DISCLOSURE.. JANUARY 2007...
  • Page 10 Remove the heater’s harness protector located Disconnect the plug from the heater. at the rear of the dryer. Remove the wiring from the element. You can now replace the heater. mabe CONFIDENTIAL AND PROPRIETARY INFORMATION-NOT FOR PUBLIC DISCLOSURE.. JANUARY 2007...
  • Page 11 At room temperature, the resistance is 20 KΩ. If you increase the sensor temperature the resistance will decrease. You can verify the temperature sensor at the electronic control or directly under the drum. mabe CONFIDENTIAL AND PROPRIETARY INFORMATION-NOT FOR PUBLIC DISCLOSURE.. JANUARY 2007...

  • Page 12: Humidity Sensor

    Humidity sensor Metal rod attached to the Humidity detector humidity detector on the baffle. Baffle mabe CONFIDENTIAL AND PROPRIETARY INFORMATION-NOT FOR PUBLIC DISCLOSURE.. JANUARY 2007...
  • Page 13 You must be careful once the retainer is removed because there is a small spring and a metal rod which is inserted in the drum shaft. Spring Metal rod mabe CONFIDENTIAL AND PROPRIETARY INFORMATION-NOT FOR PUBLIC DISCLOSURE.. JANUARY 2007...
  • Page 14 How to remove the drum (cont.) Remove the nut from the drum. Remove the control panel and the wiring from the electronic control. There are three screws on the top which hold the control panel. mabe CONFIDENTIAL AND PROPRIETARY INFORMATION-NOT FOR PUBLIC DISCLOSURE.. JANUARY 2007...
  • Page 15 Remove the front panel, there are three screws under the dryer which hold the front panel. 10. Remove the screw from each side of the top part of the front panel. mabe CONFIDENTIAL AND PROPRIETARY INFORMATION-NOT FOR PUBLIC DISCLOSURE.. JANUARY 2007...
  • Page 16 How to remove the drum (cont.) 11. Remove the 6 screws around the door opening, remove the front panel and remove the retainer from the drum roller support. 12. Remove the drum. mabe CONFIDENTIAL AND PROPRIETARY INFORMATION-NOT FOR PUBLIC DISCLOSURE.. JANUARY 2007...

  • Page 17: Door Switch

    To remove the door switch you must remove the front panel. Please note that if the door stays open more than 5 minutes and no setting is selected, the lighting will shut off. mabe CONFIDENTIAL AND PROPRIETARY INFORMATION-NOT FOR PUBLIC DISCLOSURE.. JANUARY 2007...

  • Page 18: Error Codes

    The error appears if the dryer stops automatically after 3 hours, even if the selected humidity level wasn’t reached . - error on the humidity sensor - faulty connection between the electronic control and the humidity sensor. mabe CONFIDENTIAL AND PROPRIETARY INFORMATION-NOT FOR PUBLIC DISCLOSURE.. JANUARY 2007...
  • Page 19 The error is cleared on the LEDs when the selector is moved to the zero position. If there is a power failure during error detection, error is on again after power on. mabe CONFIDENTIAL AND PROPRIETARY INFORMATION-NOT FOR PUBLIC DISCLOSURE.. JANUARY 2007...
  • Page 20 Check the drum rollers, the blower, the motor installation and check to make sure the dryer is level and the leveling legs are resting on the floor. Abnormal noise Normal noise Press on the green button. Press on the green button. mabe CONFIDENTIAL AND PROPRIETARY INFORMATION-NOT FOR PUBLIC DISCLOSURE.. JANUARY 2007...

  • Page 21: Wiring Diagram

    WIRING DIAGRAM 240 volts Drum lamp mabe CONFIDENTIAL AND PROPRIETARY INFORMATION-NOT FOR PUBLIC DISCLOSURE.. JANUARY 2007...
