LCD

Colour Television

OWNER'S MANUAL
Please read this manual carefully before operating your set.
Retain it for future reference.
Record model number and serial number of the set.
See the label attached on the back cover and quote this
information to your dealer when you require service.
Model number
:
Serial number
:
BZ03

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BZ03 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LG BZ03

Summary of Contents for LG BZ03

  • Page 1: Colour Television

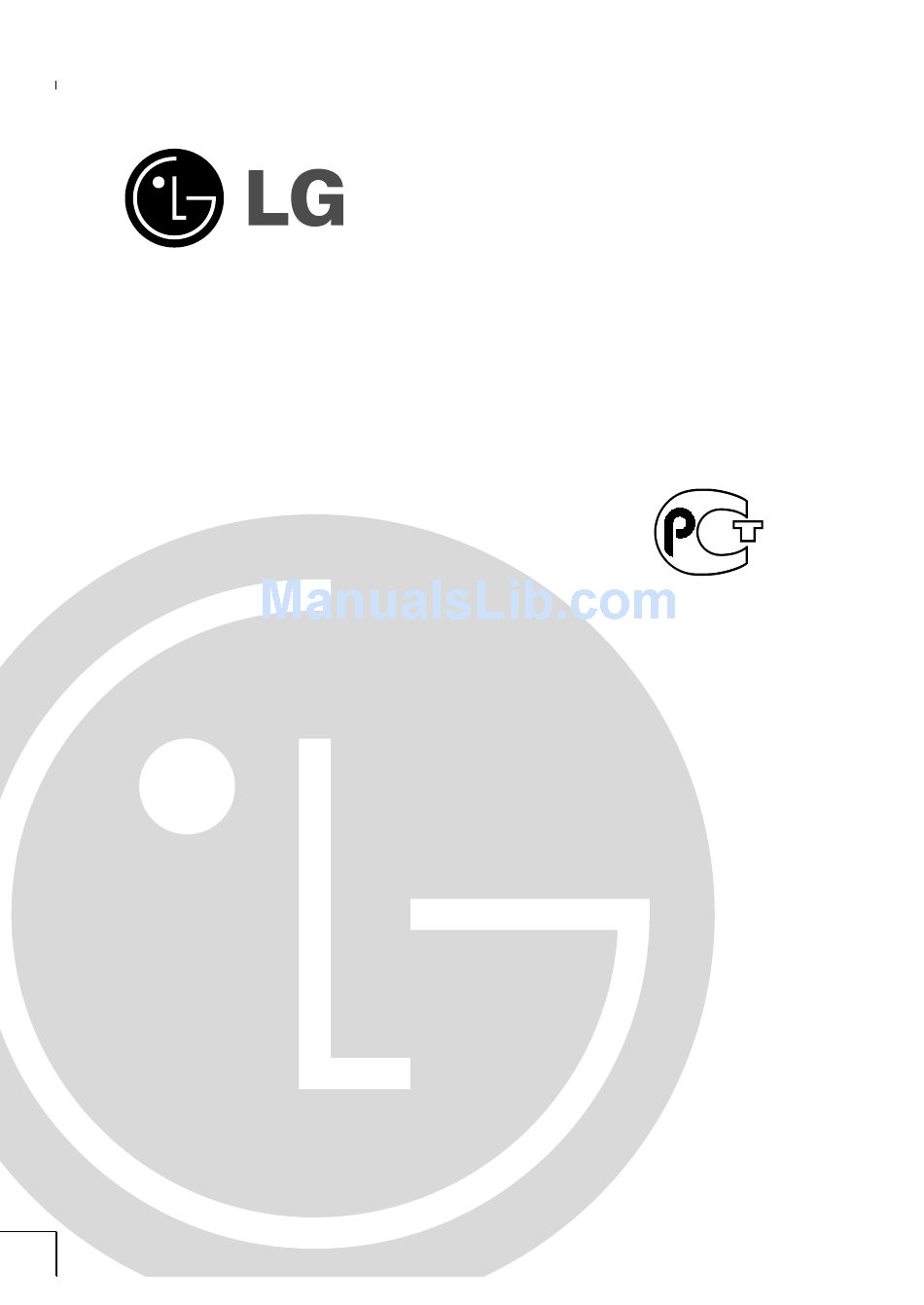

    Colour Television OWNER’S MANUAL BZ03 Please read this manual carefully before operating your set. Retain it for future reference. Record model number and serial number of the set. See the label attached on the back cover and quote this information to your dealer when you require service.

  • Page 2: Table Of Contents

    Contents Installation Location and function of controls Remote control handset Battery installation / Front panel / Back panel Basic operation On and off / Programme selection Volume adjustment Quick view / Mute function On screen language selection (option) On Screen Menus Menu selection CHANNEL Menu Auto programme tuning...

  • Page 3: Installation

    Installation Power This set operates on an AC mains supply, the voltage is as indicat- ed on the label on the back cover. Never apply DC power to the set. In the event of thunderstorms or powercuts, please pull out the aer- ial and mains plugs.

  • Page 4: Location And Function Of Controls

    8. NUMBER BUTTONS switches the set on from standby or directly select a number. 9. PSM (Picture Status Memory) recalls your preferred picture setting. 10. SPLIT ZOOM Enlarge the screen with regular ration. 11. VCR BUTTONS control a LG video cassette recorder.

  • Page 5: Battery Installation

    Location and function of controls 12. INPUT SELECT selects the remote operating mode. switches the set on from standby. 13. I/II POWER selects the language during dual language broadcast. selects the sound output. MULTIMEDIA INPUT SELECT 14. TELETEXT BUTTONS I/II These buttons are used for teletext.
  • Page 6 Location and function of controls Front panel 1. MAIN POWER (ON OFF) 5. POWER ( / I ) switches the set on or off. switches the set on from standby or off to standby. 2. INPUT SELECT selects TV, AV1, AV2, AV3, S-Video, RGB or 6.
  • Page 7 Location and function of controls Back panel EXTERNAL SPEAKER AC INPUT S-VIDEO S-VIDEO L/R 1. EXTERNAL SPEAKER (6 ohm output) 6. RGB INPUT / DVI (Digital Visual Interface) connect to optional external speaker(s). INPUT connect the set output socket of the PER- 2.

  • Page 8: Basic Operation

    Basic Operation On and off 1. Press the main power button to switch the set on. 2. If the set is in standby mode, press the POWER, , MUL- TIMEDIA, INPUT SELECT or NUMBER buttons on the remote control handset to switch it on fully. 3.

  • Page 9: On Screen Menus

    On Screen Menus The dialogue between you and your set takes place on screen with an operator menu. Menu selection 1. Press the MENU button and then button to display each menu. 2. Press the button and then the button to select a menu item.

  • Page 10: Channel Menu

    CHANNEL Menu Up to 100 TV stations can be stored in this set by programme num- CHANNEL bers (0 to 99). Once you have preset the stations, you will be able Auto Programme Manual Programme to use the or NUMBER buttons to scan the stations you pro- Programme Edit grammed.

  • Page 11: Manual Programme Tuning

    CHANNEL Menu Manual programme tuning CHANNEL Auto Programme Manual Programme Programme Edit Manual programme lets you manually tune and arrange the sta- tions in whatever order you desire. Also you can assign a station name with five characters to each programme number. 1.

  • Page 12: Fine Tuning

    CHANNEL Menu Assigning a station name CHANNEL Auto Programme 1. Repeat the ‘Manual programme tuning’ steps 1 to 2. Manual Programme Programme Edit 2. Press the button and then button to select Name 3. Press the button. You can use a blank, , the alphabet and the numeric With the...

  • Page 13: Programme Edit

    CHANNEL Menu Programme edit CHANNEL Auto Programme Manual Programme This function enables you to delete or skip the stored programmes. Programme Edit Also you can move some stations to other programme numbers or copy a blank station data into the selected programme number. 1.

  • Page 14: Calling The Programme Table

    CHANNEL Menu Calling the programme table You can check the programmes stored in the memory by displaying the program table. Displaying program table Press the LIST button to display the Programme table menu. The programme table appears on the screen. 0 - - - - - 5 C 05 1 BLN 2...

  • Page 15: Picture Menu

    PICTURE Menu PSM (Picture Status Memory) PICTURE 1. Press the MENU button and then D / E button to select the PIC- Colour Temp. Contrast TURE menu. Brightness D / E 2. Press the button and then button to select Colour Sharpness PICTURE...

  • Page 16: Manual Colour Temperature Control

    PICTURE Menu Manual Colour Temperature Control PICTURE You can adjust red, green, or blue to any colour temperature you Colour Temp. Contrast prefer. Brightness Colour Sharpness 1. Press the MENU button and then D / E button to select the PICTURE menu.

  • Page 17: Sound Menu

    SOUND Menu SSM (Sound Status Memory) SOUND You can select your preferred sound setting; Flat, Speech, Movie or Treble Music and you can also adjust the sound frequency of equalizer. Bass Balance D / E 1. Press the MENU button and then button to select the SOUND menu.

  • Page 18: Nicam Reception

    SOUND Menu Stereo/Dual reception SOUND When a program is selected, the sound information for the station Treble appears after the program number and station name disappear. Bass Balance Broadcast On Screen Display Mono MONO Stereo STEREO Dual DUAL I SOUND menu Mono sound selection In stereo reception if the stereo signal is weak, you can switch to mono by pressing the I/II button twice.

  • Page 19: Time Menu

    TIME Menu Clock TIME Clock You must set the time correctly before using on/off time function. Off Time On Time 1. Press the MENU button and then D / E button to select the Auto Sleep TIME menu. 2. Press the button and then D / E button to select...

  • Page 20: Auto Sleep

    TIME Menu Auto sleep TIME Clock Off Time If you select on the Auto Sleep menu, the set will automati- On Time Auto Sleep cally switch itself to standby mode approximately ten minutes after a TV station stops broadcasting. 1. Press the MENU button and then D / E button to select the TIME menu.

  • Page 21: Special Menu

    SPECIAL Menu Child lock SPECIAL Language Child Lock The TV can be set so that the remote control handset is needed to Orbiter control it. This feature can be used to prevent unauthorized viewing. Set ID 1. Press the MENU button and then button to select the SPECIAL menu.

  • Page 22: Screen Menu

    SCREEN Menu Auto adjustment (RGB [PC] mode only) SCREEN Auto Configure Automatically adjusts picture position and minimizes image shaking. 1. Press the MENU button and then button to select the Zoom In/Out Position SCREEN menu. Manual Config. 2. Press the button and then button to select Auto...

  • Page 23: Manual Configure (Rgb [Pc] Mode Only)

    SCREEN Menu Picture Size Zoom SCREEN Auto Configure When enlarging or reducing the picture, the screen may be display unnatural picture. Zoom In/Out Position 1. Press the MENU button and then button to select the Manual Config. Screen Adj. SCREEN menu. Reset 2.

  • Page 24: Screen Adjustments

    SCREEN Menu Screen adjustments SCREEN Auto Configure You are available to Screen Adj. in AV1, AV2, AV3 and S-Video Zoom In/Out mode. Use this function to correct jittering or picture instability while Position Manual Config. viewing a video tape. Screen Adj. Reset 1.

  • Page 25: Selecting Wide Xga Mode (Rgb, [Pc] Mode Only)

    SCREEN Menu Selecting Wide XGA mode (RGB, [PC] mode only) SCREEN Auto Configure To see a normal picture, match the resolution of RGB mode and selection of XGA mode. Zoom In/Out Position 1. Press the MENU button and then button to select the Manual Config.

  • Page 26: Pip/Dw Operation

    PIP/DW operation PIP (Picture in Picture) displays a picture within a picture. PIP/DW Input PIP Input Main Picture Source Selection Win. Size Win. Position PIP ARC Inputs can be set for TV, AV1, AV2, AV3, S-Video, RGB or DVI mode. AV mode is used when a video cassette recorder (VCR), or other equipment is connected to the set.

  • Page 27: Input Mode Selection For Sub Picture

    PIP/DW operation Main Picture Size Adjustment PIP/DW Input 1. Press the MENU button and then button to select the PIP/DW menu. PIP Input Win. Size 2. Press the button and then button to select Win. Position PIP ARC PIP/DW Input PIP Input PIP/DW menu Win.

  • Page 28: Pip Aspect Ratio

    PIP/DW operation Moving the Sub Picture PIP/DW Input 1. Press the MENU button and then button to select the PIP/DW menu. PIP Input Win. Size 2. Press the button and then button to select Win. Win. Position Position PIP ARC PIP/DW Input PIP/DW menu...

  • Page 29: Teletext (Option)

    Teletext (option) Teletext (or TOP text) is an optional function, therefore only a set with the teletext system can receive the teletext broadcast. Teletext is a free service broadcast by most TV stations which gives up-to-the-minute information on news, weather, television pro- grammes, share prices and many other topics.
  • Page 30 Teletext (option) TOP text (option) The user guide displays four fields-red, green, yellow and blue at the bottom of the screen. The yellow field denotes the next group and the blue field indicates the next block. Block / group / page selection 1.

  • Page 31: Special Teletext Functions

    Teletext (option) Special teletext functions REVEAL Press this button to display concealed information, such as solutions of riddles or puzzles. Press this button again to remove the information from the display. SIZE Selects double height text. Press this button to enlarge the top half of the page. Press this button again to enlarge the bottom half of the page.

  • Page 32: Connection Of External Equipment

    Connection of external equipment You can connect additional equipment, such as VCRs, camcorders etc. to your set. Here shown may be somewhat different from your set. Aerial socket 1. Connect the RF out socket of the VCR to the aerial socket on the back of the set.

  • Page 33: S-Video/Audio In Sockets (S-Video)

    Connection of external equipment S-Video/Audio in sockets (S-Video) When connecting an S-VIDEO VCR to the S-VIDEO socket, the picture quality will be further improved. 1. Connect the S-Video socket of the VCR to the S-VIDEO sock- et of the set. 2.

  • Page 34: Mounting Speakers On The Set

    Connection of external equipment Mounting speakers on the Set Turn the set off and disconnect the mains plug. 2. Install the speaker on the set with the parts (bracket and bolts) provided. 3. Be sure to connect the positive “+” wire to the “+” input and the negative “-”...

  • Page 35: Displayable Monitor Specification

    Displayable Monitor Specification RGB Mode Horizontal Vertical Horizontal Vertical Frequency Frequency MODE Resolution Frequency MODE Resolution Frequency (KHz) (Hz) (KHz) (Hz) 31.468 70.09 48.363 60.00 640x350 37.861 85.08 56.476 70.06 1024x768 31.469 70.08 60.023 75.02 720x400 37.927 85.03 68.677 84.99 31.469 59.94 54.348...

  • Page 36: Dvi Mode

    Displayable Monitor Specification DVI Mode Horizontal Vertical Horizontal Vertical Frequency Frequency MODE Resolution Frequency MODE Resolution Frequency (KHz) (Hz) (KHz) (Hz) 31.468 70.09 48.363 60.00 640x350 37.861 85.08 56.476 70.06 1024x768 31.469 70.08 60.023 75.02 720x400 37.927 85.03 68.677 84.99 31.469 59.94 54.348...

  • Page 37: External Control Device Setup

    External Control Device Setup Connect the RS-232C input jack to an external control device (such as a computer or an A/V control system) and control the set’s func- tions externally. RS-232C input socket 1. Connect the serial port of the control device to the RS-232C jack on the set.

  • Page 38: Command Reference List

    External Control Device Setup Command Reference List COMMAND 1 COMMAND 2 DATA (Hexadecimal) 01. Power 0 ~ 1 02. Input Select 0 ~ 6 03. Aspect Ratio 0 ~ 2 04. Screen Mute 0 ~ 1 05. Volume Mute 0 ~ 1 06.
  • Page 39 External Control Device Setup 01. Power (Command : a) 04. Screen Mute (Command : d) To control Power On/Off of the TV. To select screen mute on/off. Transmission Transmission [k][a][ ][Set ID][ ][Data][Cr] [k][d][ ][Set ID][ ][Data][Cr] Data 0 : Power Off 1 : Power On Data 0 : Screen mute off (Picture on) 1 : Screen mute on (Picture off)
  • Page 40 External Control Device Setup 08. Brightness (Command : h) 12. OSD Select (Command : l) To adjust screen brightness. To select OSD (On Screen Display) on/off when You can also adjust brightness in the PICTURE controlling remotely. menu. Transmission Transmission [k][l][ ][Set ID][ ][Data][Cr] [k][h][ ][Set ID][ ][Data][Cr] Data...
  • Page 41 External Control Device Setup 16. Split Zoom On/Off (Command : p) 19. Bass (Command : s) To adjust bass. To operate split zoom function and select the split You can also adjust bass in the SOUND menu. zoom section number. Transmission Transmission [k][s][ ][Set ID][ ][Data][Cr]...
  • Page 42 External Control Device Setup 24. Blue Adjustment (Command : $) 27. Orbiter (Command 1 : j, Command 2 : p) To adjust blue in colour temperature. To control the ISM method. You can also adjust Transmission ISM Method in SPECIAL menu. [k][x][ ][Set ID][ ][Data][Cr] Transmission Data Min : 0 ~ Max : 64...

  • Page 43: Troubleshooting Check List

    Troubleshooting check list Symptoms No picture, no sound Sound OK, poor picture Picture OK, poor sound Picture blurred Lines or streaks in picture Poor reception on some channels No colour Poor colour Remote control does not work Incorrect position Vertical bars or stripes on background Horizontal noise Signal Cable message appears Check these items and try to...
