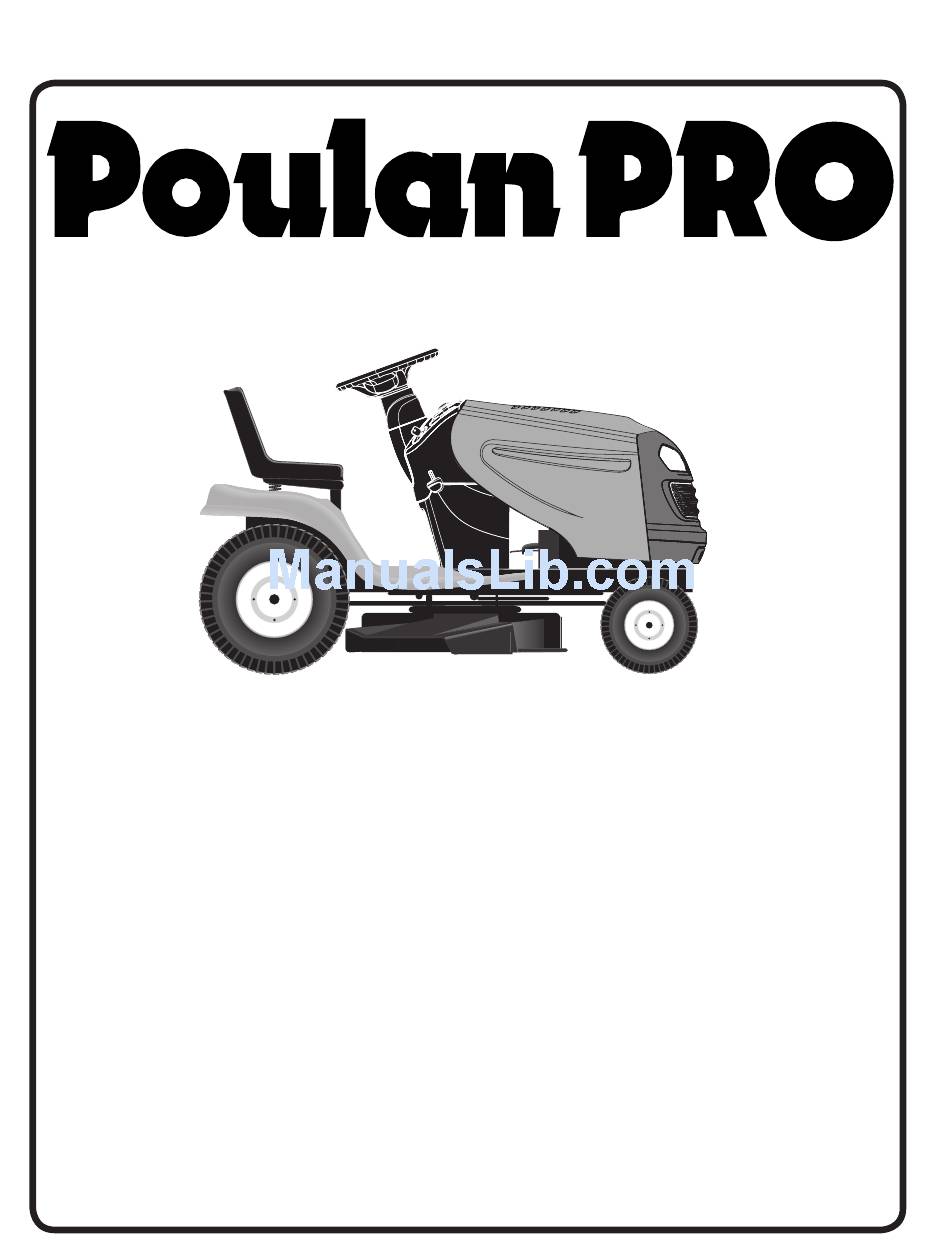

- Page 1 IMPORTANT MANUAL Do Not Throw Away 03076 REPAIR PARTS MANUAL MODEL: PB20H46YT LAWN TRACTOR ALWAYS WEAR EYE PROTECTION DURING OPERATION Visit our website: www.poulan-pro.com 411257 12.18.06 TH...
-
Page 2: Wheels And Tires
TRACTOR - MODEL NO. PB20H46YT (96042003700), PRODUCT NO. 960 42 00-37 DECALS PART PART DESCRIPTION DESCRIPTION 409479 Decal, Replacement 186163 Decal, Hood RH 186164 Decal, Hood LH 408949 Decal, Fender SD LH 172743 Decal, Steering Wheel 408795 Decal, Side Panel... - Page 3 TRACTOR - MODEL NO. PB20H46YT (96042003700), PRODUCT NO. 960 42 00-37 SCHEMATIC 03101-194276-400449_Manual-Tex BATTERY SOLENOID STARTER FUSE BLACK WHITE WHITE ATTACHMENT CLUTCH CLUTCH/BRAKE (CLUTCH OFF) BLACK (PEDAL UP) GRAY REVERSE SWITCH BLACK (NOT IN REVERSE) BLACK BLACK BLACK SEAT SWITCH...
- Page 4 TRACTOR - MODEL NO. PB20H46YT (96042003700), PRODUCT NO. 960 42 00-37 ELECTRICAL 400449...
- Page 5 TRACTOR - MODEL NO. PB20H46YT (96042003700), PRODUCT NO. 960 42 00-37 ELECTRICAL PART DESCRIPTION 163465 Battery 74760412 Bolt Hex Head 1/4-20 x 3/4 193228 Box Battery 176138 Switch Interlock Push-In 183759 Harness Socket Light W/4152J 4152J Bulb Light 401662 Cable Starter...
- Page 6 TRACTOR - MODEL NO. PB20H46YT (96042003700), PRODUCT NO. 960 42 00-37 CHASSIS...
- Page 7 TRACTOR - MODEL NO. PB20H46YT (96042003700), PRODUCT NO. 960 42 00-37 CHASSIS PART DESCRIPTION 194263 Drawbar 199647X428 Dash 183393X428 Hood 183834X599 Lens Grille LH 183828 Grille (Included Key #'s 15,25,191) 183835X599 Lens Grille RH 17060512 Screw 5/16-18 x 3/4 402969X428...
- Page 8 TRACTOR - MODEL NO. PB20H46YT (96042003700), PRODUCT NO. 960 42 00-37 DRIVE...
- Page 9 TRACTOR - MODEL NO. PB20H46YT (96042003700), PRODUCT NO. 960 42 00-37 DRIVE PART PART DESCRIPTION DESCRIPTION 199000 Rod Pedal Control - - - - - - Transaxle, Hydro HG0510 197290 Nut Push .625 (Order Parts from Transaxle 405257 Latch Brake Parking...
- Page 10 TRACTOR - MODEL NO. PB20H46YT (96042003700), PRODUCT NO. 960 42 00-37 STEERING ASSEMBLY...
-
Page 11: Steering Assembly
TRACTOR - MODEL NO. PB20H46YT (96042003700), PRODUCT NO. 960 42 00-37 STEERING ASSEMBLY PART DESCRIPTION 186093X428 Wheel, Steering 195968 Axle Asm., Front 403087 Spindle Asm., LH 403088 Spindle Asm., RH 6266H Bearing, Race Thrust Harden 121748X Washer 25/32 x 1-5/8 x 16 Ga. - Page 12 TRACTOR - MODEL NO. PB20H46YT (96042003700), PRODUCT NO. 960 42 00-37 ENGINE...
- Page 13 TRACTOR - MODEL NO. PB20H46YT (96042003700), PRODUCT NO. 960 42 00-37 ENGINE PART PART DESCRIPTION DESCRIPTION - - - - - - Engine B&S Model No. 192334 Screw Socket HD 5/16-18 x .75 31P977 148456 Tube Drain Oil Easy 137352...
-
Page 14: Mower Deck
TRACTOR - MODEL NO. PB20H46YT (96042003700), PRODUCT NO. 960 42 00-37 MOWER DECK 151 194 46_tex_lt_pred_3... - Page 15 TRACTOR - MODEL NO. PB20H46YT (96042003700), PRODUCT NO. 960 42 00-37 MOWER DECK PART PART DESCRIPTION DESCRIPTION 405050X421 Mower Housing 199478 Arm Brake Mower 405506 Cover Mandrel RH 405139 Linkage Brake 405507 Cover Mandrel LH 198398X421 Handle, Clutch Cable STD624008...
-
Page 16: Seat Assembly
TRACTOR - MODEL NO. PB20H46YT (96042003700), PRODUCT NO. 960 42 00-37 SEAT ASSEMBLY seat-tex_7-vgt PART PART DESCRIPTION DESCRIPTION 406623 Seat 73800500 Nut, Lock 5/16-18 unc 180166 Bracket Pivot Fender 197661 Handle Slide Seat 198200 Spring Latch Seat 140675 Strap, Asm Fender... -
Page 17: Mower Lift
TRACTOR - MODEL NO. PB20H46YT (96042003700), PRODUCT NO. 960 42 00-37 MOWER LIFT lift-tex_5 PART PART DESCRIPTION DESCRIPTION 195223 Shaft Asm., Lift 194208 Pin Cotter 5/16 Bow Tie Lock 195231 Lever Asm., Lift Rh 195181 Link Asm. Lift Rear 196492X421... -
Page 18: Service Notes
SERVICE NOTES... - Page 19 SERVICE NOTES...
