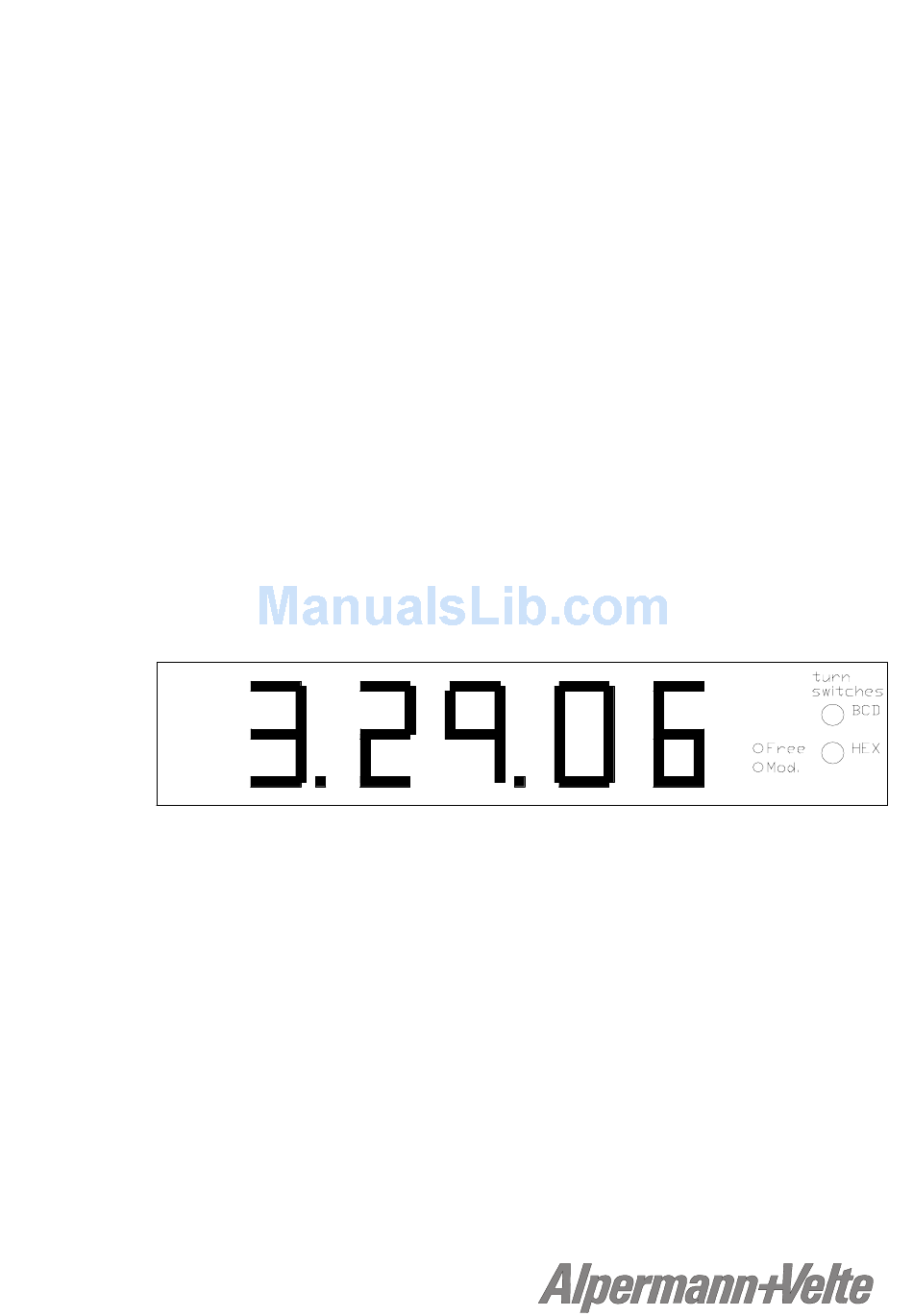

- Page 1 Operating Manual Version: 2.1 May 6, 2002 • Display with built-in GPS receiver • DC input for GPS receiver separated • Output of time/date as serial data and as coded seconds pulses • Optional: Master output to connect analogue clocks GPS D25 R/G/Y 6...
-
Page 3: Table Of Contents
Operating Manual GPS D25 R/G/Y 6 Page 1 TABLE OF CONTENTS Page A1 SAFETY INSTRUCTIONS A2 COPYRIGHT A3 CE-DECLARATION SYSTEM DESCRIPTION OVERVIEW THE BUILT-IN GPS RECEIVER SPECIFICATIONS OF THE GPS RECEIVER CONFIGURATION ANTENNA: MOUNTING, CONNECTING AND TECHNICAL DATA Antenna of type: M/A-COM ANP-C-114-4 Antenna of type: planTec navigation 60 magnet Antenna of type: planTec navigation roof DISPLAYING TIME, DATE AND STATUS INFORMATION... -
Page 4: A1 Safety Instructions
Information in this publication replaces all previously published information. Alpermann+Velte Electronic Engineering GmbH assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained herein. -
Page 5: A3 Ce-Declaration
Operating Manual GPS D25 R/G/Y 6 Page 3 A3 CE-DECLARATION Alpermann+Velte Alpermann+Velte Alpermann+Velte Alpermann+Velte Electronic Engineering GmbH Otto-Hahn-Str. 42 D-42369 Wuppertal, Germany declare under our sole responsibility that the unit GPS D25 R/G/Y 6 meets the intent of the following directives, standards and specifications:... -
Page 6: System Description
Operating Manual GPS D25 R/G/Y 6 Page 4 System Description Overview GPS D25 R/G/Y 6 are displays (7-segment LEDs) of 25mm digit height. R or G or Y responds to the colour of the LEDs: R = red, G = green, Y = yellow. Digit 6 stands for a 6- digit display. -
Page 7: Specifications Of The Gps Receiver
Operating Manual GPS D25 R/G/Y 6 Page 5 such switch-over is not required, the receiver may be switched via internal dip-switch to UTC. Three LED’s indicate the operational status of the receiver: Color Function green Flashing with every internal transmission of a data telegram. FREE Lights up if the receiver is operating in the free-running mode. -
Page 8: Configuration
Operating Manual GPS D25 R/G/Y 6 Page 6 Configuration The GPS receiver may be configured via an 8-fold internal dip-switch. With standard delivery all switches are set to “off“ except switch 7 = “on”. Switch Setting 2400 Baud 4800 Baud 9600 Baud 19200 Baud Data format 7E2... -
Page 9: Antenna Of Type: M/A-Com Anp-C-114-4
Operating Manual GPS D25 R/G/Y 6 Page 7 Antenna of type: M/A-COM ANP-C-114-4 Attention: discontinued product (01/2002). Connect the cable to the antenna with a TNC connector (female at antenna). The TNC connector has a rubber protection against atmospheric exposure. The antenna cable is part of the standard accessory: cable RG 58, length = 10m. -
Page 10: Antenna Of Type: Plantec Navigation 60 Magnet
Operating Manual GPS D25 R/G/Y 6 Page 8 Antenna of type: planTec navigation 60 magnet This antenna’s cable is permanently connected and sealed to the side of the antenna. Type of cable = RG 174 with length ≈ 10m. Technical data Technical data Technical data Technical data... -
Page 11: Antenna Of Type: Plantec Navigation Roof
Operating Manual GPS D25 R/G/Y 6 Page 9 Antenna of type: planTec navigation roof This antenna’s cable is permanently connected and sealed to the bottom of the antenna. Type of cable = RG 174 with length ≈ 10m. Technical data Technical data Technical data Technical data... -
Page 12: Displaying Time, Date And Status Information
Operating Manual GPS D25 R/G/Y 6 Page 10 Displaying time, date and status information Four stages of the HEX turn switch are reserved to display data from the GPS receiver: Mode 4 Displays the time of the GPS receiver. Mode 5 Displays the date of the GPS receiver. -
Page 13: Optional: Master Output And Connecting Slave Analogue Clocks
Operating Manual GPS D25 R/G/Y 6 Page 11 Optional: MASTER output and connecting slave analogue clocks The MASTER output supplies the slave analogue clock with power as well as with time data. The time data are transmitted with coded seconds pulses, in compliance with the coding scheme of DCF77 German radio telegram. -
Page 14: Rear And Technical Data Of The Display
Operating Manual GPS D25 R/G/Y 6 Page 12 Rear and technical data of the display XLR4M XLR4M DSUB9F DSUB9F DC IN GPS Option: RS232 DC IN MAIN Antenna 1: GND 1: GND MASTER Data 1: V+ out 1: P_SEC 4: V+ in 4: V+ in 2: V- 2: TxD...
