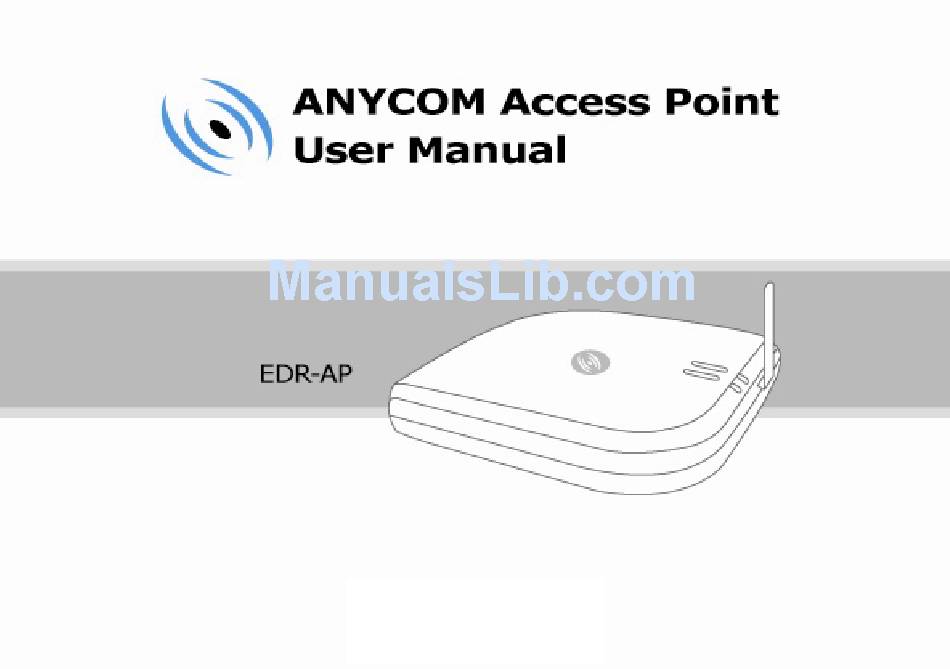

- Page 1 ANYCOM Technologies AG www.anycom.com...
-
Page 2: Table Of Contents
■ Table of Contents 1. EDR-AP KEY FEATURES ..................3 2. PART CHECKLIST ....................3 3. PRODUCT DESCRIPTION ..................4 4. SPECIFICATION ....................5 5. CONTROLS AND FUNCTIONS [BUTTON/LED/PEAR PANEL] ......... 6 6. EDR-AP INSTALLATION ..................9 7. CAUTION ......................11... -
Page 3: Edr-Ap Key Features
EDR-AP supports Bluetooth LAP / PAN / DUN / OPP Gateway. EDR-AP provides a built-in web server for convenient configuration. EDR-AP support private leased lines, ADSL/VDSL modems using PPPoE and cable modems (DHCP). ■ Part Checklist Please check and make sure that you have the following package contents. -
Page 4: Product Description
■ Product Description Please check and make sure that you have all the following package contents. -
Page 5: Specification
■ Specification Name Description Output Power 15 ~ 20 dBm Rx Sensitivity 85 dBm Channel 79 CH Antenna 2.4GHz Band 1/2λSleeve Dipole Antenna Frequency 2402 ~ 2480 MHz Modulation FSK, QPSK Adaptor 5V 1A Max Current 560mA Operating Temperature -20℃~55℃... -
Page 6: Controls And Functions [Button/Led/Pear Panel]
■ Controls and Functions ▌ Button Name Description If you press this button, the LED (Green) blinks and EDR-AP goes to discoverable and pairable Button mode. - Page 7 Other device is connected and new device is under pairable STATUS BLINK mode Power is OFF or Bluetooth is abnormal state mode TCP/IP communication is able mode Green BLINK TCP/IP communication is disable mode Not connecting with the Ethernet * When EDR-AP restarts, every LED blinks several times...
- Page 8 ▌ Rear Panel (From the left to the right side) Name Description Press this button for more than three seconds to restore the original factory default setting of EDR-AP RESET (Reboot: press under three-seconds) Connect the Power Adaptor 5V1A Connect to private leased line, ADSL/VDSL modem, cable model using LAN cable (UTP...
-
Page 9: Edr-Ap Installation
Let’s check the Network cable connection to use the high-speed internet service. Modem ① Pull out the cable from the Ethernet (LAN) port of ADSL modem and connect it to the WAN port at the EDR-AP’s rear panel. ② Connect the power adaptor to the “POWER” port at the EDR-AP rear panel. - Page 10 ③ Connect antenna provided to antenna connecting jack at the side of body. When you connect antenna, twist it on carefully and lastly push it strongly.
-
Page 11: Caution
■ CAUTION Use only the power adaptor supplied. Using other power adaptors may cause the voice quality to deteriorate and malfunction. Install EDR-AP far from wireless LAN/microwave about 1m. If installed close may cause jamming. Use only the antenna provided. -
Page 12: Configuration Using Web Interface
LAP/PAN of EDR-AP and access with Gateway address assigned from the PC. ▌ Checking device’s IP address In case of you don’t know the IP address, you can check the current EDR-AP IP address by configuring IP address of user’s PC. - Page 13 You can configure the Radius authentication method and information. SNMP You can configure the information for the interoperate with SNMP server. Service Mgmt You can configure the ID, Password of the EDR-AP. Factory Reset System reset by factory value System Restart...
- Page 15 Now select and set the appropriate IP configuration parameters that match your network environment from below. (a) Static IP i. Select [Static IP]. ii. Enter the IP, gateway, network mask and DNS address for EDR-AP. (b) DHCP(Dynamic IP) or Cable modem i. Select [DHCP].
- Page 17 Level 3 Level 3 : Security Code(Pin Code) Is requested. Check PIN Code Device Configuration 000000 Access Mode is set for search Select the Sending Power of EDR-AP. Class 1 is the strongest Radio Power Class Class 1 electric wave. PROFIT...
- Page 19 ▌ RADIUS ① Select [Configuration], and then choose [RADIUS] to enter the network configuration page. Default Title Description value Define the number of re-transmission times in case of data Retransmission failures when interoperate with Radius server. Timeout(sec) Set the time interval for Retransmission. 5 sec Authentication Server Set the domain or IP address of Radius Server.
- Page 21 ▌ SNMP ① Select [Configuration], and then choose [SNMP] to enter the network configuration page. Default Title Description Value SNMP activation Activate the SNMP function. enable SNMP Accessibility Check the weather or not to be accessed to the SNMP Server. SNMP GET/SET Set the domain or IP address of SNMP Server.
- Page 23 Following information is only for EU-member states: The use of the symbol indicates that this product may not be treated as household waste. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
-
Page 24: Warranty Information
TWO (2) YEARS from the date of original retail purchase. If a defect is discovered, ANYCOM, will, at its option, repair or replace this product at no charge, provided it is returned within the warranty period, complete with all hardware, cables and software to ANYCOM. - Page 25 The information on this document is provided for informational purposes only and is subject to change without notice. It is provided "AS IS" and without any warranty. Any risk arising out of the use of the information shall remain with the reader. In no event shall ANYCOM be liable for any indirect, consequential, incidental, special,...
